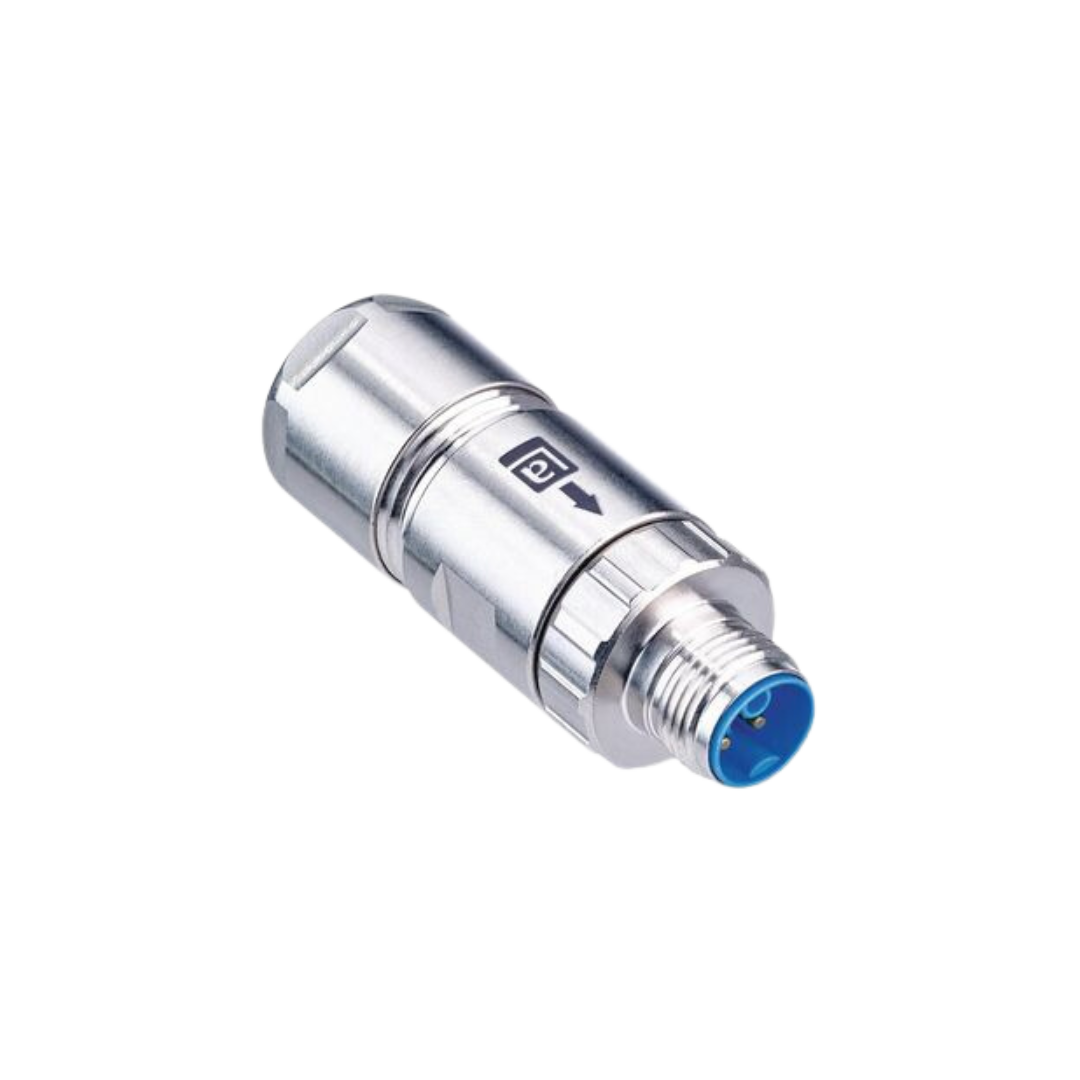

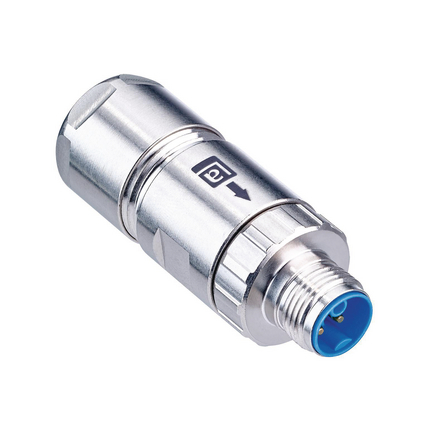

M12 K-Coded Male Field Attachable Power

The M12 Power Field Attachable Connector is designed for robust and reliable performance, especially in demanding environments. With a male straight design and 5 pins (4+PE) configuration, this connector is K-coded and provides excellent shielding. The silver housing enhances durability and protection while accommodating a crimp type connection for secure and stable conductivity. It operates efficiently at 600 V AC/DC, making it ideal for industrial applications. Benefits of the M12 Power Field Attachable Connector include high insulation resistance (˃ 10^9 Ohm), low contact resistance (≤ 10 mOhm), and a high mating cycle capacity (≤ 100 cycles). The product is compliant with UL 94 V-2 flame resistance standards, ensuring safe use in high-temperature conditions ranging from -40 °C to +125 °C. Applications for this connector include its use in automation systems, control units, and mechanical systems where secure and shielded connections are crucial. The IP65 and IP67 protection degrees guarantee that the connector remains reliable in dusty and wet conditions typical of industrial environments.

The M12 Power Field Attachable Connector is designed for robust and reliable connectivity in industrial environments. Featuring a straight, male design with 5-pins (4+PE) and K-coding, this connector ensures secure and efficient power transmission. The silver housing offers a shielded and crimp type connection, supporting 600 V AC/DC applications. With comprehensive shielding for optimal signal integrity, rated for a maximum voltage of 630 V and operating within a temperature range of -40 °C to +125 °C, the connector excels in versatile and demanding applications. Designed for durability, it supports up to 100 mating cycles with excellent protection degrees of IP65 and IP67.
