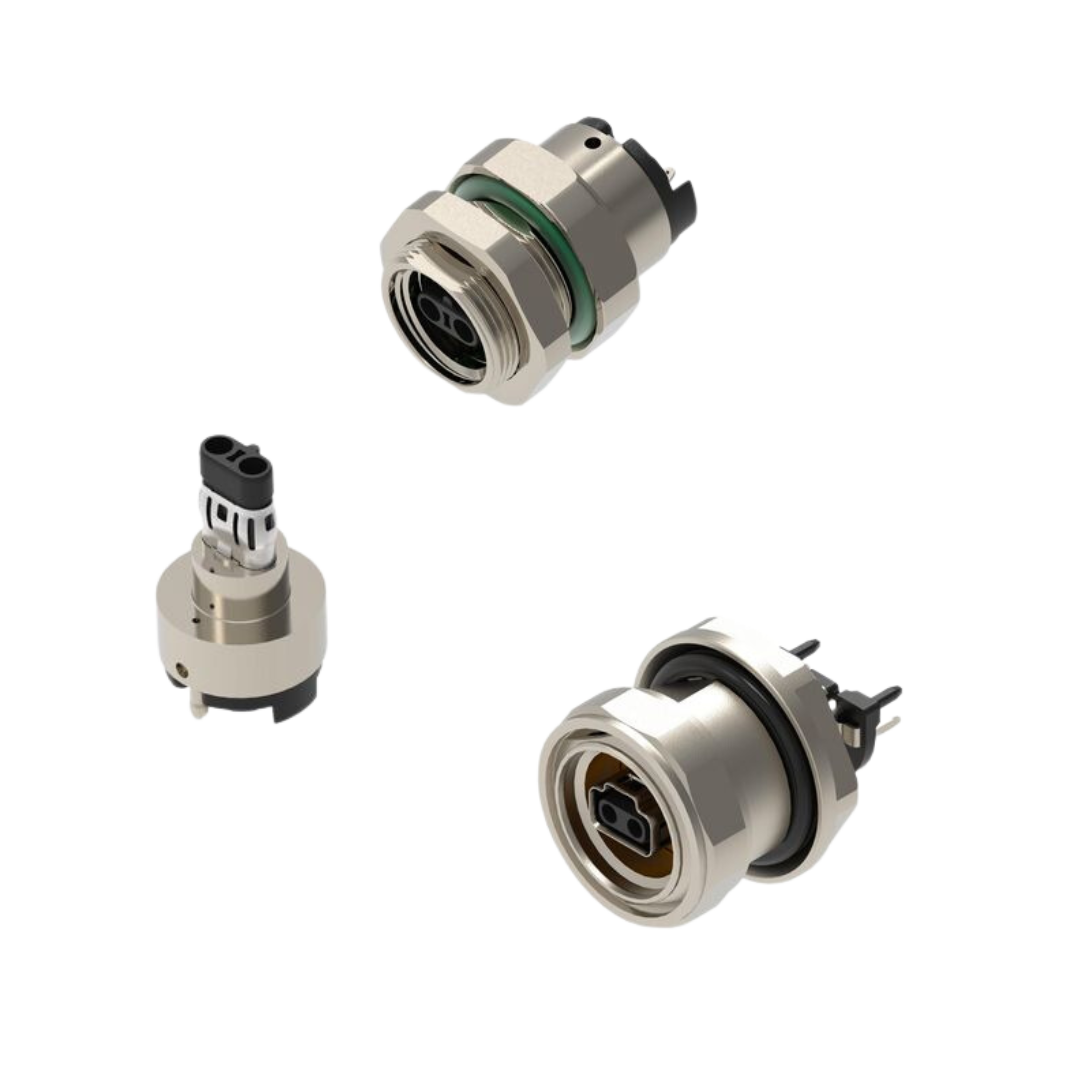

SPE Receptacles

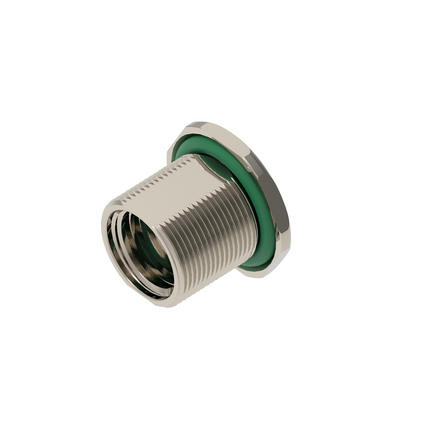

The SPE M8 rear wall mounting screw is designed for secure rear wall mounting applications, with a 7 mm size and packaged in a plastic bag for convenience. Part of the SPE Receptacles family by Lumberg Automation, it features a straight connector design with screw-locking mechanism for reliable connections. The thread size is M10 x 0.5, and it is nickel-plated for durability. The connector operates efficiently up to a maximum temperature of +90 °C and offers IP65 and IP67 protection when properly mounted and locked with a compatible Hirschmann/Lumberg Automation connector. The FKM O-ring ensures a tight seal, and the fastening torque for attachment is specified at 40 Ncm (hand-tight), with housing fastening torque rated between 80-100 Ncm. The SPE M8 rear wall mounting screw is compliant with UL 2238, cULus, RoHS, and China RoHS standards, ensuring safety and environmental compliance.

The SPE M8 SPE PCB insert is a high-quality and robust connector designed for demanding applications. It features a straight, pressfit design with a front wall mounting screw, making it easy to integrate into various systems. With a thread size of M10 x 0.5 and nickel-plated plating, it ensures a secure and durable connection. The connector operates at a rated voltage of 60 V and a rated current of 4A, while maintaining a high data rate of up to 10 Gbit/s. Its insulation resistance surpasses 5x10^8 Ohm, ensuring reliable performance across a wide range of temperatures, from -40°C to +90°C. With an IP65/IP67 protection rating, it offers excellent protection against dust and water when properly mounted and locked in combination with Hirschmann/Lumberg Automation connectors. This makes it suitable for multiple industries, including industrial automation, telecommunications, and data transmission. Compliant with IEC 63171-6 and IEEE standards, the SPE M8 SPE PCB insert is an optimal solution for stable and high-speed data connections.

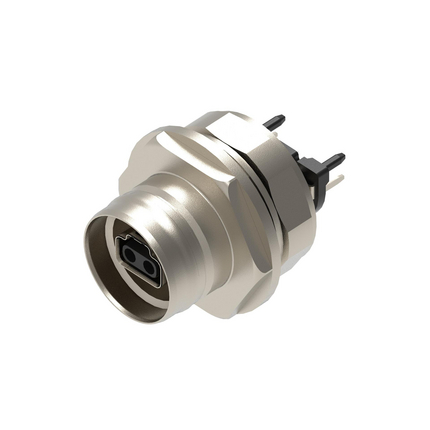

The SPE M12 12.5 mm front wall mounting package is a highly reliable and robust solution for industrial and automation applications. This product features a 12.5 mm PCB insert designed for straight soldering THT, ensuring stable and secure connections. The front wall mounting screw simplifies the installation process, making it ideal for environments that demand quick and secure setups. Packaged in a plastic bag, it offers ease of transport and protection from environmental elements. One of the key benefits of this product is its excellent shielding capabilities, providing reliable data transmission even in electrically noisy environments. It features a nickel-plated M12 x 1 thread for durability and oxidation resistance. The female connector design supports screw-locking or push-pull connections, rated for operating temperatures between -40°C and +85°C and offering an IP65/IP67 protection degree. Capable of high-speed data transmission rates up to 10 Gbit/s, it ensures that it meets the demands of modern network requirements. Additionally, it boasts a high mating cycle of over 1000 cycles, ensuring long-term reliability and reduced maintenance costs. The SPE M12 12.5 mm front wall mounting package is ideal for a wide range of applications, including industrial automation, machine-building, and sensor/actuator connectivity in demanding environments. Its compliance with IEC 63171-6 and IEEE 802.3 standards ensures compatibility with various systems and remote power supply over PoDL. This product is RoHS and China RoHS compliant, ensuring adherence to environmental and safety regulations.

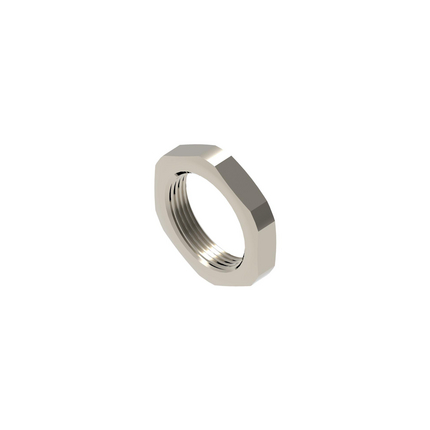

The SPE counter nut M10x0.5 VE10 is a specialized locking component designed for secure fastening in industrial setups. This counter nut from the Lumberg Automation brand is part of the SPE Receptacle M8 Accessories family and features a screw-locking mechanism. With a precise M10 x 0.5 thread size, it fits perfectly to ensure strong and reliable connections. Manufactured with high standards of quality, it's ideal for various automation and industrial applications where secure locking is crucial. The SPE counter nut M10x0.5 VE10 guarantees durability and long-term performance, making it a reliable choice for professionals.

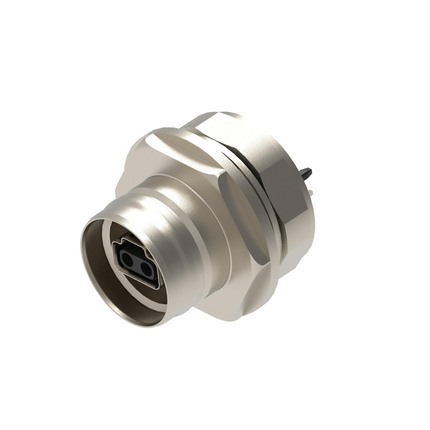

The SPE M12 SPE 8 mm front wall mounting package offers a robust and reliable connection solution for diverse applications. It includes a PCB straight soldering THT 8 mm insert and a front wall mounting screw, all enclosed in a plastic bag package for easy handling. Designed by Lumberg Automation, this female connector features a screw-locking and push-pull mating side, ensuring a secure attachment. The connector is straight in design and is equipped with 2 pins, providing reliable signal transmission. Shielded for additional protection, it operates at 50 V AC/60 V DC with a rated voltage of 60 V and a current rating of 4A. The insulation resistance exceeds 5x10^8 Ohm, ensuring excellent electrical performance. With an IP65/IP67 protection rating, it is suitable for demanding environments, supporting an ambient temperature range of -40°C to +85°C. The connector meets IEC 63171-6 and IEEE 802.3 standards, making it ideal for applications requiring high data rates and reliable performance. The thread size is M12 x 1, nickel-plated for durability, and it supports mating cycles of over 1000, promising long-term use.

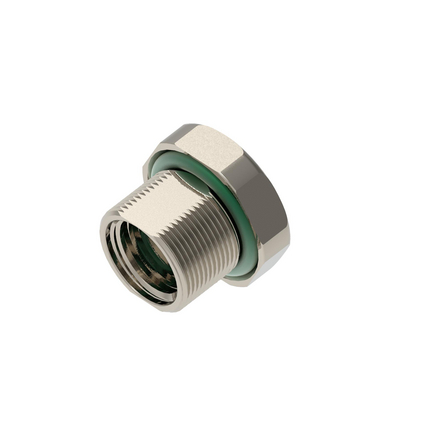

The SPE M8 rear wall mounting screw is an essential accessory for securing connectors in various industrial applications. This screw features a thread size of M10 x 0.5 and is nickel-plated for enhanced corrosion resistance. It is engineered with a straight connector design, ensuring reliable and secure connections with screw-locking mechanisms. The FKM O-ring offers optimal sealing, enhancing the longevity and performance of your connections. Suitable for environments requiring IP65 and IP67 protection, this mounting screw can withstand harsh conditions and maintain integrity up to temperatures of 90°C. The package includes an 8 mm screw presented in a convenient plastic bag, ensuring ease of use and storage.

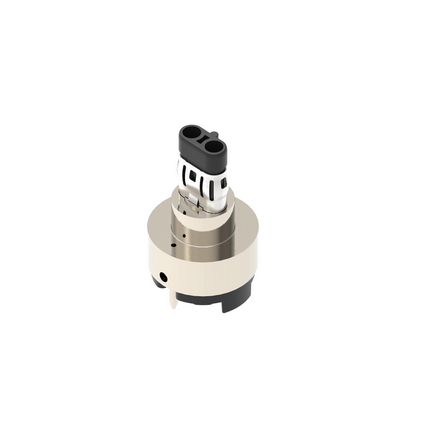

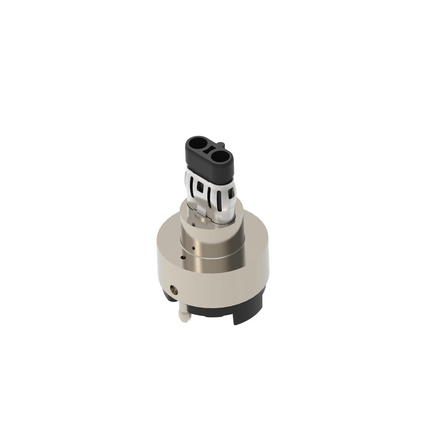

The SPE M8 PCB insert is an essential component for precise and reliable electronic connections. Designed in a straight configuration, this insert is suitable for 7/8/9 mm pressfit applications. Featuring a female contact with robust nickel coating, it ensures excellent conductivity and durability. With a rated voltage of 60V and current capacity of up to 4A, this insert supports high-performance operations. The shielding offers protection against interference, and it ensures data integrity at transmission rates up to 10 Gbit/s. Constructed with high-quality materials such as Cu alloy and PA for contact base and bearer, it guarantees long-lasting performance. Additionally, it adheres to the IEC 63171-6 and IEEE 802.3bu design standards, making it a highly reliable choice for professional use.

The SPE M8 SPE PCB insert is a superior quality, straight connector designed for effective and reliable performance in various applications. This insert, made by Lumberg Automation, features soldering connectivity and a front wall mounting screw that spans 12 mm. Created as part of the SPE Receptacles family, it showcases a screw-locking mating side and possesses two pins. With a female contact type and shielded design, it supports a range of data rates from 10 Mbit/s to 10 Gbit/s and has robust voltage ratings and insulation resistance. This product is RoHS and China RoHS compliant, ensuring safety and environmental standards are met. It operates efficiently within a temperature range of -40°C to +90°C and adheres to IP65 and IP67 protection degrees when properly mounted.

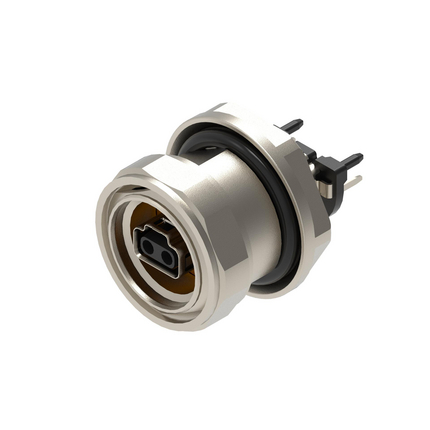

The SPE M12 SPE 11.3 mm rear wall mounting package is a high-quality solution designed by Lumberg Automation to meet advanced connectivity needs. It features a durable PCB straight soldering THT 12.5 mm insert which allows for robust and reliable connections. The rear wall mounting screw ensures the connector is securely attached, making it suitable for various industrial applications. Encased in a plastic bag package for protection, this female connector supports both screw-locking and push-pull design techniques. Rated up to 60V and 4A with a low contact resistance of ≤ 20 mOhm, it guarantees strong signal performance with outstanding shielding of ≤ 100 mOhm. This IP65/IP67-rated product operates efficiently in temperatures ranging from -40°C to +85°C. Compliant with IEC 63171-6 and IEEE 802.3 standards, it offers high data transmission rates up to 10 Gbit/s, making it ideal for high-speed data needs.

The SPE M8 rear wall mounting screw, with a 9 mm thread size, is designed for secure rear wall mounting applications. Made of high-quality nickel-plated material, it ensures durability and resistance to corrosion. This screw features a screw-locking design that guarantees a tight, reliable connection. It is compatible with Hirschmann/Lumberg Automation connectors, providing a high level of security with an IP65/IP67 protection rating when properly mounted and locked. The O-ring made of FKM ensures a perfect seal against dust and moisture. It is RoHS and China RoHS compliant, and can operate in temperatures up to +90°C. Perfect for industrial automation applications, this product comes in a convenient plastic bag package.

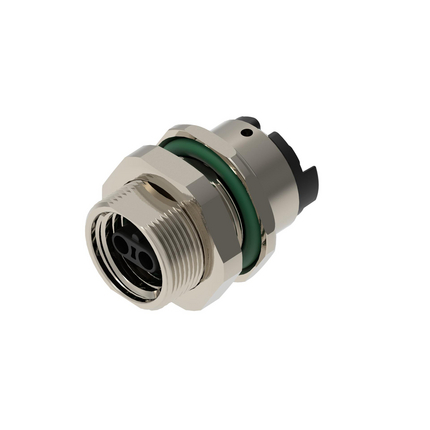

The SPE M8 SPE PCB insert, straight, pressfit, front wall mounting screw, 7 mm, is designed for secure and efficient connections in demanding environments. This Lumberg Automation brand connector features a screw-locking mating side and a pressfit connecting side. With 2 pins and a robust shielding rated for 60 V AC/DC and 4A, it ensures reliable conductivity and minimal resistance at 10 mOhm. Operating within a temperature range of -40°C to +90°C, it offers excellent insulation resistance (˃ 5x10^8 Ohm) and adheres to IEC 63171-6 standards. The connector can handle data rates up to 10 Gbit/s with minimal contact resistance, suitable for various applications like industrial automation and data transmission systems. Moreover, it boasts an IP65 and IP67 protection rating, ensuring durability under challenging conditions.

The SPE M8 PCB insert, by Lumberg Automation, is a high-performance connector specifically designed for printed circuit boards. This straight insert supports 7/8/9 mm soldering and comes in a plastic bag package for protection. It features two pins with a female gender and is shielded to ensure optimal performance. The connector is rated for voltages up to 60 V AC/DC and currents up to 4A, with a contact resistance of ≤ 10 mOhm and an insulation resistance of ˃ 5x10^8 Ohm. It can handle operating temperatures from -40°C to +90°C. The SPE M8 PCB insert adheres to IEC 63171-6 and IEEE 802.3 standards, supporting Power over Data Line (PoDL) and multiple data transmission rates up to 10 Gbit/s. The insert is made from Cu alloy with Cu/Au plating and features a PA material black contact bearer. The product is RoHS and China RoHS compliant.

The SPE M12 SPE 6.8 mm rear wall mounting package is designed for robust and reliable connections in automation systems. It includes a 6.8 mm PCB straight soldering THT insert and a rear wall mounting screw. This package comes housed in a plastic bag for protection. The connector is female, straight, and shielded, providing a secure connection. With a rated voltage of 60V and an operating voltage of 50V AC / 60V DC, it supports high-speed data transmission up to 10 Gbit/s. The device assures excellent durability, achieving over 1000 mating cycles, and meets stringent protection standards with IP65 and IP67 ratings. Ideal for harsh industrial environments, it operates efficiently between -40°C and +85°C. Compliance with standards like IEC 63171-6 and IEEE 802.3 ensures it meets modern connectivity requirements.

The SPE M12 SPE 10.95mm front wall mounting package is a high-quality SPE receptacle with a PCB angled soldering THT insert and a front wall mounting screw. Packaged in a plastic bag for protection, this assembly is ideal for various industrial applications. The connector is angled and designed to resist the harshest environmental conditions, offering significant protection with its IP65 and IP67 ratings. The SPE M12 is designed to meet stringent industry standards, including IEC 63171-6 and IEEE 802.3bu and 802.3cg. Benefits of this product include its shielded design for improved performance, robust nickel-plated thread plating, and reliability for higher data rates up to 10 Gbit/s. The product is RoHS compliant, ensuring it meets rigorous environmental safety standards and ensures reliable operation across a broad temperature range (-40°C to +85°C). Applications of the SPE M12 package are broad and include industrial automation, data communication, and remote power supply over data lines. Designed for at least 1000 mating cycles, this package ensures durable and reliable connections in various demanding environments.

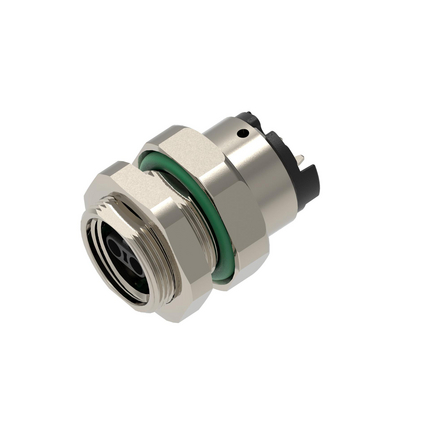

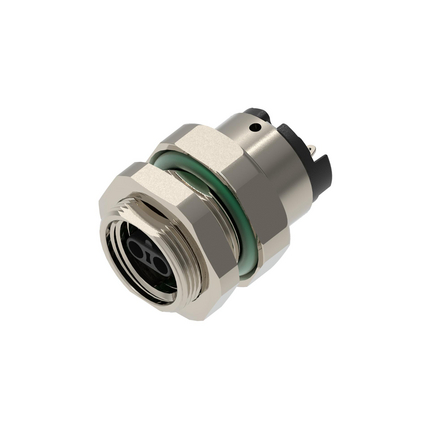

The SPE M8 SPE PCB insert, manufactured by Lumberg Automation, is a high-precision connector designed for sophisticated electronic applications. This straight, pressfit insert offers a sturdy front wall mounting with a screw and fits a 12 mm interface. Key specifications include screw-locking on the mating side, pressfit connection, and a robust shielded design. The connector is rated for 60 V, operating at voltages up to 50 V AC / 60 V DC, and supports data rates from 10 Mbit/s to 10 Gbit/s. With a contact resistance of ≤ 10 mOhm and insulation resistance ˃ 5x10^8 Ohm, it ensures reliable performance across various conditions. The connector has an IP65/IP67 protection rating, ensuring durability in demanding environments. Specific applications include Ethernet communication systems, automation controls, and power distribution over data lines as per IEEE 802.3 standards.

The SPE M8 PCB insert, straight, is a crucial component in PCB assemblies, designed for soldering via reel packages. It features a range of 7/8/9 mm dimensions, making it versatile for various applications. The insert offers two pins, a female connector, and a straight design. It is manufactured by Lumberg Automation and is part of the SPE receptacles family. This insert provides excellent shielding with nickel-plated thread plating and can handle a rated voltage of 60V (UL) and operating current of 4A (UL). With an insulation resistance greater than 5x10^8 Ohms and a testing voltage of 1 kV DC pin to pin, it ensures reliable performance. The contact base material is Cu alloy with Cu/Au plating, ensuring durability and efficiency. It complies with IEC 63171-6, IEEE 802.3bu, and IEEE 802.3cg standards. The insert is UL and cULus compliant, RoHS and China RoHS-compliant, and operates within a temperature range of -40°C to +90°C.

The SPE M8 PCB insert is a critical component designed for high-performance applications. This connector, specifically engineered for a straight 7/8/9 mm pressfit in a reel package, forms part of the SPE Receptacles family, under the SPE Receptacle M8 Insert sub-family. It features a female pressfit connection, ensuring secure and stable connectivity. The connector design is straight with a 2-pin configuration, offering reliable performance at rated voltages of 60 V AC/DC and rated currents of up to 4A. The product boasts impressive characteristics, including a contact resistance of ≤ 10 mOhm and insulation resistance of ˃ 5x10^8 Ohm. It can handle a transmission frequency up to 4 GHz and data rates ranging from 10 Mbit/s to 10 Gbit/s. The connector is well-shielded and can withstand testing voltages of 1 kV DC (pin to pin) and 2.25 kV DC (pin to shield). Built for durability, the SPE M8 PCB insert operates efficiently within an ambient temperature range of -40°C to +90°C and conforms to design standards IEC 63171-6, IEEE 802.3bu, and IEEE 802.3cg. It maintains a high level of safety and environmental compliance, being both RoHS and China RoHS compliant. This insert is essential for various industrial applications, particularly those requiring robust data transmission and power over data lines.
