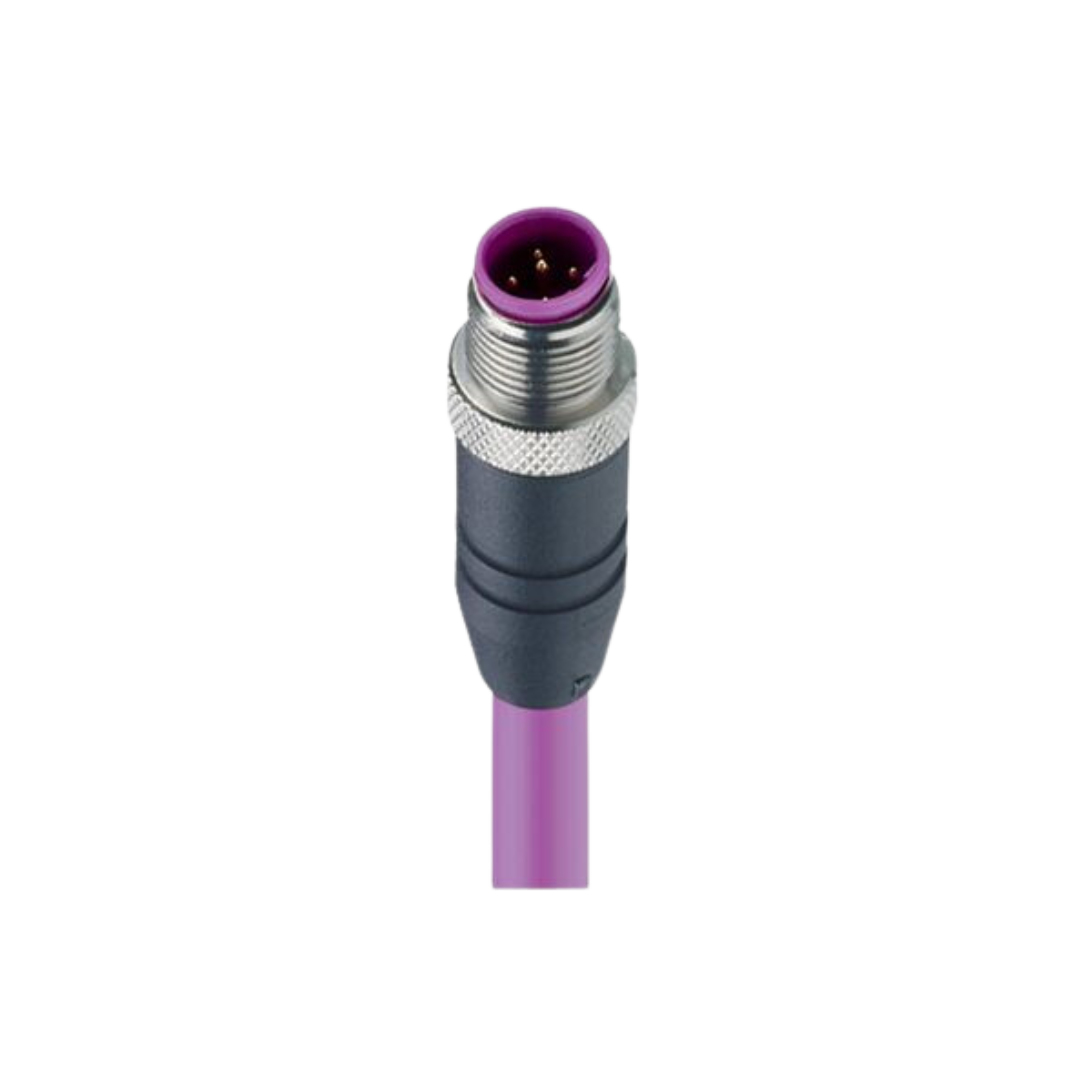

M12 B-Coded Male PUR Violet Profibus

The PROFIBUS Data Single-Ended Cordset is a comprehensive solution designed for efficient data transmission in industrial environments. Equipped with an M12 standard connector, this male, straight, 5-pin, B-coded, and shielded cordset ensures stable connections with its robust coupling screw attachment. It operates effectively within voltage ranges of 50 V AC and 60 V DC with a rated current of 4 A. The contact resistance is ≤ 10 mOhm, and it comes with a durable black TPU body, PUR violet cable, and superior shielding made of CuZn and tinned Cu-ETP1. The cordset offers exceptional resistance to chemicals and oils, maintains flexibility even in cold temperatures, and sustains up to 1 million bending cycles, ensuring longevity and reliability.

The PROFIBUS Data Single-Ended Cordset features an M12 Standard male connector with a straight design, 5-pin setup, and B-coding. This cordset is shielded for enhanced signal integrity and is rated for 50 V AC / 60 V DC with a current rating of 4 A. The black-bodied connector is accompanied by a durable PUR violet cable with two wires, each being 0.34 mm². This cordset offers reliable data transmission in industrial environments, specifically designed for PROFIBUS applications, ensuring high-performance connectivity and longevity. The benefits of this cordset include its robust shielding that minimizes electrical interference, ensuring stable and accurate data transmission. Its durable PUR jacket provides excellent resistance to chemicals, oils, and environmental factors, making it suitable for harsh industrial settings. The cordset is designed to withstand a temperature range from -25°C to +80°C, ensuring reliable performance in various climates. Applications include use in industrial automation systems, robotics, and data communication links requiring PROFIBUS connectivity. Its high durability and reliable performance make it ideal for use in manufacturing facilities, process control systems, and other environments where robust and stable data connections are crucial.

The PROFIBUS Data Single-Ended Cordset is designed for reliable data transmission with an M12 Standard connector, featuring a straight, 5-pin, B-coded design. The male end ensures secure connections, while its shielded black body enhances durability under various conditions. Rated for 50 V AC / 60 V DC and a current of 4 A, this cordset is suitable for demanding industrial applications. The PUR violet cable with 2-wires of 0.34 mm² ensures flexibility and resilience, even in challenging environments. Notably, it supports a broad ambient temperature range from -25 °C to +80 °C, with an IP65 and IP67 protection degree, making it highly reliable. Ideal for PROFIBUS data transmission, this product is constructed with high-quality materials, including a CuZn contact base, Cu/Au plating, and CuZn shielding, ensuring long-lasting performance and safety compliance.

The PROFIBUS Data Single-Ended Cordset is designed for reliable industrial data transmission. This M12 standard connector features a 5-pin, B-coded, shielded, male, straight design with a black body. The cordset operates at 50 V AC / 60 V DC and supports a rated current of 4 A. Its robust construction includes a PUR violet cable with 2-wires at 0.34 mm², ensuring resistance to chemicals, oils, and extreme temperatures. The cordset maintains high insulation resistance (˃ 10^9 Ohm) and low contact resistance (≤ 10 mOhm), suitable for various industrial applications with an IP65/IP67 protection rating, guaranteeing durability and reliability.

The PROFIBUS Data Single-Ended Cordset is equipped with an M12 Standard, male, straight, 5-pin, B-coded configuration, and comes with a shielding black body. It offers robust electrical specifications with a rating of 50 V AC / 60 V DC and 4 A. The cordset features a PUR violet cable with 2-wires, each with a conductor size of 0.34 mm². This cordset is shielded to ensure data integrity and is suitable for various industrial applications including PROFIBUS data transmission. The design adheres to IEC 61076-2-101 standards, ensuring reliable performance in terms of contact resistance, insulation resistance, and operating temperature ranges (-25 °C to +80 °C). The connector is rated IP65 and IP67 when properly mounted, making it a robust choice for harsh environments. The PUR cable jacket is flame-retardant and resistant to chemicals, oil, microbes, and hydrolysis, ensuring long-term durability and flexibility.

The PROFIBUS Data Single-Ended Cordset features an M12 Standard, male, straight connector with 5 pins and B-coded shielding. The connector has a black body and can handle 50 V AC or 60 V DC, with a rated current of 4 A. The cordset includes a flexible, durable PUR violet cable with two 0.34 mm² wires. This cordset is suited for data transmission in PROFIBUS systems, ensuring low contact resistance (≤ 10 mOhm) and high insulation resistance (˃10^9 Ohm). The M12 connector's coupling screw ensures secure attachment, and its robust design is IP65 and IP67 rated, suitable for use in harsh environments. The cable exhibits excellent resistance to chemicals, oils, and microbial degradation, making it ideal for industrial applications.

The PROFIBUS Data Single-Ended Cordset is designed for high-performance data transmission. This cordset comes with an M12 male connector that is straight and B-coded, ensuring efficient connectivity. With its 5-pin configuration and a shielded black body, this cordset is both robust and reliable, offering protection against external interference. It is rated for 50 V AC / 60 V DC with a current rating of up to 4 A. The violet PUR cable with a cross-sectional area of 0.34 mm² and 2 wires ensures durability and flexibility, suitable for various industrial applications. The primary advantage of this cordset is its reliable construction, which includes shielding to reduce electromagnetic interference, enhancing data transmission quality and reliability. The cordset's black body and color-coded wires (red and green) provide easy installation and identification. The product is also designed to withstand harsh environmental conditions with an IP65 and IP67 protection rating and a wide operating temperature range. Ideal for industrial automation systems, the PROFIBUS Data Single-Ended Cordset can be used in a variety of applications including manufacturing, robotics, and any PROFIBUS-compatible systems. It ensures seamless communication and data transfer between devices, making it an essential component for efficient and effective industrial operations.

The PROFIBUS Data Single-Ended Cordset is an efficient and reliable panel connector designed with an M12 standard, featuring a male, straight 5-pin B-coded plug. It is shielded with a robust black body ensuring optimal performance within 50 V AC / 60 V DC at 4 A. The cordset includes a durable PUR violet cable with a diameter of 7.60 ± 0.30 mm, containing two wires each with a 0.34 mm² conductor size. This connector is suitable for various industrial applications, guaranteeing high performance, IP65, and IP67 protection ratings. The plug is equipped with a CuZn contact base material, coupled with gold-plated contacts enhancing electrical connectivity and longevity. It's ideal for data transmission in PROFIBUS environments, with good resistance to chemicals, oils, and other challenging conditions, making it perfect for use in harsh industrial settings.

The PROFIBUS Data Single-Ended Cordset is a high-quality connector designed for precise data transmission. It features an M12 standard male connector, straight design, with 5 pins and B-coding. The cordset is shielded and has a black body, ensuring robust protection and reliable performance. It supports a voltage of 50 V AC / 60 V DC and a current rating of 4 A, making it suitable for various industrial applications. The attachment uses a coupling screw for secure connections. The PUR violet cable, measuring 7.60 ± 0.30 mm in diameter, is engineered with 2 wires of 0.34 mm². This combination ensures flexibility, durability, and resistance to various environmental factors, including temperature variations ranging between -25 °C to +80 °C for operation. Additionally, it meets IP65 and IP67 protection degrees, providing excellent resistance against water and dust. The cordset adheres to IEC 61076-2-101 design standards and complies with several flammability and environmental standards, making it a reliable choice for industrial settings.

The PROFIBUS Data Single-Ended Cordset offers a reliable connection, designed to withstand challenging industrial conditions. It features an M12 Standard, 5-pin male, straight, B-coded connector which is shielded to prevent electromagnetic interference. This cordset supports a voltage rating of 50 V AC / 60 V DC and a current rating of 4 A. The connector's black body adds durability, while its coupling screw attachment ensures a secure connection. The attached PUR violet cable with 2-wires of 0.34 mm² is known for its excellent chemical and oil resistance, making it ideal for a wide operational temperature range from -25°C to +80°C. Additionally, the cordset is RoHS compliant, free from hazardous materials, and designed to provide excellent cold flexibility and flame retardant properties.

The PROFIBUS Data Single-Ended Cordset is designed with an M12 Standard, male, straight connector featuring 5 pins and B-coding. This shielded cordset ensures reliable data transmission with a black body that supports 50 V AC / 60 V DC voltage and 4 A current. The PUR violet cable, comprising 2 wires of 0.34 mm², is optimized for robustness and data integrity. Notably, it complies with high standards, including IP65 and IP67 protection ratings, making it ideal for demanding industrial environments.

The PROFIBUS Data Single-Ended Cordset M12 Standard is a high-quality cable solution for data transmission in industrial applications. The male, straight, 5-pin, B-coded connector ensures reliable connections and optimal signal integrity, enhanced by its shielded construction. This cordset is rated for 50 V AC / 60 V DC and a current of 4 A, capable of handling demanding electrical environments. The cable itself is a robust PUR violet, featuring 2 wires each with a conductor size of 0.34 mm², and is highly resistant to chemicals, oil, and mechanical stress due to its coldness flexibility and halogen-free nature, making it suitable for dynamic and fixed installations alike. Ideal for environments requiring high protection degrees (IP65 and IP67), this cordset meets IEC 61076-2-101 standards and ensures long-term durability and performance in various PROFIBUS installations.

The PROFIBUS Data Single-Ended Cordset is a high-quality connection solution featuring an M12 standard, male, straight, 5-pin, B-coded, shielded connector. With a black body and a robust PUR violet cable, this cordset is designed to meet rigorous industrial requirements. It supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. The cable is made of durable materials, including a CuZn contact base and a Cu/Au plating, ensuring minimal contact resistance and high insulation resistance. This cordset is ideal for PROFIBUS data transmission, offering reliable and secure connections in various industrial environments. The cordset's IP65 and IP67 protection ratings ensure it can withstand harsh conditions, making it suitable for both indoor and outdoor applications.
