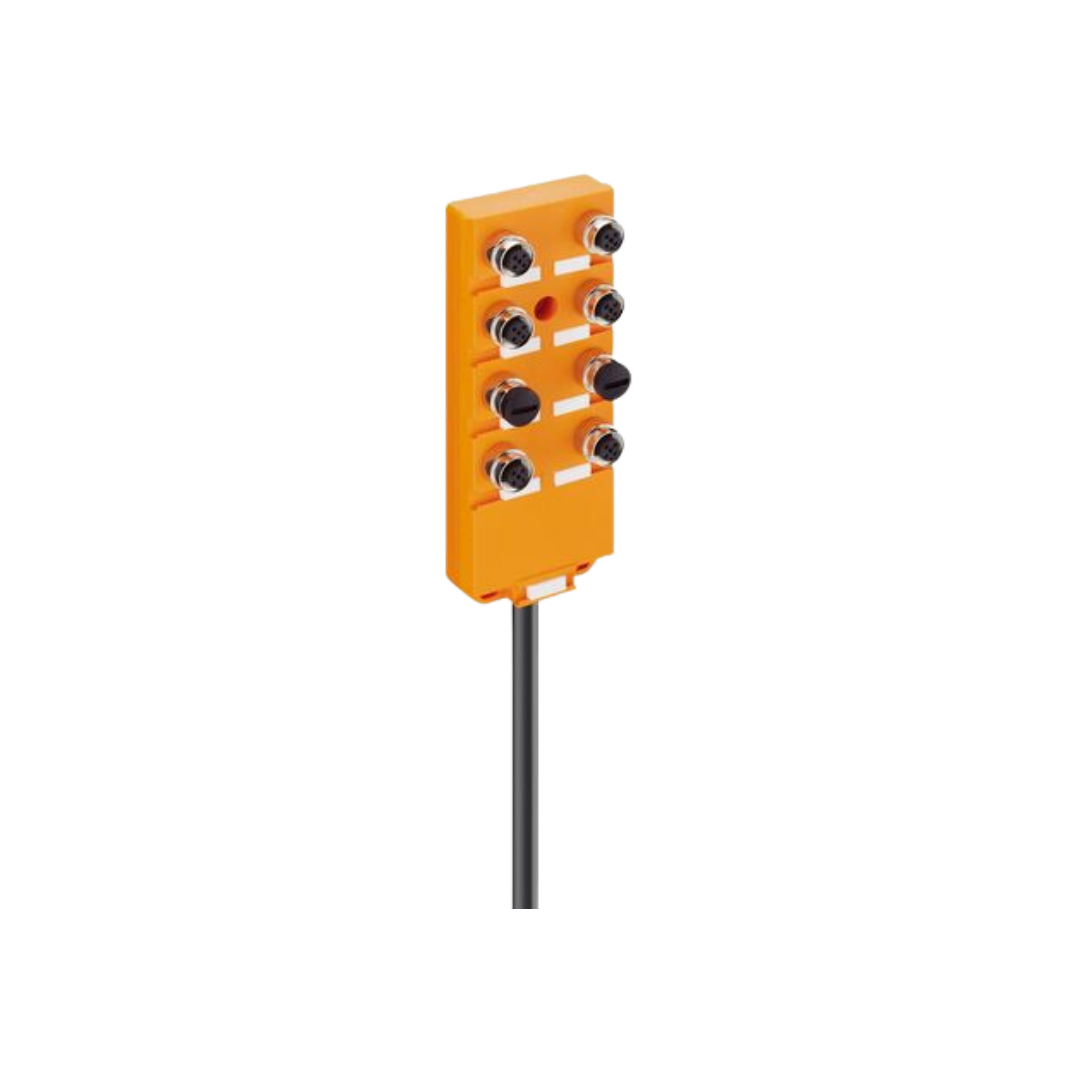

8 ports M12 Actuator / Sensor Distribution Box with Cable

The ASB unit is a robust and reliable connectivity solution designed for industrial applications. Featuring 8 ports with M12 connectors, A-coded with 4/3 pins, the unit offers seamless integration for various control systems. The compact design and plastic TPU housing ensure durability and resistance to environmental stresses. With an IP67 protection rating, the ASB unit is well-suited for challenging environments, providing reliable performance in temperature ranges from -15 °C to 80 °C, and it is potted for enhanced protection. The 1 1/8" control cable interface with 19-poles enhances connectivity options, making it a versatile choice for complex wiring needs. The color-coded LED indicators for system supply and port status ensure easy monitoring and troubleshooting.

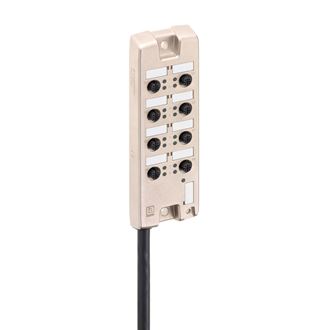

The LioN-R passive module, featuring 8 ports with double I/O per port, is a robust solution for industrial automation needs. Housed in a durable zinc die-cast metal case with a nickel-matte finish, this module is built to withstand harsh environments with an IP65/IP67 protection rating. The compact dimensions (60 mm x 21 mm x 185 mm) and two-hole screw mounting make it easy to install in various settings. The module supports a wide temperature range of -40°C to 80°C (UL: 60°C), ensuring reliable operation under extreme conditions. The M12, 5-poles A-coded connectors provide secure and reliable I/O connections, with a maximum current of 1.5 A per connector and module. LED indicators facilitate easy status monitoring of both system and port levels. Compliant with CE, RoHS, and China RoHS standards, the LioN-R passive module ensures safety and environmental compliance. It includes PNP sensor compatibility and galvanically isolated digital output channels, enhancing system integrity and safety.

The ASB 8-S3064 is an advanced 8-port I/O module designed for robust industrial applications. Featuring M12, 5-pole, A-coded connectors, it ensures secure and reliable connections. The module is housed in durable plastic TPU material, offering an IP67 rating which provides excellent protection against dust and water when used with compatible connectors. The operation temperature ranges from -15 °C to 80 °C, making it suitable for various extreme environments. It also includes LED indicators for easy monitoring of system and port status, enhancing operational efficiency. This module complies with CE and RoHS regulations, ensuring high safety and environmental standards. Suitable for use in control systems and automation networks.

The ASB 8-S3064 by Belden is a classic, reliable I/O connection module, boasting 8 ports with M12, 5-poles, A-coded connectors and an open-ended control cable interface. Crafted from durable TPU plastic, the unit measures 60 mm x 25 mm x 152 mm and is designed for environments with temperature ranges from -15 °C to 80 °C. It holds an IP67 rating for dust and water protection when correctly mounted and locked with appropriate connectors. With a nominal actuator supply voltage of 24 V DC and the ability to handle a current of up to 1.5 A per connector and module, this module is versatile and efficient. It features LED status indicators for system supply and individual port channels, aiding in easy diagnostics and monitoring.

The ASB with FIXCON connector is an innovative solution for industrial automation, featuring 8 ports with double I/O per port. Each port uses M12, 5-poles connections, A-coded. The housing is constructed from durable plastic (TPU) and carries an IP67 rating, ensuring resistance to dust and water when properly mounted with Hirschmann/Lumberg Automation connectors. The open-ended control cable interface allows for flexible configurations. This compact unit measures 60 mm x 30.3 mm x 152 mm and operates efficiently in temperatures ranging from -15 °C to 80 °C. Convenient LED indicators show system and port status, while the device supports a wide actuator supply voltage range from 10 V DC to 30 V DC.

The ASB with FIXCON connector is an advanced distribution box designed to facilitate efficient connectivity in industrial environments. With 8 ports and double I/O per port, it offers substantial versatility for complex control systems. The connector supports M12, 5-poles, A-coded connections, making it adaptable for various industrial applications. The durable plastic housing, rated to IP67, ensures reliable performance in demanding conditions, while the LED indicators provide clear status updates for system and port status. The device operates effectively in temperatures ranging from -15 °C to 80 °C, making it suitable for a wide range of applications. Additionally, the unit complies with key safety standards including CE, RoHS, and UL certifications.

The ASB with FIXCON connector, 8 ports, double I/O per port, is a versatile and robust connectivity solution ideal for complex automation systems. Manufactured by Belden, this unit includes M12, 5-poles, A-coded I/O connections, ensuring secure and reliable data transmission. The housing, made from plastic (TPU) and colored orange, provides a high level of durability and visibility. The IP67 rating assures dust and water resistance when securely mounted and locked with Hirschmann/Lumberg Automation connectors. The device operates efficiently within a temperature range of -15 °C to 80 °C and supports various digital input/output configurations, making it suitable for a wide range of industrial applications. The ASB with FIXCON connector benefits users through its double I/O per port design, allowing for enhanced connectivity options and more flexible system configurations. It has a maximum current capacity of 1.5 A per connector and per module, and includes LED status indicators for both the system supply and individual ports. The actuator supply voltage ranges from 10 V DC to 30 V DC, catering to different power requirements while maintaining operational stability. This product is ideal for use in manufacturing automation, process control, and other industrial environments requiring robust and reliable connectivity solutions. Its compliance with CE, RoHS, and UL standards ensures it meets the necessary regulatory requirements for safety and environmental impact.

The ASB with FIXCON connector presents a reliable and efficient solution for industrial automation needs. Featuring 8 ports with double I/O per port, this module utilizes M12, 5-poles, A-coded connections. Its robust plastic TPU housing, colored in bright orange, ensures high visibility and durability. The device boasts an IP67 rating, ensuring protection against dust and water ingress, making it suitable for harsh industrial environments. It operates within a temperature range of -15 °C to 80 °C and is CE and RoHS compliant. This connector provides clear status indicators for system supply and port activities via green LEDs. Its actuator supply voltage ranges from 10 V DC to 30 V DC, with a nominal voltage of 24 V DC (SELV/PELV). It supports various input wiring configurations—2-wire, 3-wire, and 4-wire—and accommodates PNP sensor types. For output, it supports 2-wire and 3-wire configurations. Ideal for automation systems, the ASB with FIXCON connector can be employed in diverse applications requiring reliable multi-port interfaces. It is particularly suitable for setups in need of consistent and secure data transmission across multiple devices.

The ASB with FIXCON connector is a robust and versatile connectivity solution featuring 8 ports, each with double I/O capability. Each port comes with an M12, 5-poles, A-coded connection, providing flexibility for various industrial applications. The housing is constructed from durable TPU plastic, ensuring long-term reliability and a high degree of protection (IP67 rating) against dust and water. The system operates within a wide ambient temperature range of -15°C to 80°C, making it suitable for harsh environments. One of the key benefits of this ASB connector is its ability to support both 2-, 3-, and 4-wire input wiring configurations, along with 2- and 3-wire output wiring. Additionally, the device is equipped with green LED indicators for system supply status and provides 24 V DC (SELV/PELV) actuator supply voltage. Furthermore, the potted design ensures added protection and endurance, and the compact dimensions (60 mm x 30.3 mm x 152 mm) allow for ease of installation in various settings. The connector's pollution degree rating is 3 as per EN 60664-1/VDE 0110-1 standards. Applications for this ASB connector include usage in manufacturing automation, robotic systems, and other industrial control applications requiring reliable signal and power distribution. Its compliance with CE, RoHS, and cULus standards ensures it meets various regulatory and safety requirements, making it a reliable choice for a wide range of industrial electric and electronic applications.

The ASB with FIXCON connector is an advanced connectivity solution equipped with 8 ports, each providing double I/O per port. This unit features M12, 5-pole, A-coded I/O connections, delivering enhanced flexibility and ease of integration for automation systems. The control cable interface is open-ended, enabling simplified connections. Housed in robust TPU plastic, this device is designed to withstand harsh industrial environments with an IP67 protection rating, ensuring complete protection against dust and water ingress. Benefits of the ASB with FIXCON connector include high durability with its IP67 rating and TPU plastic housing, along with efficient operation within a wide ambient temperature range of -15 °C to 80 °C. The device also features LED indicators for system supply and port status, enhancing operational convenience. This product is ideally suited for industrial automation applications requiring reliable and flexible connectivity solutions. It is compliant with CE, RoHS, and China RoHS standards and is UL and CSA approved, ensuring adherence to high standards of safety and environmental compliance.

The ASB with FIXCON connector, featuring 8 ports with double I/O per port, is an essential component for industrial applications requiring reliable and versatile connectivity. Designed with M12, 5-pole, A-coded connections, the module ensures seamless integration with different systems. The robust plastic TPU housing in orange, along with the IP67 rating, guarantees durability and protection in demanding environments. The dimensions of 60 mm x 30.3 mm x 152 mm accommodate the module's extensive features, including a PNP sensor type and 2-, 3-, and 4-wire input wiring capabilities. The ASB provides a nominal actuator supply voltage of 24 V DC but can operate within a range of 10 V DC to 30 V DC, ensuring flexibility. Furthermore, the module includes status indicators (LED green for system supply) and can handle a maximum current of 1.5 A per connector and module.

The ASB is a high-performance 8-port I/O module, designed to provide reliable and efficient connectivity solutions in industrial settings. Each port features a 4/3-pin M12 connection with A-coded configuration, supporting a single I/O per port. The module's housing is made of durable plastic (TPU) and is rated IP67, ensuring it is both dust-tight and water-resistant. This makes the ASB ideal for harsh environments where high levels of protection are required. Additionally, the ASB includes LED indicators for both system supply and port status, enhancing its usability and monitoring capabilities. One of the main benefits of this module is its wide operating temperature range from -15°C to 80°C, allowing it to function effectively in varying conditions. The module supports a nominal actuator supply voltage of 24 V DC, with a range from 10 V DC to 30 V DC, providing flexibility in installation. With a maximum current of 1.5 A per connector and per module, the ASB ensures stable performance under demanding conditions. The ASB is primarily used in industrial automation setups. It complies with CE, RoHS, and China RoHS standards, and has been UL listed, making it a dependable choice for various applications. Whether integrating sensors or actuators, this module's robust design and high electrical specifications cater to a wide range of industrial environments.

The ASB with FIXCON plug-in connection is a high-quality interface offering reliable connectivity through its 8 ports and rear single strand connection. Designed by Belden, this unit falls within the 'Classic' product sub-family and features M12, 5/4-pole, A-coded I/O connections. The housing, made of durable plastic (TPU), comes in an orange finish, meeting IP67 protection standards when properly mounted and locked in combination with a Hirschmann/Lumberg Automation connector. Ideal for demanding environments, this product boasts robust environmental compliance and pollution degree ratings, ensuring performance stability across a wide temperature range (-15°C to 80°C). The connector supports various digital input and output wiring configurations, including 2-, 3-, and 4-wire for inputs and 2-, 3-wire for outputs, catering to PNP sensor types. Each port can handle up to 1.5 A, ensuring reliable process control and automation. This ASB module also features clear LED status indicators for system supply and port states, enhancing operational oversight.

The ASB with FIXCON connector; 8 ports is a robust and highly functional connectivity module designed for industrial applications. Featuring M12, 5/4-poles, A-coded I/O connections, it is built with an orange TPU plastic housing ensuring durability and resistance to harsh environmental conditions (IP67 rated). With dimensions of 54 mm x 30.3 mm x 127 mm, it is compact and versatile. Each port supports a single I/O configuration, suitable for 2-, 3-, and 4-wire sensor types, and the control cable interface is open-ended for customization. It operates efficiently within an ambient temperature range of -15°C to 80°C and is equipped with LEDs for system and port status indication, ensuring clear and precise monitoring. This module ensures reliable performance with a nominal actuator supply voltage of 24 V DC and supports a current of up to 1.5 A per connector, and per module. Benefits of this product include exceptional durability due to its high-quality plastic construction and stringent environmental ratings, ensuring longevity and performance in demanding applications. The ASB with FIXCON connector is also RoHS and China RoHS compliant, and the product carries UL and CSA certifications, guaranteeing safety and regulatory adherence. Applications for the ASB with FIXCON connector span various industrial environments where robust and reliable I/O connectivity is required. It is ideal for use in automation systems, control panels, and any scenario requiring secure and efficient interconnectivity of sensors and actuators.

The ASB with FIXCON connector; 8 ports is designed for industrial applications requiring reliable and efficient connectivity. With its 8 M12, 5/4-pole A-coded ports, this device provides a versatile I/O connection. The unit is housed in a sturdy plastic TPU material with a vibrant orange color for easy identification. It features a high IP67 protection degree, making it suitable for harsh environments, ensuring durability and long-term performance. The ASB module supports single I/O per port configuration and offers an actuator supply voltage of 24 V DC, allowing for efficient control in automated systems. The unit's compact dimensions (54 mm x 30.3 mm x 127 mm) allow for easy integration into various systems. Additionally, it provides clear status indication through green and yellow LEDs for system supply and port status, respectively. The ASB with FIXCON connector is CE and RoHS compliant, ensuring it meets all relevant safety and environmental standards.

The ASB with FIXCON connector is an industrial-grade 8-port module designed by Belden. It integrates M12, 5/4-poles A-coded connectors and operates on a nominal 24 V DC actuator supply. The module is housed in durable TPU plastic, ensuring IP67 protection, making it suitable for harsh environments. Each port is equipped with LED indicators for system and port status, offering easy monitoring and diagnostics. The module supports various input/output wiring configurations and PNP sensor types, enhancing its versatility in different industrial applications. The compact dimensions, robust construction, and compliance with international safety and environmental standards make it a reliable choice for integrating multiple sensors and actuators in automation systems.

The ASB with FIXCON connector; 8 ports is a versatile solution for industrial automation and connectivity applications. This device supports M12, 5/4-poles, A-coded connections, ensuring robust performance across various environmental conditions. The module, crafted with durable plastic TPU housing, provides superior protection with an IP67 rating, making it dust-tight and able to withstand temporary immersion in water. It is designed to adapt to a wide range of ambient temperatures (-15 °C to 80 °C) and is suitable for environments with a pollution degree of 3, according to standard EN 60664-1, VDE 0110-1. The primary benefits of the ASB with FIXCON connector include its high-level protection against environmental factors and ease of installation, thanks to the open-end control cable interface. The integrated status indicators (LED green for system supply and LED yellow per channel for port status) facilitate quick troubleshooting and system monitoring. Its actuator supply voltage ranging from 10 V DC to 30 V DC allows flexible power management, crucial in dynamic industrial conditions. The device meets essential regulatory compliances, including CE, RoHS, and China RoHS, ensuring it adheres to global safety and environmental standards. This ASB connector is perfect for use in complex automation systems requiring reliable data and power transmission. Its robust design and high compatibility make it ideal for use in manufacturing plants, assembly lines, and other heavy-duty industrial applications. With a maximum current of 1.5 A per connector and module, this ASB connector ensures consistent performance even in high-demand scenarios.

The ASB with FIXCON connector offers an efficient and reliable solution for industrial automation tasks. Equipped with 8 M12 ports A-coded, each port supports single I/O configuration with standard connections. The device is housed in a durable plastic TPU casing with IP67 protection, ensuring robust performance even in harsh environmental conditions. Its compact dimensions (54 mm x 30.3 mm x 127 mm) and orange housing make it an easily identifiable component on the production floor. Benefits of this product include increased connectivity with multiple ports, easy and secure installation with M12 connections, and reliable operation in a wide temperature range (-15 °C to 80 °C). The housing's IP67 rating and potted design provide excellent resistance against dust and water ingress, making it suitable for demanding industrial environments. The ASB with FIXCON connector is ideal for various applications in industrial automation, including connecting sensors and actuators. It supports multiple wiring configurations (2-, 3-, 4-wire) and is compatible with PNP sensor types. The device features LEDs to indicate the status of system supplies and individual ports, ensuring easy monitoring and troubleshooting. Suitable for use with Hirschmann/Lumberg Automation connectors to maintain the specified IP67 rating.

The ASB with FIXCON connector; 8 ports is designed for industrial automation systems. It features 8 M12 connectors with a 5/4-pole A-coding configuration, ensuring seamless control and data transmission. The housing is made of durable plastic (TPU) in a vibrant orange color, providing high visibility. With an IP67 rating, the device is resistant to dust and water, making it suitable for harsh environments. The dimensions are 54 mm x 30.3 mm x 127 mm, allowing for compact installation. The product supports a wide ambient temperature range from -15 °C to 80 °C. The contacts are made of CuZn, with a PA contact bearer material and FKM O-rings for reliable sealing. Each port can handle up to 1.5 A of current, with a maximum of 1.5 A per module. LED indicators for system status and port status provide easy visual monitoring of the operational state. The product is RoHS and China RoHS compliant, ensuring it meets environmental safety standards. UL certifications further confirm its reliability and safety in various industrial applications.

The ASB with FIXCON connector includes 8 ports and an M12, 5/4-poles, A-coded I/O connection. It utilizes a single I/O per port wiring configuration, and the control cable interface is open-ended. The module's housing is crafted from durable plastic TPU with an orange finish and boasts an IP67 protection rating when properly mounted. Operational temperature ranges from -15 °C to 80 °C, ensuring its versatility across various environments. The ports can handle a maximum current of 1.5 A each, sustained by a 24 V DC nominal actuator supply voltage. Each port is equipped with yellow LED status indicators, enhancing operability. Additionally, the unit meets CE, RoHS, and China RoHS compliance standards and holds cULus and CSA approvals.
