8 ports M12 Actuator / Sensor Distribution Box with M23 Quick-Disconnect for control cable

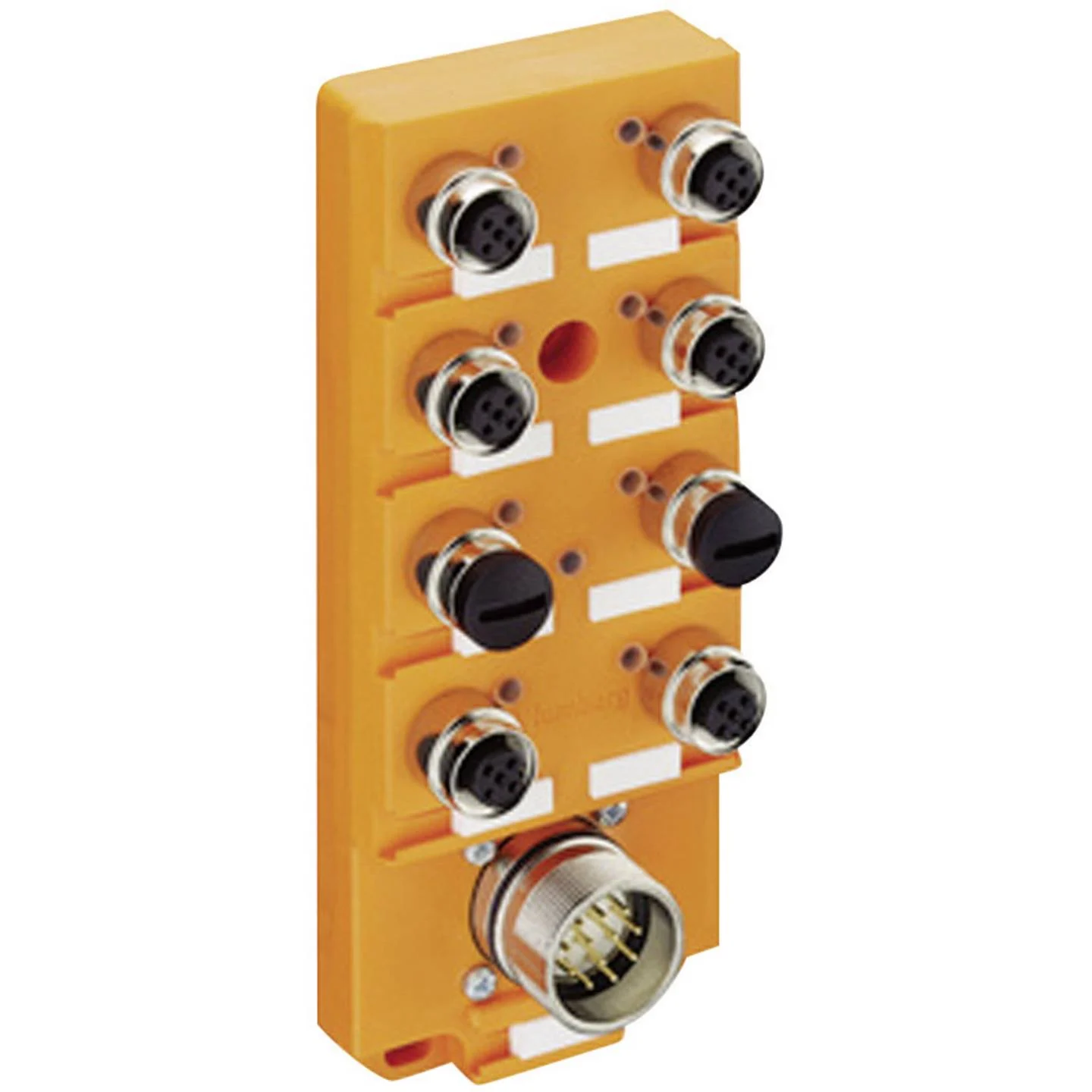

The ASB with FIXCON connector is designed to offer reliable connectivity in industrial environments. The module comes with 8 ports, each capable of supporting double I/O connections, providing versatile input and output options. It incorporates an M23, 19-pole control cable interface, ensuring robust data transfer. The housing is constructed from durable TPU plastic in a distinctive orange color, which not only provides robust protection but also ensures high visibility. With its IP67 rating, the connector is safeguarded against dust and water ingress, making it suitable for use in challenging conditions. The module supports an operational temperature range of -15°C to 80°C, maintaining functionality in varying environments. The unit also complies with various safety and environmental standards, such as CE, RoHS, and China RoHS, and is UL and CSA approved.

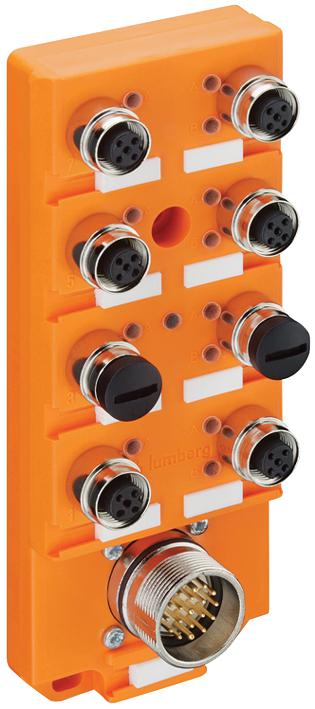

The ASB with FIXCON connector, featuring 8 ports and an M23 connection, is a highly reliable interface designed to streamline automation setups. Constructed from durable TPU plastic and featuring an orange housing, the unit is designed to withstand harsh environments with an IP67 protection rating. Each port supports M12, 5/4-pole connections with single I/O configurations, making it versatile for various applications. The M23 interface supports a 12-pole control cable, ensuring robust connectivity. The unit includes LED indicators for supply status and port status, enhancing ease of monitoring. Operating within a temperature range of -15°C to 80°C, the device is compliant with CE, RoHS, and China RoHS standards, and has obtained UL and CSA approvals.

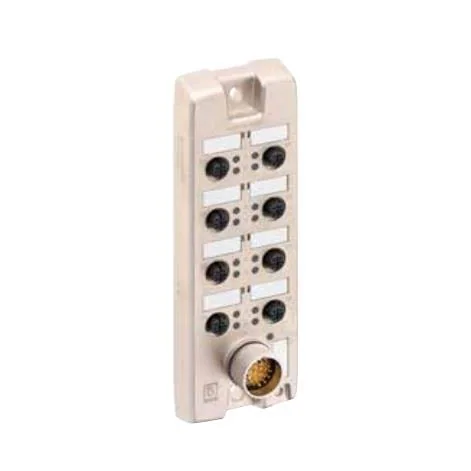

The LioN-R passive module is designed to provide high-quality and reliable connectivity solutions. It features 8 ports equipped with M23 connectors and offers double I/O per port configuration. Crafted from durable metal with a zinc die-cast housing and nickel matt plating, it ensures robustness and long-term performance. The module is suitable for harsh environments with IP65 and IP67 ratings, providing dust-tight protection and resistance to water. The ambient temperature for operation ranges from -40 to 80 degrees Celsius, enhancing its usability in various industrial applications. The LioN-R passive module's benefits include ease of installation with 2-hole screw mounting and reliable electrical connections with a potted design. It also features green LED status indicators for system supply and yellow LED indicators per channel for port status. The actuator supply voltage is nominally 24 V DC, with a range of 10 V DC to 30 V DC, ensuring compatibility with standard industrial power supplies. The module supports 2-, 3-, and 4-wire input wiring configurations and PNP sensor types, offering flexibility in connection options. The LioN-R passive module is ideal for use in automation systems, providing stable connections for digital input and output channels with a maximum current of 1.5 A per connector and module. It is UL and CE certified, RoHS compliant, and meets China RoHS standards, guaranteeing compliance with international safety and environmental regulations.
