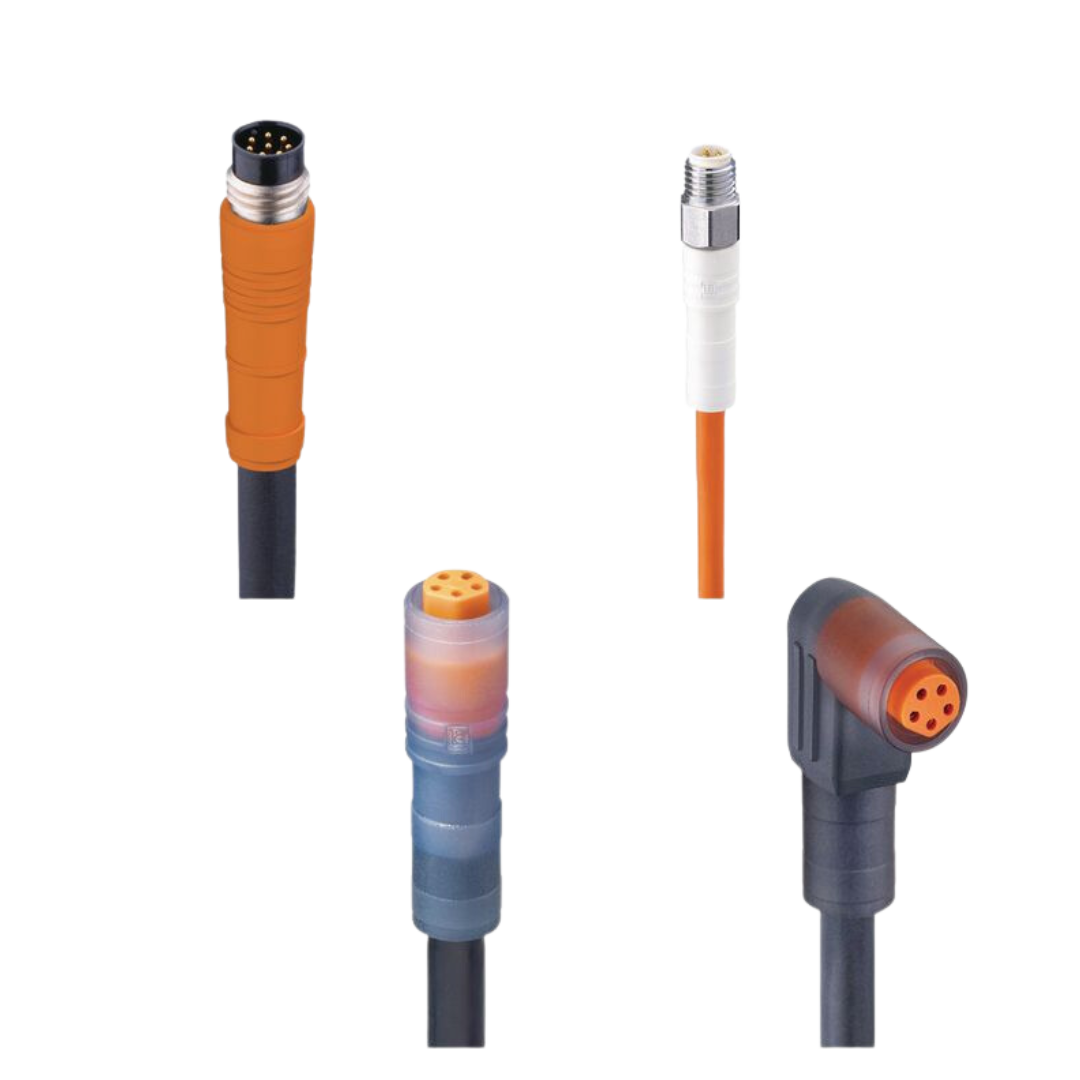

Single-Ended Cordsets
_1328_category_image.png)

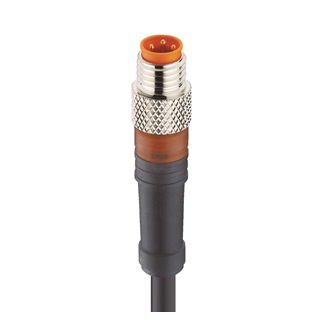

RSMV 3-294/6 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for secure and efficient signal transmission in various industrial environments. This cordset features a male, straight, 3-pin A-coded connector with a translucent body, ensuring easy identification and reliable connectivity. With a rated voltage of 50 V AC / 60 V DC and a current capacity of 4 A, it is well-suited for demanding applications. The PVC black cable, with 3-wires and a conductor size of 0.34 mm², provides durability and resistance to bending. The cordset complies with IP65 and IP67 protection ratings, ensuring it can withstand harsh conditions. Ideal for connecting sensors and actuators, it is suitable for fixed and flexible installations in industrial automation systems.
€17.27
per item

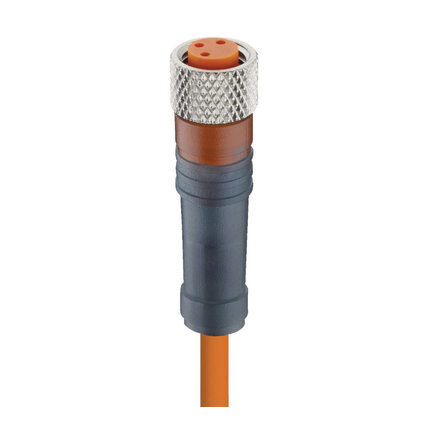

RKM 4-07/5 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset by Lumberg Automation is a robust and versatile connector designed to ensure seamless connectivity in various industrial applications. It features a straight, 4-pin, female A-coded connector with a translucent body, rated at 30 V AC/DC and a current capacity of 4A. The orange PVC cable, consisting of four 0.25 mm² wires, ensures durability and reliable signal transmission even in demanding environments. The connector's snap-locking mechanism provides secure attachment, minimizing connection issues. With an IP65 protection rating and a wide operating temperature range from -40 °C to +90 °C, this cordset is designed to withstand harsh conditions. Its construction meets the IEC 61076-2-104 design standard and is RoHS compliant, ensuring environmental safety. Ideal for application in automation systems, it facilitates stable and efficient data and power transfer between sensors and actuators, making it an essential component in industrial setups. Additionally, its good chemical and oil resistance increases its longevity, making it a cost-effective solution for long-term use.
€13.42
per item

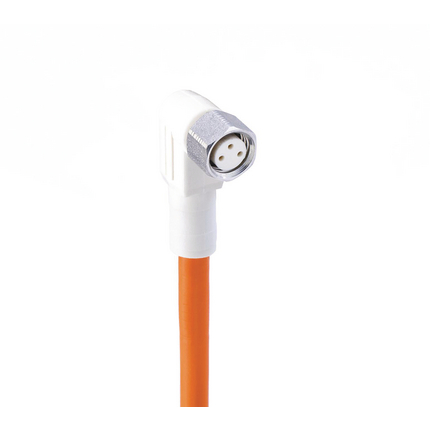

WRKMWV 3-520/25 M
M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset
The M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset is a robust and reliable solution for industrial applications. This cordset features a female, 3-pin, angled, A-coded connector housed in a white body. It is designed for safe operation at voltages up to 50 V AC and 60 V DC, with a current rating of 4 A. The cordset is equipped with a durable TPE orange cable containing 3 wires with a cross-sectional area of 0.25 mm², ensuring excellent performance even in demanding environments. The protection degree includes IP65, IP67, IP68, and IP69K, providing high resistance to water and dust ingress, making it suitable for wash-down applications.
The major benefits of this cordset include its high durability, flexibility, and resistance to harsh environmental conditions. The TPE cable is flame retardant, free of silicone, cadmium, and lead, and offers good chemical and oil resistance. The cordset's materials and construction are designed for longevity and reliability, even in extreme temperatures ranging from -40 °C to +105 °C for operation, and -25 °C to +90 °C during flexible installation.
This versatile cordset is well-suited for use in various industrial automation applications, particularly in environments requiring stringent hygiene standards such as food and beverage processing facilities. The IP ratings ensure it can withstand rigorous cleaning processes, making it ideal for wash-down scenarios. The different cable length variants available (2 m, 5 m, 10 m, 15 m, 20 m, 25 m) provide flexibility for installation in diverse setups.
On Request

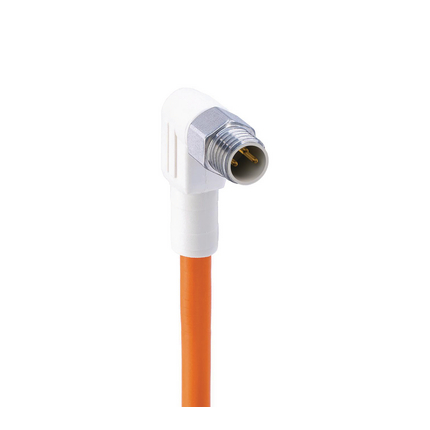

WRSMWV 3-520/25 M
M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset
The M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset is designed for robust performance in demanding environments. It features a male, angled, 3-pin, A-coded connector encased in a white body. The cordset is rated for 50 V AC / 60 V DC and can handle a current of up to 4 A, making it suitable for industrial applications. The orange TPE cable with 3 wires of 0.25 mm² provides durability and flexibility, ensuring reliable signal transmission even in wash-down environments.
The benefits of this cordset include its high protection degree (IP65, IP67, IP68, and IP69K), ensuring resistance to water and dust ingress. The connector's durable materials, such as the stainless steel attachment and the flame-retardant TPE cable jacket, contribute to its longevity and reliability in harsh conditions. Additionally, the cordset complies with safety and environmental standards, offering good chemical and oil resistance.
This cordset is ideal for sensor/actuator connections in food and beverage processing, where wash-down conditions are common. Its robust design ensures continuous operation in automated systems requiring reliable and secure connections. The available lengths range from 2 meters to 25 meters, accommodating various installation requirements.
On Request

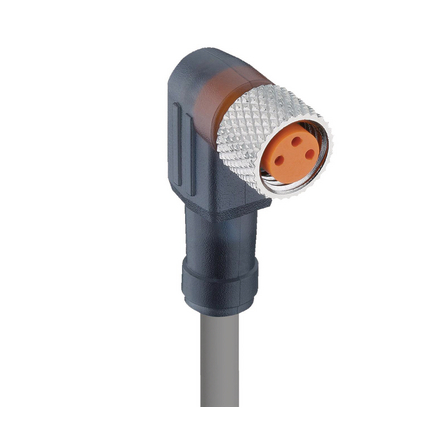

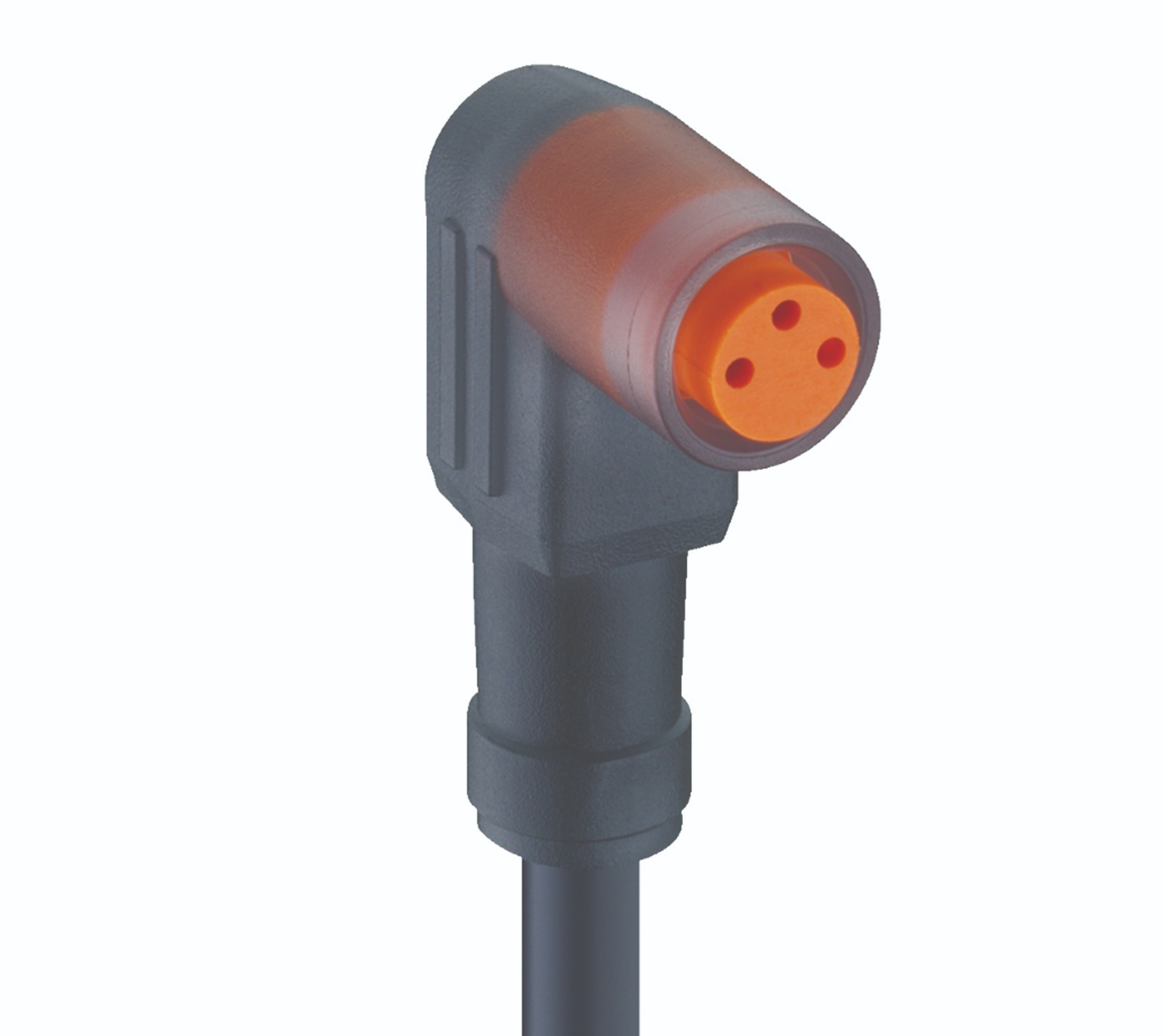

RKMWV/LED A 3-264/3 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed for efficient connectivity and reliable performance. Featuring a female, angled, 3-pin A-coded design within a translucent body, this component operates at 10-30 V DC and can handle up to 4 A of current. Its sturdy, unshielded construction ensures durability, while two integrated LEDs provide clear status indications (PNP). The cordset comes with a 3-wire PUR grey cable with a cross-section of 0.34 mm², suitable for various applications. This cordset is highly versatile, operating across a temperature range of -40 °C to +90 °C and providing IP65, IP67, and IP69K protection ratings, making it a robust choice for harsh environments, including industrial automation setups.
On Request
RKMV 5-671/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset with a female, straight, 5-pin B-coded connector is designed for robust and efficient connectivity in industrial applications. It features a translucent body and provides an operating voltage of 50 V AC and 60 V DC with a rated current of 4 A. The cordset is equipped with a PVC black cable that includes five wires, each with a conductor size of 0.34 mm², ensuring reliable performance in demanding environments. The use of high-quality materials like CuZn for contact base and TPU molded body guarantees durability and long service life. This product is compliant with various protection degrees, including IP65, IP67, and IP69K, making it suitable for harsh conditions. It is also UL certified and RoHS compliant, ensuring adherence to international safety and environmental standards.
€19.09
per item

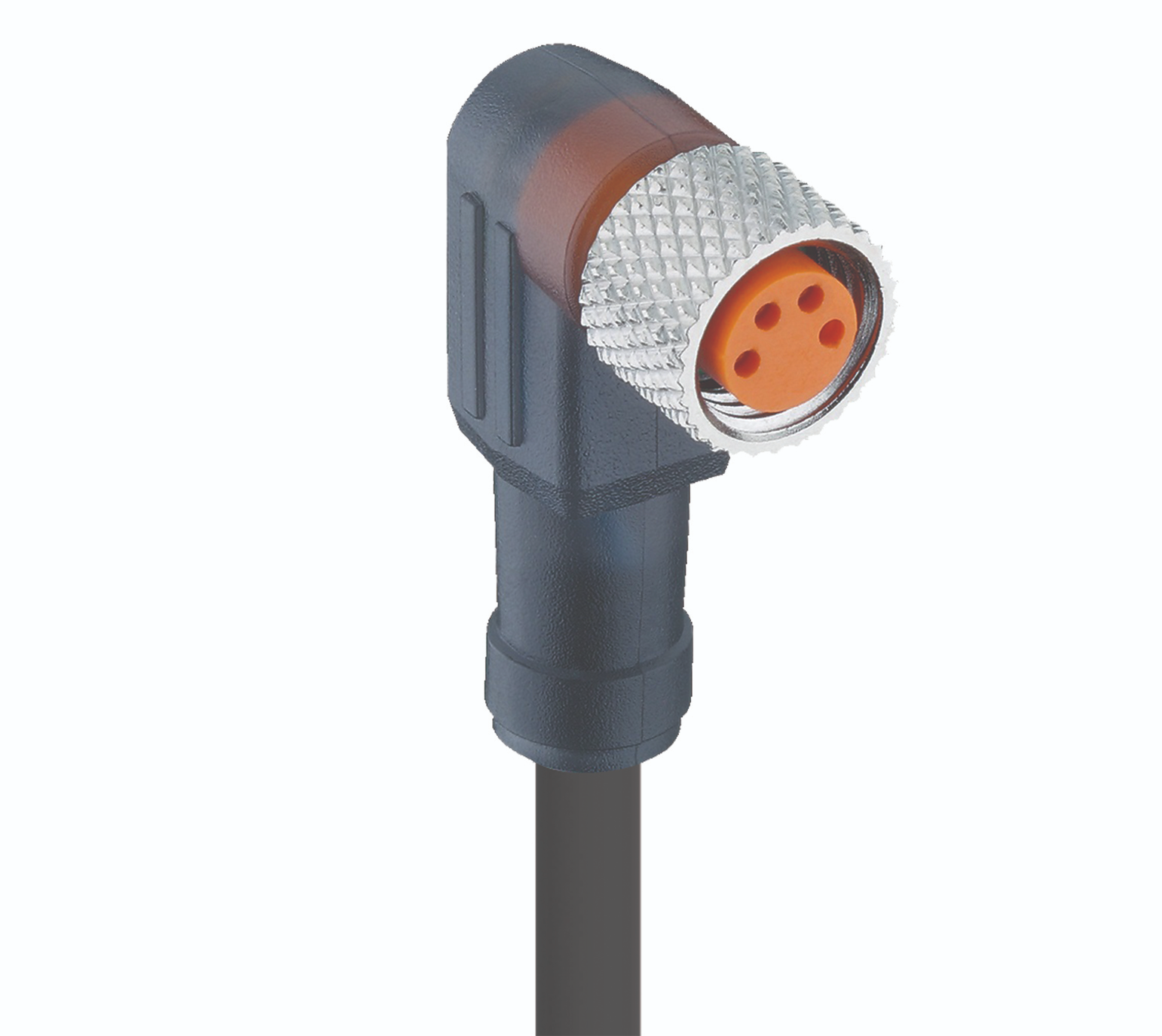

RKMWV 4-251/2 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is an essential component for your automation needs. Featuring a 4-pin, angled female connector with A-coding, this versatile cordset offers a durable translucent TPU body. It operates at 30 V AC/DC with a current capacity of up to 4 amps, ensuring optimal performance. The cordset is equipped with a PUR orange cable, consisting of four wires each with a conductor size of 0.34 mm², providing both flexibility and strength. Rated IP65, IP67, and IP69K, it is protected against dust, water, and high-pressure environments, making it perfect for industrial settings. The cordset's benefits include robust connectivity and shielding from environmental factors. With an operating temperature range from -40°C to +90°C, it excels in harsh conditions. Commonly used in sensors and actuators, this cordset is ideal for a range of industrial automation applications.
€11.93
per item
RKM 4-329/5 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed for high-performance connectivity needs. It features a female, straight, 4-pin connector with A-coding and a translucent body, providing reliable connections for up to 30 V AC/DC and 2 A current. The cordset is complemented by a durable black PUR cable, housing 4 wires, each 0.14 mm², ensuring effective signal transmission and flexibility. Notably, this cordset offers oil resistance and excellent protection with an IP65 rating. Designed under the standards of IEC 61076-2-104, this product is an optimal choice for various industrial applications, including automation setups that require robust and secure connections. With a minimum bending radius suitable for flexible installation, it provides versatility in different operational environments.
€15.97
per item
RSMV 5-671/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable connection component ideal for various automation applications. It features a 5-pin, male, straight connector with B-coding, enclosed in a durable translucent body. The cordset supports an impressive 50 V AC / 60 V DC at 4 A, making it suitable for demanding electrical environments. The black PVC cable features five wires of 0.34 mm² each, ensuring excellent conductivity and flexibility.
This cordset offers numerous benefits, such as resistance to chemicals and oils, along with noteworthy IP65, IP67, and IP69K ratings when securely mounted and locked with compatible connectors. With excellent contact and insulation resistance, and a flammability rating of UL 94 V-0 for the contact bearer, it promises safety and durability under a range of operational temperatures from -40 °C to +90 °C.
Suitable for fixed, flexible, and drag chain installations, the cordset serves a wide array of automation needs. Its sturdy design conforms to IEC 61076-2-104 standards, providing ease of use and reliability in industrial settings. It's available in various lengths, accommodating diverse installation scenarios.
€22.73
per item
RSM 8-354/5 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is an essential component for reliable sensor and actuator connections. It features a male, straight, 8-pin, A-coded connector design with a sturdy orange body. The cordset operates at a rating of 30 V AC/DC and 1 A, making it suitable for various industrial applications. The TPU black cable consists of 8-wires each with a conductor size of 0.14 mm², ensuring optimal signal transmission. It is designed to withstand ambient temperature ranges from -40 °C to +90 °C and provides protection degrees of IP65 and IP67 when connected with appropriate female connectors. This cordset is ideal for use in automated environments requiring durable and reliable connections.
€42.05
per item
RKMV 3-260/3 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is specifically designed for efficient connections in industrial automation systems. This robust cordset features a female, three-pin straight connector that is A-coded and has a translucent body for easy visibility. It operates at a voltage range of 50 V AC to 60 V DC with a rated current of 4 A. The cordset is built with a durable PUR orange cable, consisting of three wires with a conductor size of 0.34 mm², which ensures good flexibility and long-term performance. Shielded to IP65, IP67, and IP69K standards, it can withstand harsh environmental conditions and is resistant to oil, gold plating, and various welding sparks. This product is compatible with standard Hirschmann/Lumberg automation connectors and is RoHS compliant.
€14.46
per item
RKMV 4-377/1 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed for efficient and reliable connectivity in various industrial applications. This cordset features a female, straight 4-pin connector with an A-coding, housed in a translucent TPU body. Rated for 30 V AC/DC and capable of handling up to 4 A, it offers robust performance in demanding environments. The cordset is equipped with a high-quality PUR yellow cable, comprising four wires, each with a size of 0.34 mm², ensuring excellent flexibility and durability in both fixed and flexible installations.
This product is ideally suited for sensor and actuator connections, providing dependable service with its great chemical, oil, microbe, and hydrolysis resistance. The design confirms to dynamic DA 6 requirements and remains halogen-free, aligning with stringent environmental and safety standards. The cordset's unshielded design and coupling nut attachment make it straightforward to integrate into existing systems, while the IP65, IP67, and IP69K ratings ensure it is well-protected against dust and water ingress.
Applications include automation technology, mechanical engineering, and any other environments where reliable sensor/actuator connections are essential. The flexible cable supports a wide temperature range, suitable for varied operational conditions from -40 °C to +90 °C.
€10.29
per item
