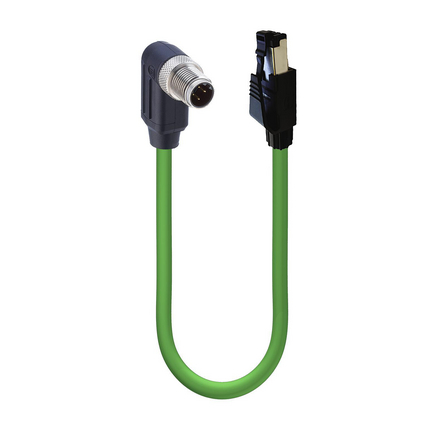

M12 D-Coded Right-Angled Male Fast Ethernet Cat 5E Double-Ended Cordset RJ45

The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for reliable data transmission with a speed of up to 100 Mbit/s. This cordset features a male angled D-coded black M12 Standard connector on one end and a male straight RJ45-coded black RJ45 Field Attachable connector on the other, ensuring versatile and secure connections. The cordset is shielded and rated for 30 V AC / 42 V DC, with a current capacity of 1.5 A. The cable itself is a robust green PUR cable, consisting of 4 wires with dimensions of 2x2x0.34 mm². With excellent resistance to chemicals, oil, and mechanical stress, this cordset is suitable for demanding industrial environments. Applications include data transmission in networks requiring Fast Ethernet Cat5e standards, such as automation systems and industrial Ethernet setups. The high-quality materials, including a copper shielding and tinned conductors, ensure long-lasting performance and durability.

The Fast Ethernet Cat5e Data Double-Ended Cordset is designed to provide reliable and secure data transmission with a male angled D-coded black M12 Standard connector and a male straight RJ45-coded black RJ45 Field Attachable connector. The cordset is shielded, ensuring optimal signal integrity and protection from environmental interferences. Operating at 30 V AC / 42 V DC with a 1.5 A current rating, it is well-suited for industrial applications. The green PUR cable features four wires (2x2x0.34 mm²) and is robust against harsh conditions, offering excellent flexibility and resistance to chemicals and oils. This cordset supports Fast Ethernet Cat5e data transmission with a rate of 100 Mbit/s, perfect for integrating industrial automation systems.
