M12 D-Coded Female Receptacle Industrial Ethernet

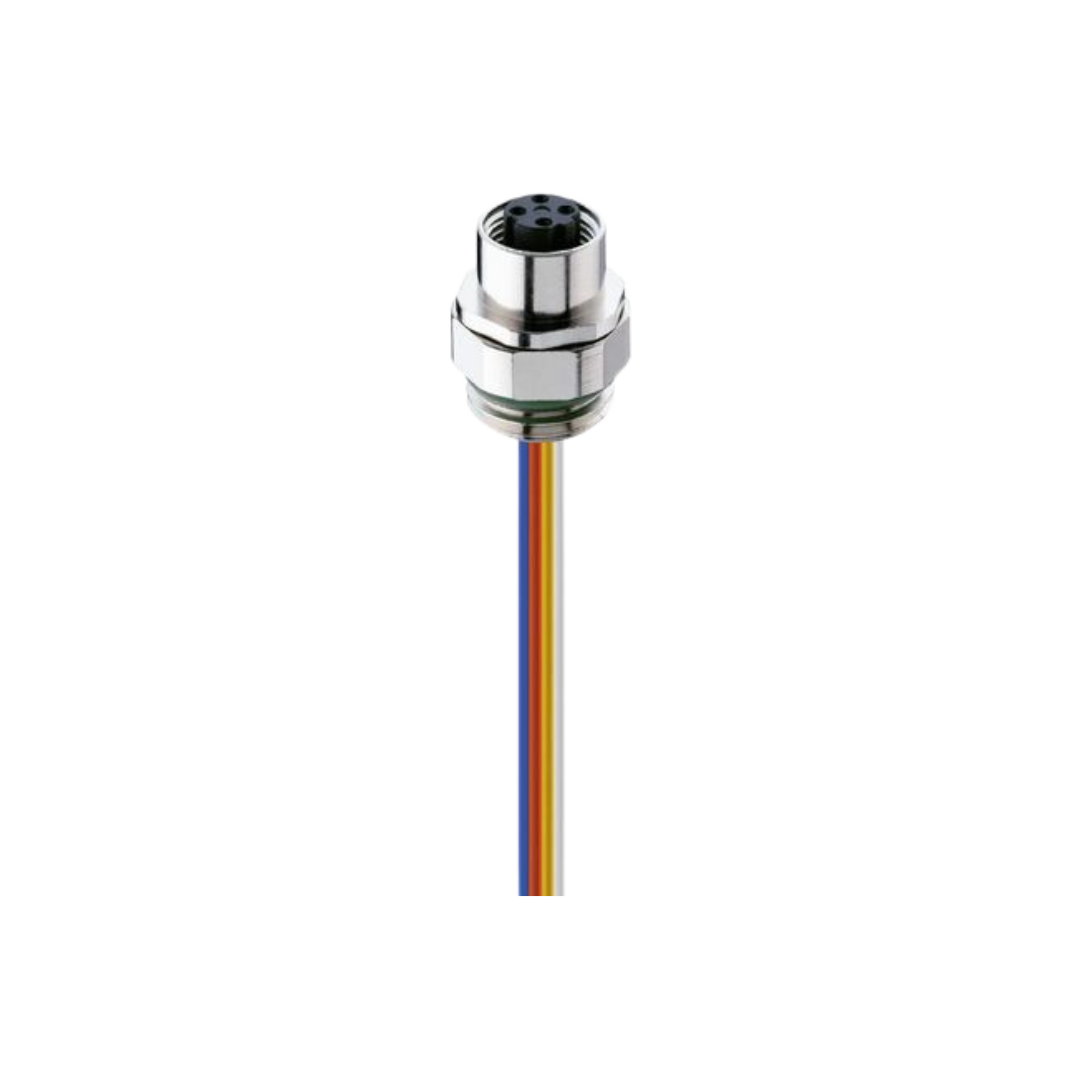

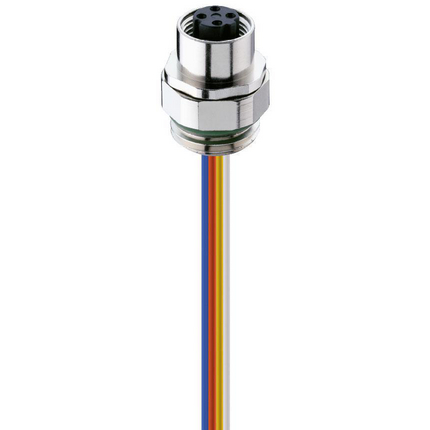

The M12 Data Receptacle Connector, produced by Lumberg Automation, is a robust and positionable female connector. It is designed with a metallic grey housing that accommodates an M12 mating side and stranded wires on the connecting side. With a 4-pin, D-coded arrangement, this connector is unshielded, rated for 50 V AC / 60 V DC, and capable of handling up to 4 A of current. It meets the IEC 61076-2-101 design standard and has a high protection degree of IP65/IP67 when correctly mounted and locked. The connector’s thread size is M16x1.5, made from nickel-plated CuZn, ensuring both durability and reliability. The electrical specifications include a rated impulse voltage of 1.5 kV, contact resistance of ≤ 10 mOhm, and an insulation resistance of ˃ 10^9 Ohm. It's suitable for operational temperatures from -25 °C to +85 °C. The connector also complies with RoHS standards, ensuring it meets stringent environmental regulations.
