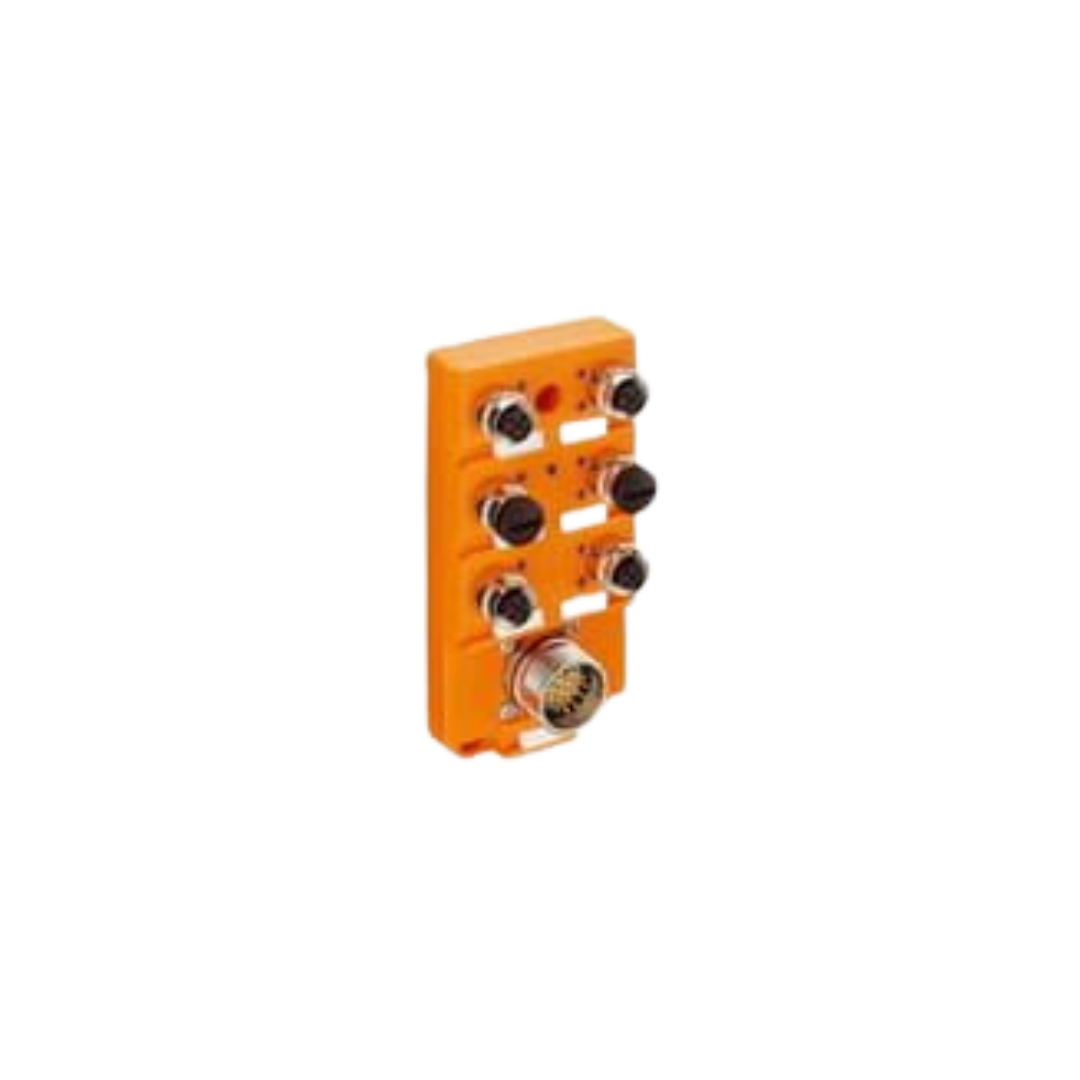

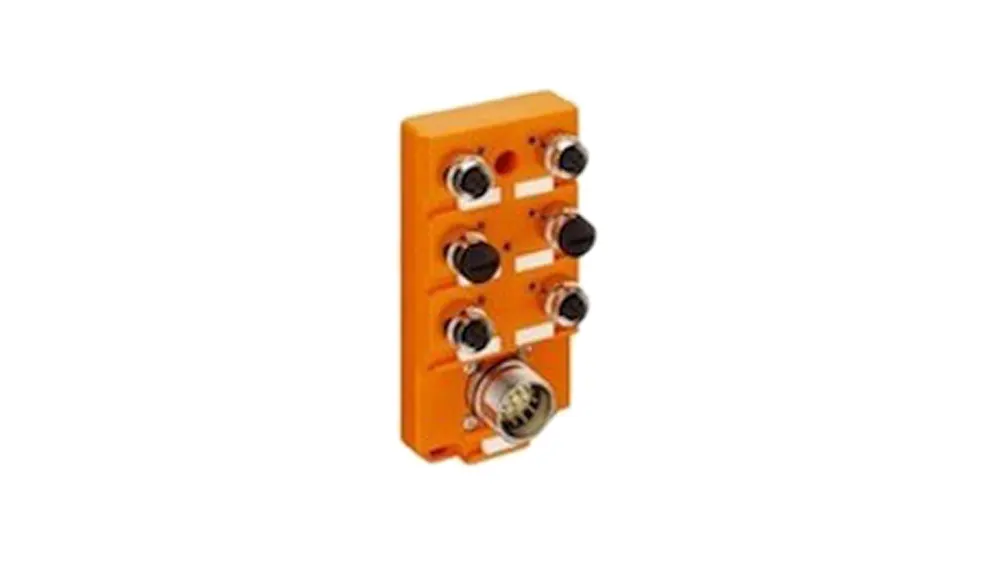

6-Port M12 Actuator/Sensor Distribution Box With LED and M23 Quick-Disconnect for Control Cable

The ASB with FIXCON connector features 6 ports, an LED indicator, and an M23 connector providing double I/O per port, making it a robust choice for various industrial applications. The housing is constructed from durable TPU plastic, ensuring longevity and reliability, and it has an IP67 protection rating, making it resistant to dust and water. The green LED system supply indicator and yellow port indicators make it user-friendly for monitoring system status. It operates within a temperature range of -15 °C to 80 °C and supports wiring configurations for 2-, 3-, and 4-wire sensors, suiting various operational needs. This product is compliant with CE, RoHS, and China RoHS regulations and is UL and CSA approved.

The ASB with FIXCON Connector features 6 ports and LED status indicators, making it an ideal solution for connecting multiple I/O connections in industrial environments. With an M23 control cable interface and single I/O per port wiring configuration, it ensures reliable connectivity for diverse applications. The device is encased in a robust TPU plastic housing, offering durability and protection against harsh conditions (IP67 rated). The module supports an ambient operating temperature range of -15°C to 80°C and complies with CE, RoHS, and China RoHS standards. This connector can handle a maximum current of 1.5 A per connector and module, with a nominal actuator supply voltage of 24 V DC. The status indicators (LED green for system supply and port status) provide clear visual signals for operational status. Key technical specs include M23 12-pole control cable interface, M12 I/O connections, and 2-, 3-, or 4-wire input wiring with PNP sensor types. Ideal for industrial automation and control processes, it supports seamless integration with various automation systems. Applications range from factory floors to outdoor installations where reliable, rugged, and easy-to-install I/O connection solutions are required.
