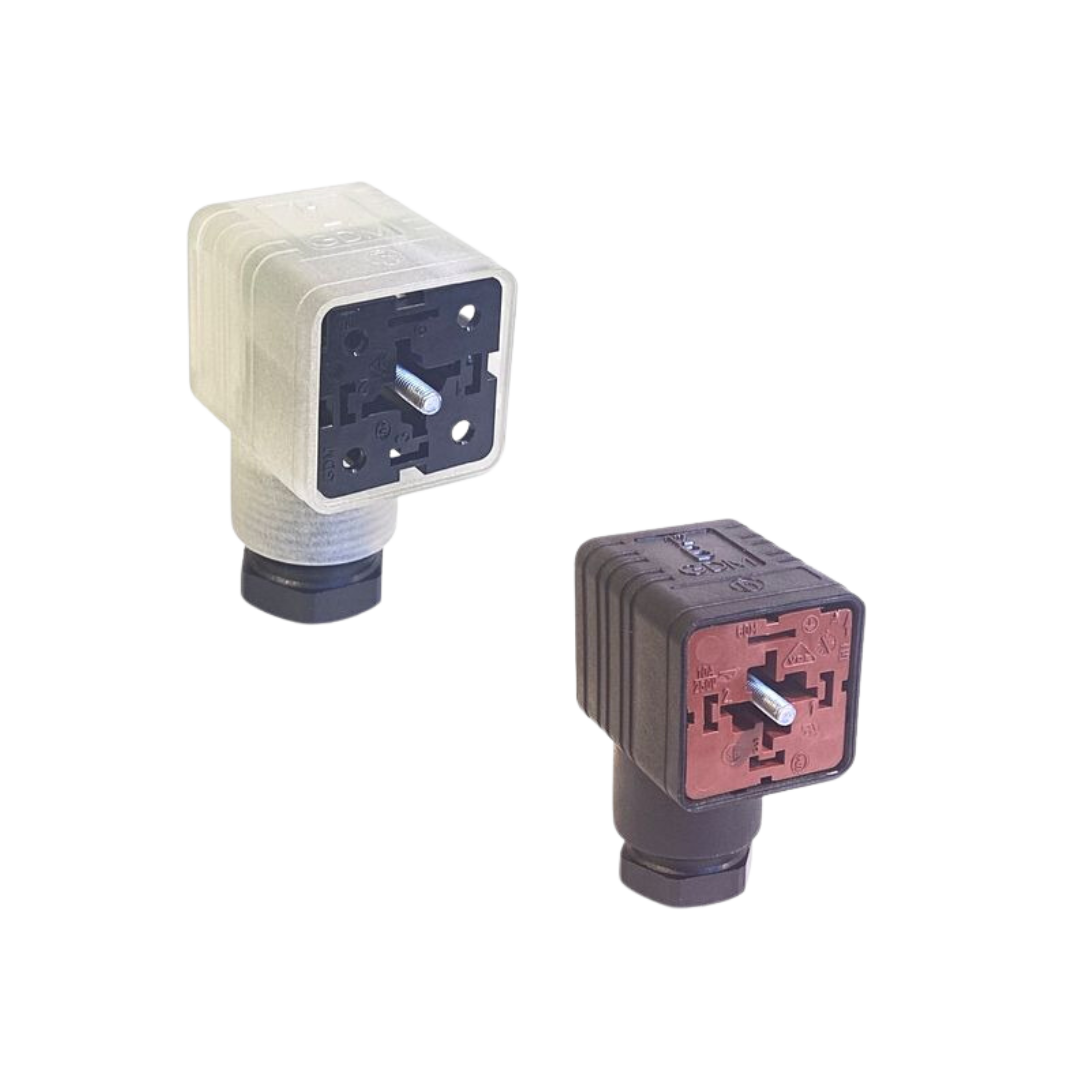

Type A Field Attachables

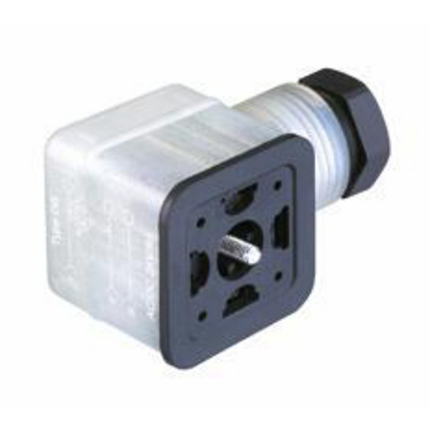

The GDMF Flat Line DIN Standard Field Attachable Connector is an essential component for various industrial applications. Designed with a Form A, 4-pin configuration (3+1PE, with PE across the cable outlet), this connector ensures efficient and reliable connectivity. The transparent housing allows for easy inspection of internal connections, while the screw type mechanism facilitates secure and stable attachment. With an M16 cable gland, it also features a yellow LED indicator for visual feedback, suitable for systems operating at 24 V AC/DC and up to 10 A. The benefits of using this connector include its robust design and versatility. The high-quality construction materials, such as CuZn for contact base and PA GF for housing, ensure durability and long-term use. Its unshielded design is advantageous in environments where electromagnetic interference (EMI) is not a concern, and the connector meets IP65 protection standards when correctly mounted, offering resistance against dust and water ingress. Ideal for use with a variety of cables, this connector supports conductor cross sections from 0.25 to 0.75 mm². It is perfect for applications in automation, industrial machinery, and other high-demand electrical systems, complying with DIN EN 175301-803-A standards. The product is RoHS compliant, ensuring minimal environmental impact.

The GDM - 175301-803 (DIN 43650) is a high-quality valve connector from the GDM Legacy product family, designed with rigorous standards to ensure reliability and durability. This Form A, female connector features an 18mm black housing and supports 3+Ground (Protective Earth) connections with screw contacts. It is rated for 250 V AC/DC and 16A, making it suitable for various electrical applications. The connector is equipped with a 1/2" NPTF thread cable gland and meets UL safety standards, ensuring secure and efficient operation. The benefits of the GDM - 175301-803 include its robust construction with a black housing that offers both durability and resistance to environmental factors. Its design facilitates easy field attachment, making it user-friendly and convenient for on-site installations. The connector’s IP65 protection degree ensures it is highly resistant to dust and water ingress, adding to its reliability in demanding environments. The primary applications of the GDM - 175301-803 include its use in heavy machinery, industrial automation systems, and other settings where reliable and secure electrical connections are crucial. The connector supports a cable diameter range of 7-11mm, making it versatile for different wiring requirements. Additionally, with a mating cycle rating of up to 50 and a broad ambient temperature range from -40°C to +125°C, it is suitable for a wide array of industrial applications.

The GDM DIN Valve Connector, Form A, is a robust and reliable component designed for industrial applications. It features an 18mm size with a 2+Ground pin configuration, enclosed in a durable grey housing. The connector includes a circuit with a Varistor, rated for 24V and 10A, ensuring effective surge protection. The field-attachable design and steel central screw make it easy to integrate into various systems. With an IP65 rating, it is well-suited for challenging environments, providing excellent resistance to dust and water ingress. Applications include machinery, automation systems, and any setting where strong performance is required under demanding conditions.

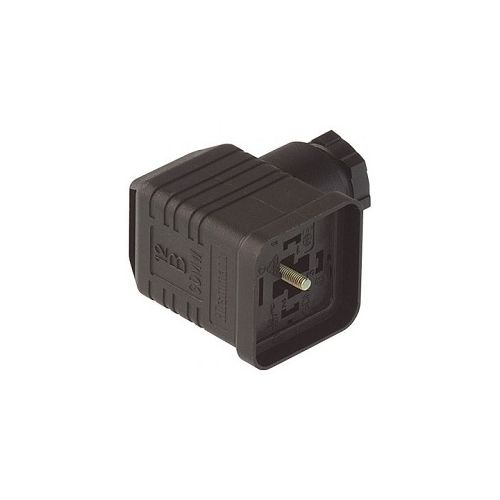

The GDMW High-Voltage Line DIN Standard Field Attachable Connector is engineered for high-performance connectivity. Featuring a 4-pin configuration (3+1PE), it boasts a robust black housing with a screw-type connection and a PG11 cable gland. It is capable of handling voltages up to 400V AC/DC and currents of 16A, making it an ideal choice for demanding electrical applications. With a protection rating of IP65, it is resistant to both dust and low-pressure water jets, ensuring reliable long-term use even in challenging environments. The connector is unshielded, rated for an impulse voltage of 4.0 kV, and designed for durability with a mating cycle rating of up to 50 cycles. It supports cable diameters ranging from 4.5 mm to 11 mm and accommodates conductor cross sections from 0.25 mm² to 1.5 mm², making it versatile for various installations. Meeting standards such as DIN EN 175301-803-A and ISO 4400, this connector ensures compatibility and safety.

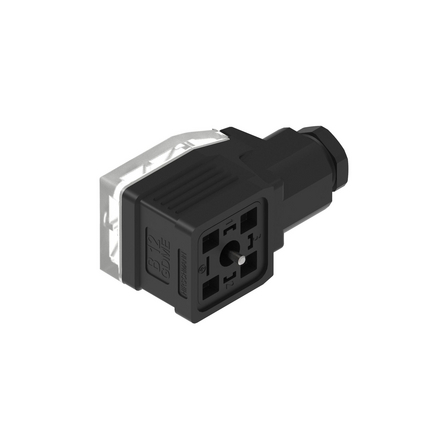

The GDME Heavy Duty DIN Standard Field Attachable Connector is an advanced solution for robust electrical connections. This connector, featuring Form A configuration, is equipped with a 4-pin setup (3+1PE; PE across cable outlet), making it suitable for various industrial applications. It boasts a black housing with a transparent cover and a screw-type M20 attachment, ensuring secure and reliable connections. Without internal circuitry, it facilitates a wide range of electrical installations, supporting both 230 V DC and 400 V AC, with a rated current of 16 A. It is designed to withstand an operating voltage of up to 4.0 kV and a stringent operating temperature range from -25°C to +85°C. The connector is robust, constructed with high-quality PA GF material, and adheres to UL 94 V-0 flammability ratings, ensuring durability and safety.

The GDMW High-Voltage Line DIN Standard Field Attachable Connector is a versatile and reliable solution for connecting high-voltage lines. This connector, designed in Form A configuration, features a 4-pin setup (3+1PE, with PE across the cable outlet) for secure and efficient electrical connections. Its black housing is made of durable PA GF material with a screw type PG11 attachment for easy and secure installation. Rated for 400 V AC/DC and 16 A, it ensures optimal performance in high-voltage applications. Additional features include a central screw attachment type, unshielded design, and compliance with DIN EN 175301-803-A and ISO 4400 standards. It operates efficiently within a temperature range of -40°C to +125°C and holds an IP65 protection degree when properly mounted and locked. The connector is also RoHS compliant, ensuring its safety and environmental compatibility. This connector is ideal for field-attached applications, providing robust electrical connections in industrial environments.

The GDM - 175301-803 (DIN 43650) is a versatile and durable field attachable valve connector, designed to meet DIN 43650 standards. It features a Form A, female configuration with an 18mm size and a grey housing. This connector is equipped with 3+Ground (Protective Earth) screw contacts, operates without circuitry, and supports a rated voltage of 250 V AC/DC with a current of 16A. The cable gland has an M16 thread, accommodating conductor cross-sections from 0.25 mm² to 1.5 mm² and suitable cables ranging from Ø 4.0 to 10 mm. Its high protection degree of IP65 ensures reliable performance under challenging conditions, while the ambient temperature range of -40 °C to +125 °C allows for versatile usage. With a design standard following DIN EN 175301-803-A and ISO 4400, this connector is unshielded and secures with a central screw attachment.

The GDMW High-Voltage Line DIN Standard Field Attachable Connector is designed for demanding electrical environments. This connector has a Form A design and features 4 pins (3+1PE), ensuring reliable PE across the cable outlet. Enclosed in a robust black housing, it is screw-type with a PG11 cable gland, enhancing its secure attachment. Standardized to operate at 400 V AC/DC with a rated current of 16 A, this connector is suitable for high-voltage operations. Manufactured by Hirschmann, it guarantees high performance and reliability with a central screw that simplifies assembly. The IP65 protection rating ensures its resilience in harsh environments, protecting against dust and water ingress. This connector is designed to meet DIN EN 175301-803-A standards and is ideal for applications where a reliable and durable connection is crucial.

The GDMW High-Voltage Line DIN Standard Field Attachable Connector is designed for high-performance electrical systems. With a 4-pin configuration (3+1PE) and a PE across the cable outlet, this connector ensures secure and reliable connections. It features a durable grey housing and a screw type Pg11 connection, supporting operating voltages of 400 V AC/DC with a current capacity of 16 A. As a Field attachable, angled female connector, it adheres to DIN EN 175301-803-A and ISO 4400 standards, ensuring compatibility and safety. This model is unshielded and offers excellent insulation resistance over 10^9 Ohm, with IP65 protection when properly mounted. It's suited for cables ranging from 4.5 to 11 mm in diameter, covering a wide range of industrial applications where secure and efficient high-voltage connections are critical.

The GDM Standard DIN Standard Field Attachable Connector is designed to meet rigorous industrial standards, providing reliable connections for valve applications. The connector features a 4-pin configuration (3+1PE with PE at the cable outlet), housed in a durable black PA GF material with a screw-type connection for ease of use. The PG11 cable gland supports cables with a diameter of 4.5 to 11 mm. It operates at 230 V AC/DC and a rated current of 16 A, making it suitable for various industrial environments. Additional attributes include a rated impulse voltage of 4.0 kV, contact resistance of ≤ 10 mOhm, and an insulation resistance of ˃ 10^9 Ohm, ensuring reliable performance. Mating cycles are ≤ 50, with a protection degree of IP65 when properly mounted and locked. The connector adheres to the DIN EN 175301-803-A and ISO 4400 standards, ensuring compliance and safety in industrial applications.

The GDM Standard DIN Standard Field Attachable Connector is a versatile and reliable connector designed to meet DIN EN 175301-803-A and ISO 4400 standards. This connector features a 4-pin configuration (3+1PE; PE across the cable outlet) and transparent housing, which allows for easy inspection of the internal components. It's engineered with a screw-type connection and M16 strain relief, ensuring a secure and dependable connection. Rated for 230 V AC/DC and 16 A, this connector is suitable for various industrial applications. With a maximum operating temperature range of -25°C to +80°C, it offers robust performance in diverse environmental conditions. Additional technical specifications include a contact base material of CuZn, PA GF housing, and an IP65 protection degree when properly mounted and locked. This field-attachable connector ensures long-lasting and seamless operation in your automation systems.

The GDMW High-Voltage Line DIN Standard Field Attachable Connector is designed for efficient high-voltage applications. Featuring a Form A, 4-pin configuration with a 3+1PE setup, this connector provides robust electrical connectivity by utilizing a screw-type mechanism and a PG11 cable gland. It is tailored for 400 V AC/DC operations with a current rating of 16 A, making it suitable for demanding environments. The connector is made with a durable grey housing and possesses an angled design for ease of attachment. With a high insulation resistance and rated impulse voltage, it ensures safety and reliability in its applications. This connector caters to cables with diameters ranging from 4.5 to 11 mm and operates in temperatures from -40°C to +125°C. Additionally, it carries an IP65 protection rating, ensuring effectiveness against dust and water ingress.

The GDM - 175301-803 is a female valve connector conforming to DIN 43650 standards, ideal for various industrial applications. It features a grey housing and an 18mm central screw attachment. It has a 2+Ground configuration with screw contacts, and includes a PCB with bridge rectifier and varistor for protective circuitry. With a rated voltage of 250 V AC/DC and a current rating of 1A, this connector ensures reliable performance. The M16 cable gland accommodates cables with a diameter of 4.0 - 10 mm. The product provides IP65 protection when correctly mounted and locked. This connector is specifically designed for harsh environments, operating in temperatures from -40 °C to +80 °C.

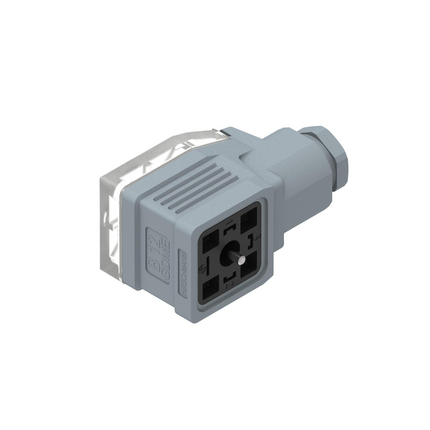

The GDME Heavy Duty DIN Standard Field Attachable Connector is a robust and versatile solution for demanding applications. Designed with a 4-pin setup (3+1PE), this form A connector features a grey housing and a transparent cover, maintaining durability and visibility. It supports 230 V DC and 400 V AC connections and handles a current capacity of 16 A. The connector is built with an M20 screw type connection and is specifically crafted for safety and performance in industrial environments. Benefits of this connector include a high protection degree of IP65, ensuring excellent resistance against dust and water ingress. Its strong PA GF housing and UL 94 V-0 flammability-rated contact bearer contribute to its fire-resistant properties. The connector's dimensions accommodate cables with diameters ranging from 7 to 13 mm, making it flexible for various installations. The GDME connector is widely used in applications requiring reliable and secure connections, such as automation systems, machinery interfaces, and field equipment setups. It is built in compliance with DIN EN 175301-803-A and ISO 4400 standards, ensuring compatibility and safety across numerous industries.

GDM - 175301-803 (DIN 43650) is a robust and highly reliable female valve connector designed for demanding industrial applications. This connector comes with an 18mm form factor, features a field-attachable design, and utilizes a translucent housing. With a configuration of 2+Ground (Protective Earth), it ensures a secure and stable connection. The internal PCB is equipped with a red LED function indicator and an integrated diode, rated at 24 V DC and can handle currents up to 8A. The black cable gland with PG11 threading facilitates secure cable management, supporting cable diameters ranging from 6 to 9mm. This connector meets the DIN EN 175301-803-A, ISO 4400 standards and has been designed to provide an IP65 protection rating when correctly installed in combination with corresponding Hirschmann or Lumberg Automation connectors. One of the unique features of this connector is the transparent housing which allows for quick visual diagnostics and verification of the internal LED indicator's status. The contacts are crafted from high-quality CuZn material, ensuring a reliable connection and longevity. The black cable gland is made from durable PA GF material, and the assembly is designed to withstand harsh environmental conditions with an operational temperature range between -40°C to +80°C. The connector also conforms to various safety standards, being VDE, SEV approved and RoHS compliant, ensuring it meets the necessary regulatory requirements for safe and environmentally conscious use. This valve connector is ideal for use in various industrial automation applications where reliable and durable connectivity is paramount. It is suitable for connecting solenoid valves, pressure switches, and other critical industrial components. The central screw attachment type and provided fastening torque specifications ensure the ease of installation and secure fitment. The protective circuitry with its red LED serves as a clear indicator of operational status and aids in troubleshooting any issues quickly.

The GDMF Flat Line DIN Standard Field Attachable Connector is an essential component for ensuring reliable electrical connections in industrial and automation settings. This connector is designed with a 4-pin configuration (3+1PE; PE across cable outlet), making it suitable for a variety of applications. It features a robust black housing and a secure screw type connection with an M16 cable gland. It is built to handle operating voltages of up to 230 V AC/DC and a rated current of 10 A, making it versatile for different electrical requirements. Additionally, the connector is unshielded and designed to be angled for ease of installation in tight spaces, adhering to DIN EN 175301-803-A and ISO 4400 standards. Its materials include a contact base of CuZn, contact plating of Cu/Sn, and a housing made of PA GF, ensuring durability and reliability. The connector achieves an IP65 protection rating, making it highly resistant to dust and water ingress when mounted and locked correctly. This makes it suitable for operation in ambient temperatures ranging from -40 °C to +125 °C, and it remains compliant with ROHS and other safety standards.

The GDM - 175301-803 is a high-quality DIN 43650 valve connector designed for various industrial applications. Featuring a form A, female connector type, and a translucent housing for easy visual inspection, it is equipped with screw contacts and a PCB for pressure switches complete with 2 LEDs. It supports voltages up to 250 DC and currents of 8A, ensuring reliable performance. The black cable gland is threaded with a PG11 standard and accommodates cables with diameters ranging from 4.5 to 11 mm. This connector is designed for long-lasting durability with components made from robust materials including CuZn for the contact base and UL 94 HB rated plastics for the housing and contact bearer.

The GDM - 175301-803 (DIN 43650) is a reliable and efficient valve connector designed for various industrial applications. It features a Form A female connection with an 18mm black housing, offering a sturdy and resilient construction. This connector supports a 2+Ground (Protective Earth) configuration and is designed with screw contacts for secure and stable connections. It operates efficiently at a voltage of up to 250 V AC/DC and supports a current rating of 16A, making it suitable for high-demand environments. The GDM - 175301-803 includes a cable gland with a 1/2" NPTF thread, ensuring a tight and secure fit, and adheres to UL standards, providing additional safety and reliability.

The GDM - 175301-803 (DIN 43650) is a highly reliable valve connector designed for field attachment applications. This Form A connector features a robust grey housing and a 2+Ground (Protective Earth) configuration, facilitating secure electrical connections with advanced protection. It operates at a rated voltage of 250 V AC/DC and supports up to 16 amperes of current, making it suitable for various industrial applications. This connector is equipped with screw contacts, allowing for easy installation without additional circuitry. The 18mm size, along with an M16 cable gland thread, ensures compatibility with a wide range of cables. Advantages of this product include its high insulation resistance (˃ 10^9 Ohm), low contact resistance (≤ 10 mOhm), and a durable construction capable of withstanding ambient temperatures from -40 °C to +125 °C. Additionally, it adheres to IP65 protection standards, ensuring resilience against dust and water ingress when properly mounted. The GDM - 175301-803 is primarily used in industrial environments where reliable electrical connections are critical, such as automation, control systems, and machine engineering applications.

The GDM - 175301-803 (DIN 43650) is a Form A, female connector featuring a translucent housing and a 3+Ground (Protective Earth) configuration. The connector is equipped with screw contacts and a PCB designed for pressure switches, integrating 2 LEDs for efficient monitoring. Operating at 24 DC with an 8A load capacity, it features a black cable gland with a PG11 thread. The connector's robust design, compliant with DIN EN 175301-803-A standards, ensures reliable performance under various environmental conditions. It offers high insulation resistance (>10^9 Ohm) and is housed in durable, flammability-rated UL 94 HB materials, providing an IP65 protection degree when properly mounted. Applications include deployment in industrial settings where dependable connector performance and visual pressure switch status indication are required.

The GDM - 175301-803 (DIN 43650) is a high-quality, field-attachable valve connector designed for a variety of industrial applications. This connector features a Form A configuration and a female gender with a sturdy, translucent plastic housing that provides excellent durability. The 3+Ground (Protective Earth) pin layout ensures reliable electrical connectivity. One unique feature is the inclusion of a single LED that provides visual status indication, making it ideal for pressure switch applications. Rated at 24 DC and 8A, this connector offers screw contacts and a black cable gland with a PG11 thread for secure cable management. The GDM - 175301-803 is designed according to DIN EN 175301-803-A and ISO 4400 standards, ensuring compliance and reliability. It also supports cables with a diameter of 4.5 to 11 mm and operates within a temperature range of -40 °C to +80 °C, making it suitable for various harsh environments.

The GDM - 175301-803 (DIN 43650) is a robust and reliable Form A valve connector designed for high-performance applications. With a female connection type and a 2+Ground (Protective Earth) pin configuration, this connector is suitable for use with electrical currents up to 250 AC/DC and a rated current of 8A. The component features a central screw attachment and uses PG9 thread for the black cable gland, ensuring a secure and stable connection. Additionally, the translucent housing allows for easy visual inspection, while the integrated glow lamp and RC element provide added safety and operational clarity. Benefits of the GDM - 175301-803 include its high level of protection with an IP65 rating, making it suitable for demanding environments. The connector's durability is further enhanced by its wide operating temperature range of -40 °C to +80 °C. Furthermore, the RC-Filter and suppression capacitor add protective circuitry to safeguard connected devices. This connector is ideal for industrial and automation applications where reliability and safety are paramount. Its versatile design meets DIN EN 175301-803-A and ISO 4400 standards, making it a dependable choice for various field attachable applications.

The GDM - 175301-803 (DIN 43650) is a high-quality Form A Female Valve Connector, designed for robust and reliable field attachable applications. It features a translucent housing and a black cable gland. The connector is equipped with a PCB that includes a bridge rectifier, a red LED function indicator, and a varistor for protective circuitry. Delivering a rated voltage of 24 AC/DC and a current of 1A, this connector supports high-performance operations. The cable gland has a PG11 thread and is compatible with cables of 6-9 mm diameter. The contact base is made of CuZn with Cu/Sn plating, ensuring a long-lasting electrical connection.

The GDM - 175301-803 valve connector is a durable and reliable component, adhering to DIN 43650 standards. This Form A, female connector features a grey housing and an 18mm design with 2+Ground (protective earth) contacts. It includes screw contacts and a PCB equipped with a bridge rectifier and varistor, allowing it to handle up to 250V AC/DC and 1A current. The connector also has a grey PG11 cable gland and is made to withstand harsh environments with an IP65 protection rating. Made from high-quality materials such as CuZn, Cu/Sn for contact base and plating, and PA GF for the cable gland, it ensures long-term robust performance. This connector is designed for a range of industrial applications and can be used with cables ranging from 6 to 9 mm in diameter.
