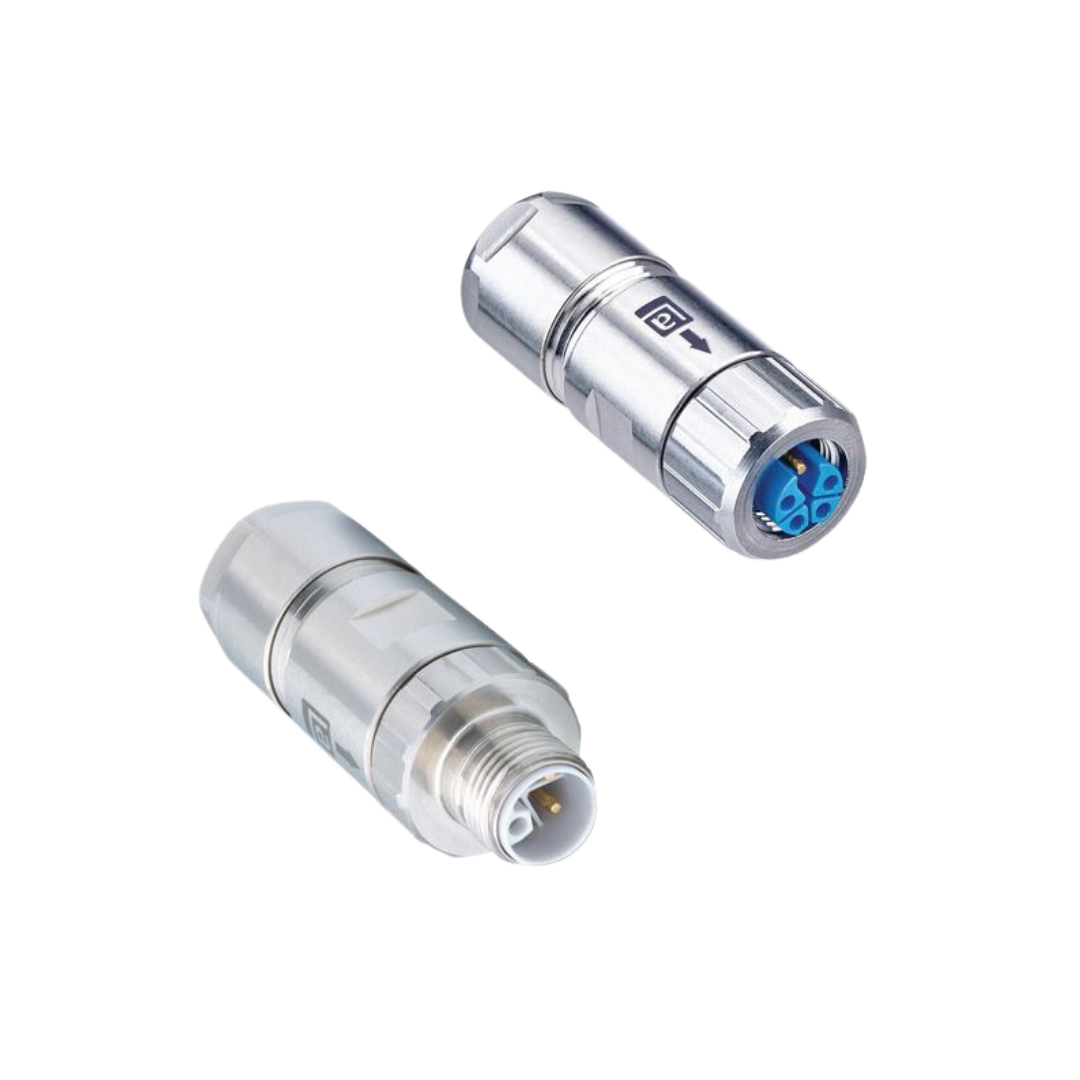

Field Attachables

The M12 Power Field Attachable Connector is a robust and efficient connector designed for power applications. This male, straight connector features 5 pins (4+FE), is L-coded, and has a shielded, silver housing to ensure high performance and reliability. The connector supports crimp type connection and operates at voltages of 50 V AC and 60 V DC, making it versatile for various electrical needs. This attachable connector is crafted from durable materials including CuNi for the contact base, PBT GF for the contact bearer, and CuZn plated with Ni for the housing, ensuring longevity and stable performances. It is capable of withstanding rigorous conditions with an operating temperature range from -40 °C to +125 °C, and it is rated at IP65/IP67 for protection. Additionally, the connector supports up to 100 mating cycles, allowing for repeated use. The M12 Power Field Attachable Connector is ideal for industrial and automation applications where a reliable connection to power sources is crucial. The shielded design guards against electromagnetic interference, ensuring clean and reliable signals. With a wide compatibility range owing to its included gaskets (Ø3 - Ø6 mm, Ø5 - Ø9 mm, Ø8 - Ø11 mm), this connector is highly adaptable to various cable sizes, aiding in diverse setup requirements.

The M12 Power Field Attachable Connector is designed for robust and reliable power connections. Featuring a female, straight design with 4 pins and T-coding, this connector is shielded for secure electrical performance. It has a durable silver housing and employs a screw type connection method. With a rated voltage of 50 V AC / 60 V DC and IP65/IP67 protection rating, it ensures safe operation in demanding industrial environments. The connector supports cables with diameters ranging from 3 to 11 mm, providing versatility in various applications.

The M12 Power Field Attachable Connector is a reliable and robust solution for industrial applications. This female connector is straight and features 5-pin (4+FE) L-coded wiring, ensuring secure and efficient connectivity. The connector is shielded to protect against electromagnetic interference, and the silver housing enhances durability and resistance to harsh environments. The crimp type attachment ensures a solid connection, maintaining high performance in demanding conditions. Rated for 50 V AC/60 V DC and compatible with various cable sizes due to the enclosed gaskets, this connector is versatile and suitable for a wide range of applications, including automation systems and industrial machinery setups.

The M12 Power Field Attachable Connector is designed for industrial applications requiring reliable and robust connections. This female, straight connector features 5 pins (4+PE) and is K-coded for power applications. The shielding ensures minimal interference and the silver housing offers durability and resistance to corrosion. It supports a crimp type connection, making it versatile and easy to use in field installations. With a rated operating voltage of 600 V AC/DC and an IP65/IP67 protection rating, it's suitable for harsh environments. The connector can operate in temperatures ranging from -40 °C to +125 °C, ensuring performance in extreme conditions.

M12 Power Field Attachable Connector: Male, straight, 4-pin, T-coded, shielded, silver housing, screw type, 50 V AC / 60 V DC

M12 Power Field Attachable Connector: Male, straight, 4-pin(3+PE), S-coded, shielded, silver housing, screw type, 600 V AC/DC

M12 Power Field Attachable Connector: Female, straight, 4-pin(3+PE), S-coded, shielded, silver housing, screw type, 600 V AC/DC

The M12 Power Field Attachable Connector is designed for robust and reliable performance, especially in demanding environments. With a male straight design and 5 pins (4+PE) configuration, this connector is K-coded and provides excellent shielding. The silver housing enhances durability and protection while accommodating a crimp type connection for secure and stable conductivity. It operates efficiently at 600 V AC/DC, making it ideal for industrial applications. Benefits of the M12 Power Field Attachable Connector include high insulation resistance (˃ 10^9 Ohm), low contact resistance (≤ 10 mOhm), and a high mating cycle capacity (≤ 100 cycles). The product is compliant with UL 94 V-2 flame resistance standards, ensuring safe use in high-temperature conditions ranging from -40 °C to +125 °C. Applications for this connector include its use in automation systems, control units, and mechanical systems where secure and shielded connections are crucial. The IP65 and IP67 protection degrees guarantee that the connector remains reliable in dusty and wet conditions typical of industrial environments.

The M12 Power Field Attachable Connector is a highly reliable and robust male connector ideal for various industrial applications. Boasting a 5-pin (4+FE) L-coded configuration, this connector is perfect for transmitting power with high efficiency. Its housing is silver-plated, ensuring excellent shielding and durability, while the crimp type connection guarantees a secure and stable attachment. With a rated voltage of 50 V AC/60 V DC and an IP65/IP67 protection rating, this connector is designed to withstand harsh environments, making it suitable for use in a wide range of industrial setups. The connector supports up to 100 mating cycles, has low contact resistance (≤ 10 mOhm), and high insulation resistance (˃ 10^9 Ohm), ensuring reliable performance over time. Additionally, it includes multiple cable gaskets to accommodate different cable sizes and features a robust strain-relief mechanism to prevent cable damage. This product adheres to the IEC 61076-2-111 design standard, guaranteeing high-quality performance and safety compliance.

The M12 Power Field Attachable Connector is designed for robust and reliable connectivity in industrial environments. Featuring a straight, male design with 5-pins (4+PE) and K-coding, this connector ensures secure and efficient power transmission. The silver housing offers a shielded and crimp type connection, supporting 600 V AC/DC applications. With comprehensive shielding for optimal signal integrity, rated for a maximum voltage of 630 V and operating within a temperature range of -40 °C to +125 °C, the connector excels in versatile and demanding applications. Designed for durability, it supports up to 100 mating cycles with excellent protection degrees of IP65 and IP67.

The M12 Power Field Attachable Connector is a highly reliable and versatile component designed to meet demanding electrical connectivity needs. Featuring a female, straight, 5-pin (4+FE) configuration with L-coding, this connector ensures secure and robust connections. Its shielded design and silver housing enhance durability and performance in industrial environments. The crimp type attachment allows for secure wire connections, accommodating operating voltages of 50 V AC and 60 V DC. With a protection degree of IP65 and IP67, it ensures resistance to dust and water, making it suitable for harsh conditions. The connector's materials, including CuNi base and Cu/Au plating, ensure high contact resistance and durability. A key benefit of this connector is its versatility in use, thanks to its field attachable feature. The 3 enclosed gaskets allow for compatibility with cables of varying diameters (Ø3 - Ø6 mm, Ø5 - Ø9 mm, Ø8 - Ø11 mm), providing flexibility in different applications. Additionally, its reliable strain-relief feature mitigates cable stress, enhancing longevity. The M12 Power Field Attachable Connector is ideal for applications in industrial automation, power supply connections, and environments requiring robust electrical contacts. Its high resistance to environmental factors makes it a reliable choice for maintaining consistent performance in demanding operational settings.

The M12 Power Field Attachable Connector is a high-quality female connector, designed for robust and reliable connections. This straight, 5-pin (4+PE) connector is K-coded and shielded for enhanced performance. It features a crimp type attachment, supporting voltage up to 600 V AC/DC with a rated impulse voltage of 6.0 kV. The silver housing ensures durability and resistance to challenging environments, making it suitable for a variety of industrial applications. The connector is compliant with IEC 61076-2-111 standards and offers protection degrees of IP65 and IP67 when mounted correctly. Ideal for use with temperature ranges from -40 °C to +125 °C.
