M12-M8 Cordsets

The Sensor/Actuator Double-Ended Cordset features a male straight A-coded translucent 3-pin M12 standard connector and a female angled A-coded translucent 3-pin M8 Snap-In connector with 2xLEDs (PNP). Operating within a voltage range of 10-30 V DC and supporting up to 4A, it ensures reliable performance for various electronic applications. Enclosed in a PUR black cable with 3-wires (0.34 mm²), it offers robustness and protection against harsh environmental factors. Its design standard adheres to IEC 61076-2-101 and IEC 61076-2-104, providing IP65, IP67, IP68, and IP69K ratings when properly mounted. Ideal for sensor and actuator integrations, this cordset enhances connection reliability and longevity.

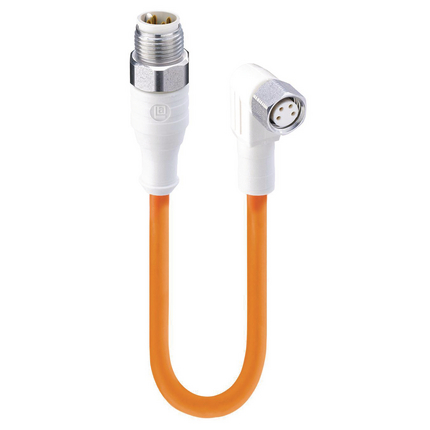

The Sensor/Actuator Double-Ended Cordset is perfect for connecting sensors and actuators in various industrial applications. This cordset features a male straight A-coded M12 connector and a female angled A-coded M8 connector, both designed for wash-down environments (F&B). The connectors are white 4-pin types, ensuring secure and reliable connections. The cordset is rated for 30 V AC/DC with a maximum current of 4 A, making it suitable for a wide range of industrial automation tasks. The TPE orange cable is durable, flame retardant, and contains four wires with a 0.25 mm² conductor size, providing excellent electrical performance. Additionally, the cable has a high resistance to chemicals, oil, and microbes, ensuring long-lasting use in demanding environments. The cordset’s specifications comply with various international standards, including IEC and DIN standards, and it offers protection degrees up to IP69K, providing robust performance even in harsh conditions. Ideal for use in food and beverage processing, this cordset ensures high standards of hygiene and reliability.

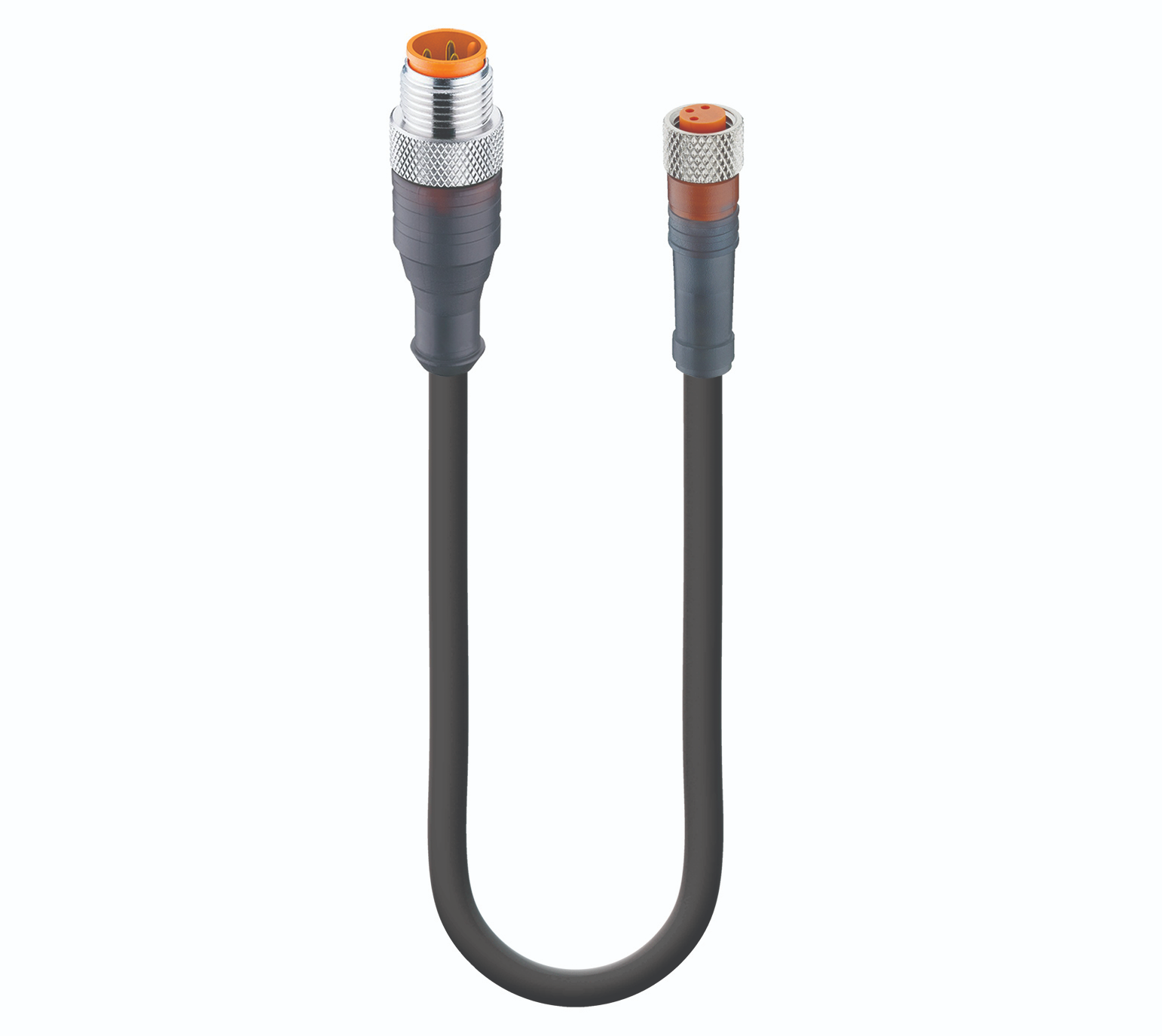

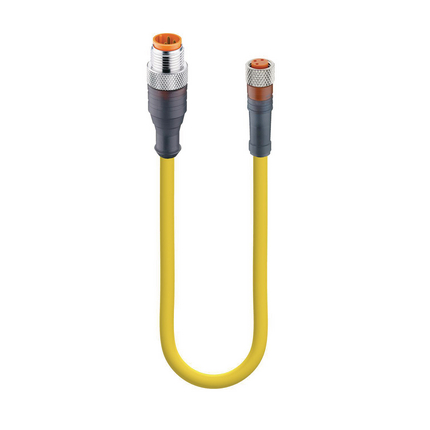

The Sensor/Actuator Double-Ended Cordset is equipped with a male straight A-coded translucent 3-pin M12 Standard connector and a female straight A-coded translucent 3-pin M8 Standard connector. It is designed for efficient data and power transmission, rated for 50 V AC / 60 V DC, 4 A. The cord consists of a durable PUR yellow cable with 3 wires, each 0.34 mm² in diameter. This cordset is built for resilience, providing effective operation even in challenging environments (IP65, IP67, IP68, IP69K rated). Ideal for industrial automation applications, it ensures reliable and robust electrical connections while maintaining flexibility and resistance to chemicals, oils, and environmental influences.

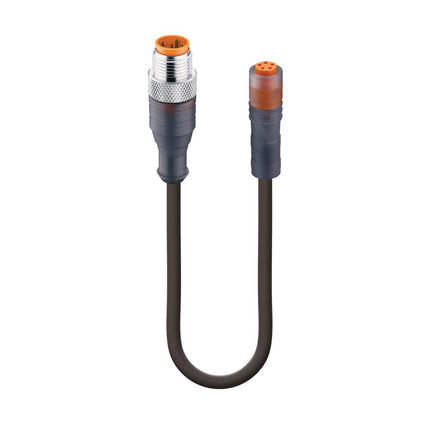

The Sensor/Actuator Double-Ended Cordset is equipped with a male straight A-coded translucent 5-pin M12 standard connector and a female straight B-coded translucent 5-pin M8 Snap-In connector. Designed for reliability, this cordset supports operating voltages of up to 50 V AC / 60 V DC and a current rating of 4 A. The accompanying black PVC cable encompasses 5 wires with a conductor size of 0.34 mm², ensuring robust physical and electrical properties. Features such as an immersion-resistant IP67 and IP65 protection rating make it suitable for challenging environments while the components' compliance with international standards offers peace of mind regarding quality and durability.

The Sensor/Actuator Double-Ended Cordset consists of a male straight A-coded white 3-pin M12 F&B (Wash-Down) connector and a female angled A-coded white 3-pin M8 F&B (Wash-Down) connector. It supports voltages of 50 V AC / 60 V DC and currents up to 4 A. The cordset features an orange TPE cable with 3 wires, each with a conductor size of 0.25 mm². This product is ideal for food and beverage (F&B) applications due to its robust construction, including stainless steel attachments and high protection ratings of IP65, IP67, IP68, and IP69K. It performs well under a wide range of temperatures with an operational range of -40 °C to +105 °C, ensuring reliable performance in demanding industrial environments. Additionally, the cordset has a UL rating and meets safety and environmental compliance standards for RoHS.

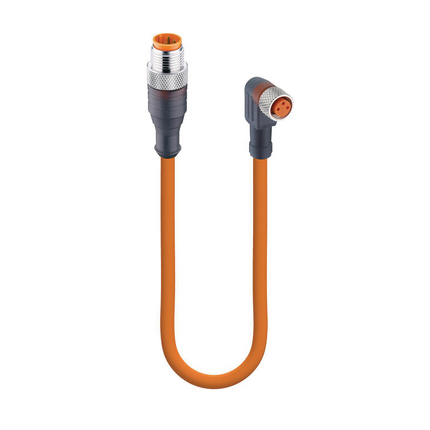

The Sensor/Actuator Double-Ended Cordset is designed to facilitate optimal connectivity in sensor and actuator applications. This high-quality cordset features a male straight A-coded translucent 3-pin M12 Standard connector and a female angled A-coded translucent 3-pin M8 Standard connector with two integrated LEDs indicating PNP operation. The cordset operates within a voltage range of 10-30 V DC and can handle currents up to 4 A. The connectors are built to withstand various environmental challenges, boasting an impressive IP ratings of IP65, IP67, IP68 (1m/24h), and IP69K, ensuring robust protection against dust, water, and other elements. The cordset is equipped with a flexible and resilient orange PUR cable with three wires (0.34 mm²), offering a combination of durability and flexibility. The welding-resistant cable also resists microbes and hydrolysis and excludes PVC and silicone, fulfilling high safety and environmental standards. With its excellent resistance to environmental factors, including cold flexibility, seawater resistance, and good welding resistance, this cordset excels in demanding industrial applications. The clear LED indicators provide immediate feedback on connection and operation status, simplifying troubleshooting and maintenance. The combination of reliable connectors and durable cabling makes this product ideal for use in the automotive industry, automation systems, and other industrial environments. Whether installed in fixed positions or dragged in dynamic applications, the Sensor/Actuator Double-Ended Cordset ensures dependable performance and enhances operational efficiency. Technicians and engineers can benefit from its high-quality construction, ease of installation, and long service life, making it a valuable addition to their connectivity solutions.

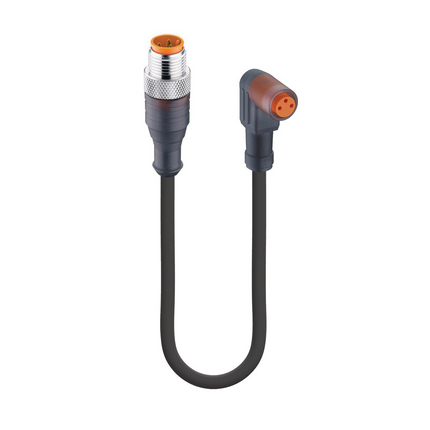

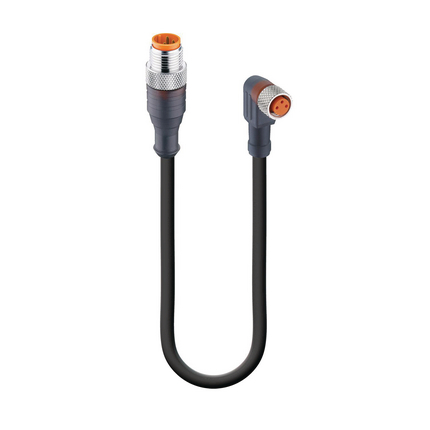

The Sensor/Actuator Double-Ended Cordset features a versatile design with a male straight A-coded translucent 3-pin M12 Standard connector and a female angled A-coded translucent 3-pin M8 Standard connector. It boasts 2xLEDs (PNP) indicators for easy status monitoring and ensures reliable performance with a rated voltage of 10-30 V DC and a rated current of 4 A. The robust PUR black cable, with 3 wires and a cross-section of 0.34 mm², provides excellent flexibility and resistance to environmental factors such as oil and chemicals. The unshielded cordset is ideal for use in various industrial applications, offering easy installation with its coupling screw attachment type and high durability with protection ratings of IP65, IP67, IP68, and IP69K. Suitable for ambient temperatures ranging from -40°C to +90°C, this cordset ensures long-lasting and reliable connections in demanding environments.

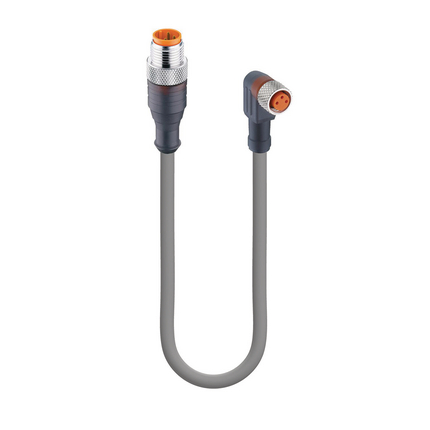

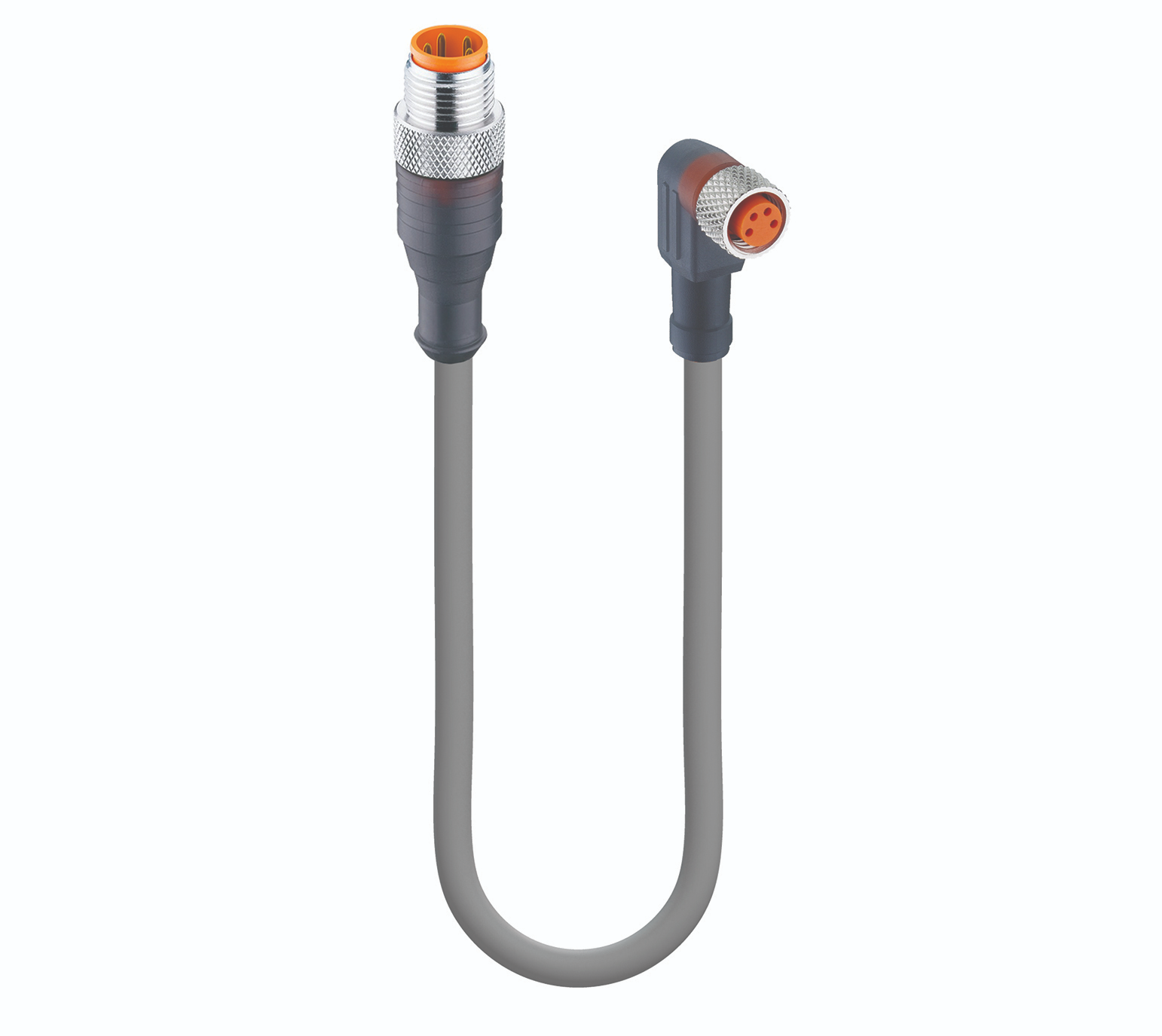

The Sensor/Actuator Double-Ended Cordset is a versatile and reliable connector solution for industrial applications. Featuring a 3-pin male straight A-coded M12 standard connector on one end, and a 3-pin female angled A-coded M8 standard connector on the other, it ensures secure and robust connections. The inclusion of 2xLEDs (PNP) provides visual status indication, making it ideal for environments where monitoring of connections is crucial. The cordset operates within a voltage range of 10-30 V DC, with a maximum current load of 4 A. Constructed with a durable PUR grey cable, it is designed for long-lasting performance. The cable has 3 wires of 0.34 mm² each. This cordset is unshielded and rated IP65, IP67, IP68 (1m/24h), and IP69K for high levels of protection against dust and water, making it suitable for challenging industrial environments.

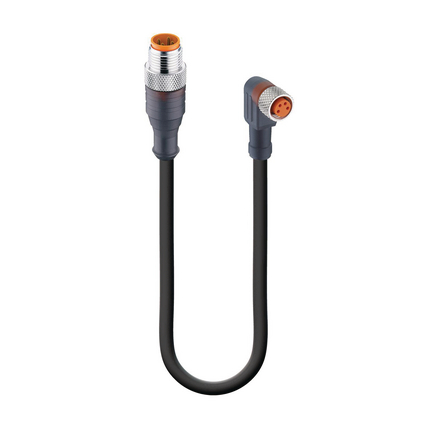

The Sensor/Actuator Double-Ended Cordset is engineered for robust connectivity, featuring a male straight A-coded 4-pin M12 standard connector and a female angled A-coded 4-pin M8 standard connector. Designed to operate at 30 V AC/DC with a current rating of 4 A, this cordset ensures high performance in various industrial applications. It is constructed with a PUR black cable and includes 4-wires of 0.34 mm² each, offering durability and chemical resistance. The connectors are translucent and meet IP65, IP67, and IP69K protection standards ensuring reliability in harsh environments. This cordset provides seamless integration for your sensor or actuator systems, benefiting from its flexible installation features and robust design for long-term use in tough conditions. Ease of installation and secure attachment through coupling screws and nuts add to its functionality, making it a preferred choice for demanding applications. Applications of this cordset include automation systems, robotics, manufacturing machinery, and other industrial setups where reliable and durable sensor or actuator connectivity is required. The high-quality material and precise construction make it apt for environments requiring consistent electrical performance and safety.

The Sensor/Actuator Double-Ended Cordset is crafted for seamless connectivity between devices. Featuring a male M12 A-coded translucent 3-pin standard connector and a female M8 A-coded translucent 3-pin Snap-In connector, this cordset ensures reliable performance in industrial applications. It supports voltage ratings of 50 V AC and 60 V DC and can handle up to 4 A of current. The robust PUR black cable with three wires of 0.34 mm² offers flexibility and durability. The cordset is designed for environments requiring high protection levels, featuring IP65 to IP69K ratings, and can operate within a temperature range of -40 °C to +90 °C, suitable for various challenging conditions. With advanced features like a high mating cycle count and excellent resistance to oil and chemicals, this cordset is ideal for automation and sensor applications.

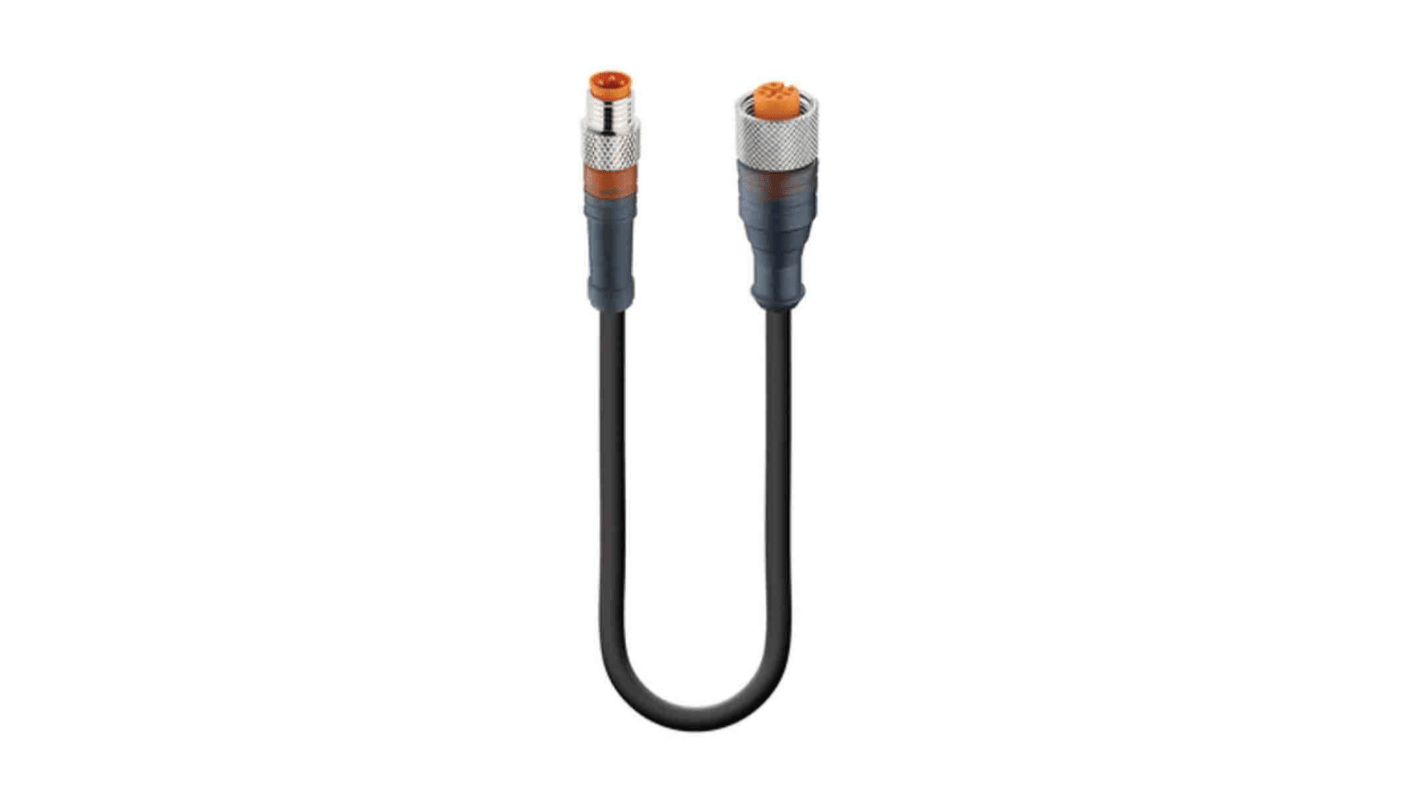

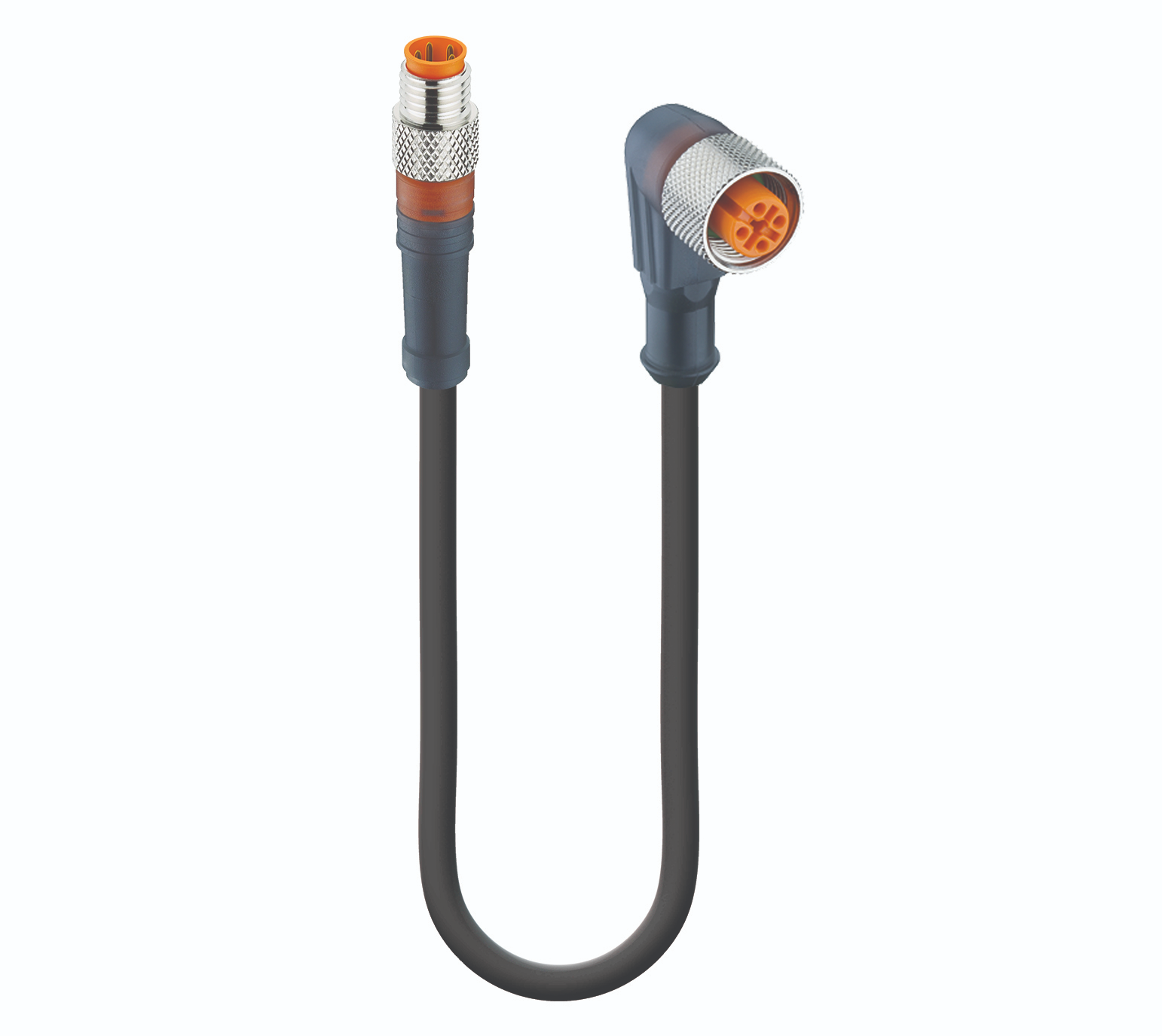

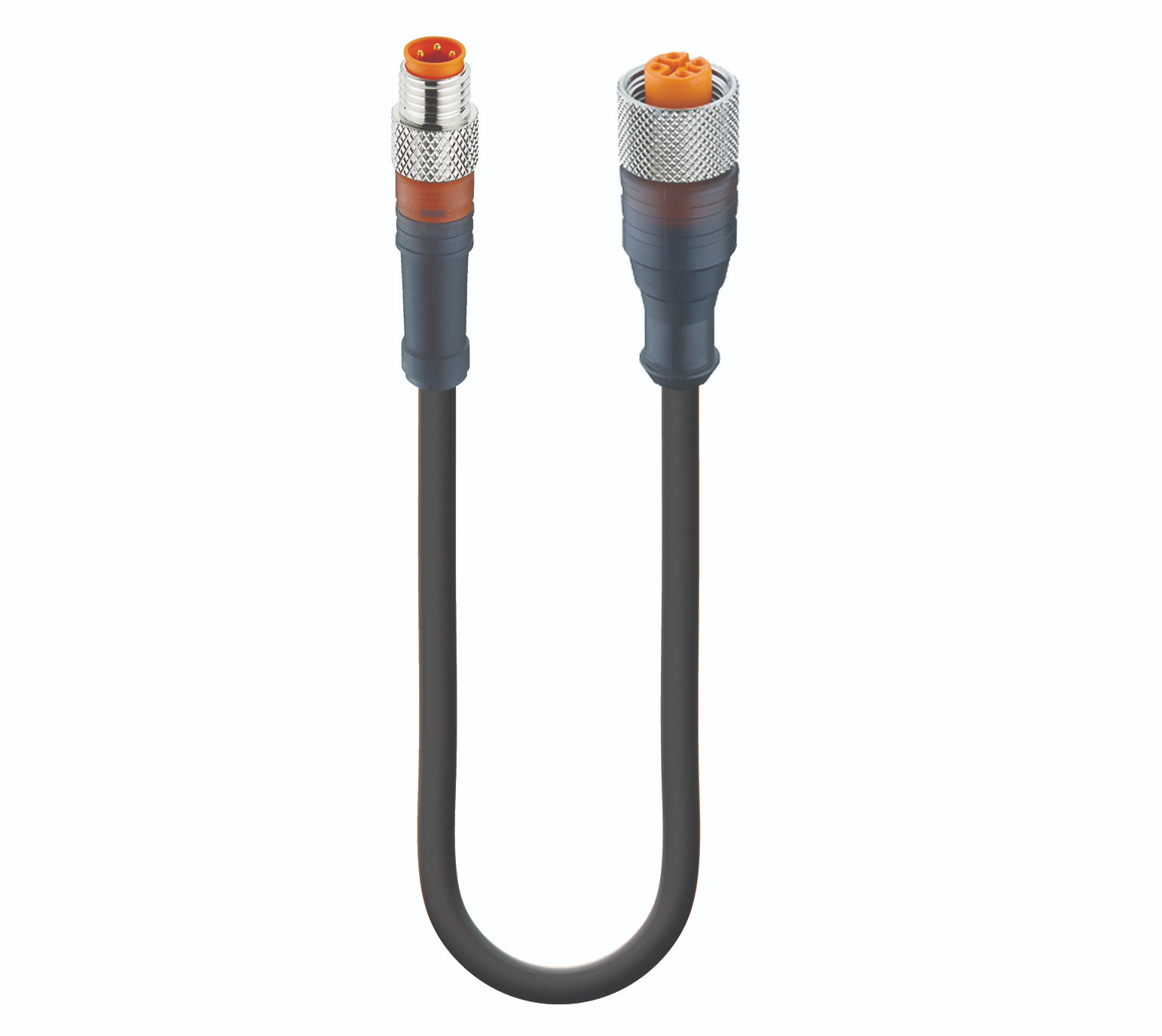

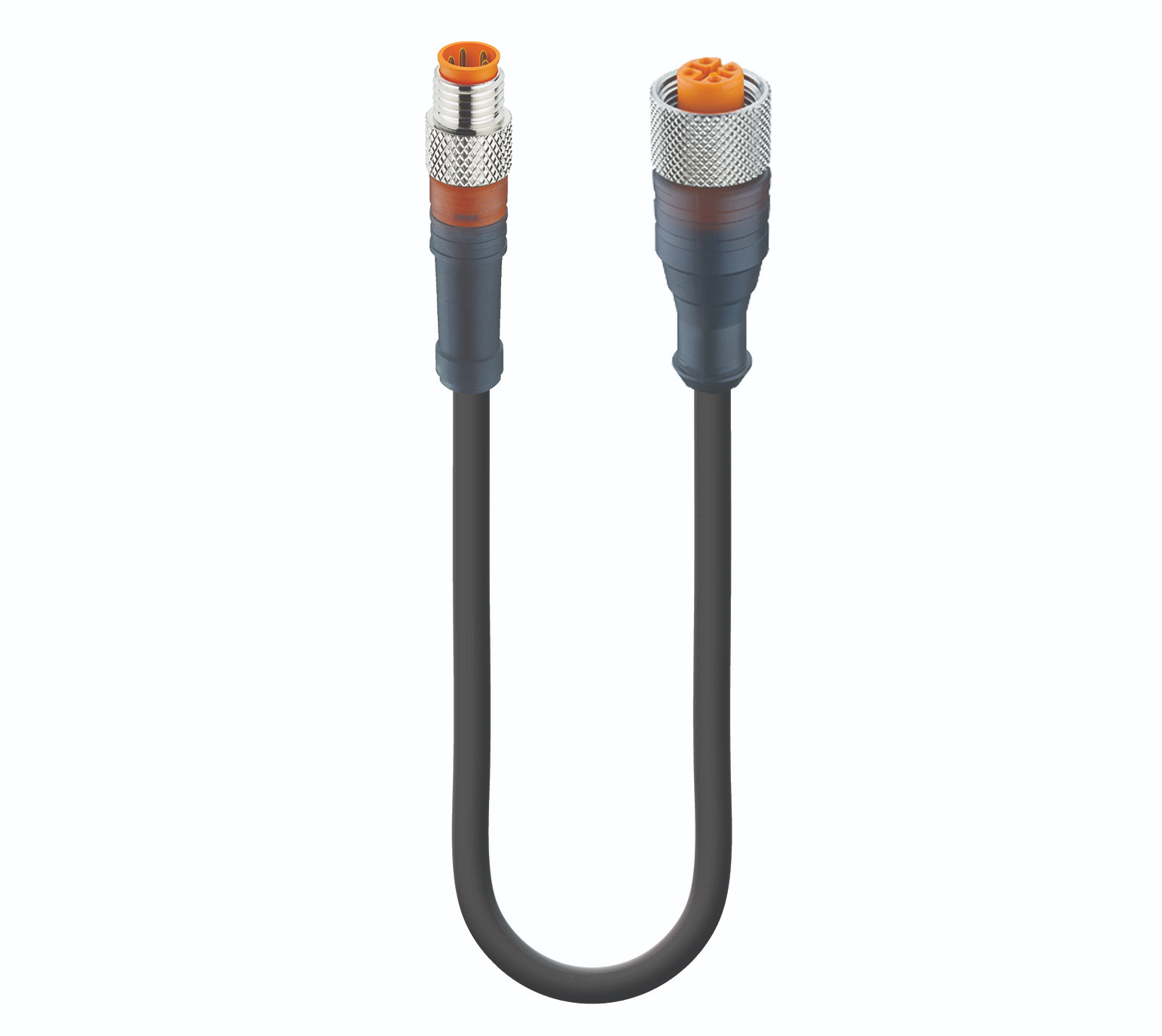

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 4-pin M8 Standard connector to female angled A-coded translucent 4-pin M12 Standard connector, 30 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm²

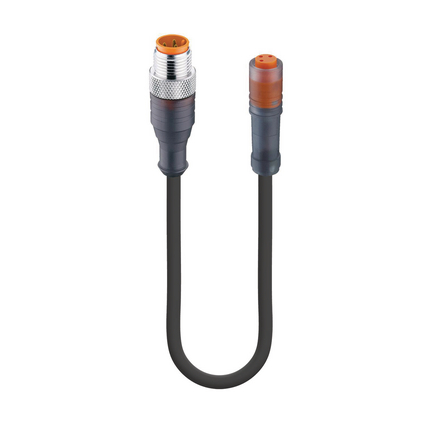

The Sensor/Actuator Double-Ended Cordset is designed for seamless connectivity in industrial automation systems. It features a male straight A-coded translucent 3-pin M12 Standard connector to a female straight A-coded translucent 3-pin M8 Standard connector, providing reliable performance with a rated voltage of 50 V AC / 60 V DC and a current rating of 4 A. The cordset includes a durable PVC black cable housing three 0.34 mm² wires, ensuring flexibility and robustness in various environments. The high-grade materials and IP65/IP67 protection rating guarantee excellent resistance to harsh industrial conditions, including oil and chemicals. This cordset is ideal for use in automation settings where reliable sensor and actuator connections are essential for system accuracy and efficiency.

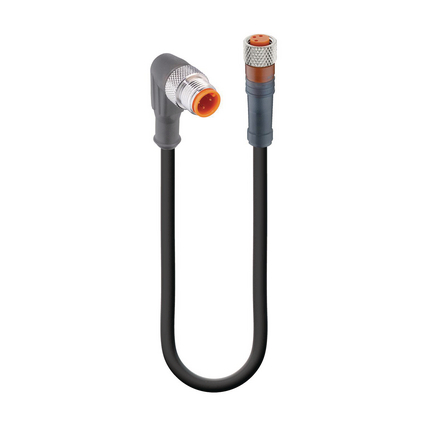

The Sensor/Actuator Double-Ended Cordset is designed to connect sensors and actuators effectively. It features a male angled A-coded translucent 3-pin M12 Standard connector on one end and a female straight A-coded translucent 3-pin M8 Standard connector on the other. This cordset supports 50 V AC/60 V DC and 4 A, making it suitable for various industrial applications. The black PUR cable with 3 wires and 0.34 mm² cross-section is highly durable, offering good microbe and hydrolysis resistance. It is free of PVC and silicone, ensuring flexibility and long-lasting performance even in harsh environments. The cable jacket color is black, similar to RAL 9005. This cordset is unshielded, with a contact resistance of ≤ 10 mOhm and insulation resistance ˃ 10^9 Ohm. Suitable for operation in temperatures ranging from -40°C to +90°C, it provides a reliable connection for various industrial equipment. The IP67, IP68, and IP69K ratings ensure protection under different conditions.

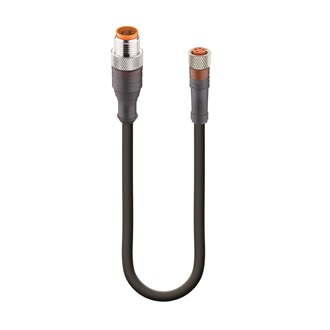

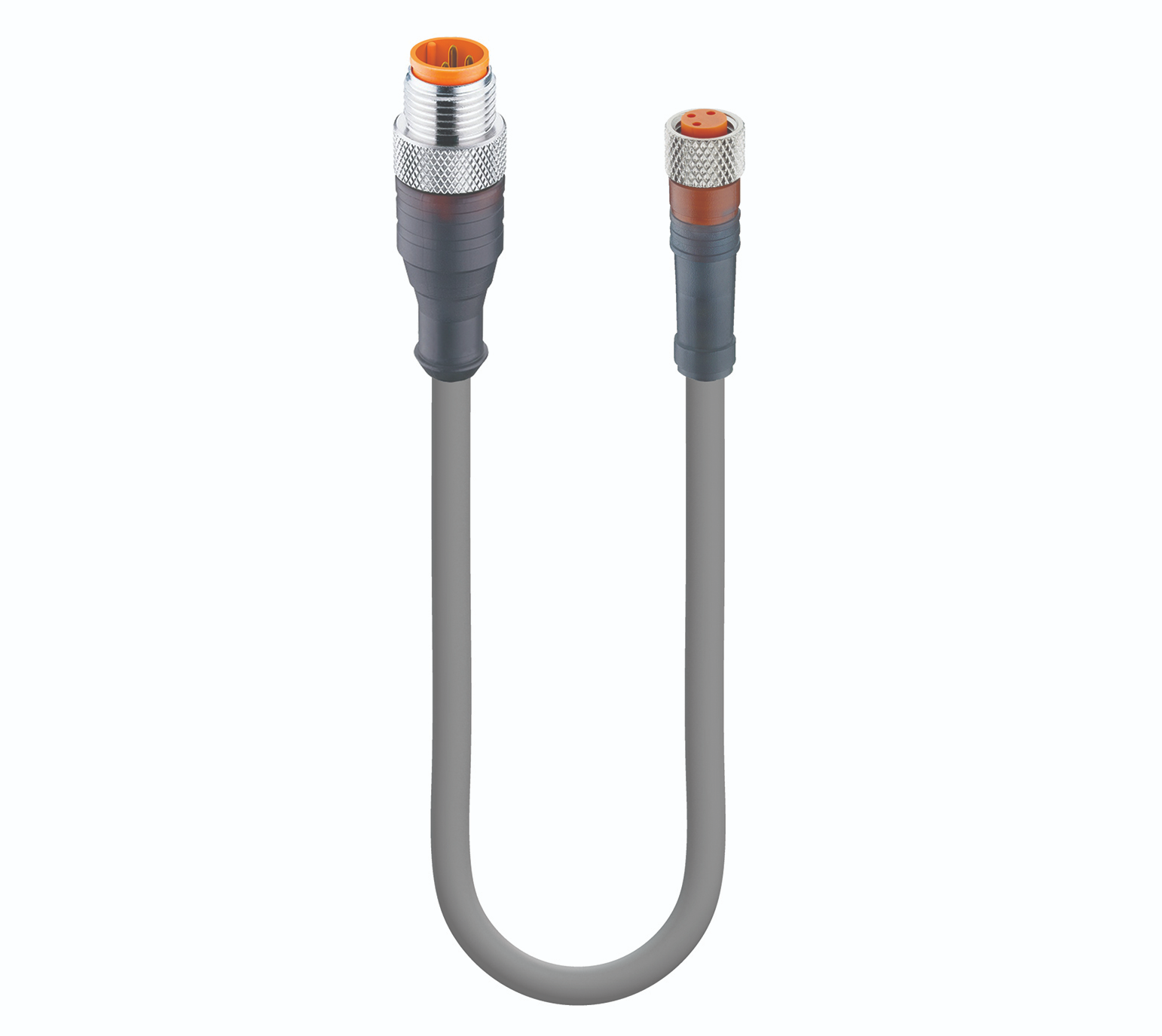

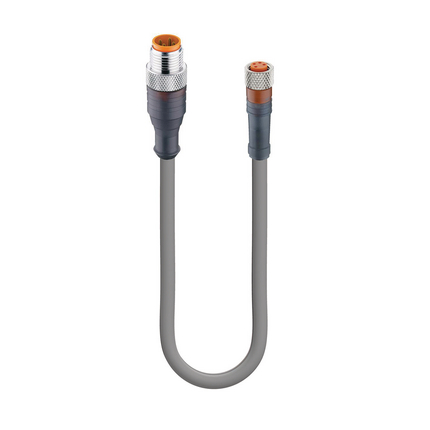

The Sensor/Actuator Double-Ended Cordset is a reliable connector solution ideal for industrial applications. It comes with a male straight A-coded 4-pin M12 Standard connector and a female straight A-coded 4-pin M8 Standard connector. Designed for demanding environments, it offers a maximum operating voltage of 30 V AC/DC and can handle up to 4 A. The 4-wire cable, made from durable PUR, ensures longevity and flexibility. It is rated with IP65, IP67, IP68, and IP69K protection, ensuring effective operation even in challenging conditions. The assembly is easy to handle with coupling screws, and its grey color provides a professional appearance. The cordset is appropriate for connections in automation systems, offering excellent resistance to oils and chemicals, ensuring operational integrity.
