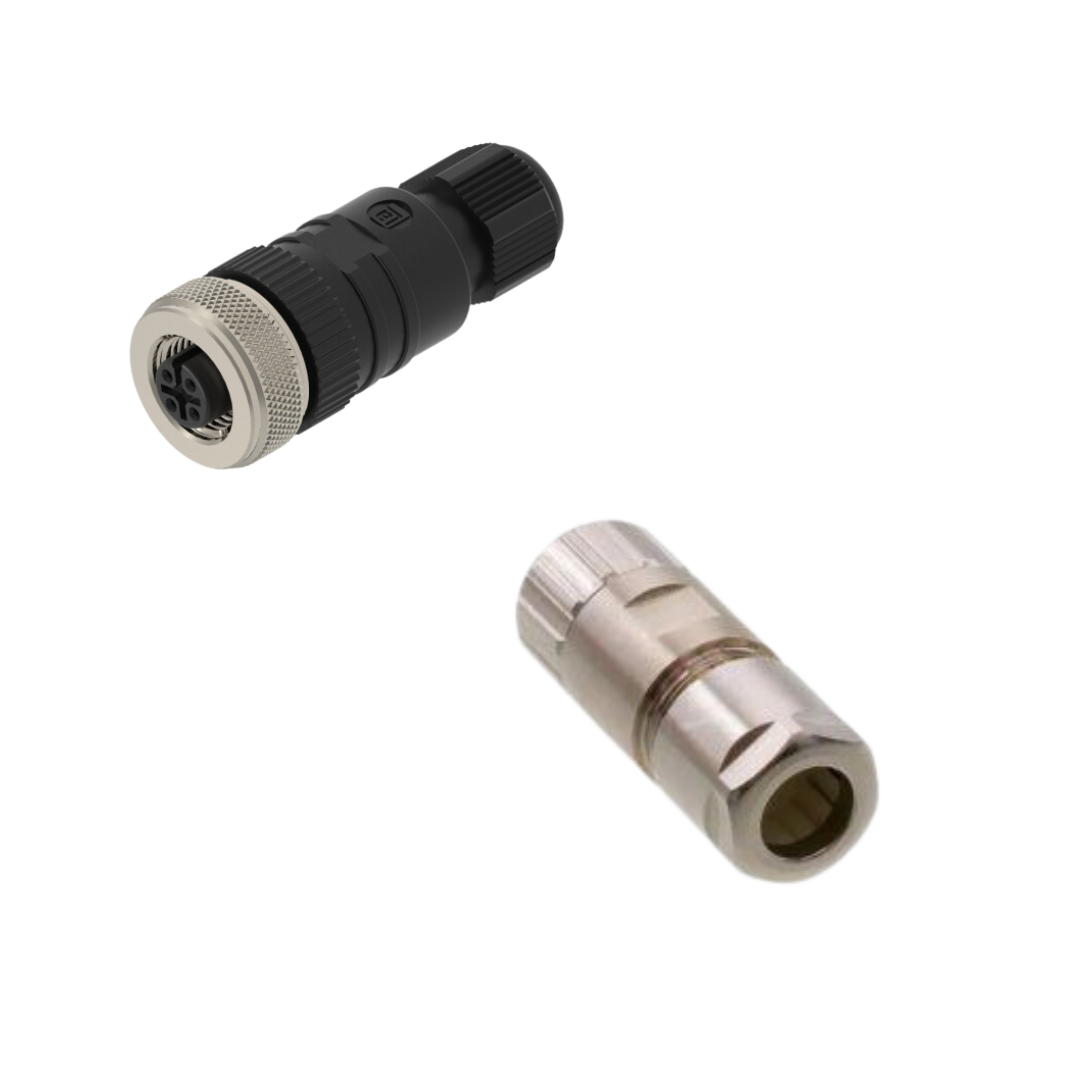

M12 Field attachable A-coded Female
RKCS 4T/11
M12 Power Field Attachable Connector
The M12 Power Field Attachable Connector is designed for robust and reliable power connections. Featuring a female, straight design with 4 pins and T-coding, this connector is shielded for secure electrical performance. It has a durable silver housing and employs a screw type connection method. With a rated voltage of 50 V AC / 60 V DC and IP65/IP67 protection rating, it ensures safe operation in demanding industrial environments. The connector supports cables with diameters ranging from 3 to 11 mm, providing versatility in various applications.
€47.99
per item

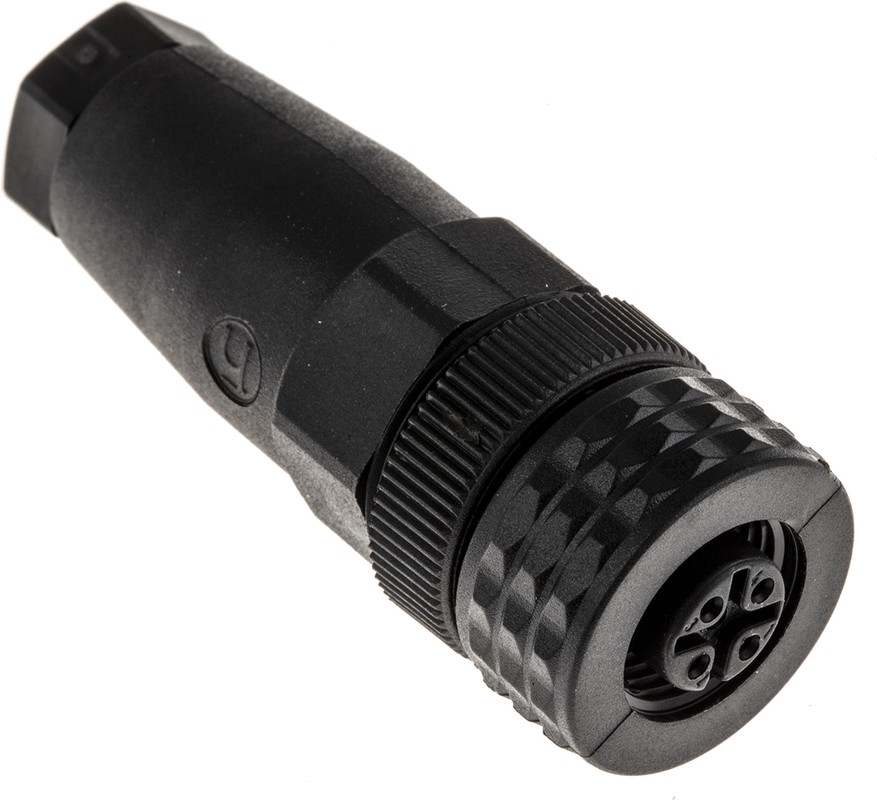

ELKA 4012 K PG7
M12 Field Attachable Connector
The M12 Field Attachable Connector is designed to meet the diverse connection needs in industrial environments. This connector is a female type, featuring a straight design with 4 internal pins. It is A-coded, ensuring compatibility with a wide range of industrial applications. The connector is unshielded which makes it lightweight and easy to handle without compromising performance. The black housing provides durability and a sleek appearance, while the screw-type connection ensures secure and reliable attachment. Designed to handle up to 230 V AC/DC, this connector is versatile and practical for various electrical setups.
The benefits of the M12 Field Attachable Connector include its robust black housing that ensures long-term durability and resistance to harsh environments. Its screw-type mechanism simplifies installation, making it a convenient option for on-site field connections. The A-coding offers standardization and prevents mismating, ensuring reliable and consistent connections.
This connector is ideal for use in automation systems, control cabinets, and various machinery and industrial equipment where reliable electrical connections are crucial. Its versatility and ease of use make it suitable for a range of applications, from factory automation to transportation and process control systems.
€10.38
per item
RKC 5/9
M12 Field Attachable Connector
M12 Field Attachable Connector: female, straight, 4-pin, A-coded, unshielded, black housing, screw type, 230 V AC/DC
€12.13
per item
RKC 4/3/9
M12 Field Attachable Connector
M12 Field Attachable Connector: female, angled, 3-pin, A-coded, unshielded, black housing, screw type, 230 V AC/DC
€10.01
per item
RKCN 5/9
M12 Field Attachable Connector
M12 Field Attachable Connector: male, straight, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC
€17.90
per item
RKCN 4/7
M12 Field Attachable Connector
M12 Field Attachable Connector: female, angled, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC
€16.00
per item
RKC 5/7
M12 Field Attachable Connector
M12 Field Attachable Connector: male, straight, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC
€12.37
per item
ELKA 5012 PG7
M12 Field Attachable Connector
The M12 Field Attachable Connector is designed for a wide range of applications where a secure and robust connection is essential. This female connector features a straight shape and a 5-pin configuration, making it highly versatile. It is A-coded and unshielded, ensuring compatibility with various industrial requirements. The connector comes with a black housing that is both durable and aesthetically pleasing. With its screw-type connection, it ensures a firm and secure attachment, capable of handling 50 V AC and 60 V DC power requirements.
The benefits of this M12 Field Attachable Connector include its robust construction, ensuring long-lasting performance even in harsh industrial environments. The screw-type connection prevents accidental disconnections, providing reliability in critical applications. The black housing enhances its durability and provides protection against physical wear and tear.
This connector can be utilized in a multitude of applications, including industrial automation, sensor and actuator connections, and other field wiring tasks. Its straightforward installation process allows for quick and efficient assembly, saving time and reducing downtime in your operations.
€12.62
per item
RKCN 4/9
M12 Field Attachable Connector
M12 Field Attachable Connector: female, angled, 4-pin, A-coded, unshielded, black housing, screw type, 230 V AC/DC
€16.00
per item
RKCS 4S/11
M12 Power Field Attachable Connector
M12 Power Field Attachable Connector: Female, straight, 4-pin(3+PE), S-coded, shielded, silver housing, screw type, 600 V AC/DC
€47.99
per item
RKC 4/7
M12 Field Attachable Connector
The M12 Field Attachable Connector is a top-notch male connector designed for efficient and robust connections in sensor/actuator applications. It features a straight, 5-pin, A-coded configuration that ensures unshielded and reliable electrical connections. The black housing and screw type attachment make assembly straightforward, providing strong and secure connections for operational voltages up to 250V and rated currents of 4A. Made by Belden, this connector is engineered with a high contact resistance of ≤ 10 mOhm and a robust insulation resistance of ˃ 10^9 Ohm, ensuring durability and longevity in various industrial environments.
The benefits of this M12 Field Attachable Connector include an easy-to-manage screw terminal design that supports quick and effective installations. Its high rated voltage and current capabilities make it suitable for demanding applications, while the IP65/IP67 protection rating ensures it can withstand challenging conditions. The connector's components, including CuZn contact base material and PA contact bearer, contribute to its robust and reliable performance.
This M12 Field Attachable Connector is ideal for various industrial and automation applications, particularly those involving sensor/actuator connectivity. The standard compliance with IEC 61076-2-101 ensures compatibility and reliability in professional settings, making it a versatile choice for technology professionals looking to enhance their electrical connectivity solutions.
€10.89
per item
RKC 4/9
M12 Field Attachable Connector
M12 Field Attachable Connector: female, straight, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC
€10.89
per item
RKCN 5/7
M12 Field Attachable Connector
M12 Field Attachable Connector: female, angled, 4-pin, A-coded, unshielded, black housing, screw type, 10 - 30 V
€17.90
per item
RKC 4/3/7
M12 Field Attachable Connector
M12 Field Attachable Connector: female, angled, 4-pin, A-coded, unshielded, black housing, screw type, 230 V AC/DC
€10.01
per item
ELKA 4012 PG9
M12 Field Attachable Connector
The M12 Field Attachable Connector is specifically designed for demanding industrial applications. This female, straight connector features 4-pin A-coding, providing reliable connections for various sensors and devices. The unshielded and screw type design ensures ease of deployment and secure attachment. With a voltage capacity of 230 V AC/DC, this connector is versatile and can be used in a range of electrical applications. The robust black housing is designed for durability and consistent performance in tough environments. Suitable for various industries including automation, manufacturing, and machinery, this connector is a reliable choice for high-performance tasks.
€11.08
per item
ELKA 4012 PG7 topas
M12 Field Attachable Connector
The M12 Field Attachable Connector is a high-quality and reliable solution for your connectivity needs. This female, straight connector features a 4-pin configuration and is A-coded for secure and accurate connections. Operating at 230 V AC/DC, it is designed for a wide range of industrial and commercial applications. The transparent housing allows easy inspection of internal components, ensuring a secure and reliable connection. The unshielded design and screw-type attachment make it simple to install and maintain, offering convenience and reliability for both professional and DIY projects.
This connector provides numerous benefits, including robust connectivity and easy installation. Its high voltage rating of 230 V AC/DC makes it suitable for various power and signal applications. The transparent housing not only adds a modern look but also helps quickly identify connection issues, enhancing maintenance efficiency.
The M12 Field Attachable Connector is ideal for many applications, including industrial automation, machinery, and control systems. Its reliable performance and straightforward installation make it a valuable component for engineers, technicians, and hobbyists working on electrical and electronic projects.
€11.31
per item
ELKA 5012 PG9 Au
M12 Field Attachable Connector
M12 Field Attachable Connector: female, straight, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC
€14.47
per item
