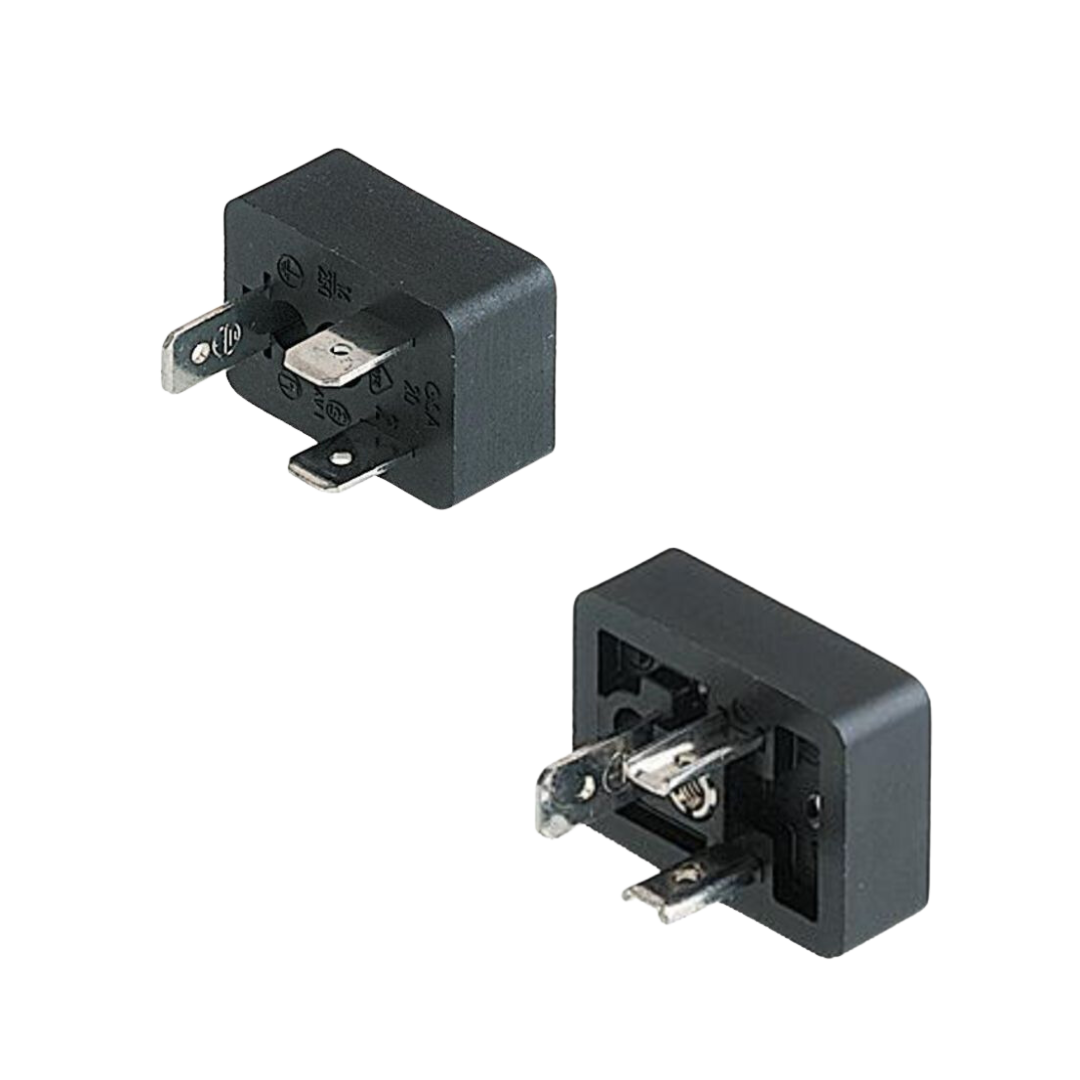

Type B Receptacles

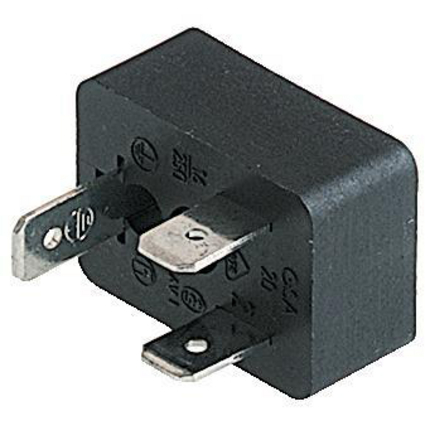

The GSA Industrial Standard Receptacle is a high-quality electrical connector designed for industrial usage. Featuring a Form B, 3-pin (2+1PE) configuration, this receptacle is compliant with UL 1977 standards, equipped with a black contact bearer, and utilizes a solder type connection with PE screw type for grounding. It operates at both 230 V AC/DC with a current rating of 16 A, making it highly reliable for conducting steady electrical flows in heavy-duty environments. The receptacle is built with durability in mind, incorporating a base material of CuZn, contact plating of Cu/Sn, and a PA GF contact bearer. This component has a straight design and includes features such as IP65 protection if correctly mounted and locked, ensuring resistance against dust and low-pressure water jets. It supports up to 50 mating cycles, operates efficiently between -40 °C to +125 °C, handles a fastening torque for contact screw between 50-60 Ncm, and meets various safety standards including UL, VDE, and CSA.

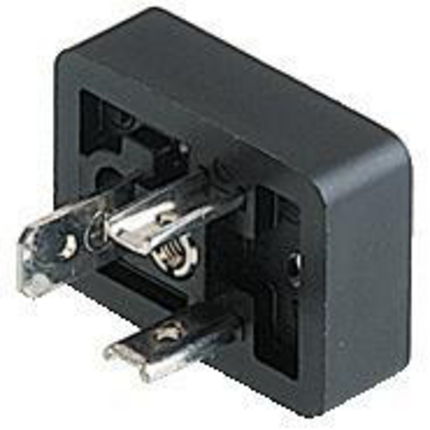

The GSN DIN Standard Receptacle features a 3-pin configuration (2+1PE) and complies with UL 1977 standards. Designed with a black PA GF contact bearer, it supports solder type connections alongside a PE screw type, ensuring secure electrical contact. Suitable for 230 V AC/DC applications and a current rating of 16 A, this receptacle is ideal for robust electrical systems. It boasts a high protection degree of IP65 when properly mounted, making it suitable for challenging environments. Its material composition includes CuZn for the contact base, ensuring durability, while the housing is designed to withstand a wide operating temperature range from -40°C to 125°C.
