M12 B-Coded Female Receptacle PROFIBUS

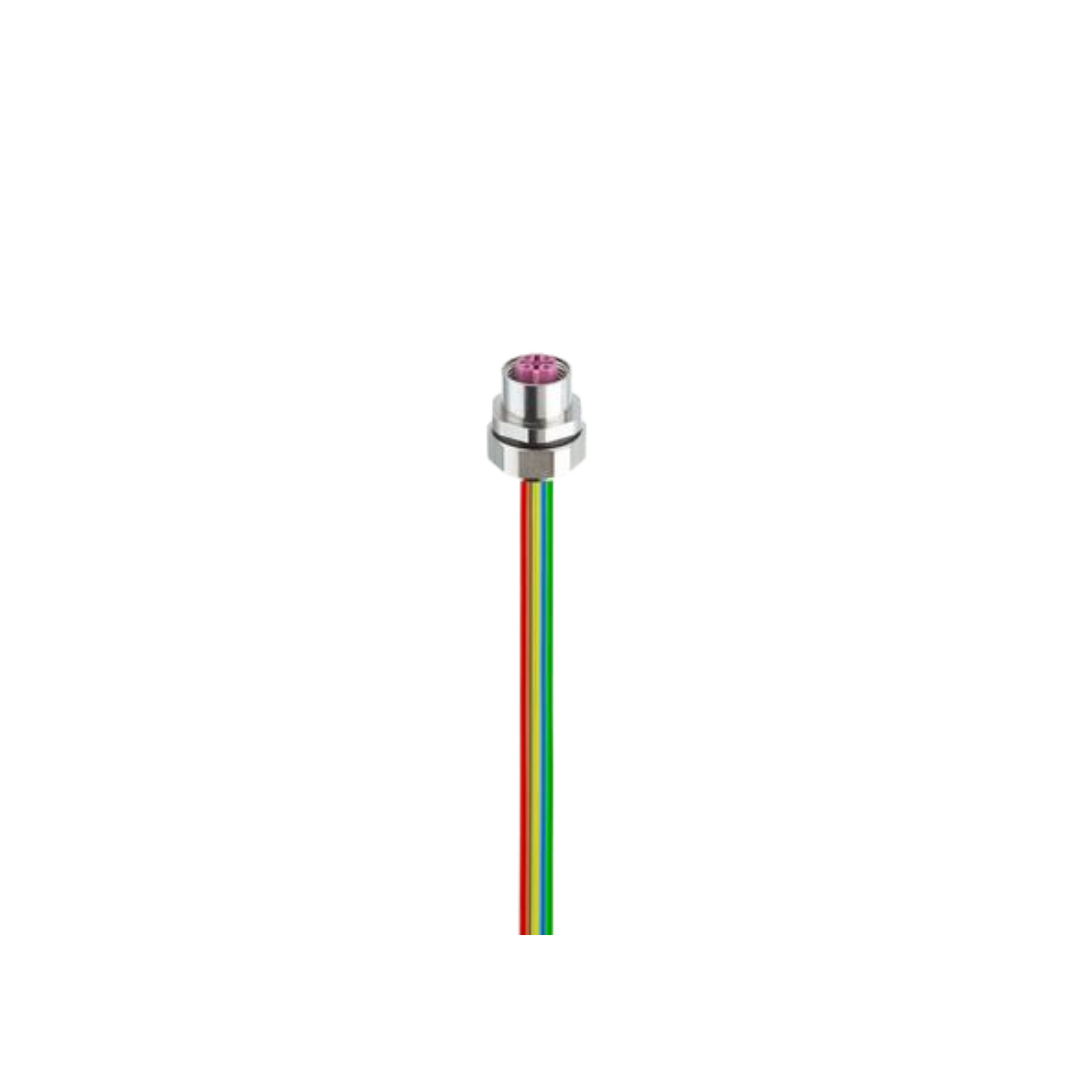

The PROFIBUS Data Receptacle Connector is designed to provide robust performance in data transmission applications. This female, front mount connector features an M12 mating side and stranded wires on the connecting side. It accommodates a 5-pin, B-coded configuration and is housed in a durable, unshielded metallic grey casing. Offering an operating voltage of 50 V AC / 60 V DC and a rated current of 4A, this connector ensures reliable connectivity for PROFIBUS networks. The stainless steel housing, coupled with a protection degree of IP65, IP67, and IP69K, guarantees durability and resistance to harsh environmental conditions. With materials such as CuZn for the contacts and TPU for the contact bearer, this connector provides excellent contact integrity and longevity. Ideal for industrial automation and control applications, this connector can withstand operating temperatures ranging from -25 °C to +85 °C and is compliant with RoHS standards.

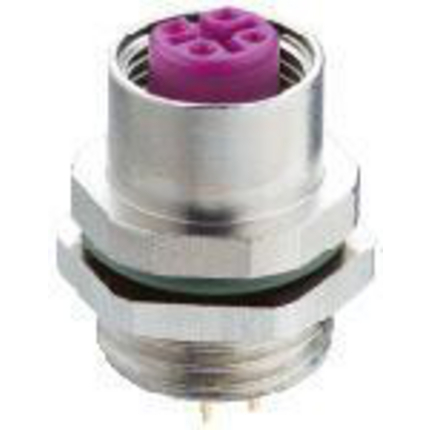

The PROFIBUS Data Receptacle Connector is designed for high-performance data transmission in industrial environments. This female connector supports rear mounting and comes with a shielding clip for enhanced protection against electromagnetic interference. With an M12 mating side and print contacts on the connecting side, this 5-pin, B-coded connector ensures reliable connections in complex settings. The metallic grey housing not only provides durability but also offers a sleek appearance. The connector can handle a rated voltage of 50 V AC / 60 V DC and a rated current of 4 A, making it suitable for demanding applications. Additionally, it features a robust shielding system and complies with IP65 and IP67 protection standards, ensuring resilience in harsh conditions.

The PROFIBUS Data Receptacle Connector is a robust and reliable component tailored for data transmission in demanding industrial environments. Constructed with a metallic grey, nickel-plated housing, it offers a front-mount, female configuration with M12 mating side and print contacts on the connecting side. This unshielded connector features 5 B-coded pins and operates efficiently within a voltage range of 50V AC / 60V DC with a rated current of up to 4A. Designed by Lumberg Automation, this connector supports PROFIBUS data transmission and ensures high performance with an impressive insulation resistance of over 10^9 Ohm and contact resistance below 10 mOhm. It meets rigorous standards such as IEC 61076-2-101 and maintains an IP65/IP67 protection rating when properly mounted and locked. Ideally suited for PCB applications, it guarantees reliability even in challenging conditions with an operating temperature range from -25°C to +85°C.
