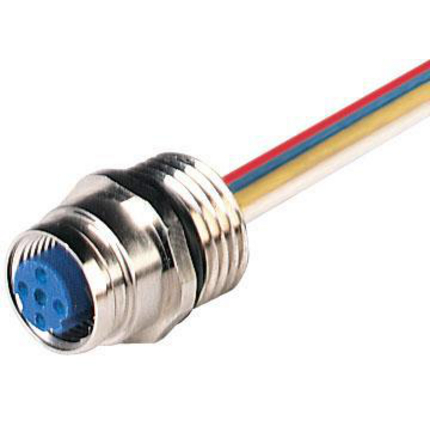

EF12M OCTOPUS M12 Data Receptacle Connector

The M12 Data Receptacle Connector is designed to facilitate reliable data transmission in various applications. This female, front mount connector comes with an M12 mating side and stranded wires on the connecting side. It includes 4 pins, is D-coded, and is unshielded, ensuring robust performance. The connector features a metallic grey housing, capable of handling 50 V AC / 60 V DC and 4 A. It adheres to high-quality standards with a CuZn contact base, nickel-plated housing, and an FKM O-ring material. Suitable for industrial environments, it has an IP65, IP67, and IP68 rating when properly mounted and locked. The M12 Data Receptacle Connector supports up to 100 mating cycles and operates in an ambient temperature range from -25 °C to +90 °C. It is RoHS compliant, ensuring safe and environmentally friendly usage.

€17.96 per item

0976 PFC 152 PROFIBUS Data Receptacle Connector

The PROFIBUS Data Receptacle Connector is a robust and reliable component tailored for data transmission in demanding industrial environments. Constructed with a metallic grey, nickel-plated housing, it offers a front-mount, female configuration with M12 mating side and print contacts on the connecting side. This unshielded connector features 5 B-coded pins and operates efficiently within a voltage range of 50V AC / 60V DC with a rated current of up to 4A. Designed by Lumberg Automation, this connector supports PROFIBUS data transmission and ensures high performance with an impressive insulation resistance of over 10^9 Ohm and contact resistance below 10 mOhm. It meets rigorous standards such as IEC 61076-2-101 and maintains an IP65/IP67 protection rating when properly mounted and locked. Ideally suited for PCB applications, it guarantees reliability even in challenging conditions with an operating temperature range from -25°C to +85°C.

€20.91 per item

0986 EFC 651 Gigabit Ethernet Cat6 Data Receptacle Connector

The Gigabit Ethernet Cat6 Data Receptacle Connector is a high-performance female connector designed for front mount applications. This M12 connector features an 8-pin configuration and X-coding, providing superior data transmission rates up to Gigabit Ethernet standards. The unshielded metallic grey housing ensures durability and reliable connectivity. The connector operates at 48V and supports a rated current of 0.5A. It is made with superior materials including nickel-plated CuZn housing and gold-plated CuZn contacts, ensuring longevity and robust performance. Ideal for industrial and data communication applications, the connector offers a high level of protection with an IP67 rating, when properly mounted and locked.

€58.05 per item

0976 PFC 160 PROFIBUS Data Receptacle Connector

The PROFIBUS Data Receptacle Connector is designed for high-performance data transmission in industrial environments. This female connector supports rear mounting and comes with a shielding clip for enhanced protection against electromagnetic interference. With an M12 mating side and print contacts on the connecting side, this 5-pin, B-coded connector ensures reliable connections in complex settings. The metallic grey housing not only provides durability but also offers a sleek appearance. The connector can handle a rated voltage of 50 V AC / 60 V DC and a rated current of 4 A, making it suitable for demanding applications. Additionally, it features a robust shielding system and complies with IP65 and IP67 protection standards, ensuring resilience in harsh conditions.

€36.03 per item

0986 EFC 151 A M12 Data Receptacle Connector

The M12 Data Receptacle Connector, produced by Lumberg Automation, is a robust and positionable female connector. It is designed with a metallic grey housing that accommodates an M12 mating side and stranded wires on the connecting side. With a 4-pin, D-coded arrangement, this connector is unshielded, rated for 50 V AC / 60 V DC, and capable of handling up to 4 A of current. It meets the IEC 61076-2-101 design standard and has a high protection degree of IP65/IP67 when correctly mounted and locked. The connector’s thread size is M16x1.5, made from nickel-plated CuZn, ensuring both durability and reliability. The electrical specifications include a rated impulse voltage of 1.5 kV, contact resistance of ≤ 10 mOhm, and an insulation resistance of ˃ 10^9 Ohm. It's suitable for operational temperatures from -25 °C to +85 °C. The connector also complies with RoHS standards, ensuring it meets stringent environmental regulations.

€15.27 per item

ELKE 400D/12 105 Au Fast Ethernet Cat5e Data Receptacle Connector

Fast Ethernet Cat5e Data Receptacle Connector: Female, insert with ribs, M12 - mating side, solder contacts - connecting side, 4-pin, D-coded, unshielded, blue body, 50 V AC / 60 V DC, 4 A

€5.37 per item

EF12L OCTOPUS Fast Ethernet Cat5e Data Receptacle Connector

Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 - mating side, print contacts - connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A. This high-quality data connector supports Fast Ethernet Cat5e speeds, ensuring reliable data transmission. The metallic grey housing provides durability, while the 4-pin D-coded design ensures compatibility and ease of use. With a rated current of 4 A and operating voltage up to 60 V DC, it is suitable for demanding applications. This connector is ideal for use in industrial environments, providing robust data connectivity. Its nickel-plated housing and contact base materials ensure longevity and resistance to environmental influences.

€9.47 per item

0976 PMC 152 PROFIBUS Data Receptacle Connector

The PROFIBUS Data Receptacle Connector is an essential component for high-performance data transmission systems. This male, front mount connector features an M12 mating side and print contacts on the connecting side, providing a secure and efficient connection. With 5 pins and B-coding, this unshielded connector ensures reliable data transfer. Crafted from a robust metallic grey housing, it supports operating voltages of 50 V AC and 60 V DC, and a current of up to 4 A. Ideal for a range of industrial applications, the connector is designed for durability with an IP65 and IP67 protection rating, making it suitable for harsh environments. It maintains low contact resistance and high insulation resistance, which enhances performance and ensures safety in operations.

€15.68 per item

RSE 4B M12 Insert Data Receptacle Connector

The M12 Insert Data Receptacle Connector is designed for reliable data transmission in various applications. This male connector features an M12 insert with an O-ring, providing a secure and sealed connection. The connector comes with solder contacts on the connecting side and supports 4 pin B-coded configurations. It is unshielded and has a black body that can operate at voltages of 50 V AC and 60 V DC with a current rating of up to 4 A. Made from durable materials, the connector ensures a long lifespan and excellent performance, even in demanding environments with an operating temperature range from -25°C to +85°C and protection degree ratings of IP65 and IP67. It is suitable for use in industrial automation systems, machinery, and other data-intensive applications.

€3.36 per item

RSFM 5B/0,5 M M12 Data Receptacle Connector

The M12 Data Receptacle Connector is a robust and reliable male connector, designed for front mounting with M12 mating on one side and stranded wires on the other. This 5-pin B-coded connector is unshielded, housed in a metallic grey casing, and boasts a voltage rating of 50 V AC/60 V DC, with a current rating of 4 A. It is designed for use in environments requiring up to 100 mating cycles and ensures contact resistance of ≤ 10 mOhm and insulation resistance greater than 10^9 Ohm. Suitable for various industrial applications, it features screw-locking attachment and reliable solder type connection, ensuring durability and long-term performance.

On Request

Details

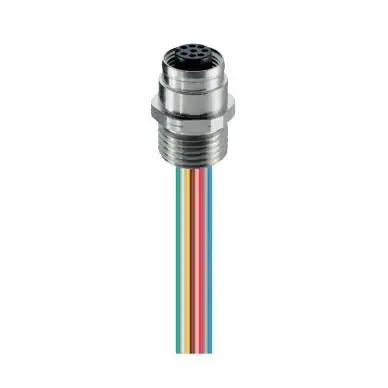

RKF 5B/0,5 M M12 Data Receptacle Connector

The M12 Data Receptacle Connector is a female, front mount connector designed for reliable and secure data connections. It features an M12 mating side with a screw-locking mechanism and a stranded wires connecting side, making installation straightforward. This 5-pin connector is B-coded and unshielded, with a metallic grey housing that offers durability and a sleek appearance. It operates at a rated voltage of 50 V AC / 60 V DC with a current rating of 4 A, making it suitable for various data transmission applications. The connector withstands operating temperatures from -25°C to +85°C and offers an IP65 and IP67 protection degree, ensuring its suitability for harsh environments. Additionally, it is RoHS compliant, emphasizing its safety and environmental compatibility.

€16.37 per item

RKFP 5B/0,5 M M12 Data Receptacle Connector

The M12 Data Receptacle Connector is a highly reliable solution designed for various industrial applications. This female, front-mount positionable connector is equipped with M12 mating side and stranded wires on the connecting side, and boasts a 5-pin configuration with B-coding. It is unshielded and housed in a sturdy metallic grey casing, ensuring durability and longevity. The connector supports 50 V AC / 60 V DC and is rated for 4A of current. With an IP65/IP67 protection rating, it is ideally suited for environments that require robust waterproof and dustproof connectivity. The connector’s compact design and screw-locking mechanism ensure a secure and stable connection, making it suitable for data transmission in automation and control systems.

€16.78 per item

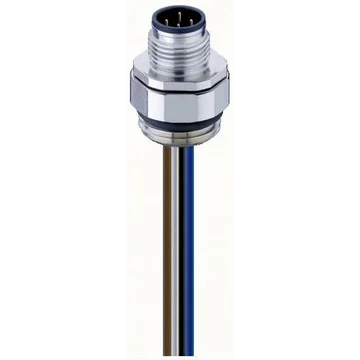

RSFP 5B/0,5 M M12 Data Receptacle Connector

The M12 Data Receptacle Connector by Lumberg Automation is a male connector designed for versatile applications. It features a front mount positionable design with a 5-pin B-coded M12 mating side and stranded wires on the connecting side. This unshielded connector is housed in a robust, metallic grey finish, and supports voltage ratings of 50 V AC and 60 V DC, with a current rating of 4 A. Rated for up to 100 mating cycles, it offers excellent contact and insulation resistance, making it a reliable choice for various industrial environments. The connector complies with IP65 and IP67 protection degrees when properly mated, ensuring durability in harsh conditions. The PG9 thread size and nickel-plated CuZn thread material further enhance its durability and performance. This receptacle is perfect for secure and stable connections in high-demand industrial and automation environments.

€16.74 per item

BRSCCS 4D/9 M12 Field Attachable

The M12 Field Attachable connector is designed for reliable performance in demanding environments. With a robust metal housing and an IP67 rating, it provides excellent protection against dust and water ingress. This field attachable connector features a crimp termination, ensuring secure and stable connections. The male, 4-pin, D-coded design supports data transmission rates in compliance with Category 5e, making it suitable for network applications needing high data integrity. It is shielded to minimize interference and can handle voltages up to 250V and currents up to 4A. This connector is particularly suited for rail applications, conforming to EN 45545 standards, ensuring it meets stringent safety and performance requirements.

€45.50 per item

RKHS 4D-342/0,5 M Fast Ethernet Cat5e Data Receptacle Connector

Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 - mating side, cable - connecting side, 4-pin, D-coded, shielded, metallic grey housing, 50 V AC / 60 V DC, 4 A; PUR green cable, 4-wires, 2x2x0.34 mm²

€41.25 per item

BRSCCS 8X/9 M12 Data Field Attachable

The M12 Data Field Attachable is a high-quality data connector designed for robust and reliable applications. Featuring a crimp termination and a robust metal housing, this connector ensures durability and robust performance. With an IP67 rating, the connector is protected against dust and water, making it ideal for outdoor and harsh environments. The 8-pin X-coding facilitates high-speed data transfer up to 10 Gbit/s, compliant with Cat6a standards, suitable for rail applications as per EN45545 requirements. Its straight design and shielding capabilities further enhance its performance by protecting against electromagnetic interference. The M12 Data Field Attachable operates at 48V and 0.5A, supporting a wide range of voltage (up to 50V AC / 60V DC) and temperature conditions (-55 °C to +85 °C). The crimp termination provides a secure and reliable connection, making it a preferred choice for diverse industrial applications.

€61.72 per item

0986 EFC 152 Fast Ethernet Cat5e Data Receptacle Connector

The Fast Ethernet Cat5e Data Receptacle Connector is designed to provide reliable and high-speed data transmission. It features a female, rear mount configuration with an M12 mating side and print contacts on the connecting side. This 4-pin connector is D-coded and unshielded, housed in a metallic grey casing that ensures durability and efficiency. Suitable for operating voltages of 50 V AC / 60 V DC, and rated for currents up to 4 A, this connector is built to handle demanding industrial environments. It also complies with IP65 and IP67 protection degrees, making it resistant to dust and water. One of the main benefits of this connector is its strong structural integrity with a nickel-plated housing and CuZn thread material, contributing to its robustness and long service life. With a contact resistance of ≤ 10 mOhm and insulation resistance of ˃ 10^9 Ohm, it ensures minimal electrical interference and high safety standards. The operating temperature range from -25 °C to +85 °C makes it versatile for various harsh conditions. Ideal for industrial automation and control systems, the Fast Ethernet Cat5e Data Receptacle Connector can be used in machinery, network systems, and data communication applications. Its rear mount and screw-locking attachment type provide secure and stable installations on printed circuit boards (PCB), enhancing the overall reliability of your data connections.

€14.74 per item

RSE 5B M12 Insert Data Receptacle Connector

The M12 Insert Data Receptacle Connector offers a reliable connection for data transmission with a B-coded configuration. This male connector features a 5-pin layout and is designed with an O-ring for secure sealing. The black body ensures durability and compatibility with various industrial applications. It supports up to 50 V AC or 60 V DC and carries a current rating of 4 A. Simplified installation is facilitated through solder contacts on the connecting side. Suitable for operational temperatures ranging from -25°C to +85°C, this connector meets IEC 61076-2-101 standards, ensuring high performance and safety.

€3.87 per item

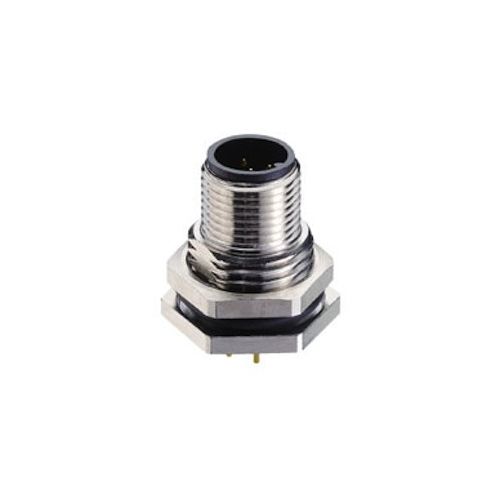

RSHL 5B/S 5,5 M12 Data Receptacle Connector

The M12 Data Receptacle Connector is a high-quality component designed for secure data connections. It features a male, rear mount M12 interface on the mating side and print contacts on the connecting side. This connector has a 5-pin, B-coded design which is unshielded and housed in a durable metallic grey casing. The connector is rated for 50 V AC / 60 V DC and supports a current rating of up to 4 A. It is constructed to meet the stringent IP65 and IP67 protection standards, making it suitable for use in harsh environments. The rear mount design ensures a secure attachment, ideal for PCB connections, and the screw-locking mechanism adds reliability in applications requiring vibration resistance. Additionally, the housing and attachment materials are nickel-plated for enhanced durability.

€16.96 per item

0976 PFC 151 PROFIBUS Data Receptacle Connector

The PROFIBUS Data Receptacle Connector, model 0976 PFC 151 by Lumberg Automation, is designed for reliable data transmission in demanding environments. It features a female, front mount positionable design with an M12 mating side and a stranded wire connecting side. Its 5-pin B-coded configuration ensures compatibility with standard PROFIBUS systems. This connector operates at 50 V AC / 60 V DC with a 4A rating and provides excellent contact resistance and insulation. The metallic grey housing is nickel-plated for durability, and the connector maintains an IP65/IP67 protection rating. It is suitable for applications requiring robust data communication in industrial setups.

€23.83 per item

0976 PFC 157 PROFIBUS Data Receptacle Connector

The PROFIBUS Data Receptacle Connector is designed to provide robust performance in data transmission applications. This female, front mount connector features an M12 mating side and stranded wires on the connecting side. It accommodates a 5-pin, B-coded configuration and is housed in a durable, unshielded metallic grey casing. Offering an operating voltage of 50 V AC / 60 V DC and a rated current of 4A, this connector ensures reliable connectivity for PROFIBUS networks. The stainless steel housing, coupled with a protection degree of IP65, IP67, and IP69K, guarantees durability and resistance to harsh environmental conditions. With materials such as CuZn for the contacts and TPU for the contact bearer, this connector provides excellent contact integrity and longevity. Ideal for industrial automation and control applications, this connector can withstand operating temperatures ranging from -25 °C to +85 °C and is compliant with RoHS standards.

€28.50 per item

RKFM 5B/0,5 M M12 Data Receptacle Connector

The M12 Data Receptacle Connector is engineered for reliable data transmission in industrial applications. This female receptacle is front-mounted with an M12 mating side and stranded wires on the connecting side. With 5-pins and B-coding, it ensures a secure connection. The robust construction features unshielded, metallic grey housing, making it suitable for various environments. The connector supports an operating voltage of 50 V AC/60 V DC and a rated current of 4 A. It stands out with its screw-locking mechanism and high endurance of up to 100 mating cycles. Designed to meet IP65/IP67 protection standards, it ensures durability and resistance against harsh conditions. The receptacle connector is crafted with high-quality materials, including copper alloy (CuZn) contacts with gold plating and TPU contact bearer, ensuring low contact resistance and high insulation resistance. This connector is ideal for use in industrial automation, machinery, and other demanding applications, providing a reliable and secure connection for data transmission.

€16.02 per item

RSFM 4B/20/0,5 M M12 Data Receptacle Connector

The M12 Data Receptacle Connector is a robust and reliable component designed for efficient data transfer and connection needs. This male connector features a front mount design with an M12 mating side and stranded wire connections. The 4-pin, B-coded configuration ensures a secure and stable connection, ideal for industrial applications. Encased in a metallic grey housing, this connector is unshielded and operates on 50 V AC / 60 V DC with a 4 A current rating. The housing material, a mix of CuZn and nickel-plated, enhances durability and corrosion resistance. The connector also follows IEC 61076-2-101 standards with a protection degree of IP65/IP67, ensuring reliable operation in harsh environments. With a solder attachment type and ambient operating temperature ranging from -25°C to +85°C, the M12 Data Receptacle Connector is suitable for various industrial and automation applications.

€13.42 per item

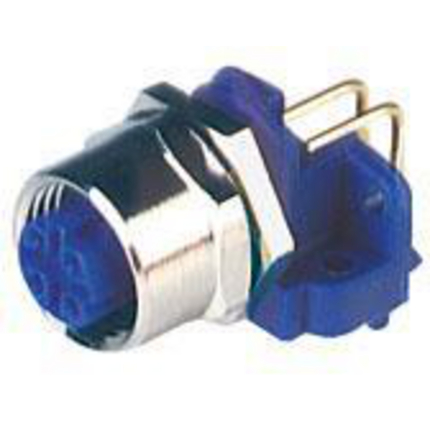

EF12LW OCTOPUS Fast Ethernet Cat5e Data Receptacle Connector

The Fast Ethernet Cat5e Data Receptacle Connector is a critical component for high-speed data communication. Featuring a female rear mount design, this connector has an M12 mating side with angled print contacts for easy PCB integration. With 4 pins and D-coding, it ensures robust and reliable network connections. The metallic grey housing provides durability and resistance to environmental factors, offering a protection degree of IP65 and IP67 when properly mounted. Rated for 50 V AC / 60 V DC and 4 A, this connector is suitable for various high-speed data transmission applications and complies with relevant industry standards.

€11.46 per item
