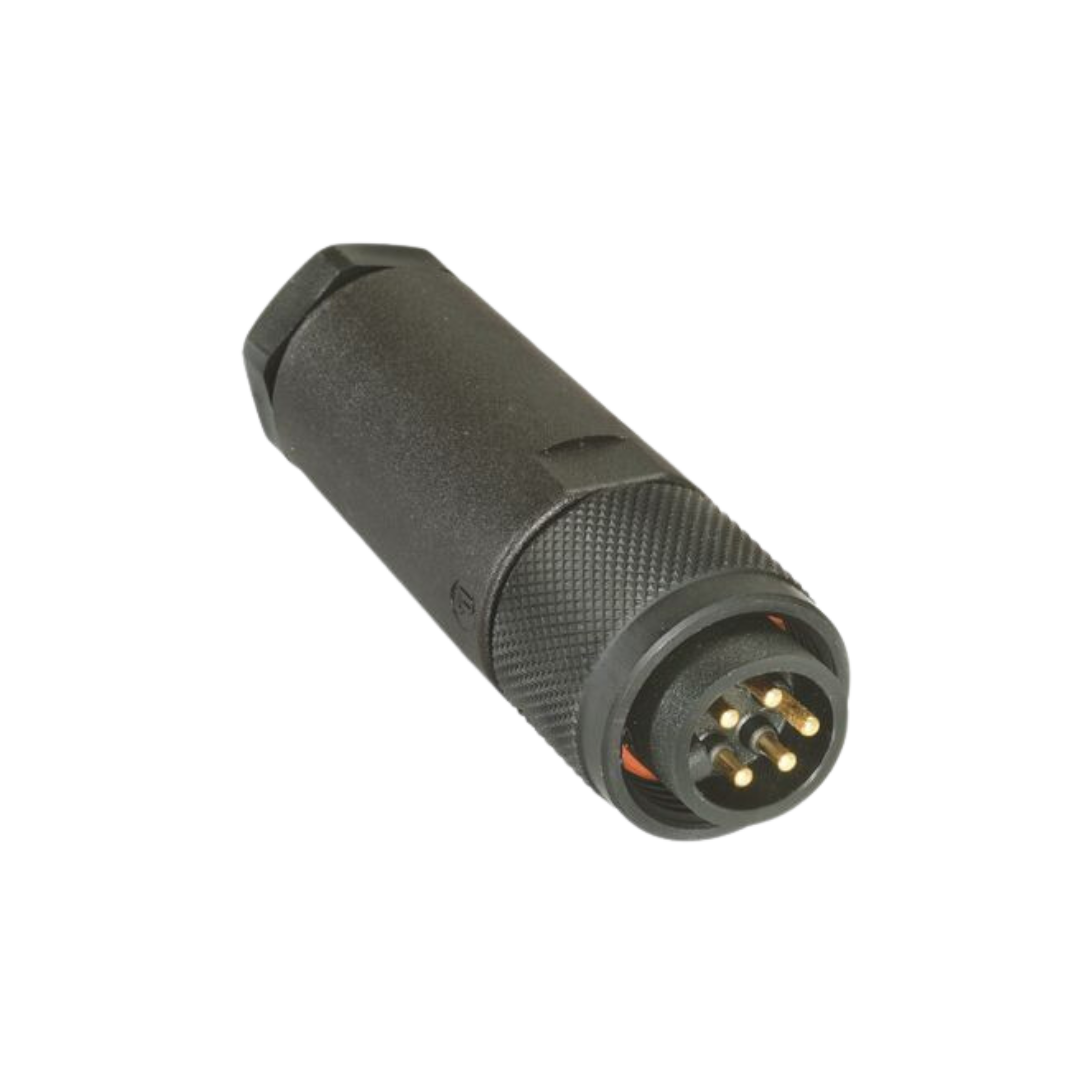

7/8" Field Attachable Connector Male
RSC 401/9
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is designed for industry-standard applications requiring reliable power connections. This male, straight connector features a robust black housing and a 4-pin configuration suitable for 230 V AC/DC at 9 A. The connector's design includes a coupling nut with internal threads for secure attachment and a screw terminal connection type, ensuring firm electrical contacts. Constructed with materials like CuZn for contact base and PA 66 for housing, it guarantees durability and exceptional performance. Furthermore, it meets IP67 protection standards, making it resistant to dust and temporary immersion in water, ideal for challenging environments.
This connector stands out for its high-rated current capacity of 9 A and low contact resistance of ≤ 10 mOhm, complemented by an insulation resistance > 10^9 Ohm for enhanced safety. Its versatility is extended by the PG 9 cable gland accommodating conductor cross-sections up to 1.5 mm². The operational temperature range from -40 °C to +90 °C ensures functionality in diverse conditions.
The 7/8" Power Field Attachable Connector is widely used in industrial machinery, automation, and power distribution systems. It ensures secure electrical connections in applications requiring consistent and reliable power transmission. Compliance with RoHS directives underscores its environmental sustainability and safety.
€20.62
per item
RSC 40/9
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a robust and reliable solution for industrial power connections. This male, straight connector features a 4-pin configuration with a sturdy black housing. It is rated for 230 V AC/DC and can handle up to 9 A of current. The screw terminal connection and PG 9 cable gland are designed for ease of use and secure attachment. With a protection degree of IP67, this connector is suitable for harsh environments, offering excellent insulation resistance of greater than 10^9 Ohm and contact resistance of less than 10 mOhm. The operating temperature ranges from -40 °C to +90 °C, ensuring performance under extreme conditions.
€20.62
per item
RSC 30/9
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is an essential component for critical electrical connections. This male, straight, 3-pin (2+PE) connector, housed in robust black PA 66 material, ensures reliable and secure performance. Operating at 230 V AC/DC and supporting currents up to 12 A, it's ideal for various industrial applications. The connector features an unshielded design, coupling nut with external threads, and a screw terminal connection type, making it perfectly suited for field attachable tasks. With an IP67 protection degree, it can withstand harsh environments, offering excellent resistance against dust and water ingress. The TPU contact bearer and NBR O-ring further enhance its durability and operational lifespan. Default RoHS compliance underlines its environmental safety.
€19.69
per item
RSC 501/9
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is designed for rugged and versatile power connections in industrial settings. This male, straight connector features a 5-pin (4+PE) configuration and a durable black housing. It supports operation at 230 V AC/DC and can handle currents up to 9 A. With its screw terminal type of connection and a PG 9 cable gland, this connector ensures reliable and secure connections. The contact materials include CuZn and Cu/Au plating, coupled with a housing made of PA 66 material. This connector operates efficiently in harsh environments, with an impressive temperature range from -40°C to +90°C and IP67 protection rating, ensuring resilience against dust and water ingress. The field attachable design, coupled with an internal threaded coupling nut, makes it highly adaptable for various installation scenarios. This connector is a part of the Lumberg Automation family, known for its reliability and compliance with stringent safety and environmental standards.
€22.23
per item
RSC 50/9
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a highly reliable and versatile connector designed for power applications. This connector features a male, straight design with 5 pins, including 4 pins plus protective earth (PE). The housing is made from durable black PA 66 material, offering robust performance under a rated voltage of 230 V AC/DC and a current of 9 A. The connector includes a screw terminal connection type along with a coupling nut with external threads for secure attachment. It also boasts excellent resistance properties, including a contact resistance of ≤ 10 mOhm and an insulation resistance of ˃ 10^9 Ohm, ensuring minimal loss and maximum efficiency in electrical transmissions.
The benefits of this connector lie in its robust build and its compliance with safety standards. It offers an IP67 protection rating when properly mounted and locked, making it suitable for use in harsh environments, protecting against dust and water ingress. The ambient temperature operational range from -40 °C to +90 °C further enhances its versatility across different climatic conditions. The 7/8" Power Field Attachable Connector also conforms to RoHS standards, ensuring environmental compliance.
This connector is ideal for use in various power supply and distribution applications, especially in industrial automation where reliability and performance are critical. Its sturdy construction and ease of attachment make it an excellent choice for both indoor and outdoor settings, providing safe and stable power connections.
€22.23
per item
RSC 301/9
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector, featuring a 3-pin (2+PE) male, straight design with a black housing, is ideal for robust power connections. Engineered to support 230 V AC/DC and a current rating of 12 A, this connector ensures reliable performance. The unshielded connector includes a coupling nut with internal threads for secure attachment and a screw terminal connection, making it versatile for various applications. Boasting an IP67 rating, it offers high protection against dust and water ingress, ensuring durability even in harsh environments. The product supports a wide operating temperature range from -40 °C to +90 °C, making it suitable for demanding industrial applications.
€19.69
per item
RSC 501/13,5
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is designed for efficient and reliable power connections in field applications. Featuring a black housing, this male, straight connector is equipped with 5 pins (4+PE) and supports both 230 V AC/DC and 9 A operating conditions. The connector includes a coupling nut with internal threads for secure attachment, ensuring an IP67 protection degree when properly mounted and locked with compatible Hirschmann/Lumberg Automation connectors. Constructed from durable materials like CuZn for the contact base and an anodized aluminum attachment, it offers high insulation resistance (˃ 10^9 Ohm) and low contact resistance (≤ 10 mOhm). Rated for an operating temperature range of -40°C to +90°C, this connector is suitable for various industrial and automation settings. Approved under UL and RoHS compliant, this connector provides safety and reliability for demanding environments.
€22.23
per item
RSC 501/11
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector provides a robust and reliable connection solution for various industrial applications. It features a male, straight design with a 5-pin (4+PE) configuration. The black housing is constructed from high-quality PA 66 material, ensuring durability and longevity. With an operating voltage of 230 V AC/DC and a rated current of 9 A, this connector meets the demands of heavy-duty electrical connections. This connector boasts a protection degree of IP67, making it suitable for use in harsh environments. It includes a screw terminal type connection and PG 11 cable gland, supporting a conductor cross-section of up to 1.5 mm². This field attachable connector is compliant with RoHS standards and UL-certified (cURus). Ideal for use in automation and control systems, it is designed to handle a wide temperature range from -40 °C to +90 °C.
€22.23
per item
RSC 50/16
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector caters to demanding industrial applications, offering a robust male straight design with 5 pins (4+PE). It is engineered with a durable black housing that accommodates 230 V AC/DC at 9 A, ensuring reliable power transmission. Its construction includes a couple nut with external threads, a screw terminal connection, and a PG 16 cable gland, specifying conductor cross sections up to 1.5 mm².
This connector is ideal for systems requiring high durability and secure connections. Its CuZn base material and Cu/Au contact plating enhance electrical conductivity, while the TPU contact bearer and PA 66 housing provide excellent mechanical protection and resilience against environmental conditions. The black anodized aluminum attachment material and NBR O-ring work together to maintain high-performance standards even under extreme temperatures ranging from -40 °C to +90 °C.
Applications of this connector include use in automation and field equipment where secure and robust power connections are crucial. Its IP67 rating ensures strong protection against dust and water, making it suitable for outdoor or harsh environments.
€22.23
per item
RSC 50/13,5
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a high-quality power connector designed for industrial applications. This male, straight connector features a 5-pin (4+PE) configuration and operates at 230 V AC/DC with a current capacity of 9 A. The connector comes with a robust black housing and is designed for durability in harsh environments, boasting an IP67 protection rating. Key materials include copper alloy with gold plating for contacts, and a durable PA 66 housing. The screw terminal connection type and coupling nut with external threads ensure secure and reliable attachment.
€22.23
per item
RSC 50/11
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a robust and reliable solution for your electrical connection needs. This male, straight connector features a 5-pin configuration (4+PE) within a durable black housing. Designed to operate at 230 V AC/DC with a rated current of 9 A, it ensures consistent and safe performance. The connector integrates a screw terminal connection type and is shielded to protect against electrical interference. It also includes a coupling nut with external threads, a cable gland of PG 11, and supports a conductor cross-section of up to 1.5 mm². With an operational temperature range from -40 °C to +90 °C and an IP67 protection rating, it is highly reliable in various environmental conditions. The connector meets UL and RoHS compliance standards and is designed with materials such as CuZn for contact base and PA 66 for housing, enhancing its durability and longevity. *Note: Ensure proper mounting and locking with appropriate connectors to maintain the IP67 rating, and avoid connecting/disconnecting under load.
€22.23
per item
RSC 401/13,5
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a versatile and reliable connector designed for industrial applications. This male, straight connector features a robust 4-pin configuration housed in a black PA 66 material, ensuring durability and resistance to environmental factors. It operates efficiently at 230 V AC/DC with a maximum current of 9 A, making it suitable for demanding electrical systems. The connector utilizes a coupling nut with internal threads for secure attachment and a screw terminal connection type. It boasts a high degree of protection with an IP67 rating when properly mounted and locked with a corresponding connector, safeguarding against dust and water ingress. With an operational temperature range of -40 °C to +90 °C and compliance with RoHS standards, this connector meets stringent industrial requirements.
€20.62
per item
RSC 401/11
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a high-performance male, straight connector featuring a 4-pin configuration and a durable black housing. It operates at a voltage of 230 V AC/DC and can handle a current up to 9 A, making it suitable for various industrial applications. The connector is designed for field attachable scenarios, ensuring robust power connections with its coupling nut with internal threads. It offers excellent reliability and low contact resistance (≤ 10 mOhm), ensuring efficient power transfer. The construction includes high-quality materials like CuZn contact base with Cu/Au plating, TPU contact bearer, and PA 66 housing, ensuring durability and longevity. This connector also offers an IP67 protection degree, meaning it is highly resistant to dust and water, making it suitable for harsh environments. The screw terminal connection type and cable gland PG 11 support easy and secure installation. With an operational temperature range of -40 °C to +90 °C, this connector is versatile and reliable for various power transmission needs.
€20.62
per item
RSC 40/16
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is engineered to provide reliable performance in various industrial applications. As a male, straight, 4-pin connector with a black housing, it is optimized for 230 V AC/DC and a current rating of 9 A. The connector type is field attachable, making it versatile for different setups. It is equipped with a coupling nut with external threads and a screw terminal connection type, which ensures secure attachment. Additionally, it supports a maximum conductor cross-section of 1.5 mm² and operates efficiently at temperatures ranging from -40 °C to +90 °C. The connector is rated IP67, which guarantees protection against dust and water. It meets RoHS compliance standards, ensuring it is environmentally friendly. Suitable for demanding environments, this connector is a reliable choice for secure power connections.
€20.62
per item
RSC 40/13,5
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a robust and reliable component designed for demanding electrical applications. This connector features a male, straight design with a 4-pin configuration, housed in durable black PA 66 material. It operates effectively at 230 V AC/DC and supports a current up to 9 A. The connector is equipped with a screw terminal for secure and efficient connections and boasts an impressive IP67 rating, ensuring high levels of protection against dust and water ingress. Ideal for use in industrial automation and power distribution systems, this connector can withstand a wide ambient temperature range from -40 °C to +90 °C, making it highly versatile.
€20.62
per item
RSC 40/11
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is designed for rugged and reliable power connections. This male, straight, 4-pin connector features a durable black housing and is rated for 230 V AC/DC and 9 A. It is unshielded with a coupling nut and external threads for secure attachment. The screw terminal connection ensures a solid electrical contact, and the IP67 rating assures protection against dust and water when properly mounted. With a conductor cross-section of up to 1.5 mm² and operational temperature range from -40 °C to +90 °C, it meets the demands of industrial environments. The connector's high-quality materials, including a CuZn contact base and PA 66 housing, ensure long-lasting performance.
€20.62
per item
RSC 301/13,5
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a robust and reliable component designed for field installations. This connector features a male, straight configuration with 3 pins (2+PE), housed in durable black material. It is capable of operating at 230 V AC/DC with a rated current of 12 A. The construction includes a coupling nut with internal threads for secure attachment, and it has a protection degree of IP67, ensuring resistance against water and dust. The connector’s materials include CuZn for the contact base, with Cu/Au plating, and PA 66 for the housing. It also includes NBR O-rings for enhanced sealing.
€19.69
per item
RSC 301/11
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a robust male connector designed for various industrial applications with demanding requirements. With a 3-pin (2+PE) configuration, this straight connector comes with a durable black housing. It handles a rated voltage of 250 V AC/DC and supports an operating voltage of 230 V AC/DC while managing a current up to 12 A. The connector features a screw terminal type connection and a coupling nut with internal threads for secure and stable assembly. The design includes a PG 11 cable gland supporting a conductor cross-section of up to 1.5 mm² and ensures consistent connectivity across a wide operating temperature range from -40 °C to +90 °C. The IP67 rating guarantees high protection levels against dust and water, making it suitable for harsh environments. Material-wise, the connector utilizes CuZn base material with Cu/Au plating for the contacts and PA 66 for the housing, ensuring longevity and reliable performance. Compliant with RoHS regulations, this connector integrates seamlessly into modern, environmentally conscious setups.
€19.69
per item
RSC 30/16
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a high-quality component designed for secure and efficient power connections. It features a male, straight design with 3 pins (2+PE) and a black housing. This connector supports 230 V AC/DC with a rated current of 12 A, making it suitable for various industrial applications. The robust construction includes a coupling nut with external threads for secure attachment, and it is unshielded for a straightforward connection setup. The materials used, such as CuZn for contact base material and PA 66 for housing, ensure durability and reliability even in demanding environments. Additionally, the TPU contact bearer and NBR O-ring contribute to the high insulation resistance and protection degree of IP67, protecting the connector against dust and water ingress. This connector is ideal for applications requiring reliable and robust power connections in harsh environments, ensuring safe and efficient operations.
€19.69
per item
RSC 30/13,5
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is a male, straight, 3-pin (2+PE) connector ideal for robust and reliable power connections in industrial environments. Featuring a durable black PA 66 housing, this connector is suitable for operating voltages of up to 230 V AC/DC and a rated current of 12 A. It is designed with a coupling nut with external threads for secure attachment and ensures excellent performance with contact resistance ≤10 mOhm and insulation resistance >10⁹ Ohm. The connector supports a screw terminal connection and is capable of accommodating conductor cross sections up to 1.5 mm². Its IP67 rating guarantees protection against dust and water ingress, making it ideal for harsh conditions. Additionally, this connector is RoHS compliant and meets UL cURus standards.
€19.69
per item
RSC 30/11
7/8" Power Field Attachable Connector
The 7/8" Power Field Attachable Connector is designed for secure and efficient power connections. Featuring a 3-pin (2+PE) male, straight design, this connector comes with a robust black housing made from high-quality PA 66 material. It operates within a voltage range of 230 V AC/DC and a current rating of 12 A, making it suitable for demanding electrical applications. The connector includes a coupling nut with external threads for easy attachment and provides an IP67 rating for reliable performance even in harsh environments. With screw terminal type connections and supporting a conductor cross-section of up to 1.5 mm², this connector ensures minimal contact resistance and high insulation resistance, enhancing electrical safety and efficiency.
€19.69
per item
