Type A Receptacles

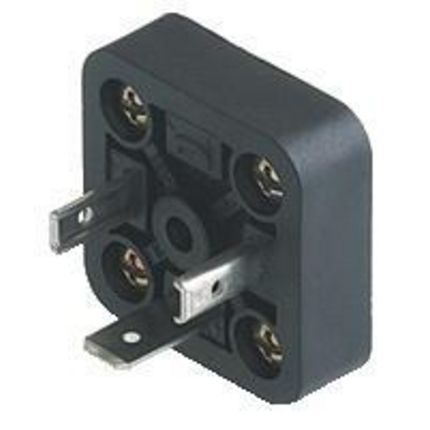

GSA-U 2075 SK
GSA-U DIN standard receptacle with IDC contacts
The GSA-U DIN standard receptacle with IDC contacts represents a robust and reliable connector solution for industrial applications. It features a 3-pin (2+1PE) configuration, which allows for seamless integration with various systems. The receptacle is designed for 400 V AC/DC and supports a rated current of 16 A, ensuring compatibility with numerous electrical setups. It adheres to Form A standards and employs an IDC type connection, emphasizing ease of installation and secure connectivity.
This receptacle offers notable benefits, including enhanced operational safety with an IP65/IP67 rating, making it highly resistant to dust and water when appropriately mounted and locked. The contact materials, comprising CuZn with Cu/Sn plating, offer excellent conductivity and durability. Additionally, the product complies with RoHS standards, highlighting its environmentally friendly design.
The GSA-U DIN standard receptacle is ideal for a wide range of applications, particularly where dependable connections are crucial. It is suitable for use in harsh environments, supporting an ambient temperature range from -40 °C to +125 °C. The receptacle is designed according to DIN EN 175301-803-A and ISO 4400 standards, making it a reliable choice for industrial automation and control systems.
€5.36
per item

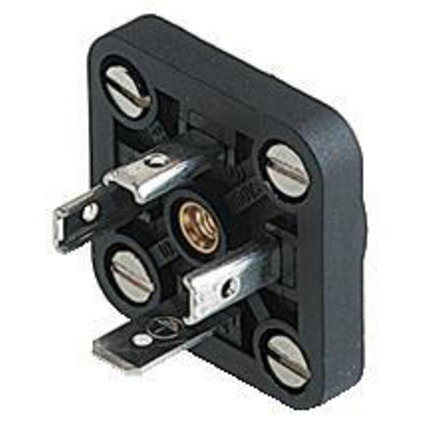

GSE 3000 N4
GSE DIN standard receptacle with round collar
The GSE DIN standard receptacle with round collar is a high-quality, robust connector designed for reliable and safe operation. This model is equipped with solder contacts and comes without oblong holes, conforming to Form A standards. It features a 4-pin configuration (3+1PE), making it suitable for various applications requiring a secure and stable connection. With a rated voltage of 400 V AC/DC and a current rating of 16 A, it is engineered to handle significant power loads. The receptacle also boasts a high insulation resistance of >10^9 Ohm and a contact resistance of ≤10 mOhm, ensuring consistent performance. Its unshielded design and central screw attachment provide easy and secure mounting. This product is compliant with IP65 protection standards, provided it is mounted and locked correctly, and meets the DIN EN 175301-803-A and ISO 4400 design standards. It is manufactured using high-quality materials, including a CuZn contact base material and a PA GF contact bearer, ensuring durability and reliability.
€2.00
per item
GSR-U 2000 LO
GSR-U DIN standard receptacle with solder contacts
The GSR-U DIN standard receptacle with solder contacts is a robust and reliable connector ideal for industrial applications. Designed according to Form A standards, this 3-pin (2+1PE) solder-type receptacle supports a significant voltage of 400 V AC and 230 V DC with a current rating of 16 A. Crafted by Hirschmann, this circular male receptacle features a straightforward design and unshielded connectivity, ensuring easy integration and optimal performance.
The receptacle provides excellent contact resistance of ≤ 10 mOhm and high insulation resistance ˃ 10^9 Ohm, making it well-suited for demanding environments. With an IP65 protection rating when properly mounted, it is safeguarded against dust and low-pressure water jets. The usage of CuZn base material and Cu/Sn plating enhances durability.
This product is perfect for valve connectors and industrial installations requiring reliable connections without compromising safety standards. Its usability in a wide temperature range of -40 °C to +125 °C further extends its application possibilities.
€1.38
per item
GSE 2000 N4
GSE DIN standard receptacle with round collar
The GSE DIN standard receptacle with round collar is designed for reliability and efficiency in various electrical applications. This Form A, 3-pin (2+1PE) receptacle supports high-performance with a voltage capacity of 400 V AC/DC and a current rating of 16 A. Its design integrates solder contacts that ensure secure and stable connections without the need for oblong holes, providing enhanced safety and performance.
Key benefits include its robust construction rated for operating temperatures between -40 °C to +125 °C, with an IP65 protection degree when properly mounted. The receptacle also boasts a low contact resistance of ≤ 10 mOhm and high insulation resistance of ˃ 10^9 Ohm, ensuring a long-lasting, high-quality connection. Its compact, straight design with a central screw attachment is user-friendly and allows for easy installation.
Ideal for integration in valve connector systems, the GSE DIN standard receptacle is an excellent choice for industrial applications requiring reliable and durable electrical connectivity. It complies with key standards such as DIN EN 175301-803-A and ISO 4400, making it suitable for use in environments with pollution degree 3 and overvoltage category III.
€1.72
per item
GSA 3000 N
GSA DIN standard receptacle
The GSA DIN standard receptacle with solder contacts and without oblong holes is a robust and versatile component for electrical connections. Classified as Form A, this 4-pin (3+1PE) receptacle complies with UL 1977 standards and accommodates both AC and DC voltages up to 400V and currents up to 16A. Its durable design includes a black PA GF contact bearer, CuZn contact base material with Cu/Sn plating, and a housing that meets IP65 protection standards when properly mounted and locked with compatible connectors. Ideal for use in various industrial applications, the receptacle offers reliable performance under extreme temperatures ranging from -40°C to +125°C in standard operation.
€1.65
per item

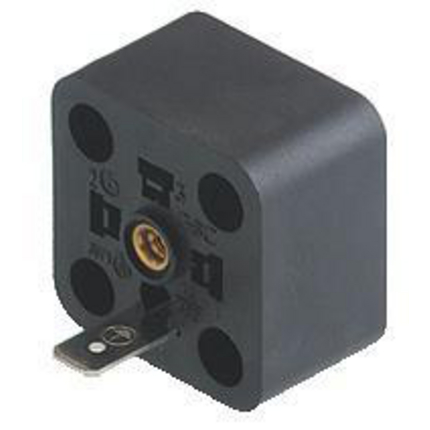

GSC 300
GSC DIN standard receptacle with crimp contacts
The GSC DIN standard receptacle with crimp contacts, designed in Form A, is a robust and reliable solution for industrial connectivity requirements. Featuring a 4-pin configuration (3+1PE), this rectangular receptacle is equipped with crimp type contacts, ensuring a secure and efficient connection. Rated for 400 V AC/DC and capable of handling a current of up to 16 A, it is ideal for a variety of high-power applications. Constructed from durable PA GF material, it offers excellent resistance to environmental stress, making it suitable for use in harsh conditions ranging from -40 °C to +125 °C.
The benefits of this GSC receptacle include its compliance with DIN EN 175301-803-A and ISO 4400 standards, ensuring high-quality performance and safety. Its IP65 protection rating guarantees it is dust-tight and protected against water jets from any direction, provided it is properly mounted and locked. Additionally, the receptacle features low contact resistance and high insulation resistance, contributing to its reliable electrical performance over numerous mating cycles.
Applications of the GSC DIN standard receptacle span various industrial sectors where robust and secure electrical connections are critical. Its use is especially prominent in environments requiring adherence to stringent standards and where conditions can be extreme. The ease of installation, combined with its reliable performance, makes this receptacle a preferred choice for professionals in automation, machinery, and other heavy-duty electrical systems.
€2.52
per item
GSP 2 M20-S
DIN Valve Connector, Form A, Receptacle, 2+Ground
The DIN Valve Connector, Form A, Receptacle, 2+Ground is an essential component for industrial applications, designed to accommodate high power and precision. With an operational voltage of 400 V AC/DC and a current rating of 16 A, it ensures reliable performance in demanding environments. The connector features a two-pin plus ground configuration and is built with a high-quality black housing made of PA GF material, ensuring durability and robustness. It complies with IP65 standards, offering excellent protection against dust and water ingress, making it ideal for harsh conditions.
This connector is particularly beneficial due to its synergy of safety features and high performance. Rated for a high impulse voltage of 4.0 kV, it is suitable for extensive industrial use. Its unshielded design and secure central screw attachment enhance its practicality for straightforward installations. The appliance also supports a wide ambient temperature range from -40 °C to +125 °C, ensuring adaptability in both extreme cold and heat.
The DIN Valve Connector is versatile in applications, ranging from automation to heavy machinery where reliable electrical connections are vital. It adheres to DIN EN 175301-803-A, ISO 4400 standards, and RoHS compliance, making it a safe choice for sustainable projects. Whether used in new installations or replacement projects, its protective design ensures long-term operational stability and efficiency.
€3.22
per item
GSAZ 300
GSA DIN standard receptacle
The GSAZ DIN standard receptacle, compliant with UL 1977, offers a reliable solution for cylinder installations. Featuring a Form A, 4-pin (3+1PE) configuration, this receptacle utilizes solder contacts and a PE screw type to ensure secure and stable connections. It is capable of operating at voltages up to 400 V AC/DC and supports a rated current of 16 A. Constructed from durable CuZn with Cu/Sn plating, it promises low contact resistance and high insulation resistance, ensuring optimal performance even in demanding environments with temperatures ranging from -40 °C to +125 °C. The black PA GF contact bearer and the unshielded design further underscore its robustness. Additionally, this receptacle adheres to DIN EN 175301-803-A, ISO 4400 standards, and boasts an IP65 protection rating when mounted correctly, ensuring confidence in its application across various industrial settings.
€2.89
per item
GSA-U 3075 SK
GSA-U DIN standard receptacle with IDC contacts
The GSA-U DIN standard receptacle with IDC contacts is a reliable connector featuring Form A, 4-pin (3+1PE) configuration. Rated for 400 V AC/DC and 10 A, this high-quality receptacle ensures robust connectivity with a straight, rectangular molded design. It includes an unshielded interface and is built to withstand significant environmental stresses, operational in temperatures ranging from -40°C to +125°C. Ideal for various applications, it has a rated impulse voltage of 4.0 kV and excellent insulation resistance of more than 10^9 Ohms. The IP65/IP67-rated protection ensures durability against dust and water, making it suitable for tough industrial environments. With a contact resistance of ≤ 10 mOhm and a high mating cycle life, the GSA-U DIN connector meets international standards like DIN EN 175301-803-A and ISO 4400, ensuring quality and reliability.
€3.54
per item

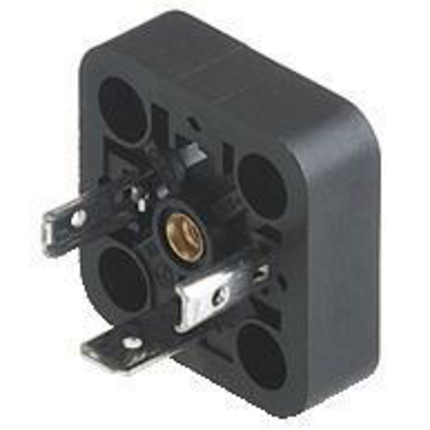

GSA 2000 N
GSA DIN standard receptacle
The GSA DIN standard receptacle is a high-quality, reliable connector designed for industrial applications. This rectangular receptacle features solder contacts and lacks oblong holes, meeting the strict requirements of Form A with a 3-pin configuration (2+1PE). It is compliant with UL 1977 standards and accommodates AC/DC operations up to 400 V and 16 A. The connector endures harsh environmental conditions, with an IP65 rating ensuring protection against dust and low-pressure water jets. The central screw attachment type and robust construction with materials like CuZn and PA GF add to its durability, making it dependable for demanding tasks.
1. **Benefits:** The receptacle offers excellent current carrying capabilities with a rated current of up to 16 A and an operating voltage of 400 V AC/DC. Its sturdy, unshielded design ensures reliable performance, while the IP65 rating provides excellent protection against environmental factors. The connector's ability to function within a wide temperature range (-40°C to +125°C) enhances its suitability for varied industrial settings.
2. **Applications:** Ideal for use in valve connectors across numerous industrial sectors, the GSA DIN standard receptacle is used in applications where durability, safety, and high performance are critical. Its adherence to international standards like DIN EN 175301-803-A and ISO 4400 ensures compatibility and consistency in diverse use cases. Whether it's for machinery, automation systems, or complex assemblies, this receptacle performs reliably under varying operational conditions.
€1.37
per item
GSR-U 3000 LO
GSR-U DIN standard receptacle with solder contacts
The GSR-U DIN standard receptacle with solder contacts is a high-quality connector designed for industrial applications. Featuring a Form A, 4-pin (3+1PE) configuration, this circular receptacle ensures robust connections for up to 400 V AC and 230 V DC, with a current rating of 16 A. Manufactured by Hirschmann, this product is made with durable materials, including CuZn base contacts and a PA GF black contact bearer, providing excellent conductivity and heat resistance.
The main benefits of the GSR-U receptacle include its reliable electrical performance, assured by a low contact resistance of ≤ 10 mOhm and notable insulation resistance exceeding 10^9 Ohm. The receptacle is designed to operate effectively in harsh conditions, withstanding temperatures from -40 °C to +125 °C and offering an IP65 protection rating when paired properly. It also complies with important safety standards, such as RoHS, emphasizing its environmental responsibility.
Ideal for use in automation and electrical applications, the GSR-U is suitable for industries requiring dependable and efficient connection solutions. The central screw attachment and straight connector design make installation straightforward, catering to various industrial setups and environments.
€1.66
per item
GSP 3 M20-S
DIN Valve Connector, Form A, Receptacle, 3+Ground
The DIN Valve Connector, Form A, Receptacle, 3+Ground, is a versatile component designed for robust connectivity in industrial environments. Featuring a black housing and an M20 port mounting, this connector operates efficiently at 400 V AC/DC and carries up to 16 A. Its design is compliant with DIN EN 175301-803-A standards, ensuring reliability and durability. The connector includes solder contacts and a protective earth connection, enhancing safety and security. With an IP65 protection rating, it is suited for use in demanding conditions, ensuring water and dust resistance.
The main benefits of this connector include its high thermal resistance, accommodating temperatures from -40 °C to +125 °C, and its robust construction with flame-retardant housing materials (UL 94 HB). Its straightforward assembly via central screw fastening simplifies installation and maintenance. The connector's capacity for up to 50 mating cycles underscores its durability over repeated use.
Ideal for industrial automation, machinery, and manufacturing applications, this connector offers reliable performance in electrically demanding settings. Its unshielded design is well-balanced with excellent electrical contact quality and mechanical endurance.
€3.48
per item
GSAZ 200
GSA DIN standard receptacle
The GSA DIN standard receptacle is a high-quality connector designed for cylinder installations. Featuring Form A, this 3-pin (2+1PE) receptacle includes durable solder contacts with a PE screw type configuration. It has a rated operating voltage of up to 400 V AC/DC and can handle a current of 16 A. The receptacle is constructed to meet UL 1977 standards and is made from robust materials, including a CuZn contact base and a PA GF contact bearer in a black color. Suitable for various industrial applications, it boasts an IP65 protection rating, ensuring reliability in challenging environments. The receptacle has a maximum operating temperature of +125 °C and can perform up to 50 mating cycles, making it ideal for use in applications requiring frequent connections and disconnections.
€2.61
per item
GSP 212-U
GSP 212
The GSP 212 DIN Valve Connector, known for its resilience and efficiency, is designed to optimize connectivity in industrial settings. This form A, male connector features a black PA GF housing with a 1/2" NPTF threaded port, ensuring a secure and reliable connection. Rated for 400 V AC/DC and 16A, it offers superior performance even under demanding conditions. With solder contacts and 2+Ground pins, it effectively supports industrial applications while maintaining a compact design.
Offering benefits of high durability and reliability, the GSP 212 is equipped with an IP65 rating when properly mounted, providing excellent protection against dust and water ingress. Its robust construction is ideal for environments where stability and long-term performance are crucial.
The connector is highly suited for use in automation technologies, ensuring safety and efficiency in machinery connections. With approvals from VDE and SEV, the GSP 212 is compliant with RoHS, enhancing its appeal for environmentally conscious projects.
On Request
GSP 212-S
GSP 212
The GSP 212 is a DIN Valve Connector adhering to the DIN 43650 standard, featuring a Form A configuration. Designed with a black housing, this male connector includes 2 pins plus a ground (Protective Earth) pin, and is equipped with solder contacts. It supports operating voltages up to 400 V AC/DC and currents of up to 16A. The connector has an 18mm interface and integrates a 1/2" NPTF threaded sleeve for secure attachment. This receptacle is ideal for high-demand environments, offering reliable connection and optimal performance. The GSP 212 is robustly designed for a variety of industrial applications requiring a high level of protection, rated IP65 when properly mounted and locked. It is crafted from high-quality materials such as PA GF for the housing and NBR for the O-ring, ensuring durability and compliance with UL 94 HB and V-0 flammability classes.
€3.31
per item
GSP 213-S
DIN Valve Connector, Form A, Receptacle, 2+Ground
The DIN Valve Connector, Form A, is a robust and reliable component designed for industrial applications. Featuring a circular design with a central screw attachment, this connector provides a secure interface with solder contacts. It is capable of handling 400 V AC/DC and a current rating of 16 A. The connector has a durable black housing made of PA GF material with a flammability class of UL 94 HB. It supports two pins plus ground (2+PE), making it suitable for various electrical setups.
This connector is specifically beneficial in scenarios where a firm and lasting electrical connection is crucial, such as in automation or heavy industrial environments. It is designed to be unshielded and provides an IP65 protection rating when properly mounted. The connector ensures exceptional insulation resistance and low contact resistance, which enhances performance and safety.
Ideal for use where reliability in high-temperature environments is required, the DIN Valve Connector can operate between -40 °C and +125 °C. Its treaded sleeve and solder connection make it versatile for various applications, meeting the design standards of DIN EN 175301-803-A and ISO 4400.
€3.31
per item
GSP 211-U
GSP 211
The GSP 211 is a high-quality DIN 43650 standard valve connector, designed to ensure reliable electrical connections in various applications. Featuring a Form A, male 18mm configuration and a robust black housing, it includes 2+Ground (Protective Earth) solder contacts. This connector is suitable for use in environments requiring a 400 V AC/DC operating voltage and a rated current of 16 A. It also features a PG11 threaded sleeve for secure attachment. The product's materials, including PA GF housing and CuZn contacts, ensure durability and compliance with safety and environmental standards, including VDE, SEV, and RoHS compliance. This connector operates optimally in a wide temperature range of -40°C to +125°C, and features an IP65 protection degree when properly mounted and locked with compatible connectors.
On Request
GSP 211-S
GSP 211
The GSP 211 is a high-quality DIN Valve Connector designed for various industrial applications. This product, which complies with DIN 43650, Form A standards, features a black housing with solder contacts configured for 2+Ground (Protective Earth). With a robust operating voltage of 400 V AC/DC and a rated current of 16A, this connector ensures reliable performance in demanding environments. The PG11 threaded sleeve allows for secure and straightforward installation, enhancing its durability and IP65 protection rating ensures resistance against dust and water.
€3.22
per item
GSP 312-U
GSP 312
The GSP 312 is a high-quality DIN Valve Connector designed to meet the demanding requirements of industrial applications. With its Form A configuration and 18mm size, this male connector features a robust black housing and 3+Ground (Protective Earth) solder contacts. It operates efficiently at 400 V AC/DC and supports a current of up to 16A, making it suitable for a wide range of electrical connections. The connector includes a 1/2" NPTF threaded sleeve for secure mounting and reliable performance in harsh environments. The product conforms to DIN 43650 standards and boasts an IP65 protection rating when correctly mounted, ensuring durability and resistance to dust and water. Its construction includes high-quality materials like CuZn for contacts, PA GF for the contact bearer, and housing, which are compliant with flammability classes UL 94 V-0 and UL 94 HB respectively.
On Request
GSP 312-S
GSP 312
The GSP 312 is a high-quality DIN valve connector designed as a Form A receptacle. This connector has a male gender configuration and supports 3 pins plus a ground connection (3+PE). It is encased in a durable black PA GF housing, providing solid protection for its sensitive components. The connector features solder contacts and a threading to ensure a secure and reliable connection. This model can handle operating voltages up to 400 V AC/DC and current ratings up to 16A, making it adaptable for various industrial applications. It has an IP65 protection rating, ensuring it is dust-tight and protected against water jets, if properly mounted. Additionally, it adheres to the DIN EN 175301-803 and ISO 4400 standards, guaranteeing compatibility and safety in demanding operational environments.
€3.61
per item
GSP 313-S
DIN Valve Connector, Form A, Receptacle, 3+Ground
The DIN Valve Connector, Form A, Receptacle, 3+Ground, is designed for reliable and robust electrical connections in industrial environments. Featuring a PG13.5 port mounting and a durable black housing, this connector accommodates 400 V AC/DC and supports a current rating of 16 A. It is equipped with 3 pins plus protective earth (PE) for secure grounding, ensuring safe and efficient connectivity.
The main benefits of this connector include its strong contact resistance, excellent insulation resistance, and compliance with stringent safety standards such as VDE and SEV. The product is RoHS compliant, indicating its environmental safety. With an IP65 rating, the connector provides superior protection against dust and water, making it suitable for both indoor and outdoor applications.
This versatile connector finds applications in a variety of settings including automation systems, machinery, and other industrial devices requiring dependable connectivity. It features a central screw attachment type for firm installation. Built with PA GF housing and NBR O-ring material, it ensures operational reliability in temperatures ranging from -40°C to +125°C. Ideal for use in environments classified with a pollution degree of 3 under DIN EN 60664-1 (VDE 0110-1) standards.
€3.61
per item
GSP 316-U
GSP 316
The GSP 316-175301-803 is a high-quality DIN 43650 valve connector, Form A, male, with an 18mm size. It features a robust black housing and 3+Ground (Protective Earth) solder contacts, supporting operations at 400 V AC/DC and up to 16A. The connector is equipped with a PG16 threaded sleeve, providing secure attachment and ensuring reliable performance in demanding environments. It’s designed according to ISO 4400 and DIN EN 175301-803 standards, ensuring compatibility with various industrial applications.
Key benefits of this product include reliable electrical connection due to its low contact resistance (≤ 10 mOhm) and high insulation resistance (˃ 10^9 Ohm). The connector supports up to 50 mating cycles and operates efficiently within a temperature range of -40°C to +125°C, rated IP65 for water and dust protection.
Ideal for use in industrial automation and control systems, the GSP 316 connector ensures secure and stable connections in harsh operational conditions, making it a suitable choice for various applications requiring high reliability and durability.
€4.01
per item
GSP 316-S
GSP 316
The GSP 316 is a high-quality DIN 43650 Form A valve connector featuring a rugged black housing that supports high voltage applications up to 400 V AC/DC and a current rating of 16A. This connector includes three pins plus a protective earth, providing a reliable solution for complex circuits. Its design incorporates a PG16 threaded sleeve for secure attachment and it is equipped with solder contacts ensuring strong connectivity. The connector is built to withstand harsh environments, boasting a protection degree of IP65, granted only if used with compatible Hirschmann / Lumberg Automation connectors, and operates efficiently between temperatures of -40 °C and +125 °C. With a flammability class that assures safety and compliance with UL 94 HB standards, it's a go-to option for industrial requirements.
€3.68
per item
GSP 311-U
GSP 311
The GSP 311 is a reliable DIN valve connector designed for use in various industrial applications. It features a Form A, male configuration with 3+Ground contacts, accommodating a voltage of 400 V AC/DC and a current of 16A. The durable black housing ensures a robust construction, making it suitable for demanding environments. The PG11 threaded sleeve facilitates secure installation and connection, with a solder contact type to provide stable performance.
This connector offers numerous benefits, including its high insulation resistance and contact resistance, ensuring efficient power transmission with minimal losses. The IP65 protection rating makes it dust-tight and resistant to water ingress, which is ideal for outdoor or industrial settings. With an operating temperature range from -40 °C to +125 °C, it supports a broad scope of applications, ensuring versatility and adaptability.
The GSP 311 is perfect for use in hydraulic systems, pneumatic systems, and other areas where robust and secure electrical connections are required. Accredited by various safety standards such as VDE and SEV, it guarantees compliance and reliability.
