1/2"-20UNF U-coded female orange body PUR black

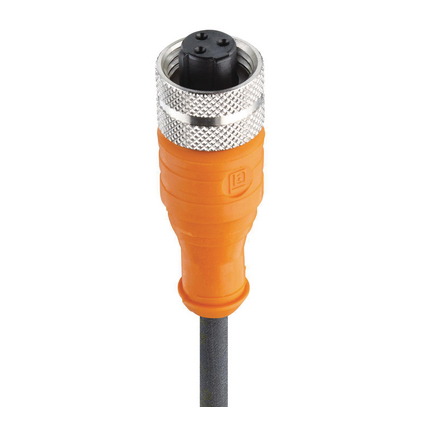

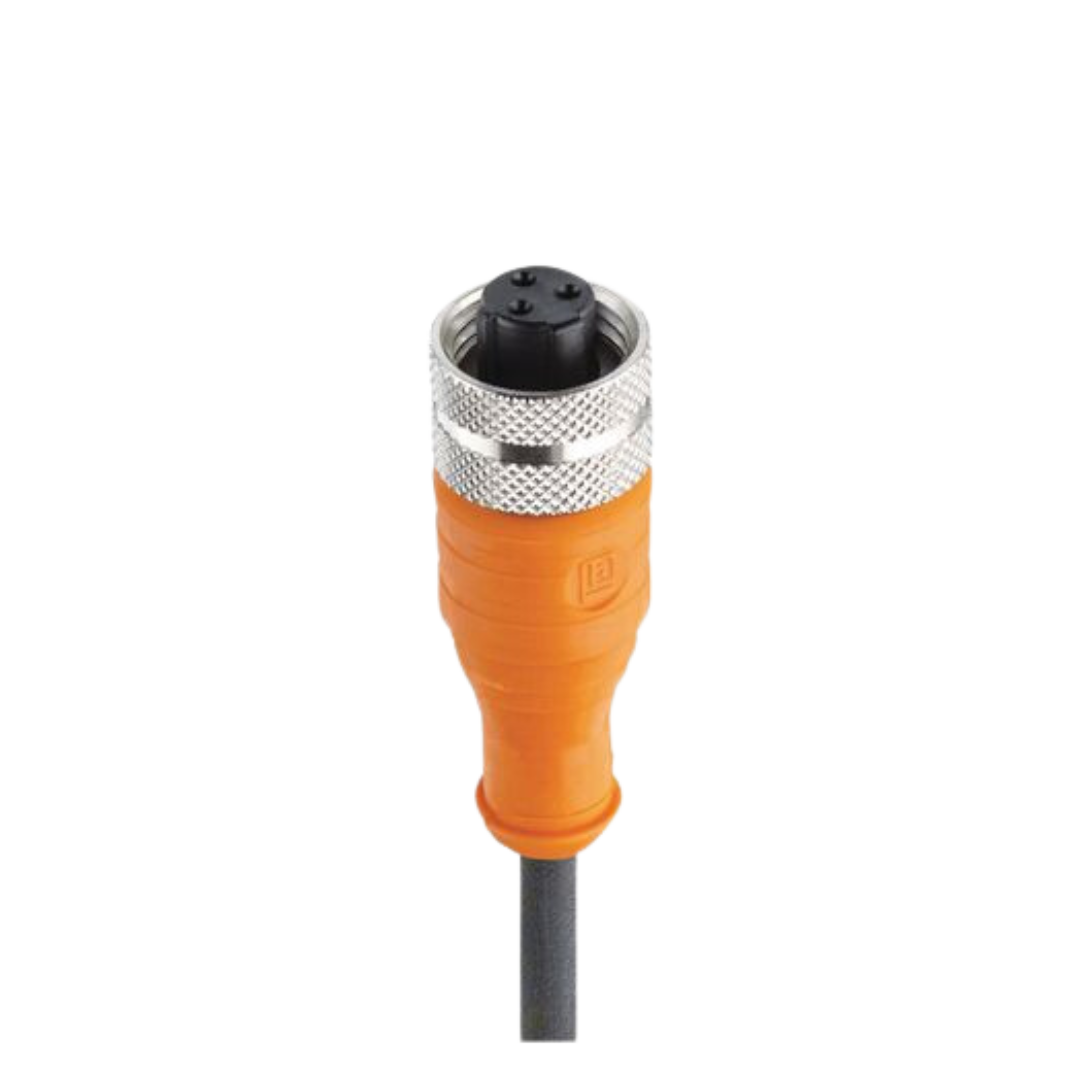

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is designed for high-performance applications in industrial environments. This cordset features a female, straight 3-pin U-coded connector with a durable orange body, rated for 230 V AC/DC and a current rating of 4 A. The included PUR black cable comes with 3 wires with a cross-section of 0.50 mm², ensuring solid electrical performance and flexibility in various installation settings. The robustness of this cordset is underscored by its resistance to oils and chemicals, as well as its good microbe and hydrolysis resistance properties. The use of a TPU molded body and FKM gasket material guarantees longevity, even under challenging environmental conditions with temperature ranges from -40 °C to +90 °C in operation. This ensures a reliable connection in applications subjected to harsh conditions, including high humidity or dust. Ideal for use in automation systems, this cordset is constructed to fit a plethora of industrial tasks. It features an IP67, IP69K rating, ensuring complete protection against water and dust ingress. This makes it suitable for heavy-duty manufacturing, plant engineering, and field wiring settings where robust and reliable electrical connections are essential.

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset features a robust and reliable design ideal for industrial automation. This cordset boasts a female, straight, 3-pin, U-coded connector with an orange body, offering seamless connectivity in a 230 V AC/DC, 4 A capacity. The connector utilizes a high-quality PUR black cable with three wires, each having a conductor size of 0.50 mm². This ensures excellent electrical performance and durability under harsh conditions. The use of premium materials such as CuSn for the contact base and Cu/Au plating ensures low contact resistance and high insulation resistance, enhancing the reliability of connections. The molded TPU body in orange adds to the visibility and identification ease, while the FKM gaskets ensure secure sealing and IP65, IP67, and IP69K protection. This product is also halogen-free and offers good resistance to chemicals and oil. Ideal for use in a variety of industrial applications, the 1/2"-20UNF-2B cordset is perfect for sensor and actuator connections with its flexibility, durability, and secure attachment via a coupling nut. It is suitable for various environmental conditions, withstanding operating temperatures from -40 °C to +90 °C, making it a versatile choice for automation needs.

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset features a female, straight connector design with 3 pins and U-coding. Built to handle 230 V AC/DC and a current of up to 4 A, it’s equipped with a durable orange body and a reliable PUR black cable with three 0.50 mm² wires. The cordset delivers robust performance suited to demanding environments, boasting excellent resistance to chemicals, oils, and environmental factors like temperature and moisture. The contacts are made from CuSn with Cu/Au plating and feature a high contact resistance of ≤ 10 mOhm, ensuring stable and reliable connections. It has an IP65, IP67, and IP69K protection rating and can operate within a temperature range of -40 to +90 °C.
