7/8" Connector Male Molded With Cable

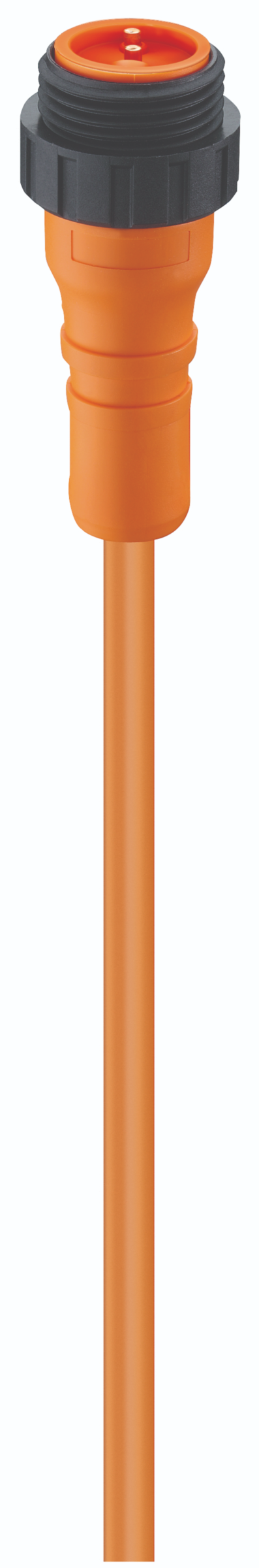

RS 30-01/0,9 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is an essential component for power transmission in various industrial applications. This cordset features a male, straight connector with 3 pins (2+PE) and is designed to handle 230 V AC/DC and a current of 12 A. The cordset incorporates a robust TPU molded body and an orange PVC cable with a diameter of 0.75 mm², ensuring reliable and durable connections. With an IP68 protection rating and a wide operating temperature range of -40°C to +90°C, this cordset is ideal for demanding environments.
Key benefits of the 7/8" Power Single-Ended Cordset include its high current rating, excellent insulation resistance (>10^9 Ohm), and low contact resistance (≤ 10 mOhm). The construction materials and design ensure durability and long-term performance, even under harsh conditions. The orange body offers increased visibility, enhancing safety in industrial settings. The cordset is also compliant with RoHS standards, ensuring it meets environmental safety regulations.
This single-ended cordset is perfect for power distribution in machinery, automation systems, and other heavy-duty electrical setups. The cable is flame-retardant, self-extinguishing, and meets various flammability standards, providing an added layer of safety. Available in different lengths (0.9 m, 2 m, and 5 m), this cordset offers flexibility in installation and application.
€24.81
per item

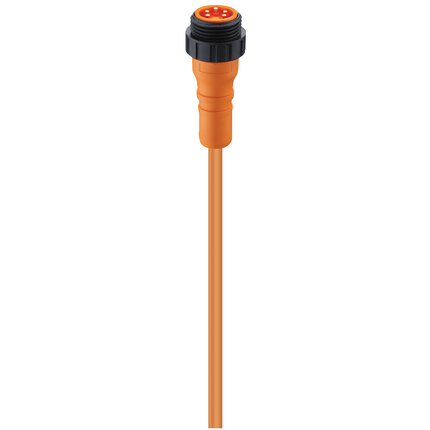

RS 50-04/15 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is designed for high performance in power applications. It features a male, straight, 5-pin (4+PE) configuration with an orange body, and it supports 230 V AC/DC with a rated current of 9 A. The cordset is equipped with an orange PVC cable with a conductor size of 0.50 mm², ensuring stable and reliable electrical connections. The durable TPU molded body and contact bearer enhance its longevity and performance under various operational conditions, with an ambient temperature range of -40 °C to +90 °C. Rated with IP68 protection, the cordset is highly resistant to dust and water ingress, making it ideal for use in challenging environments. The cordset's coupling nut attachment ensures secure and stable connectivity. It is RoHS compliant, reflecting its adherence to environmental regulations and safety standards.
€55.00
per item

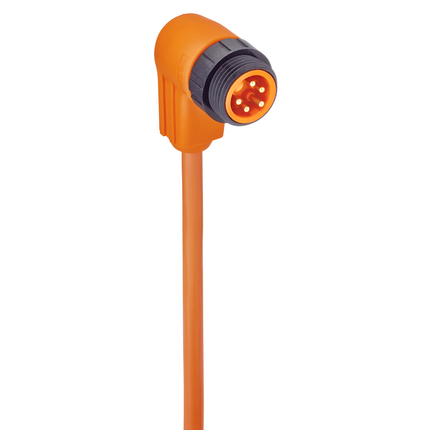

RSW 50-04/5 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is designed for reliable power connections in industrial settings. This cordset features a male, angled connector with 5 pins (4+PE), housed in a durable orange body. It operates at a voltage of 230 V AC/DC with a current rating of 9 A. The orange PVC cable, with a conductor size of 0.50 mm², ensures flexibility and durability. The cordset is unshielded, utilizing a coupling nut for attachment, and is rated IP68, offering excellent protection against dust and water ingress. It also meets RoHS compliance and is flame-retardant and self-extinguishing, making it a safe choice for various applications.
€35.80
per item

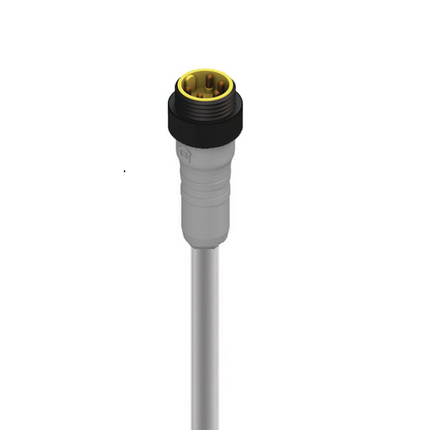

0935 613 302/3 M
CANopen / DeviceNet, Cordset, single ended
CANopen / DeviceNet, Cordset, single ended: 7/8", Male, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet THICK
€86.92
per item
RSW 20-03/0,5 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is designed for industrial power applications requiring a reliable connector. Featuring a male, angled design with 2 pins, this cordset can handle 230 V AC/DC and supports a current of up to 12 A. The orange TPU molded body ensures durability, while the orange PVC cable with 0.75 mm² conductors provides flexibility and robustness.
Key benefits include high resistance to environmental factors with an IP68 protection rating, ensuring safety and long-term reliability in harsh conditions. The cordset is also flame-retardant and self-extinguishing, meeting stringent safety standards.
Ideal for connecting industrial machinery, automation systems, and power units, this cordset offers ease of installation with its coupling nut and secure connections. The product family belongs to the reputable Lumberg Automation range, ensuring high-quality components and performance.
€22.33
per item
RS 20-03/15 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is a high-quality connector designed for efficient power transmission. Featuring a male, straight, 2-pin connector with an orange body, this cordset operates at 230 V AC/DC and supports a current rating of 12 A. The cordset comes with a PVC orange cable with a conductor size of 0.75 mm², ensuring durability and reliability in various applications. The cable has a diameter of ø 6.80 ±0.20 mm and supports both fixed and flexible installations with respective minimal bending radii of ˃5xD and ˃ 10 x D. Additionally, the cordset is rated IP68 for protection and can operate within a wide temperature range of -40 °C to +90 °C.
The primary benefit of this cordset is its robust and reliable design, making it suitable for demanding environments. With a high insulation resistance of ˃ 10^9 Ohm and a contact resistance of ≤ 10 mΩ, it ensures secure and stable connections. The flame-retardant and self-extinguishing cable jacket enhances safety.
Applications for this cordset include industrial automation, power distribution, and machinery. The variant lengths available (from 0.7 m to 15 m) provide flexibility for different installation needs.
€38.19
per item
RSW 30-01/3 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is a high-quality male, angled connector featuring 3-pin (2+PE) configuration. This product, with an orange body, operates at 230 V AC/DC and supports up to 12 A, which ensures its robust functionality in various environments. The attached PVC orange cable has a diameter of 0.75 mm², adding to the durability and efficiency of the device.
One of the primary benefits of this cordset is its IP68 rating, providing excellent protection against dust and water, making it apt for use in demanding industrial environments. The cable comprises a high-grade copper conductor, providing excellent conductivity and reliability. Additionally, the cable's flame-retardant and self-extinguishing properties enhance safety during operation.
Ideal applications for this cordset include use in industrial automation, machinery, power distribution systems, and other electrical installations where a reliable and durable connection is required. The product meets all necessary safety and environmental standards, ensuring compliance with RoHS and other relevant regulations.
€27.90
per item
0935 614 302/3 M
CANopen / DeviceNet, Cordset, single ended
The CANopen / DeviceNet Cordset, single ended, features a robust 7/8" male, straight, 5-pole connector. This product is equipped with a gray PVC cable, specifically designed for DeviceNet Thin applications. With a rated voltage of 250V and rated current of 4A, it ensures optimal performance and reliability in various environments. The connector is shielded and designed with a coupling screw with external threads, providing secure and stable connections. Operating efficiently in temperature ranges from -40°C to +90°C, this cordset adheres to IP65 and IP67 protection standards, guaranteeing resistance against dust and water ingress. The CANopen / DeviceNet Cordset is constructed using high-quality materials such as CuZn for the contact base and TPU for the molded body, with the contact plating being gold over silver. These materials ensure durability and longevity even under mechanical and environmental stresses. The cable itself boasts a 5x0.34 mm² conductor size with a minimal bending radius for both fixed and flexible installations, enhancing its adaptability in various setups. Additionally, the cordset complies with UL AWM 20201 and CSA AWM I/II A/B standards, offering resistance against oils, acids, alkalis, abrasion, impact, and weathering, making it suitable for multiple industrial applications.
€69.84
per item

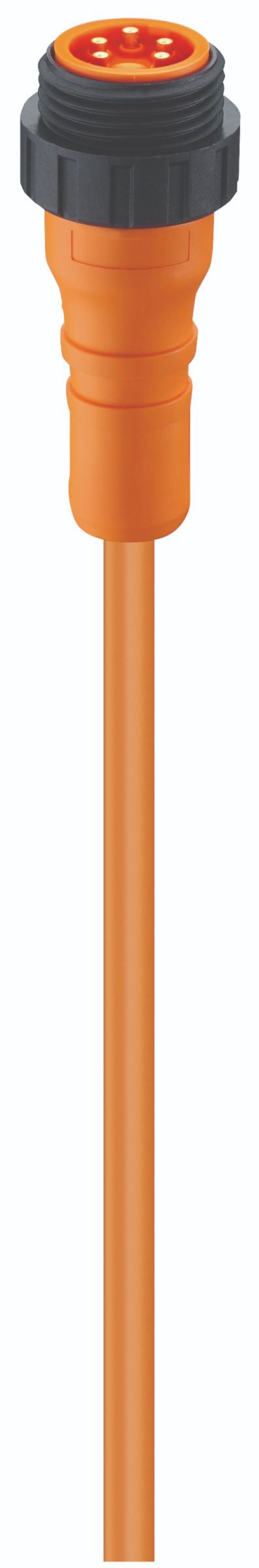

RS 40-02/2,25 M
7/8" Power Single-Ended Cordset
The 7/8" Power Single-Ended Cordset is a high-quality power connector designed to fulfill demanding power transmission requirements. Featuring a 4-pin male, straight design in a distinctive orange body, this cordset provides robust connection at 230 V AC/DC and 9 A. It comes with a durable PVC orange cable with a conductor size of 0.50 mm², ensuring reliable performance under a wide range of conditions. The cordset offers excellent reliability with a contact resistance of ≤ 10 mOhm and an insulation resistance of ˃ 10^9 Ohm. The ambient operating temperature ranges from -40 °C to +90 °C, making it suitable for both indoor and outdoor applications requiring high performance and resilience.
This cordset excels with its IP68 rating, ensuring complete protection against dust and prolonged immersion under water. It is flame-retardant and self-extinguishing, complying with DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, and UL VW-1 standards. RoHS compliance guarantees adherence to important environmental regulations. The cordset is available in various lengths (1m, 2m, 2.25m, 5m, 10m) to meet diverse application needs, making it highly versatile for power installations in different settings.
This 7/8" Power Single-Ended Cordset is perfect for use in heavy machinery, industrial automation systems, and outdoor power installations where robust and reliable power connections are essential. Its excellent mechanical properties and adherence to stringent safety standards make it ideal for applications requiring high durability and reliability.
€27.69
per item
