Type C Field Attachables
GDSN 207
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), UL 1977, translucent housing, screw type, PG7; without circuitry, 230 V AC/DC, 6 A
€2.01
per item
GDSL 207 LED 230 VR YE black
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with varistor and yellow LED, 230 V AC/DC, 6 A
On Request

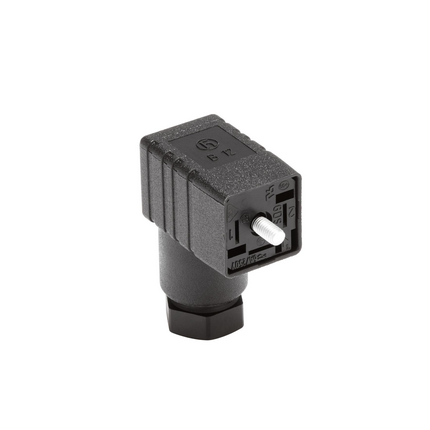

GDS 307 black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is an essential component for complex electrical systems, providing a reliable connection solution for industrial applications. This Form C, 4-pin (3+1PE) connector is certified under UL 1977 standards, ensuring compliance and safety. The connector features a durable black housing, which is screw type and PG7 compatible, making it easy to install without requiring additional circuitry. Operating at 230 V AC/DC, it supports a current rating of 6A, offering robust performance for demanding environments. Constructed with high-quality materials such as CuZn for contact base, PA GF for the housing, and NBR gasket, the GM Industrial Standard Field Attachable Connector assures longevity and stability. Perfectly suited for field attachable applications, it supports a wide range of cables with diameters between 4.5 to 6 mm. The connector includes a central screw attachment method, providing secure and stable connections, essential for maintaining operational efficiency. It's designed for industrial settings where reliability and safety are paramount.
€2.10
per item
GDSL 207 LED 110 VR YE black
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with varistor and yellow LED, 110 V AC/DC, 6 A
On Request

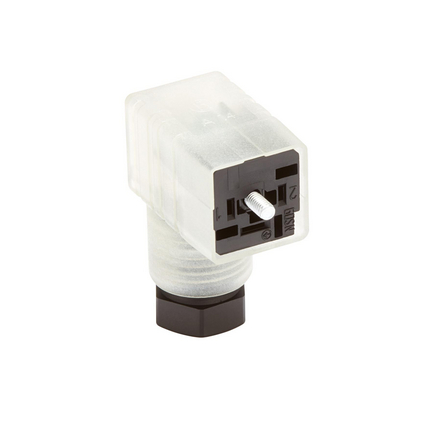

GDSNL 207 LED 230 VR YE black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is designed for reliable electrical connections. Featuring a 3-pin (2+1PE) configuration and translucent housing, it stands out with a screw-type connection and PG7 cable gland. This connector includes a varistor for surge protection and a yellow LED indicator, making it perfect for monitoring operating states. With an operating voltage of 230 V AC/DC and rated current of 6 A, this connector is built to DIN EN 175301-803-C and ISO 4400 standards, ensuring quality and durability. Key applications include industrial machinery and automation systems, providing robust and secure connections.
On Request
GDSN 307 black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a high-quality connector designed for industrial use. Featuring Form C with 4-pin configuration (3+1PE), it ensures reliable connectivity for various applications. The connector adheres to UL 1977 standards, ensuring safety and reliability in performance. The black housing is durable and robust, made from PA GF material with a flammability class of UL 94 HB. It is equipped with a screw-type connection method and a PG7 cable gland, making installation straightforward. With a rated voltage of 230 V AC/DC and a rated current of 6A, this connector is versatile and suitable for demanding environments. The operating temperature ranges from -40 °C to +125 °C, adding to its versatility and robustness. This connector is unshielded and uses a central screw attachment method, ensuring stability and security in field applications. The overall design conforms to DIN EN 175301-803-C and ISO 4400 standards.
€2.10
per item

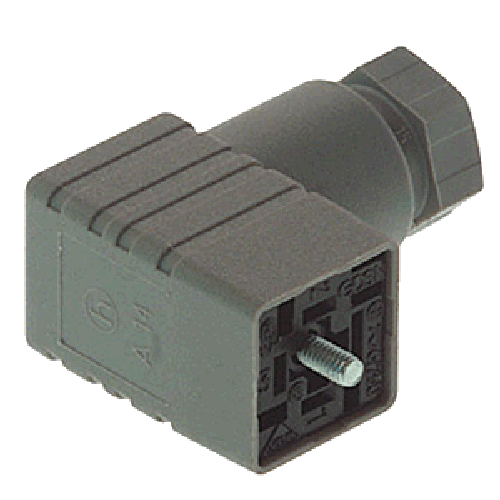

GDSN 307 grey
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is designed for industrial applications requiring reliable connections. This Form C connector features a 4-pin design (3+1PE) with a PE across the cable outlet, endorsing its robustness and adaptability. Certified under UL 1977 and featuring a screw type PG7 cable gland, it ensures secure installation. This connector operates at a voltage of 230 V AC/DC and carries a current rating of 6 A, making it suitable for high-demand environments. Its grey housing is constructed from PA GF material, ensuring durability and compliance with UL 94 HB flammability standards. With an IP65 protection degree, it can withstand harsh industrial conditions. The screw type connection ensures ease of installation and maintenance. Additionally, it has a rated impulse voltage of 4.0 kV and is suitable for cables with diameters ranging from 4.5 to 6 mm.
€2.29
per item
GDSL 207 LED 230 YE black
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with yellow LED, 230 V AC/DC, 6 A
On Request
GDSL 207 LED 110 YE black
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with yellow LED, 110 V AC/DC, 6 A
On Request
GDSL 207 LED 24 VR YE black
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with varistor and yellow LED, 24 V AC/DC, 6 A
On Request
GDSN 207 grey
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a reliable and versatile connector designed for industrial applications. Featuring a Form C design and a 3-pin configuration (2+1PE; PE across cable outlet), this connector adheres to the UL 1977 standard and provides a secure and robust connection. The grey housing is constructed from durable PA GF material, and the attachment mechanism is a central screw type with a PG7 cable gland. This connector is rated for 230 V AC/DC, 6 A, making it suitable for various high-performance applications. With an IP65 protection rating, it ensures reliable performance in demanding environments.
One of the key benefits include its high contact resistance (≤ 10 mOhm) and insulation resistance (˃ 10^9 Ohm), ensuring optimal conductivity and safety. It is also RoHS compliant, underlining its environmentally friendly credentials. Additionally, the connector supports mating cycles of ≤ 50, presenting a long-lasting solution for multiple operations. The compact and angled design further enhances its practicality in space-constrained setups.
This connector is ideal for use in valve connectors and other industrial settings where a secure and reliable connection is essential. Its wide operating temperature range (-40 °C - +125 °C) and compatibility with various cable sizes (Ø 4.5 - 6 mm) make it highly adaptable for differing operational requirements. The GM Industrial Standard Field Attachable Connector, with its ease of installation and robust design, is a valuable component for modern industrial applications.
€2.03
per item
GDS 307 grey
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a high-quality, durable connector designed specifically for industrial applications. This Form C, 4-pin connector (3+1PE, with PE across the cable outlet) meets the UL 1977 standard and features a robust grey housing. It uses a central screw and a screw type PG7 connection for secure attachment, ensuring reliable performance at 230 V AC/DC and up to 6 A. The housing is made of PA GF material, providing excellent insulation and resistance to high temperatures. Suitable for cables with diameters ranging from 4.5 to 6 mm, this connector ensures efficient power transmission and safety compliance. Applications include a wide range of industrial environments where reliable and robust electrical connections are required.
€2.29
per item
GDSL 207 LED 24 YE black
GM Industrial Standard Field Attachable Connector
GM Industrial Standard Field Attachable Connector: Form C, 3-pin (2+1PE; PE across cable outlet), translucent housing, screw type, PG7; with yellow LED, 24 V AC/DC, 6 A
On Request

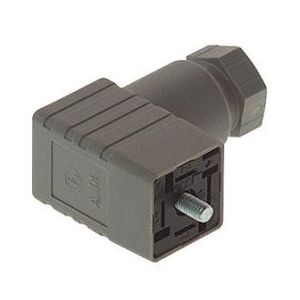

GDS 207 grey
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a highly reliable and efficient electrical connector designed for industrial use. Featuring a Form C, 3-pin (2+1PE) configuration, this connector is versatile and robust. It comes with a grey housing and a screw type attachment, making it easy to install and secure. The connector is compliant with UL 1977 standards and operates at a rated voltage of 230 V AC/DC with a current rating of 6 A. It is equipped with a PG7 cable gland and suitable for cables with a diameter of 4.5 to 6 mm. The housing material is made of durable PA GF ensuring a long-lasting performance. Additionally, this connector offers a high level of safety with an IP65 protection rating and conforms to various international safety standards including VDE, CSA, and SEV. Ideal for a wide range of industrial applications, the GM Industrial Standard Field Attachable Connector provides increased reliability and performance in electrical connections.
€2.03
per item
GDSNL 207 LED 110 VR YE black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a top-of-the-line, reliable solution for industrial applications requiring a robust and flexible connector. This Field attachable connector is designed in Form C with 3 pins (2+1PE), and comes with a translucent housing for easy inspection. The screw-type connection makes it easy to install securely, while the PG7 cable gland ensures a tight fit. Additionally, this connector is equipped with a varistor and a yellow LED for clear function indication, making it suitable for a wide range of electrical setups. Operating at 110 V AC/DC and supporting up to 6 A, this connector is built to handle significant power demands while maintaining an insulation resistance of over 10^9 Ohm and a contact resistance of below 10 mOhm. This sophisticated design is further enhanced by its compatibility with cables of 4.5 - 6 mm diameter and conductor cross-section of 0.25 - 0.75 mm².
On Request
GDSNL 207 LED 24 VR YE black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a high-quality, reliable connector designed in compliance with DIN EN 175301-803-C standards. It features an angled, field attachable design with a 3-pin configuration (2+1PE; PE across cable outlet), and its translucent PA GF housing offers a clear view of internal components. This connector utilizes a central screw attachment type and a PG7 cable gland suited for conductor cross sections ranging from 0.25 to 0.75 mm² and cables with diameters of 4.5 to 6 mm. It includes a varistor for protective circuitry, a yellow LED function indicator, and supports 24 V AC/DC with a 6 A current rating. With a protection degree of IP65, the connector is ideal for environments requiring dependable transmission and protection. Additional benefits include easy screw-type connection and durable materials meeting UL 94 HB and V-2 flammability class ratings.
€9.45
per item
GDSNL 207 LED 230 YE black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is designed for industrial applications, providing reliable performance and durability. This connector features a Form C, 3-pin (2+1PE; PE across cable outlet) configuration within a translucent housing. The connector is of screw type, ensuring secure attachment and compatibility with PG7 cable glands. Additionally, it includes a yellow LED for clear function indication and operates at 230 V AC/DC with a rated current of 6 A. The connector is rated IP65, making it suitable for harsh environments, and complies with DIN EN 175301-803-C and ISO 4400 standards. Its compact, angled design and central screw attachment offer easy installation and maintenance.
On Request
GDSNL 207 LED 110 YE black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a high-quality connector designed to meet industrial standards. This Form C, 3-pin (2+1PE) connector features a translucent housing and is equipped with a screw type PG7 cable gland. It includes a yellow LED for function indication, operating at 110 V AC/DC with a current rating of 6 A, providing reliable performance in various applications.
Benefits of this product include its robust construction, with materials such as PA GF for the housing and a CuZn contact base, ensuring durability and longevity. The translucent housing allows for easy visual inspection of connections, and the integrated yellow LED provides immediate visual feedback on the connector's status.
This connector is ideal for use in industrial environments where reliable and secure connections are crucial. It is suitable for a variety of applications, including automation systems, machinery, and equipment requiring secure electrical connections. Its IP65 rating ensures protection against dust and water, making it suitable for harsh operating conditions.
On Request
GDSNL 207 LED 24 YE black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a versatile and reliable connector, ideal for various industrial applications. It features a Form C, 3-pin configuration (2+1PE; PE across cable outlet), housed in a durable translucent casing. This connector supports screw-type attachment and utilizes a PG7 cable gland. It is equipped with a yellow LED for function indication and operates efficiently with a voltage rating of 24 V AC/DC and a current rating of 6 A.
One of the key benefits of this connector is its robust construction and secure attachment method, ensuring long-lasting performance. The translucent housing and integrated LED indicator provide easy monitoring of the connector's status, adding a layer of convenience to its use. With an IP65 protection rating and compliance with several DIN and ISO standards, this connector guarantees reliable operation even in challenging conditions.
The GM Industrial Standard Field Attachable Connector is ideal for use in various industrial environments, including automation, control systems, and machinery. Its compatibility with cables of varying diameters (Ø 4.5 - 6 mm), along with a wide operating temperature range (-25°C to +80°C), ensures flexibility and adaptability in different applications. Additionally, the connector’s design allows for simple installation and maintenance, making it a practical choice for both new setups and existing systems.
€9.21
per item

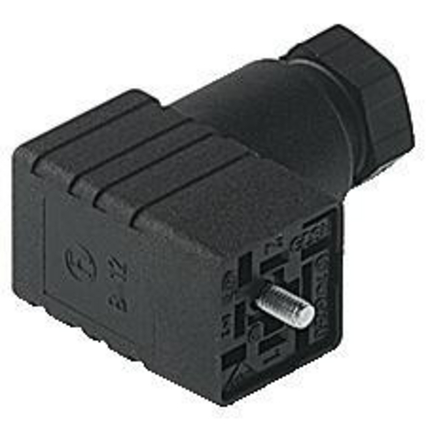

GDSN 207 black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is a Form C, 3-pin (2+1PE) connector designed for versatility and reliability. Encased in a robust black housing, this field attachable connector features a screw-type attachment and a PG7 cable gland, ensuring secure connections. With a rated voltage of 230 V AC/DC and current capacity of 6 A, it's built to handle demanding electrical requirements. The connector is UL 1977 certified, ensuring safety and compliance with industry standards, and offers an IP65 protection rating, making it suitable for various industrial environments. It is compatible with cables of 4.5 to 6 mm in diameter and operates within a wide temperature range of -40 °C to +125 °C.
€1.87
per item
GDS 207 black
GM Industrial Standard Field Attachable Connector
The GM Industrial Standard Field Attachable Connector is available in Form C with a 3-pin (2+1PE) configuration, PE across cable outlet. It is UL 1977 compliant and comes with a durable black housing. Designed for electrical stability, it features a screw-type connection and a PG7 cable gland, suitable for operations at 230 V AC/DC and a current of 6 A. The connector can operate within a wide temperature range from -40 °C to +125 °C, ensuring reliability in demanding environments. The product's insulation resistance is over 10^9 Ohm, with contact resistance maintained at ≤ 10 mOhm. Additionally, it has a commendable protection degree of IP65, making it safe for use in various industrial applications. This product is suitable for multiple uses, particularly in valve connectors where secure and stable connections are essential, and it's ideal for uses that require a central screw attachment.
€1.87
per item
