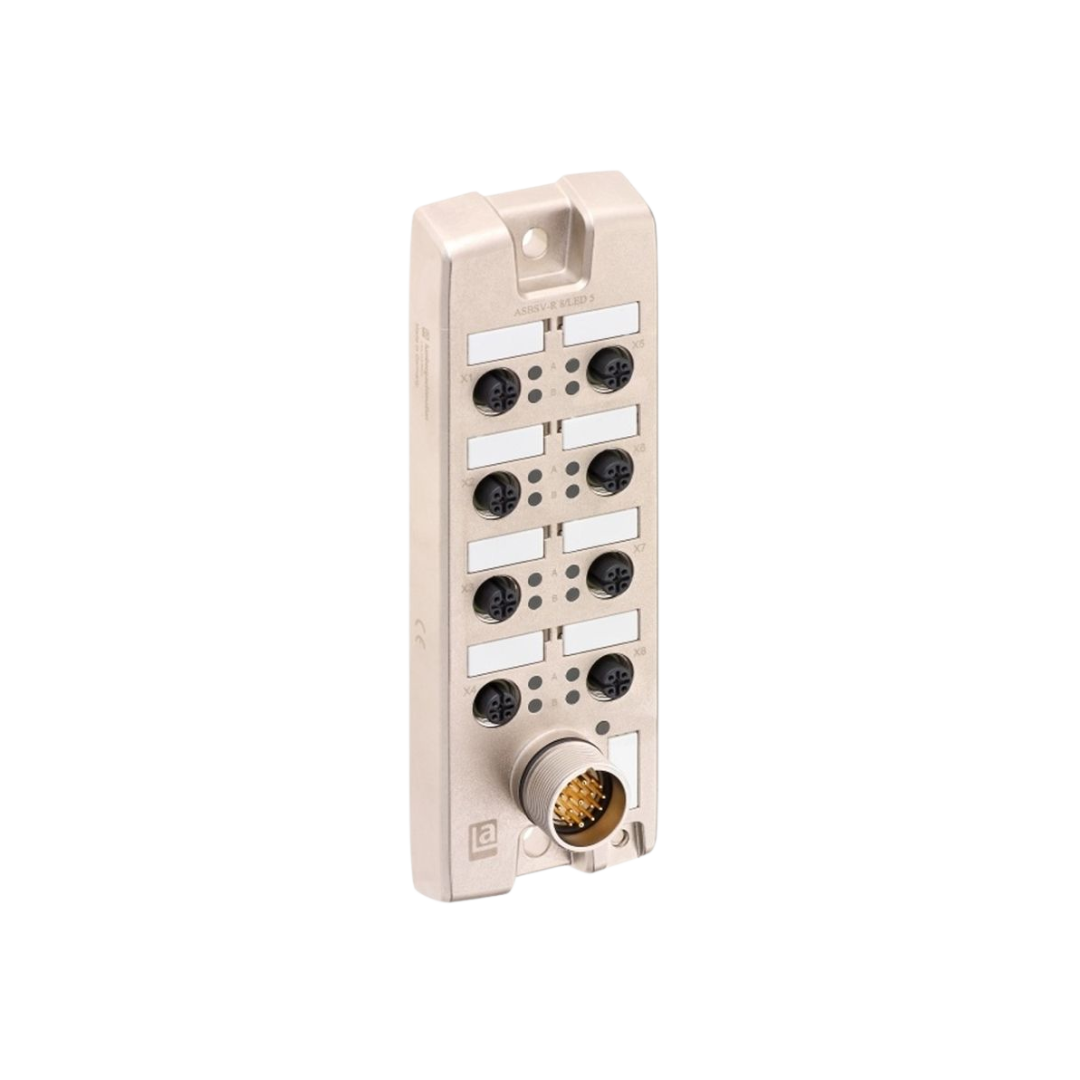

8-Port M12 Actuator/Sensor Distribution Box With LED and M23 Quick-Disconnect for Control Cable

ASB with FIXCON connector, 8 ports, LED, integrated fuses, M23 connector, double I/O per port

The ASB with FIXCON connector comes with 4 ports, LED indicators, and an M23 connection, making it a versatile and essential component for various industrial applications. With 8 individual I/O connections using M12, 5/4-poles, and A-coded ports, this module offers robust connectivity and efficient performance. The intuitive design includes a green LED status indicator for system supply, while yellow LEDs mark each channel's status, ensuring easy monitoring and quick diagnostics. Crafted with a durable TPU plastic housing, this module is built to withstand harsh environments, boasting an IP67 protection rating. Its ability to operate in temperatures ranging from -15°C to 80°C further enhances its application range. The ASB is also CE and RoHS compliant, assuring adherence to the highest safety and environmental standards.

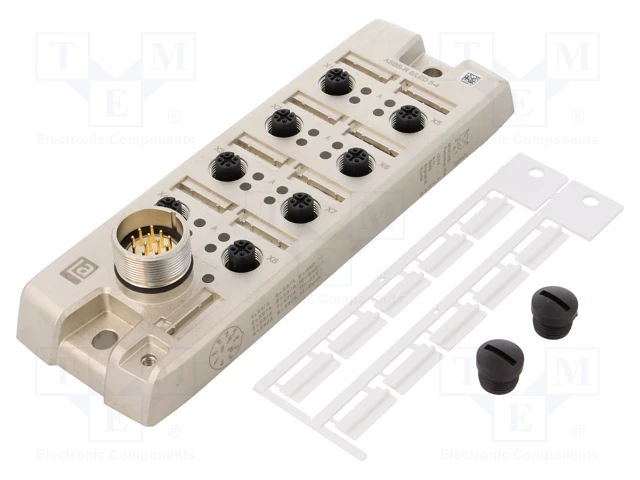

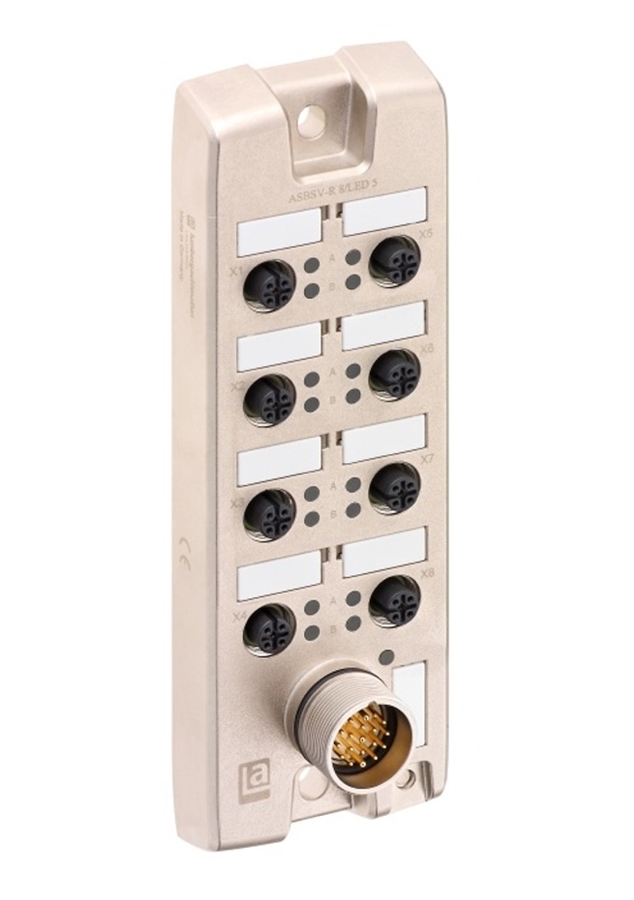

The LioN-R passive module, equipped with 8 ports, is designed to provide reliable LED status indication and M23 connection. This high-quality product from Belden features a robust metal housing made from zinc die-cast with a nickel matt finish, ensuring durability and long-lasting performance. The module is rated IP65 and IP67, offering excellent protection against dust and water ingress, making it ideal for harsh industrial environments. It operates in a wide temperature range from -40°C to 80°C, enabling versatile application across different operational settings. The LioN-R passive module provides a single I/O per port with M12 connectors, rated for a 24V DC nominal actuator supply voltage. The module supports digital input and output channels with PNP sensor types and is galvanically isolated for enhanced safety. Additionally, the module is compliant with CE and RoHS directives, ensuring adherence to international safety and environmental standards.

ASB with FIXCON connector, 8 ports, LED, M23 connection bayonet lock, double I/O per port

ASB with FIXCON connector, 8 ports, LED, M23 connection, welding application, double I/O per port

LioN-R passive, 8 ports, LED, M23 connector, double I/O per port

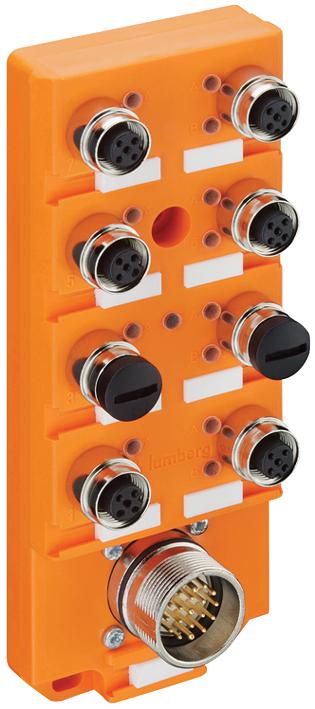

The ASB with FIXCON plug-in connection is a versatile module featuring 8 ports, LED indicators, and an M23 connector. Designed for robust industrial use, the module is housed in durable orange plastic (TPU) and offers a high protection degree of IP67, ensuring reliable performance in harsh environments. The I/O connection utilizes M12, 5/4-poles, A-coded configuration, while the control cable interface supports M23, 12-poles. The module’s dimensions are 60 mm x 30.3 mm x 152 mm. This product stands out with its status indicators: a green LED for system supply and yellow LEDs for port channels, which offer clear visual feedback. The module operates within a temperature range from -15 °C to 80 °C and is compatible with PNP sensor types. The actuator supply voltage is nominal at 24 V DC, with a range from 10 V DC to 30 V DC. The housing ensures pollution degree 3 compliance according to EN 60664-1, VDE 0110-1 standards. Ideal for various industrial applications, the ASB with FIXCON plug-in connection can be deployed for efficient and reliable control and monitoring. Its compact design, combined with robust material, makes it suitable for demanding operating conditions. Additionally, this module meets all safety and environmental compliance standards, including CE, RoHS, and UL listings.

The ASB with FIXCON connector offers robustness and versatility for industrial applications. This unit comes with 8 ports, each featuring LED status indicators and a combination of M12 and M23 connectors for both I/O and control cable interfaces. The double I/O per port configuration allows for enhanced signal handling capabilities, making it ideal for complex systems. Constructed from resilient plastic (TPU) and rated at IP67, it ensures protection against dust and water ingress. The module's operational temperature ranges from -15 °C to 80 °C, making it adaptable to various environmental conditions. Additional features include a green LED system supply indicator, a yellow LED status indicator per channel, and compliance with multiple safety standards such as CE, RoHS, and UL. The unit is engineered with a pollution degree of 3 per EN 60664-1 and can handle a maximum module current of 10 A.
