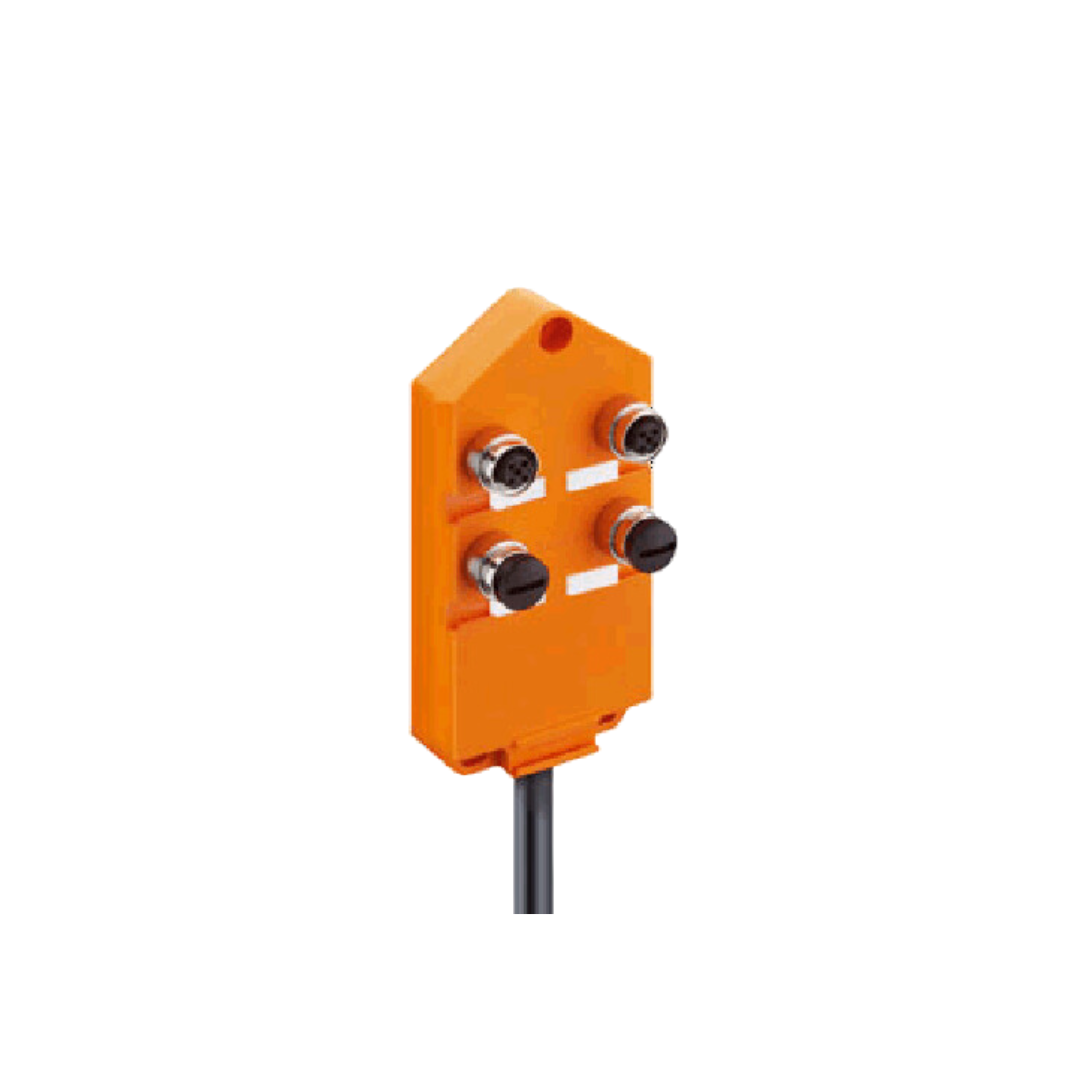

4 ports M12 Actuator / Sensor Distribution Box with Cable

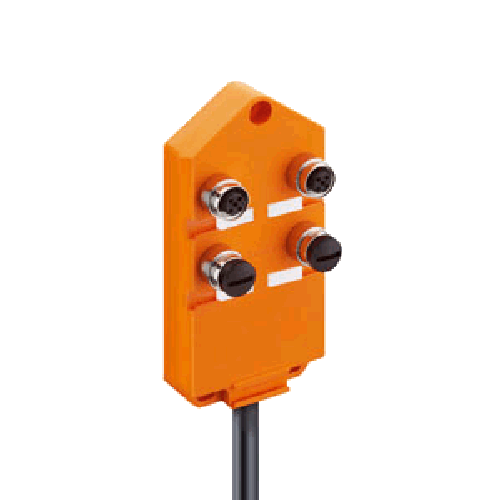

The ASB with FIXCON connector is designed for robust industrial applications, featuring 4 ports with double I/O per port configuration. Each port uses an M12, 5-poles, A-coded connector, housed in durable TPU plastic. This product boasts a high degree of protection with an IP67 rating, ensuring reliability in harsh environments. Operating between -15°C to 80°C, it supports a nominal actuator supply voltage of 24 V DC within a range of 10 V DC to 30 V DC. Additionally, it includes LED indicators for both system and port status, adding a layer of operational convenience.

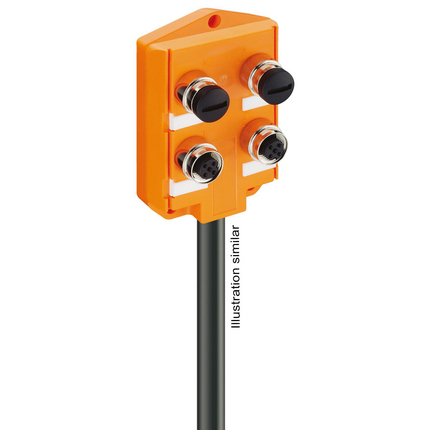

The ASB with FIXCON connector is designed with 4 ports, each supporting double I/O per port, making it an efficient solution for various industrial applications. Its M12, 5-poles, A-coded I/O connection ensures reliable data and power transmission. The device features an open end control cable interface and is encased in a robust plastic housing made from TPU, boasting an IP67 protection rating for superior resistance to dust and water. The unit operates at an ambient temperature range of -15°C to 80°C, ensuring reliable performance in diverse environmental conditions. The ASB with FIXCON connector incorporates LED indicators for status monitoring, with green LEDs for system supply status and yellow LEDs per channel for port status. It supports actuator supply voltages ranging from 10 V DC to 30 V DC, with a nominal voltage of 24 V DC, making it versatile for various applications. Additionally, the module is RoHS and China RoHS compliant, bearing CE and UL (cULus Listed, UL 508) approvals. This connector is ideal for use in automation settings where secure, stable connections are crucial. It supports a maximum current of 1.5 A per connector and per module, making it suitable for high-performance requirements in control systems.

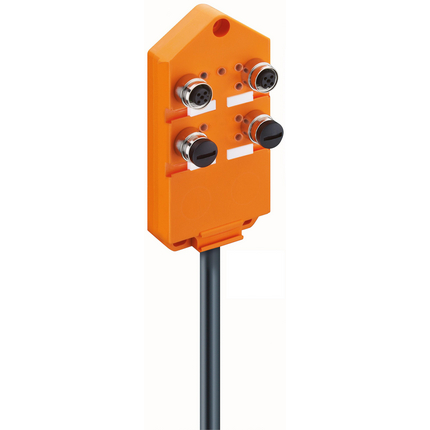

The ASB with FIXCON connector, featuring 4 ports and double I/O per port, is designed to provide robust and reliable connectivity in demanding industrial environments. Equipped with M12 5-pole A-coded connectors and an open-end control cable interface, this module ensures stable and efficient communication. The unit is built with high-quality plastic (TPU) housing in an orange color, providing durability and easy identification. The ASB is potted and has dimensions of 60 mm x 30.3 mm x 118 mm, with an ambient operating temperature range of -15 °C to 80 °C, making it suitable for a variety of applications. This product supports a maximum current of 1.5 A per connector and module, with a nominal actuator supply voltage of 24 V DC, ranging from 10 V DC to 30 V DC. The status indicators for the system supply are green LEDs, while the port channels utilize yellow LEDs, ensuring clarity in status monitoring. The protection degree of IP67 guarantees resistance against dust and water, provided it is mounted and locked correctly with a compatible Hirschmann/Lumberg Automation connector. Ideal for use in automated systems and sensor integration, the ASB with FIXCON connector simplifies the process of establishing secure and efficient connections. It is compliant with RoHS, CE, and China RoHS standards, and carries UL and CSA approvals, ensuring it meets high safety and environmental compliance standards.

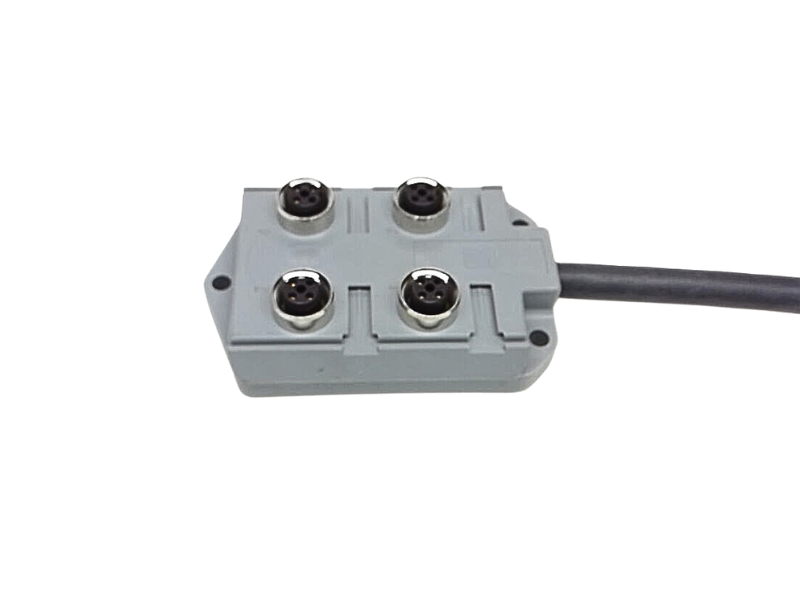

The ASB, 4 ports, 4/3-poles connector by Belden is an essential component for reliable industrial networking. It features four M12, 4/3-poles A-coded ports suitable for connecting multiple I/O devices. The housing is made from durable plastic TPU in a grey color, and it boasts an IP67 protection rating, ensuring resilience against dust and temporary submersion in water. The connector is potted and includes LED indicators for system supply status—green for active status. It supports a nominal actuator supply voltage of 24 V DC, with a range between 10 V DC to 30 V DC, accommodating varying power needs. Each connector supports up to 1.5 A of current, making it suitable for a wide range of industrial sensor and actuator applications. The compact dimensions (54 mm x 25 mm x 82 mm) make it easy to integrate into tight spaces. It’s also compliant with CE, RoHS, and UL standards, ensuring high quality and safety.

The ASB with FIXCON connector from Belden is a dependable interface solution designed to provide optimal connectivity in various industrial applications. Featuring 4 ports with double I/O per port, it uses an M12, 5-pole, A-coded configuration that ensures secure and stable connections. The robust plastic TPU housing, with its bright orange color, enhances visibility and durability. The potted design and IP67 rating guarantee protection against moisture and dust, making it suitable for harsh environments. The device operates efficiently across a temperature range of -15 °C to 80 °C, with a pollution degree of 3 as per EN 60664-1 standards. LED indicators for system power supply and port status add to its user-friendly features, providing clear status updates at a glance.

The ASB with FIXCON connector is a versatile and robust connectivity solution, featuring 4 ports each supporting double I/O, suited for complex automation systems. This device is equipped with an M12, 5-pole A-coded connection for easy interface and includes an open-end control cable setup. Its housing is constructed from durable plastic TPU and offers IP67 protection. The module dimensions are 60 mm x 30.3 mm x 118 mm with operational temperatures ranging from -15 °C to 80 °C. The ports have individual LED indicators and provide a stable power supply with a nominal actuator supply voltage of 24 V DC.

The LioN-R passive module by Belden is designed for seamless connectivity in industrial applications. Featuring 4 M12 ports with 5-pole, A-coded connections, this module supports a wide range of I/O configurations, making it versatile for various industrial environments. The housing, made of zinc die-cast with a grey metallic finish, ensures durability and is potted for added robustness. It supports a wide ambient temperature range from -40°C to 80°C, providing reliability under challenging conditions. Additionally, the module is IP65/IP67 rated, ensuring protection against dust and water ingress. The module includes LED indicators for system and port status, aiding in quick diagnostics. The 24 V DC nominal actuator supply voltage ensures consistent and reliable operations. This module is compliant with CE, RoHS, and China RoHS standards and is UL and CSA approved.

The ASB with FIXCON connector provides a reliable interface featuring 4 ports with double I/O capabilities per port. Its M12, 5-pole, A-coded connections ensure compatibility with a variety of devices. Designed for industrial environments, this module boasts a robust TPU plastic housing in a striking orange color, providing an IP67 protection rating, making it resistant to dust and water. Measuring 60 mm x 30.3 mm x 118 mm, it is compact and can easily integrate into various systems. Operating within a temperature range of -15 °C to 80 °C, it adapts well to harsh conditions. Each port supports up to 1.5 A current, with status indicators for real-time monitoring. Compliant with CE, RoHS, and China RoHS standards, and approved under UL 508 and CSA, the ASB with FIXCON connector is a reliable choice for robust industrial applications.

The ASBV 4-S3372 Appliance Connector by Belden is part of their Classic product family, designed to offer reliable connectivity in industrial environments. This connector is equipped with LED indicators for both system (green) and port (yellow) status, ensuring clear and immediate status updates. It operates on a nominal actuator supply voltage of 24 V DC (SELV/PELV) with a range of 10 V DC to 30 V DC. The connector supports various input wiring configurations (2-, 3-, 4-wire) and PNP sensor types, making it adaptable to different control systems. With a maximum current of 1.5 A per connector and per module, the ASBV 4-S3372 ensures consistent power delivery for connected devices. The device includes specific digital output channels allowing for 2- or 3-wire output wiring. Additionally, it complies with CE and China RoHS standards, ensuring safety and environmental compatibility. This connector is ideal for usage in automation systems, industrial machinery, and other high-demand technical environments. It supports robust connections, maintaining system integrity even under challenging conditions. Please note, the system power supply connections should not be connected or disconnected under voltage to prevent damage or operational issues.

The ASB with FIXCON-connector is a versatile panel designed with 4 ports, each equipped with double I/O capabilities. This unit features M12 connection ports, supporting 5-poles and A-coded connections, ensuring reliable data and power transmission. The LED indicators provide clear status updates for the system supply and each port, making monitoring easy. Housed in a durable plastic TPU structure, the unit is designed to withstand operational temperatures from -15 °C to 80 °C and is rated IP67 for dust and water resistance, making it ideal for harsh industrial environments. With potted interior components and a robust design, it ensures long-lasting performance and compliance with major safety and environmental standards such as CE, UL, and RoHS. This module supports a nominal actuator supply voltage of 24 V DC with a wide range between 10 V DC to 30 V DC, compatible with multiple wiring configurations including 2-, 3-, and 4-wire inputs. The ASB with FIXCON-connector is an excellent choice for applications requiring durable and reliable connectivity with easy status monitoring.

The Belden ASB 4 5-4-328 module is equipped with a FIXCON connector featuring 4 ports, designed to streamline your industrial connectivity needs. This module supports an M12 I/O connection, with 5/4-poles and A-coding, ensuring reliability in various applications. The unit is housed in sturdy orange TPU plastic, offering robust protection with an IP67 rating, making it ideal for harsh environments. The module operates efficiently across a temperature range of -15°C to 80°C and has a pollution degree of 3 according to EN 60664-1, VDE 0110-1 standards. The module boasts several benefits including high durability owing to its quality materials such as CuZn for contact bases, PA for contact bearers, and FKM for O-rings. Additionally, the maximum current per connector is 1.5 A, ensuring stable performance for various sensors and actuators. The yellow LED status indicators help in easy identification of channel activity. Compliance with CE, RoHS, and China RoHS standards reinforces its safety and environmental friendliness. Applications of this module cover a wide range of industrial automation tasks, from connecting single I/O per port devices to providing a reliable power supply with a nominal 24 V DC voltage. Its versatility in handling multiple wiring configurations (2-, 3-, 4-wire inputs and 2-, 3-wire outputs) makes it an essential component in modern automation systems. The module is also UL listed (cULus) and meets all relevant CSA standards, underlining its compliance with North American safety regulations.

The ASB 4 5-4-328 with FIXCON connector is a versatile and reliable connection hub designed for industrial settings. This product features four ports with M12, 5/4-poles, A-coded connections, ensuring secure and robust connections for various I/O devices. The control cable interface is an open end, and the product comes encased in a durable plastic TPU housing, which is orange for high visibility. The unit boasts a protection degree of IP67, making it suitable for harsh environments, and it operates at ambient temperatures ranging from -15 °C to 80 °C, ensuring reliability in various operating conditions.

The ASB 4 5-4-328 module, featuring a FIXCON connector and 4 ports, is a versatile solution for industrial applications requiring reliable I/O connections. The product includes M12 connectors with 5/4-poles, A-coded configuration, offering a robust and secure interface for single I/O per port connections. The housing is made of durable plastic, specifically TPU, and is orange in color. It is designed to withstand harsh environmental conditions, achieving an IP67 protection level when mounted and locked correctly. The potted module is compact with dimensions of 54 mm x 30.3 mm x 82 mm, ensuring it fits seamlessly into various setups. The operating temperature ranges from -15 °C to 80 °C, making it suitable for varied climates. It also complies with stringent standards such as CE, RoHS, and UL certifications, ensuring safety and environmental responsibility. Certified under UL 508 specifications, the product holds a pollution degree of 3 in accordance with EN 60664-1, VDE 0110-1 standards, making it reliable for industrial automation applications. The status indicator, a yellow LED for each channel, ensures easy monitoring of the system. The module can handle a maximum current of 1.5 A per connector and per module, with a nominal actuator supply voltage of 24 V DC and an operational range of 10 V DC to 30 V DC.

The ASB 4 5-4-328 M with FIXCON connector provides a reliable and efficient solution for connecting multiple devices in industrial settings. Featuring four A-coded M12 connectors, this module offers easy installation and secure connections. The housing is made of robust plastic (TPU) and colored in orange for visibility. Rated at IP67, it ensures excellent resistance to dust and waterproofing, making it ideal for harsh environments. The dimensions are 54 mm x 30.3 mm x 82 mm, designed to fit seamlessly in various setups. This unit operates in temperatures ranging from -15°C to 80°C and withstands pollution degree 3 in compliance with EN 60664-1 standards. It also offers 24 V DC actuator supply voltage with a range of 10 V DC to 30 V DC.
