Type C Receptacles

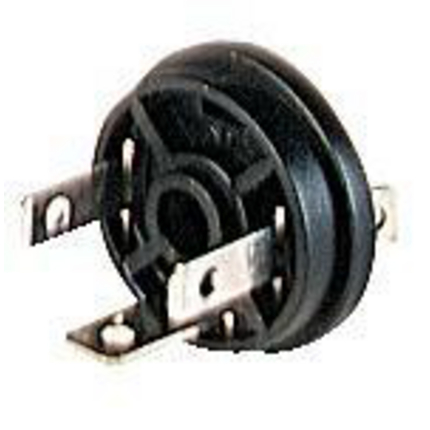

The GSSR Industrial Standard Receptacle is a reliable component designed for industrial use, featuring a Form C, 3-pin configuration (2+1PE) and compliance with UL 1977 standards. The black contact bearer ensures robustness and durability, while the solder type connection allows for secure integration into various systems. It operates effectively at 230 V AC/DC with a current rating of 6 A. Constructed from high-grade materials like CuZn and PA GF, the receptacle boasts excellent insulation resistance and IP65 protection when connected with compatible connectors, making it ideal for demanding environments. With a pollution degree of 3 and an overvoltage category III rating, it ensures safety and reliability in complex electrical systems. The receptacle's versatility extends to a wide range of applications, from industrial machinery to electrical panels, offering dependable performance up to 50 mating cycles. Certified by UL, VDE, and CSA, the GSSR receptacle is RoHS compliant, ensuring adherence to environmental and safety standards.

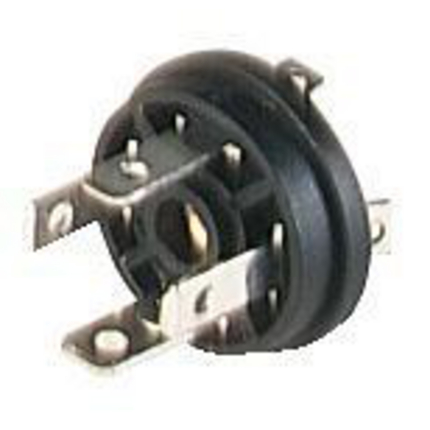

The GSSR Industrial Standard Receptacle is an essential component for your industrial applications. Classified as a Form C, 4-pin (3+1PE) receptor, it meets the UL 1977 standards and features a black contact bearer designed for solder type connections. With an operational voltage of 230 V AC/DC and rated current of 6 A, this connector ensures reliable performance in a wide range of environments. The receptacle has a rated impulse voltage of 4.0 kV, ensures contact resistance of less than 10 mOhm, and provides excellent insulation resistance of over 10^9 Ohms. It is suitable for a variety of applications, including valve connectors, due to its dependable construction and certification by UL, VDE, and CSA. The device operates efficiently in temperatures ranging from -40 °C to +125 °C in most conditions and up to +65 °C under UL and CSA guidelines. Additionally, it has an IP65 protection degree, offering ample defense against dust and water intrusion when correctly mounted with compatible connectors. This receptacle is built from robust materials including CuZn for contact base material, with surface plating done in Cu/Sn, ensuring durability. This item (#933114100 GSSR 300) meets RoHS compliance standards and is perfect for environments demanding secure electrical connections under stringent conditions.

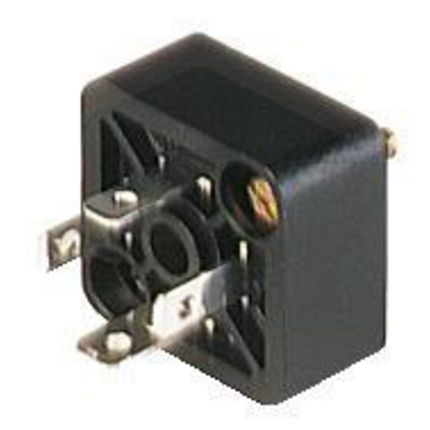

The GSSA Industrial Standard Receptacle is a highly reliable, Form C, 4-pin (3+1PE) component designed to meet UL 1977 standards. Encased in a durable black contact bearer, this solder type receptacle operates efficiently at 230 V AC/DC and handles a current of 6 A. The receptacle offers excellent performance across a variety of industrial applications with its unshielded, straight design and central screw attachment. It supports an operating temperature from -40 °C to +125 °C, ensuring durability in extreme conditions. The protection degree of IP65 makes it suitable for environments where dust and water resistance are essential. Additionally, the contact base material of CuZn with Cu/Au plating ensures low contact resistance and long-lasting connectivity. Ideal for complex electrical and electronic assemblies, the receptacle is compliant with RoHS standards, providing both safety and environmental compliance.

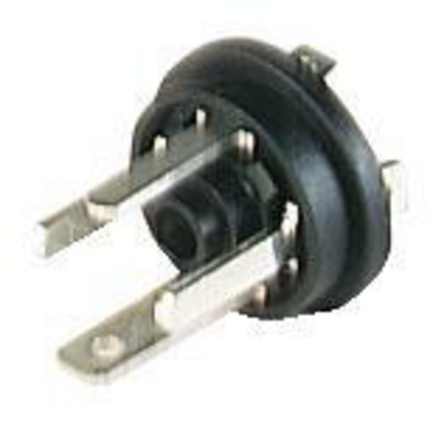

The GSSNR DIN Standard Receptacle is a high-quality, Form C, 4-pin (3+1PE) connector designed to ensure reliable performance and ease of use. Equipped with a black contact bearer and a solder type connection, this receptacle supports a rated voltage of 230 V AC/DC and a current rating of 6 A. The device adheres to UL 1977 standards, providing users with assured performance and safety. Key benefits include a secure and robust connection, thanks to its central screw attachment and unshielded design, making it ideal for a variety of applications including industrial automation, machinery, and control systems. With a mating cycle of up to 50 cycles and an operating temperature ranging from -40 °C to +125 °C, this connector is built to withstand rigorous use in demanding environments. The receptacle's IP65 rating ensures protection against dust and water when properly mounted and locked with compatible connectors.

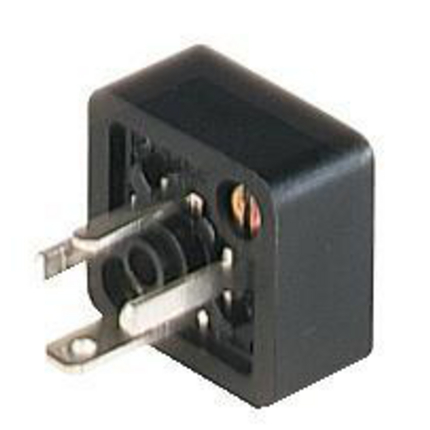

The GSSNA DIN Standard Receptacle is a robust and reliable connector designed for optimal performance in electrical applications. It features a Form C, 4-pin (3+1PE) configuration that meets UL 1977 standards, ensuring high safety and compatibility. The black contact bearer, constructed from PA GF material, provides excellent durability, while its solder type connection guarantees secure attachment. Ideal for environments operating between -40 °C to +125 °C, this receptacle supports a voltage of 230 V AC/DC and a current of 6 A. The receptacle boasts a contact resistance of ≤ 10 mOhm and an insulation resistance of ˃ 10^9 ohm, making it a reliable choice for various electrical setups.

The GSSA Industrial Standard Receptacle is designed to meet high industry standards, featuring a Form C configuration with 3 pins (2+1PE) and a black contact bearer. This solder-type connector is suitable for both AC and DC applications with an operating voltage of 230 V and a current rating of 6 A. The robust design ensures durability and reliable performance in various environmental conditions, with a protection degree of IP65 when mounted properly. The product complies with UL 1977 and other international standards, making it a safe and dependable choice for industrial applications.

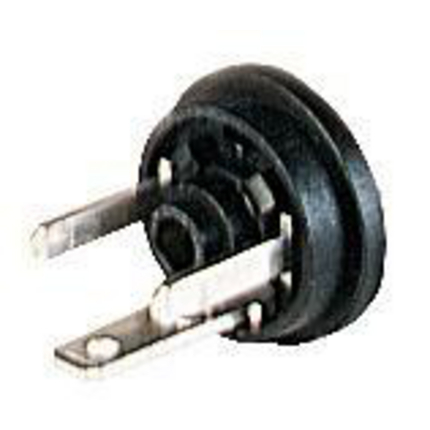

The GSSNR DIN Standard Receptacle is a robust and reliable connector, designed in a Form C, 3-pin (2+1PE) configuration. Engineered with a black contact bearer, this solder type receptacle ensures secure electrical connections at a rated voltage of 230 V AC/DC and a current rating of 6 A. It conforms to UL 1977 standards, ensuring high safety and performance. With a central screw attachment, this receptacle is designed for easy installation and maintenance. It is ideal for applications requiring a standard, compliant connector solution, suitable for use in challenging environments due to its IP65 rating.

The GSSNA DIN Standard Receptacle is designed as a Form C, 3-pin (2+1PE) male connector, adhering to UL 1977 standards. This receptacle features a black contact bearer and is of the solder type, making it suitable for easy and secure connections. Operating at 230 V AC/DC and rated for a current of 6 A, it is built to handle demanding environments with optimal performance. One of the key benefits of this receptacle is its compliance with multiple safety standards, including UL, VDE, and CSA approvals, ensuring reliable and safe operations. Its IP65 protection rating indicates resilience against dust and water when properly mounted and locked, making it suitable for various industrial applications. Moreover, the receptacle’s robust design allows it to operate within a wide temperature range, from -40 °C to +125 °C, further enhancing its versatility. Ideal applications for the GSSNA DIN Standard Receptacle include use in valve connectors and other industrial settings requiring reliable solder-type connections. Its central screw attachment type facilitates straightforward installation, while the black PA GF contact bearer ensures durability in harsh working conditions. This receptacle is perfect for maintaining secure electrical connections in equipment that demands high performance and reliability.
