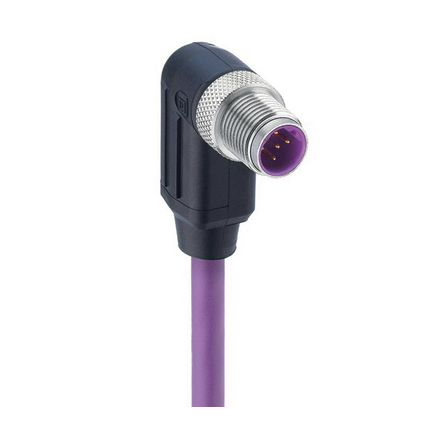

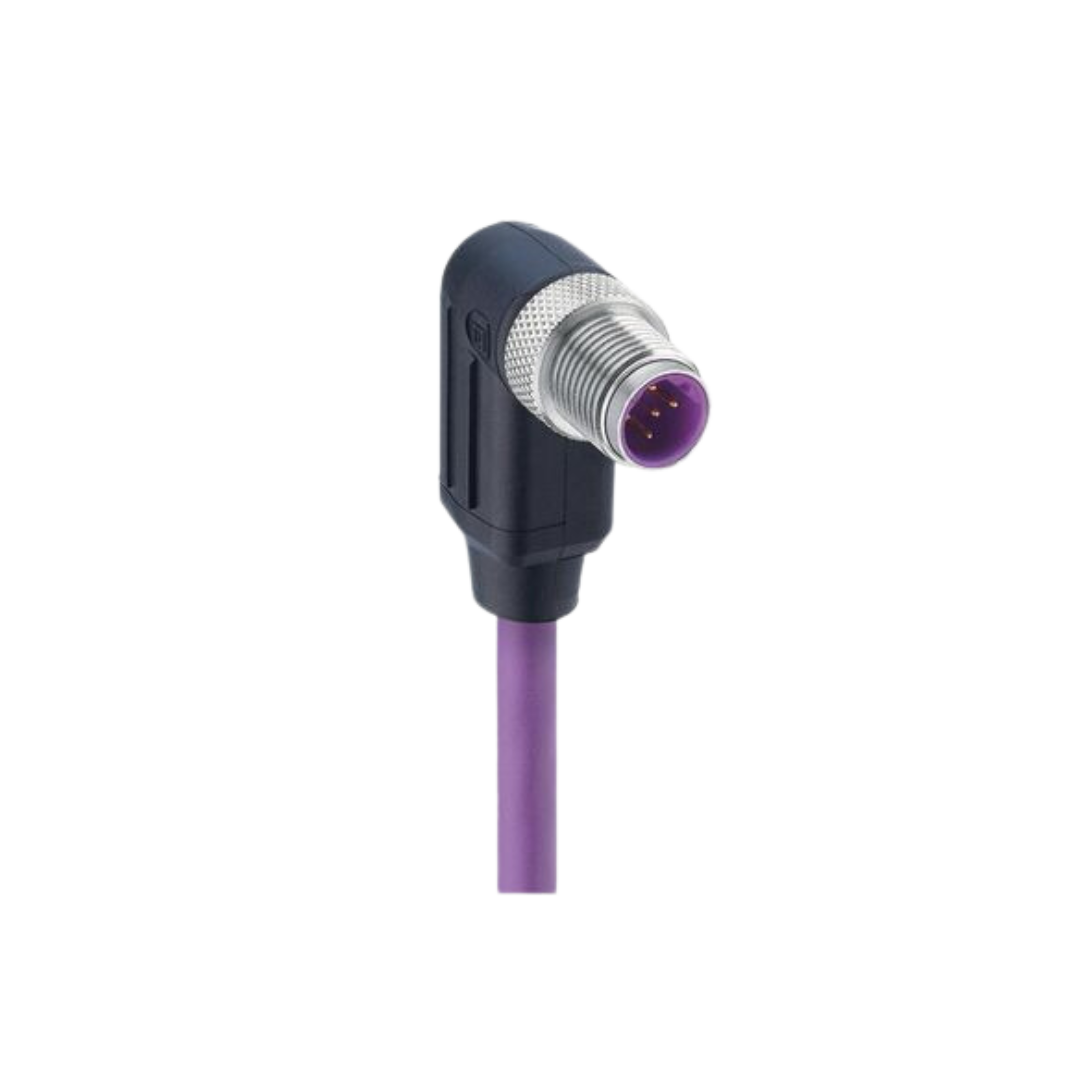

M12 B-Coded Right-Angled Male PUR Violet Profibus

The PROFIBUS Data Single-Ended Cordset is designed to facilitate reliable data transmission in various industrial environments. Featuring an M12 Standard connector, this cordset is equipped with a male, angled, 5-pin, B-coded connection, ensuring secure and stable connectivity. The black, shielded body provides added protection and durability, suitable for demanding applications with voltage ratings of 50 V AC and 60 V DC, and a current rating of 4 A. The PUR violet cable, measuring 2-wires at 0.34 mm², offers excellent resistance to chemicals, oils, microbes, and hydrolysis, along with superior flexibility in cold temperatures and robust protection against mechanical wear. The overall design meets multiple industrial standards, ensuring optimal performance and safety for a broad range of applications.

The PROFIBUS Data Single-Ended Cordset is designed for high-performance data transmission in industrial applications. This cordset features an M12 standard, angled male connector with a 5-pin, B-coded configuration. The device is shielded for enhanced protection and reliability, offering a robust solution for PROFIBUS data communication needs. The electrical specifications include a 50 V AC / 60 V DC operating voltage and a 4 A current rating. Constructed with a durable black TPU molded body and a PUR violet cable jacket, the cordset ensures superior durability and resistance to environmental stress. With an IP rating of IP65, IP67, IP68, and IP69K, it is well-suited for harsh environments. The cordset includes a 2-wire configuration and has a conductor size of 0.34 mm², ensuring effective data transmission with minimal interference. This makes it an ideal choice for various industrial automation and control applications.

The PROFIBUS Data Single-Ended Cordset is an M12 standard, male, angled, 5-pin, B-coded cordset designed for reliable data transmission. It features a shielded black body capable of handling up to 50 V AC / 60 V DC and 4 A. The cordset comes with a double-wire, 0.34 mm² PUR violet cable that offers excellent durability and resistance to various environmental factors. It meets the IEC 61076-2-101 design standard and is rated IP65, IP67, IP68, and IP69K, providing high levels of protection. The cordset ensures robust performance in harsh conditions with a wide operational temperature range from -40 °C to +80 °C. The overall shielding and high-quality materials used in construction make this cordset ideal for industrial applications, guaranteeing reliable and efficient data transmission.
