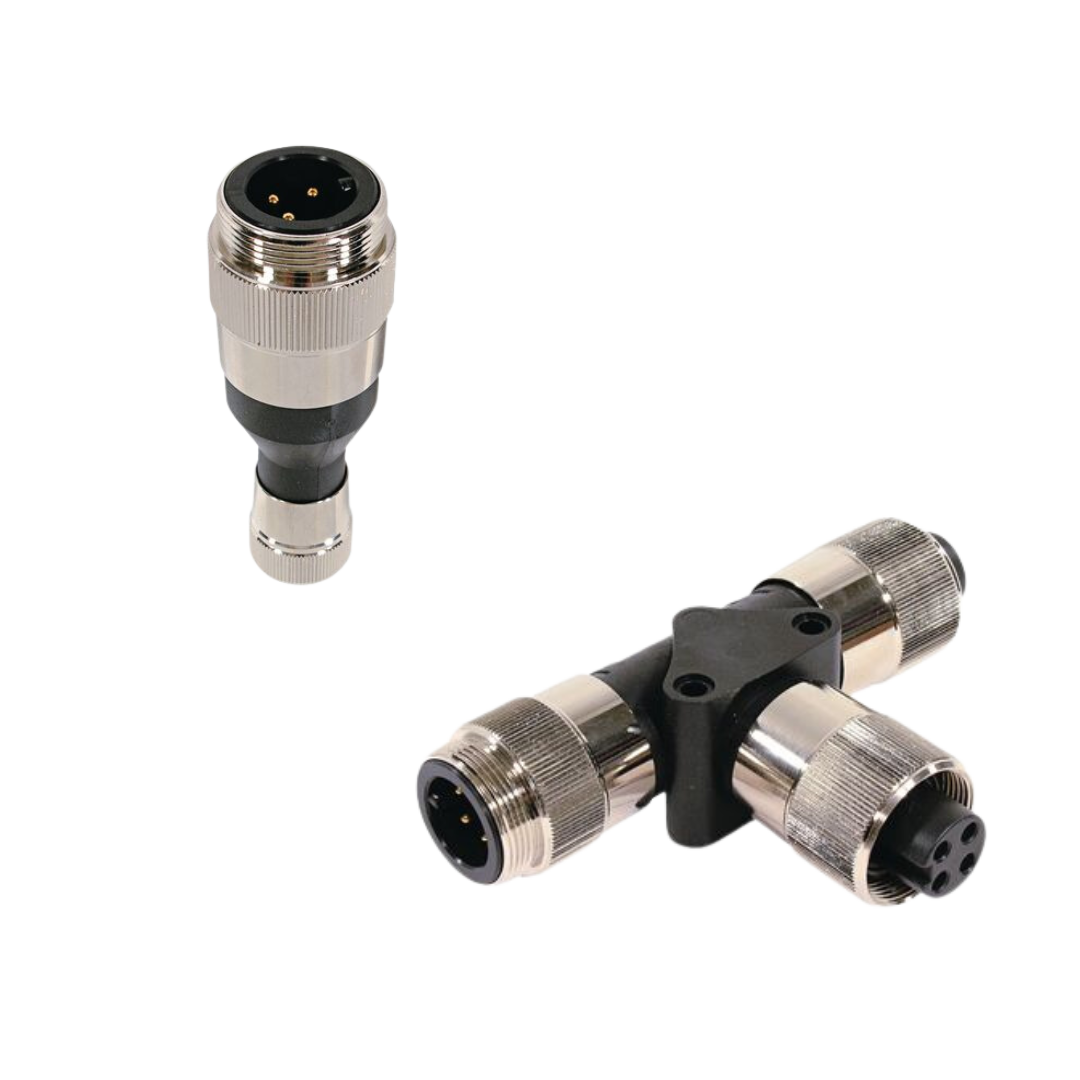

Tees, Reducers & Adapters

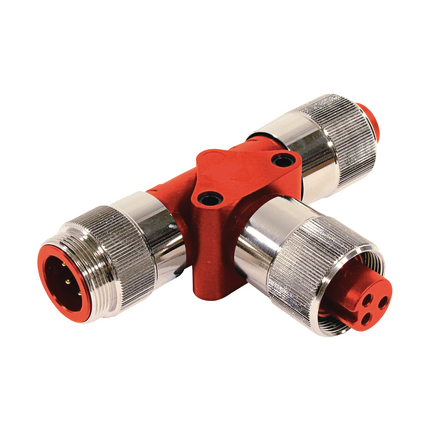

The Mini Power Tee Connector is an essential component for effective power management in various systems. This connector features a compact design, including a 1 3/8" male to 1 3/8" female and another 1 3/8" female interface, making it versatile for different configurations. It operates at a rated voltage of 600V and a current of 42A, ideal for high-power applications. The three-pin configuration (2+PE) ensures secure and reliable connections. The red body, with IP65 and IP67 ratings, guarantees protection against dust and water, ensuring durability in harsh environments. Benefits of this connector include ease of installation due to the coupling nut attachment type, and its reliable performance over a wide temperature range from -40°C to +90°C. The contact plating of gold (Au) and base material of copper alloy (Cu) ensure excellent conductivity and corrosion resistance, while the PVC molded body provides rigidity and protection against environmental factors. This connector is suitable for industrial automation, machinery, and other applications that require robust connections in demanding conditions. It works well in tough environments due to its durability and high protection ratings. Moreover, the compliance with UL and CSA standards ensures safety and reliability.

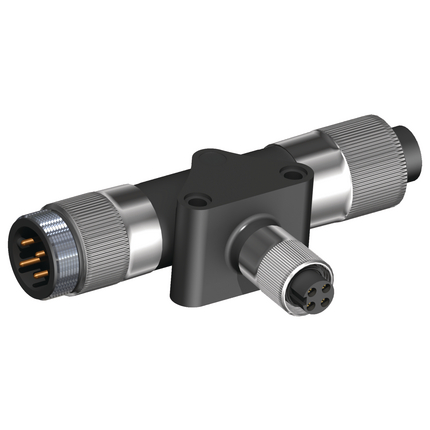

The Mini Power Reducing Tee Connector is a high-performance connector designed for reliable connectivity in demanding applications. Featuring a 1 3/8" male to 1 3/8" female and 7/8" female outlet with a 4-pin (3+PE) configuration, this connector is built with a robust black PVC body ensuring durability and performance. It supports up to 600 V and 15 A, making it suitable for industrial and automation environments. The primary benefits of the Mini Power Reducing Tee Connector include its high current rating and secure attachment via coupling nuts, with an IP65/IP67 rating providing protection against dust and water ingress. Its operational temperature range from -40°C to +90°C ensures stability in various environments. Ideal for power distribution in tooling machinery, industrial systems, and automated processes, this connector offers versatile application potential. The use of Cu Alloy with gold (Au) plating ensures excellent electrical contact and longevity even in harsh conditions. The connector meets rigorous safety standards such as UL 2237 and is RoHS compliant, providing a reliable solution for demanding power connectivity needs.

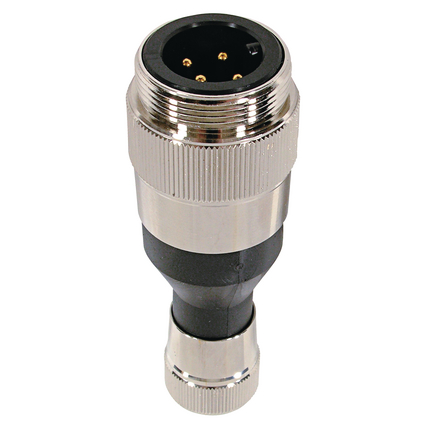

The Mini Power Reducer Connector is an essential component for achieving reliable and efficient electrical connections. Designed with a 1 3/8" male straight to 7/8" female straight configuration, this 4-pin (3+PE) connector boasts a robust black PVC body. It can handle a rated voltage of 600V and a current of 15A, making it suitable for various high-power applications. This connector is unshielded and features gold-plated copper alloy contacts for enhanced conductivity and durability. It offers a high level of protection with IP65 and IP67 ratings, ensuring reliable operation in demanding environments with ambient temperatures ranging from -40°C to +90°C. The coupling nut attachment type facilitates secure and easy connection. This product meets UL 2237 standards and is CSA certified, adding to its credibility and safety.

The Mini Power Tee Connector is an efficient and robust component designed for high-performance electrical connections. Featuring one 1 3/8" male connector and two 1 3/8" female connectors, this tee connector provides flexibility and reliability in various applications. With a 3-pin(2+PE) configuration, it is suitable for transmitting significant power at a rated voltage of 600V and a current of up to 42A. The connector is built with a black PVC body and employs a straight design with a secure coupling nut attachment type. It boasts a high durability with an operating temperature range of -40°C to +90°C and accommodates up to 100 mating cycles. The contact materials include Cu Alloy with Au plating, ensuring excellent conductivity and resistance to corrosion. Additionally, the Mini Power Tee Connector carries an IP65 and IP67 protection rating, guaranteeing its performance in harsh environmental conditions.

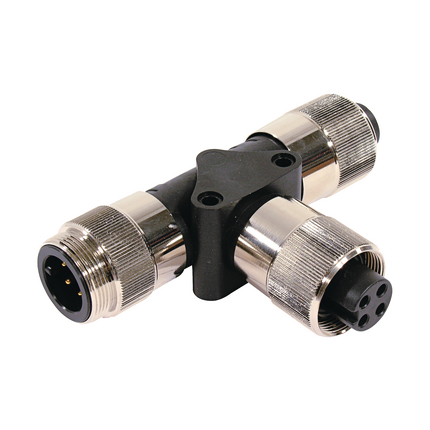

The Mini Power Tee Connector is designed for efficient power distribution in various applications. This connector features a 1 3/8" male to 1 3/8" female and 1 3/8" female configuration, accommodating 4 pins (3+PE). It boasts a robust black PVC body that ensures durability and reliability. Rated for 600 V and 40 A, it offers superb performance and optimal safety. Ideal for industrial and automation applications, this connector also meets the protection standards of IP65 and IP67, ensuring it performs well in harsh environments.

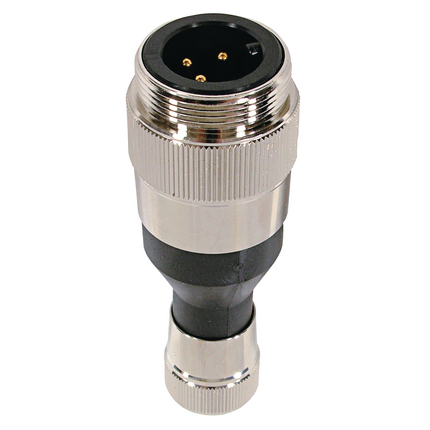

The Mini Power Reducer Connector is a high-quality power connector designed for robust applications requiring reliable power transmission. This connector features a 1 3/8-inch male straight to a 7/8-inch female straight design and includes a 3-pin configuration (2+PE). It operates at 600 V and supports a current of up to 18 A, making it suitable for various industrial applications. The connector’s body is constructed from durable PVC with a black finish, providing significant resistance to environmental factors. This connector boasts an IP65/IP67 protection rating, ensuring its operation in harsh environments by protecting against dust and water ingress. With a coupling nut attachment type and Au-plated Cu alloy contacts, the Mini Power Reducer Connector ensures secure and stable connections, minimizing the risk of interruptions. It operates reliably within a temperature range of -40°C to +90°C, making it versatile for different settings. Ideal for applications in automation and industrial environments, the connector supports up to 100 mating cycles and ensures long-lasting performance. Its durable construction and compliance with UL and CSA standards (UL: E482233 and UL 2237) affirm its safety and reliability for rigorous use.

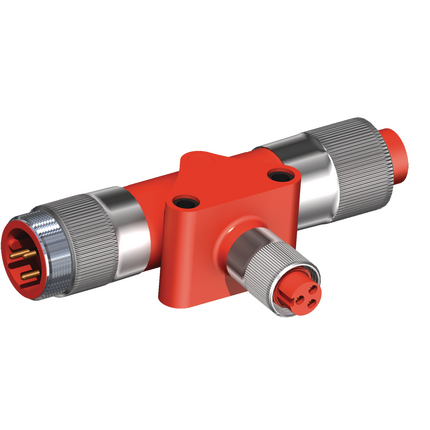

The Mini Power Reducing Tee Connector excels in facilitating reliable power connections in various industrial settings. Featuring a 1 3/8" male to 1 3/8" female and 7/8" female configuration, it maintains a secure 3-pin(2+PE) connection. With its durable red PVC body and resilient Cu alloy contacts plated with gold, it ensures long-lasting performance even in harsh environments. Capable of handling up to 600 V and 18 A, the connector provides excellent electrical conductivity and stability. Rated at IP65 and IP67, it offers superior protection against dust and water, ensuring operational reliability in challenging conditions. The connector's robust design allows for efficient power distribution in automation systems, machinery, and industrial equipment, making it indispensable in enhancing overall system efficiency and safety.

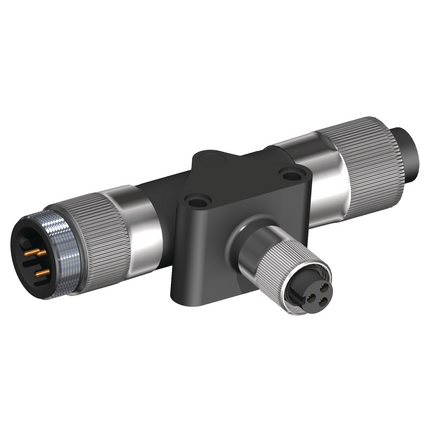

The Mini Power Reducing Tee Connector by Lumberg Automation is a highly reliable and robust connector designed for power distribution. This connector features a 1 3/8" male to 1 3/8" female and 7/8" female configuration, with a 3-pin (2+PE) arrangement. The black body is constructed from durable PVC material, providing excellent performance in harsh environments. With a rated voltage of 600V and a current capacity of 18A, it meets stringent safety standards, including UL and CSA certifications. The connector offers a straight design with coupling nut attachment for secure connections, and it supports up to 100 mating cycles. Ambient operating temperatures range from -40°C to +90°C, and it has a protection degree of IP65 and IP67, ensuring suitability for a variety of industrial applications.

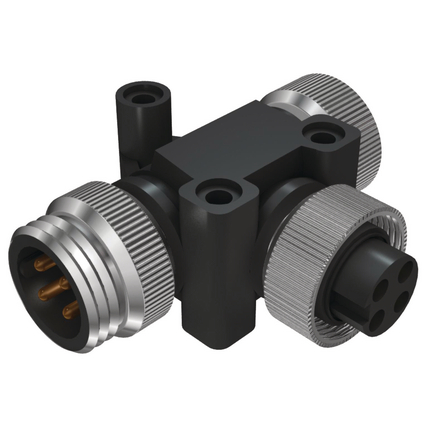

The Mini Power Tee Connector is meticulously designed for reliable power connections in industrial settings. Featuring a 7/8" male to 7/8" female and 7/8" female configuration, this connector supports a 4-pin (3+PE) system. Its black PVC body ensures durability, withstanding up to 600 V and 15 A of power. The device is built with an IP65/IP67 protection rating, providing excellent resistance against dust and water ingress, ensuring high performance in harsh environments. The gold-plated copper alloy contacts offer outstanding conductivity and corrosion resistance, extending the connector's operational lifespan. With an ambient operating temperature range from -40°C to +90°C, the Mini Power Tee Connector is versatile for various applications in power distribution and automation systems.

The Mini Power Tee Connector is a versatile and robust connectivity solution designed for industrial applications. It has a 7/8" male to 7/8" female and 7/8" female configuration, accommodating three pins (2+PE) and offering a rated voltage of 600 V and a current of 18 A. The black PVC body provides high durability and reliability, suitable for varied environmental conditions. With an IP65 and IP67 rating, it ensures effective protection against dust and water, making it ideal for use in demanding industrial environments. The connector features gold-plated copper alloy contacts, ensuring excellent conductivity and long life, while the coupling nut attachment type provides a secure and stable connection. Its operating temperature ranges from -40°C to +90°C, making it suitable for various operational environments.
