3.5 mm Jack Chassis

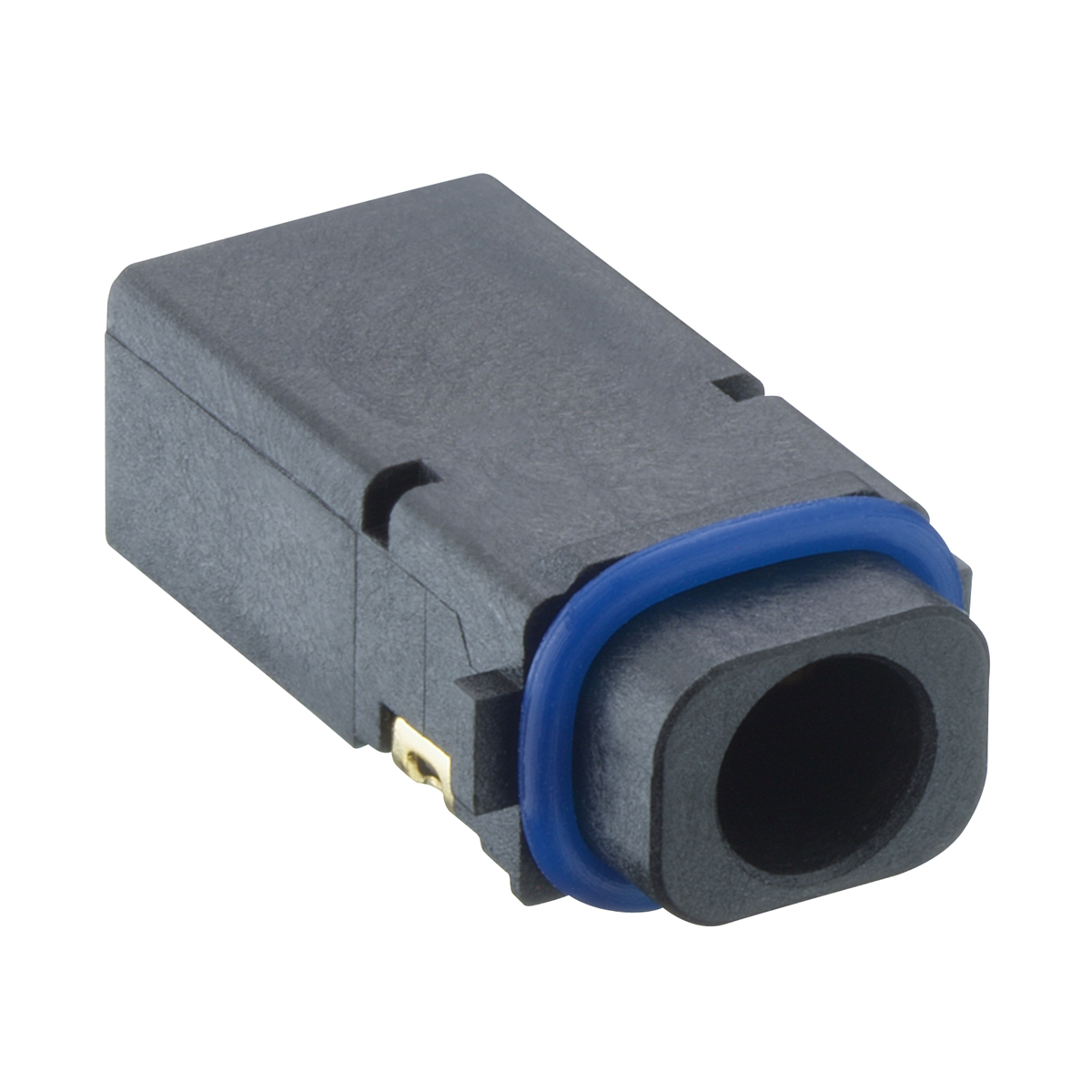

1503 26
Jack chassis socket according to JEITA RC-5325A JC35J4A
Jack chassis socket according to JEITA RC-5325A JC35J4A, 3.5 mm, 4 poles/stereo, potted and with sealing towards mounting plate, IPx7, angular version, for printed circuit boards, surface mount technology (SMT)
€10.00
per item

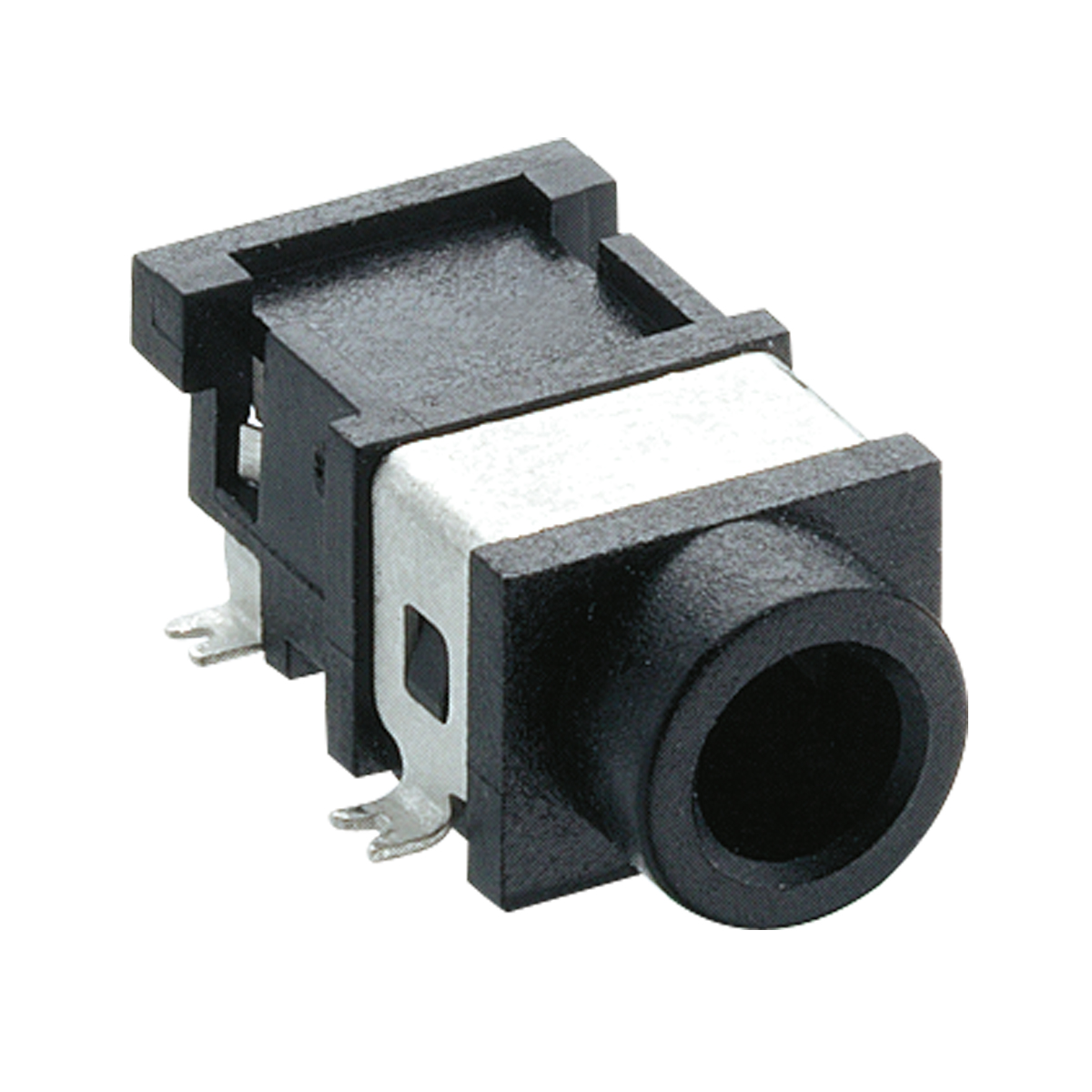

1503 03 R
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, angular version, for printed circuit boards, surface mounting technology (SMT)
€3.48
per item

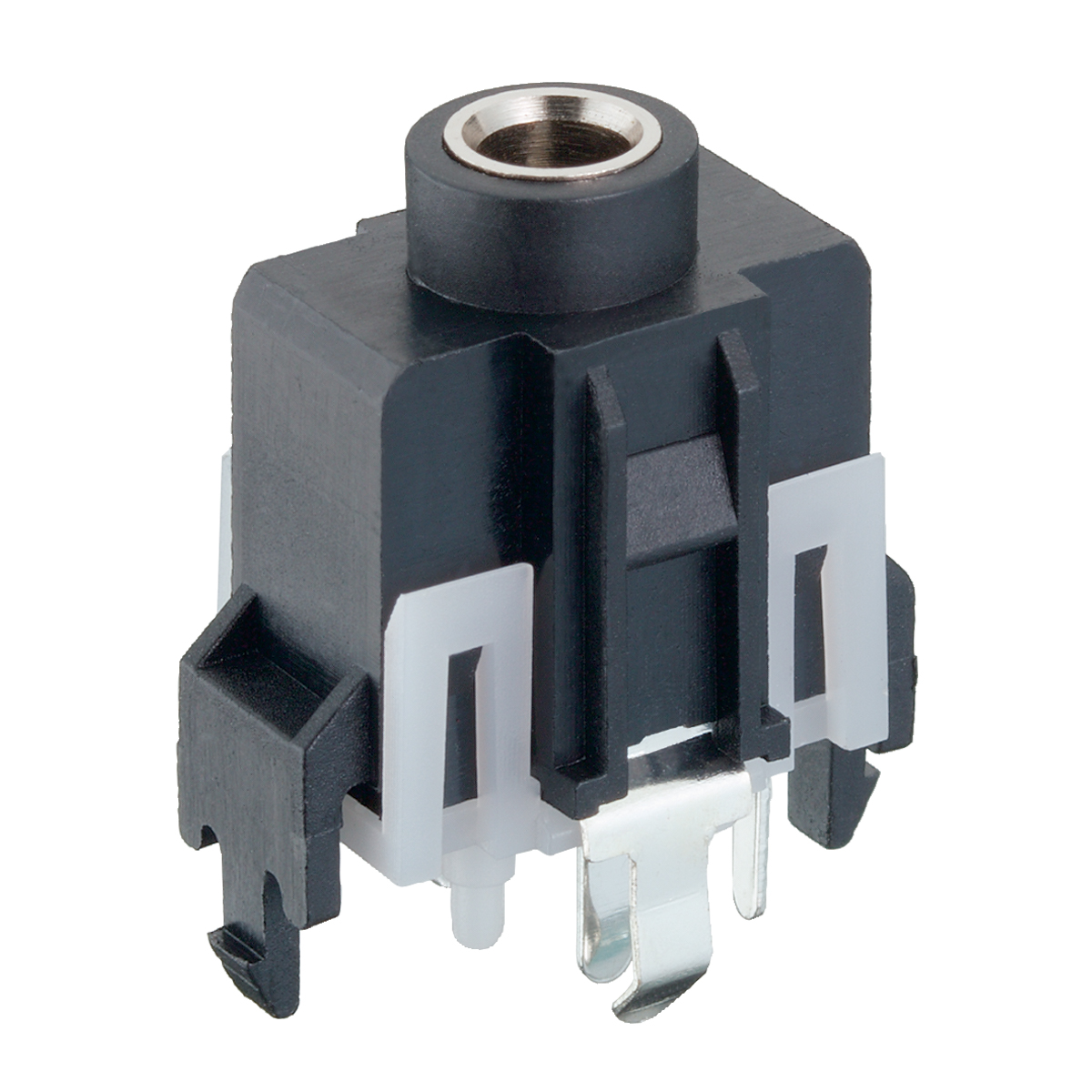

1503 18
Jack chassis socket acc. to JIS C 6560 JC35J3Z
Jack chassis socket acc. to JIS C 6560 JC35J3Z, 3.5 mm, 3 poles/stereo, upright version, with break contact, for printed circuit boards, with retaining hooks
€3.22
per item

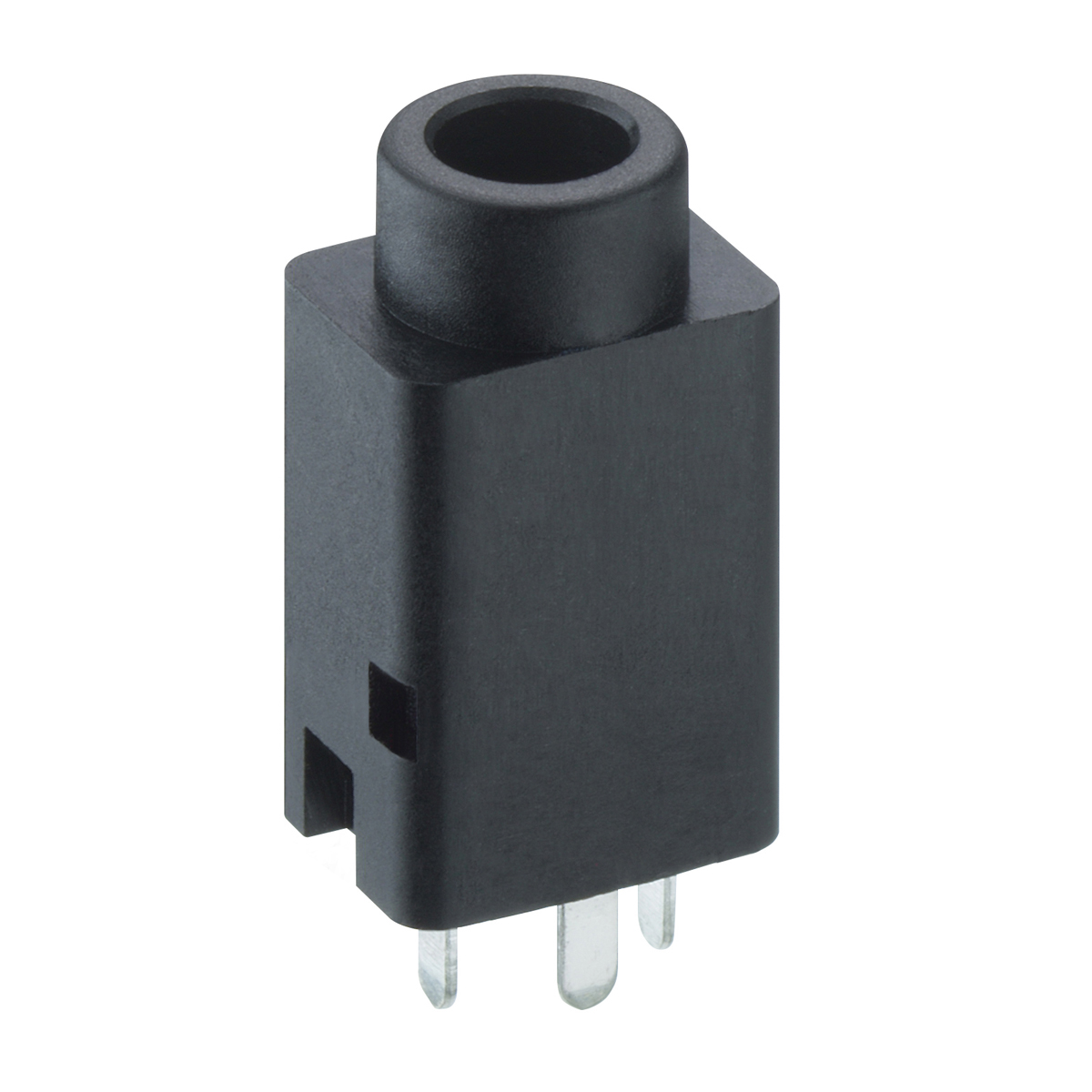

1502 07
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, upright version, for printed circuit boards
€2.07
per item

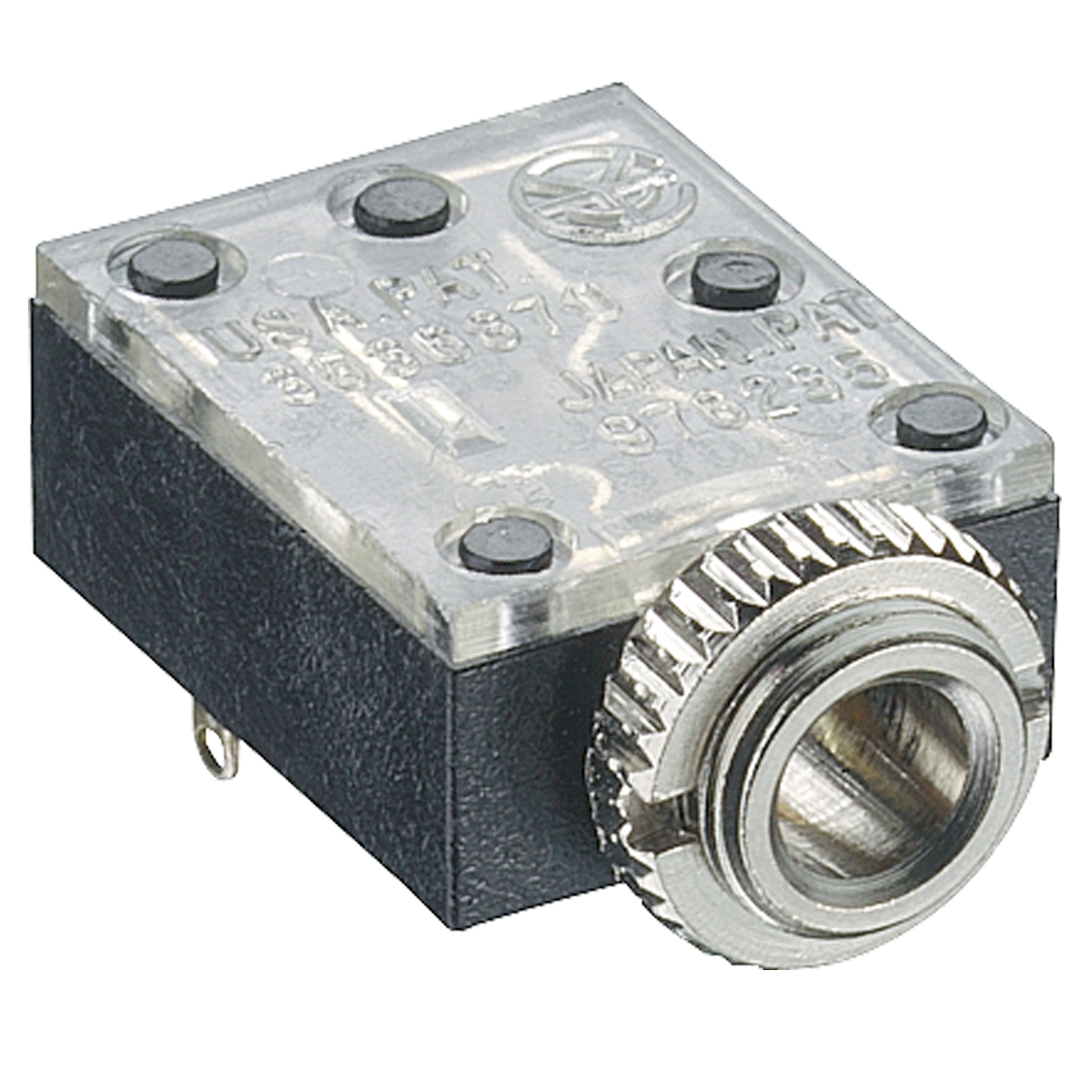

1503 09
Jack chassis socket acc. to JIS C 6560 JC35J3B
Jack chassis socket acc. to JIS C 6560 JC35J3B, 3.5 mm, 3 poles/stereo, angular version, with 2 break contacts and solder eyes, for printed circuit boards, for back side mounting
€3.61
per item

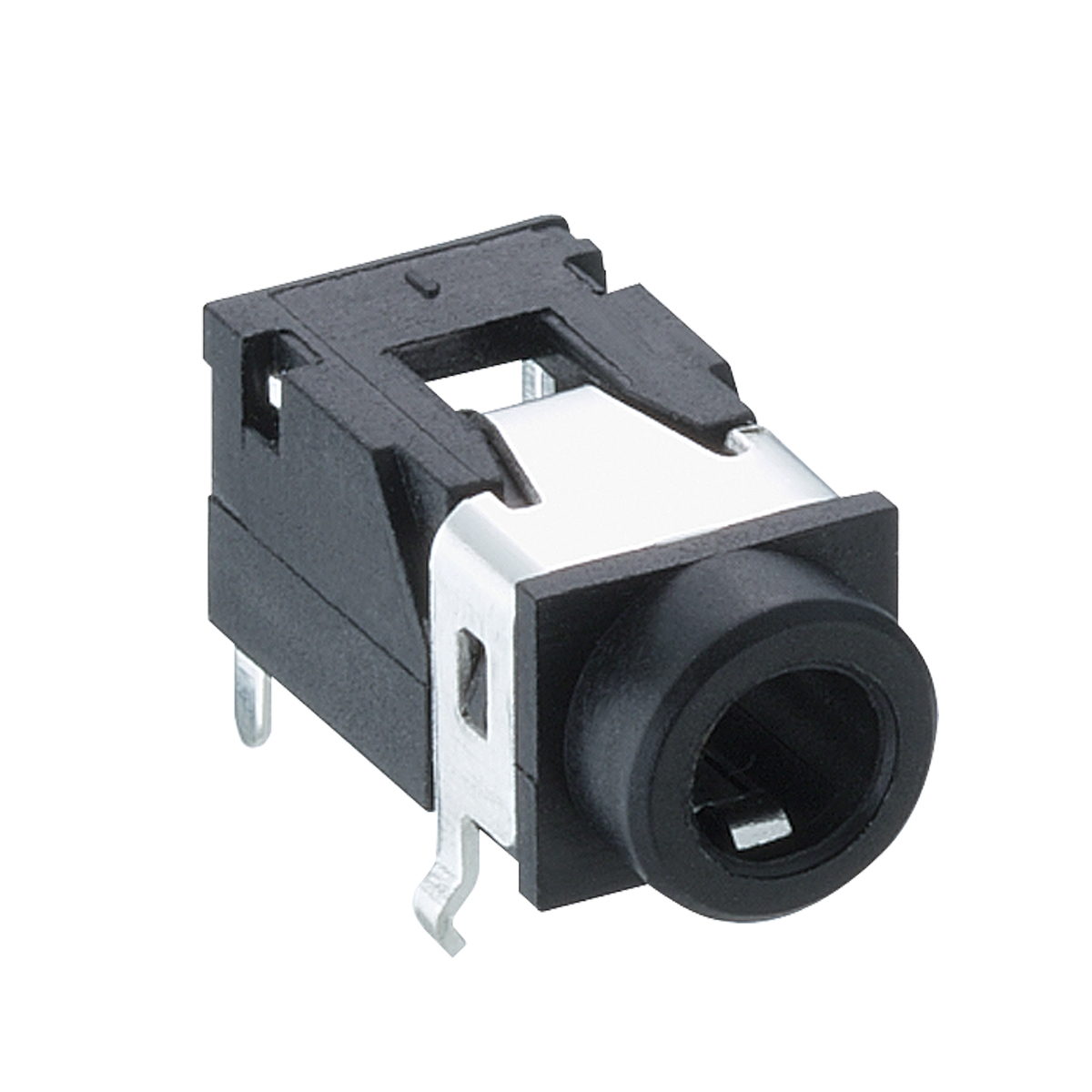

1503 19
Jack chassis socket according to JEITA RC-5325A JC35J4A
Jack chassis socket according to JEITA RC-5325A JC35J4A, 3.5 mm, 4 poles/stereo, angular version, for printed circuit boards
€2.46
per item
1503 22
Jack chassis socket acc. to JIS C 6560 JC35J2B
Jack chassis socket acc. to JIS C 6560 JC35J2B, 3.5 mm, 2 poles/mono, angular version, with break contact and solder eyes, for printed circuit boards, for back side mounting
€2.20
per item

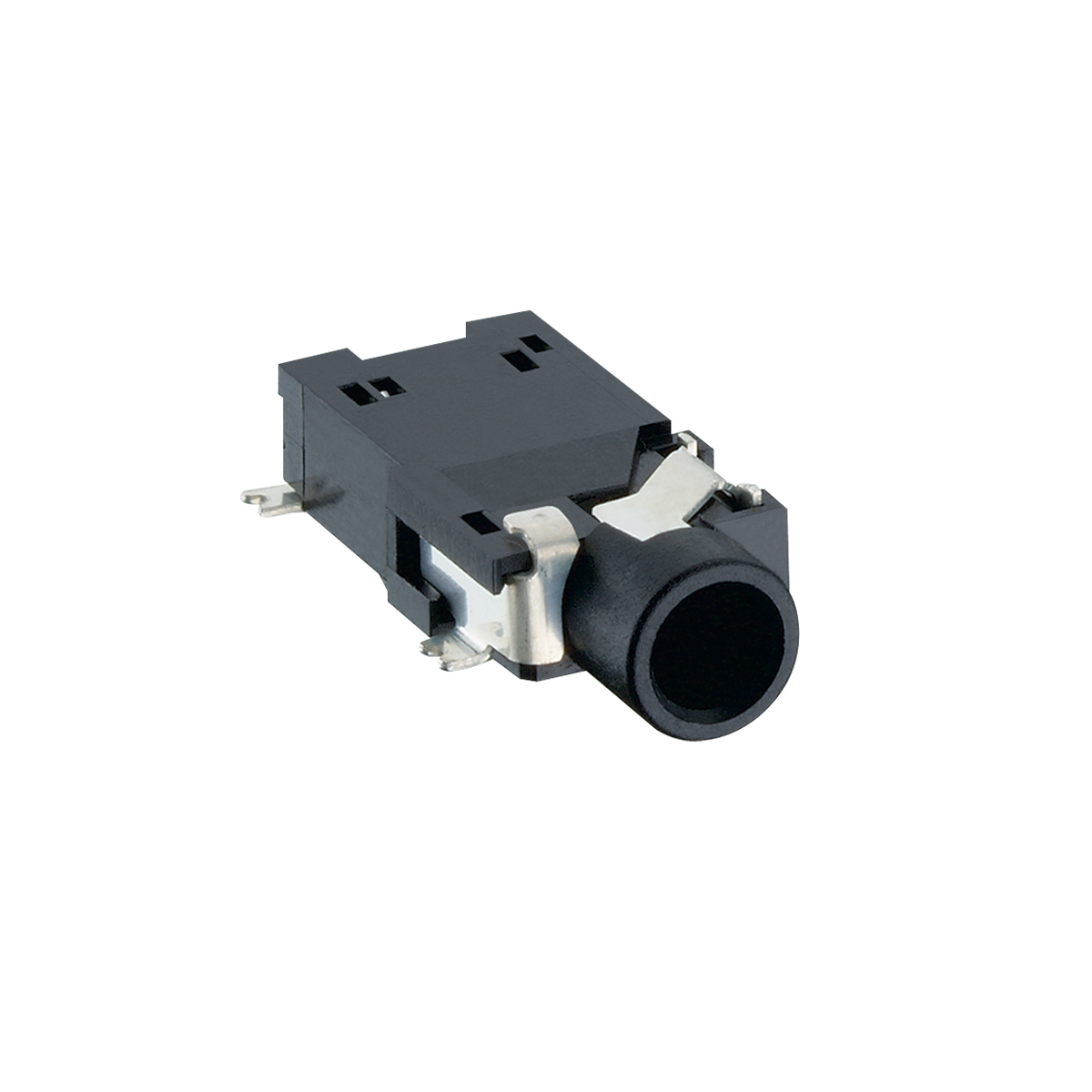

1501 07 R
Jack chassis socket acc. to JIS C 6560 JC25J3B
Jack chassis socket acc. to JIS C 6560 JC25J3B, 2.5 mm, 3 poles/stereo, angular version, with 2 break contacts, for printed circuit boards, surface mounting technology (SMT)
On Request

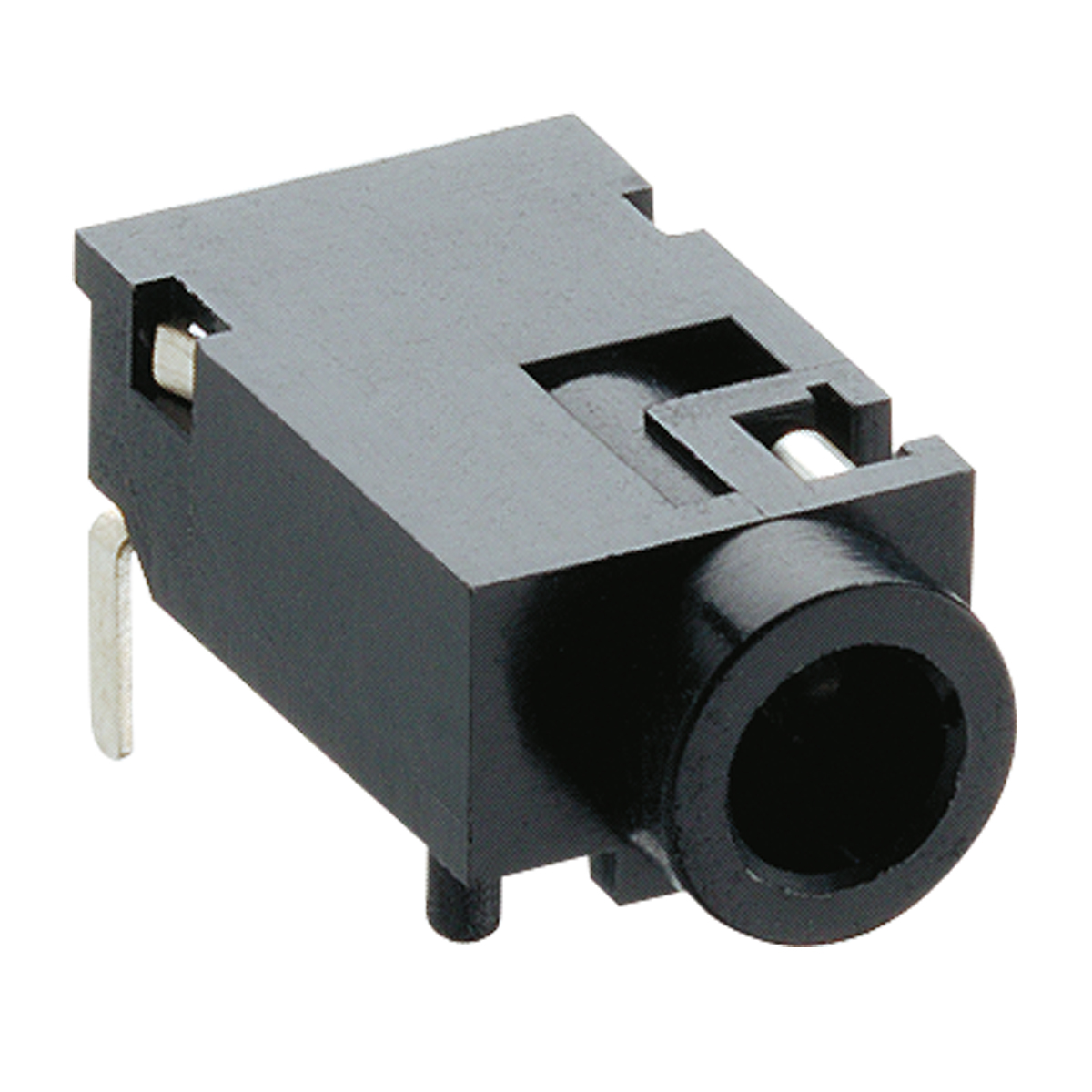

1503 06
Jack chassis socket acc. to JIS C 6560 JC35J2B
Jack chassis socket acc. to JIS C 6560 JC35J2B, 3.5 mm, 2 poles/mono, angular version, with break contact, for printed circuit boards
Discontinued

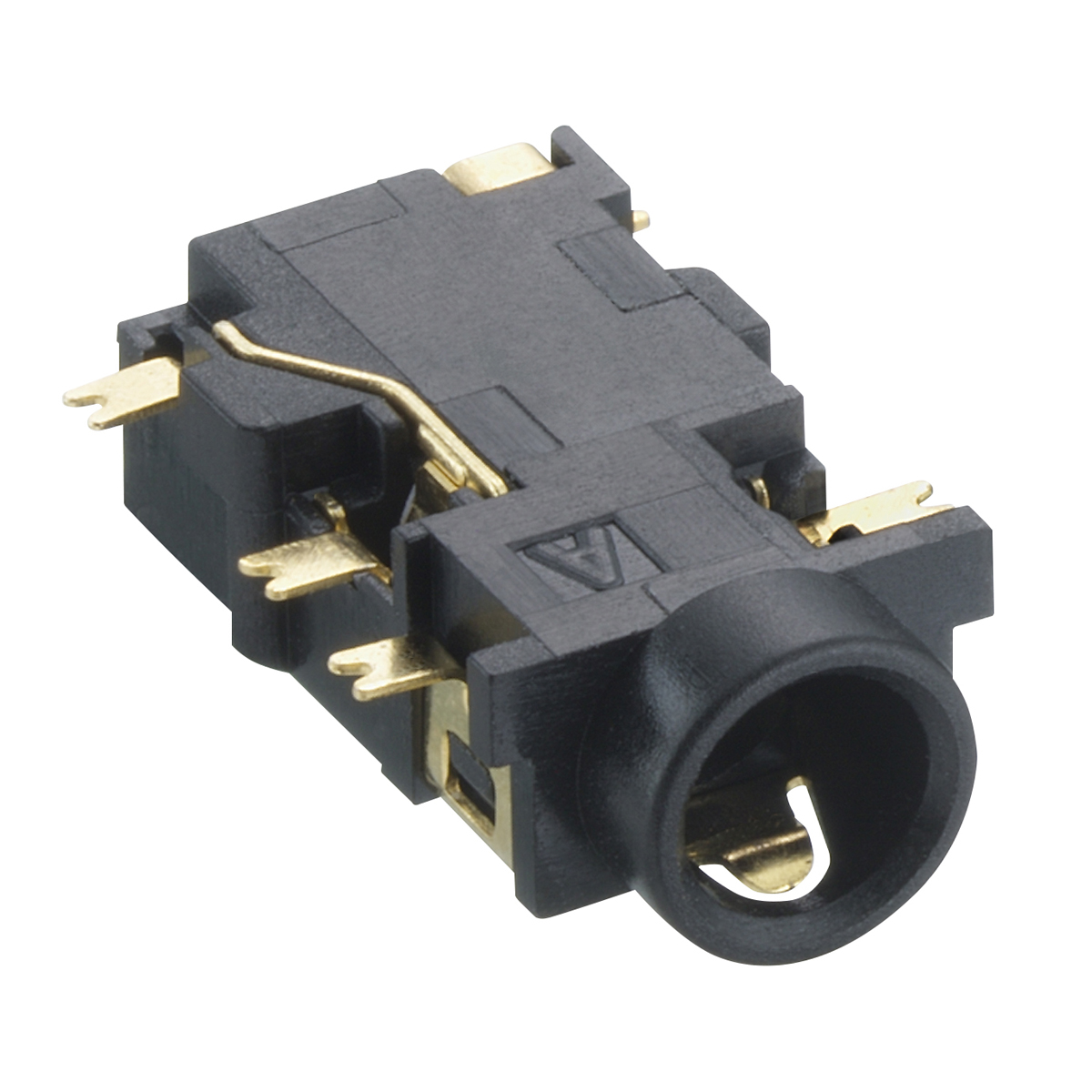

1503 28
Jack chassis socket according to JEITA RC-5325A
Jack chassis socket according to JEITA RC-5325A, 3.5 mm, 4 poles/stereo, with two break contacts, angular version, for printed circuit boards, surface mount technology (SMT), for mid-mount placement
€2.20
per item

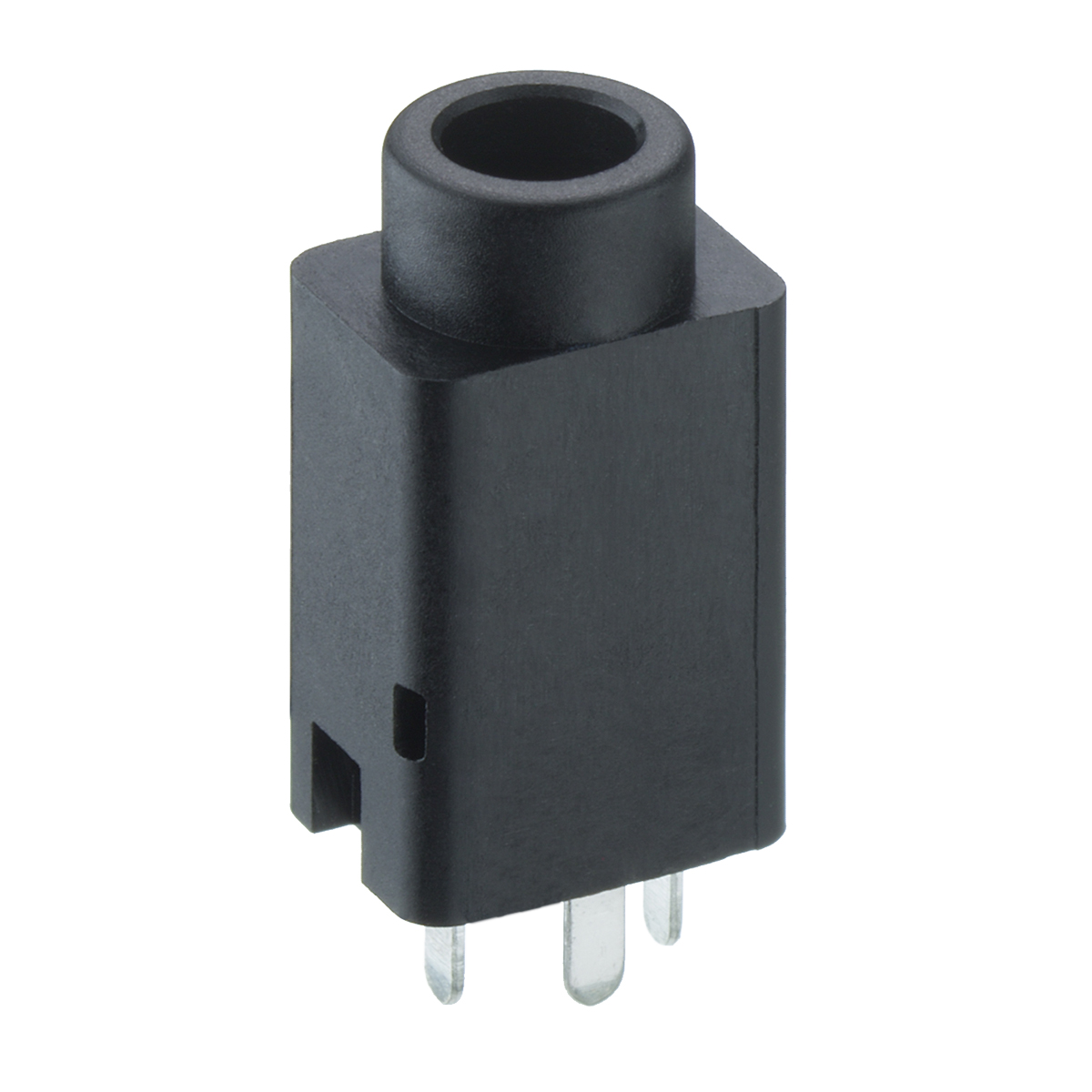

1502 06
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, upright version, for printed circuit boards
Discontinued

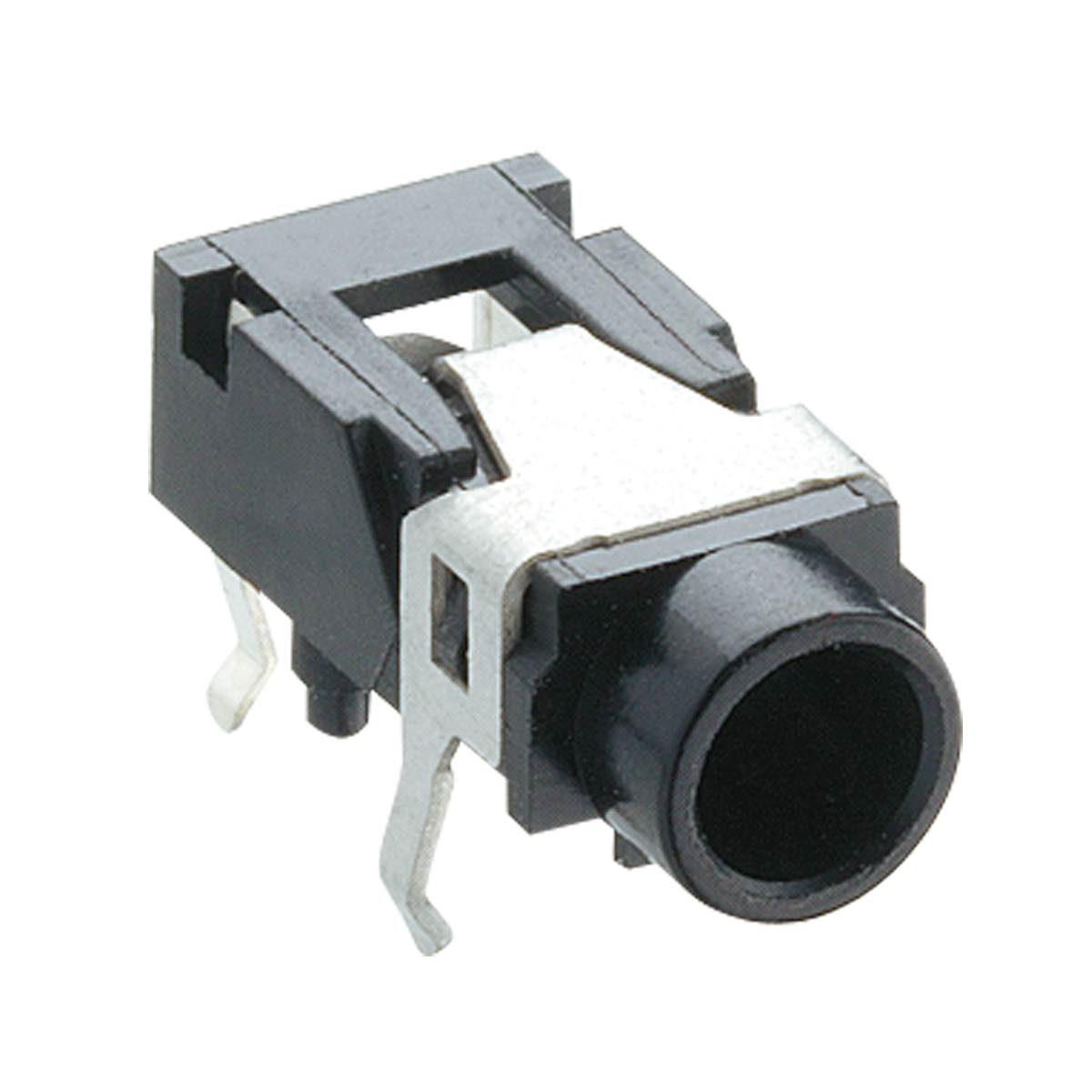

1503 07 V209
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, angular version, for printed circuit boards
On Request

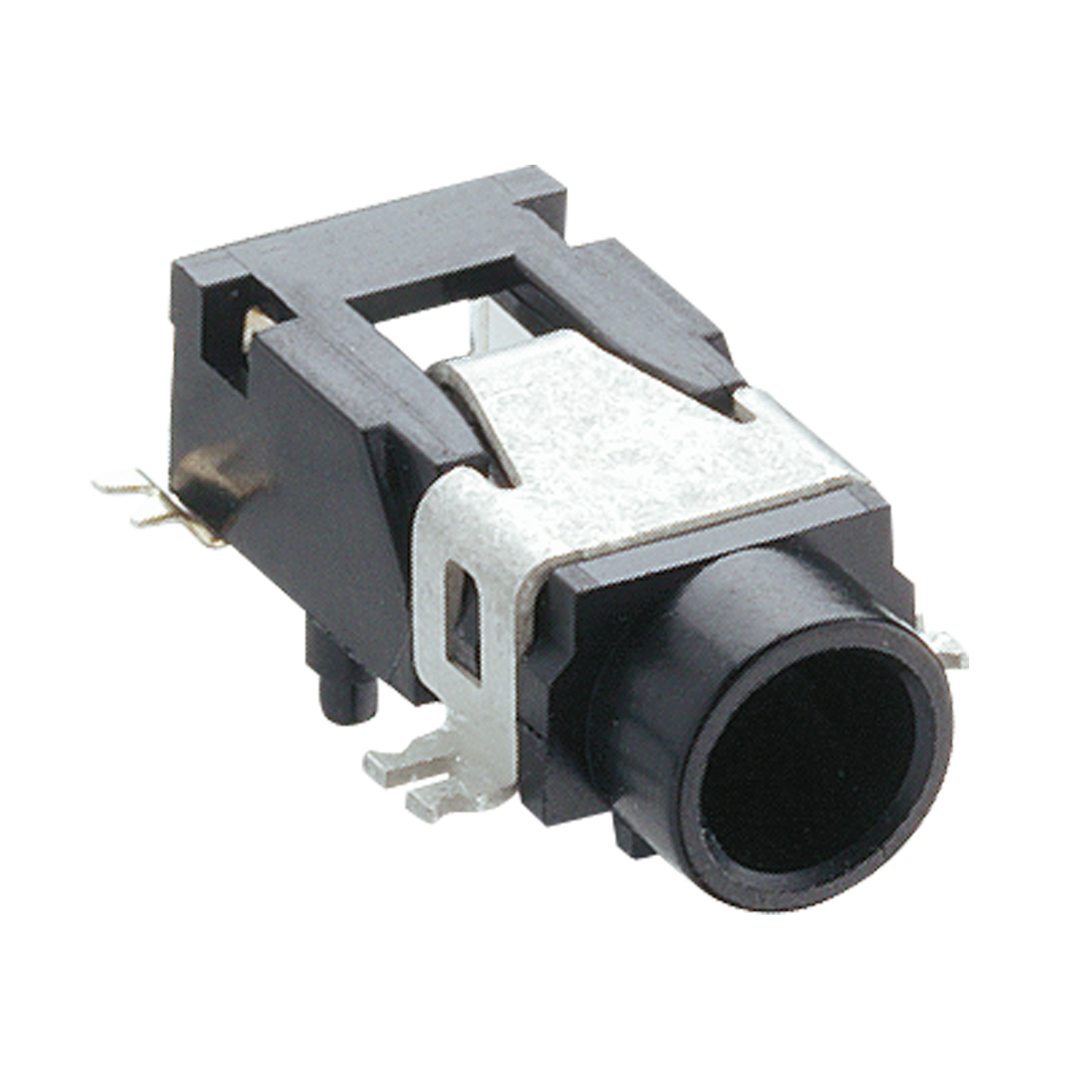

1503 02
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, angular version, for printed circuit boards, surface mounting technology (SMT), manual soldering only
€3.05
per item
KLB 4
Jack chassis socket acc. to JIS C 6560 JC35J3A
Compact 3.5 mm chassis socket for industrial applications
The KLB 4 is a 3-pole 3.5 mm stereo jack chassis socket compliant with JIS C 6560 JC35J3A, designed for applications where reliable signal transmission and solid panel mounting are essential. This version features solder terminals and rear panel mounting. Supplied with knurled nut.
Technical specifications:
• Operating temperature: -20 °C to +70 °C
• Rated current/voltage: 1 A / 34 V AC/DC
• Impulse withstand voltage: 500 V (60 s)
• Insulation resistance: ≥ 100 MΩ
• Contact resistance: ≤ 30 mΩ
• Mating cycles: ≥ 5000
• Insertion/withdrawal force: 5–20 N / 4–20 N
• Materials: PBT GF (insulation), nickel-/gold-plated copper alloy (contacts), nickel-plated CuZn (housing and knurled nut)
The KLB 4 is ideal for audio, measurement, and signal applications in industrial environments. Compatible with various Lumberg counterparts such as KLS 40, KLS 44, and WKLS 40. Ready for integration
€1.81
per item

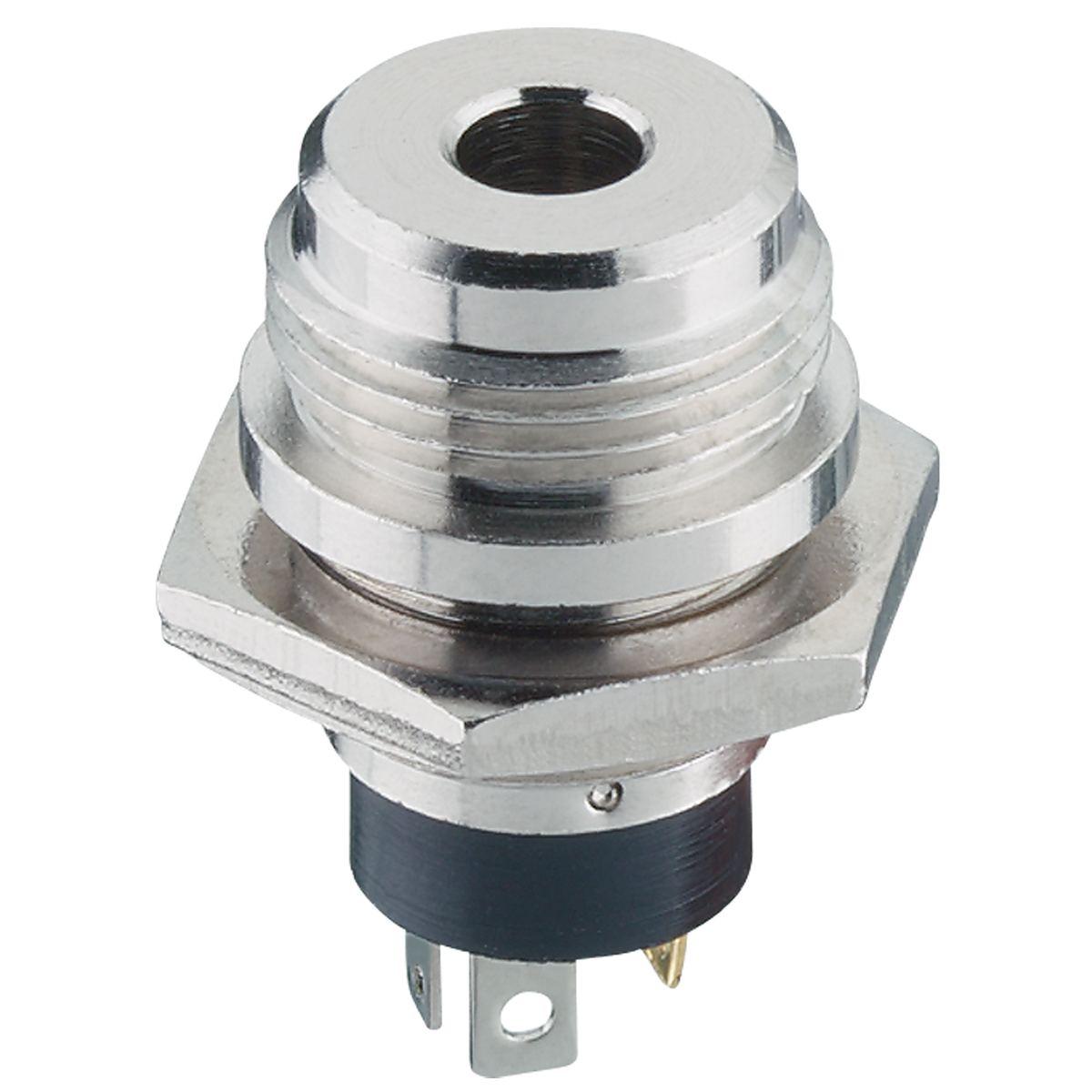

1502 04
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, with threaded joint, with solder eyes, for front mounting
€8.09
per item

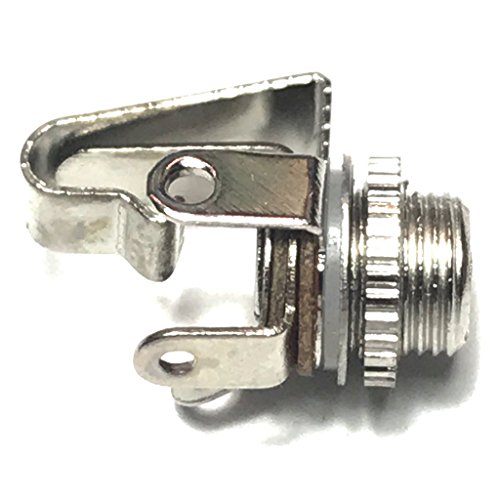

KLB 2
Jack chassis socket 3.5 mm, MONO, with solder eyes, for back side mounting
The Jack chassis socket 3.5 mm, MONO, with solder eyes, is a high-quality connector designed for back side mounting. This socket is ideal for audio connections, providing a reliable and durable interface for various audio equipment. The 3.5mm mono jack is commonly used in devices such as amplifiers, musical instruments, and other professional audio equipment. Constructed with sturdy materials, this chassis socket ensures a long-lasting connection and resistance to wear and tear. The metallic finish adds to its durability and longevity, making it a dependable choice for both professional and personal use. The solder eyes simplify the process of fastening wires, ensuring a secure and efficient connection. This feature is particularly beneficial for custom audio projects or repairs where precise and stable connections are paramount. The back side mounting with solid mechanical fixation provides ease of installation, making it suitable for various applications in audio setups or electronic projects. Whether you are an audio professional or an electronics enthusiast, this jack chassis socket is an essential component for building and maintaining your equipment.
€1.94
per item

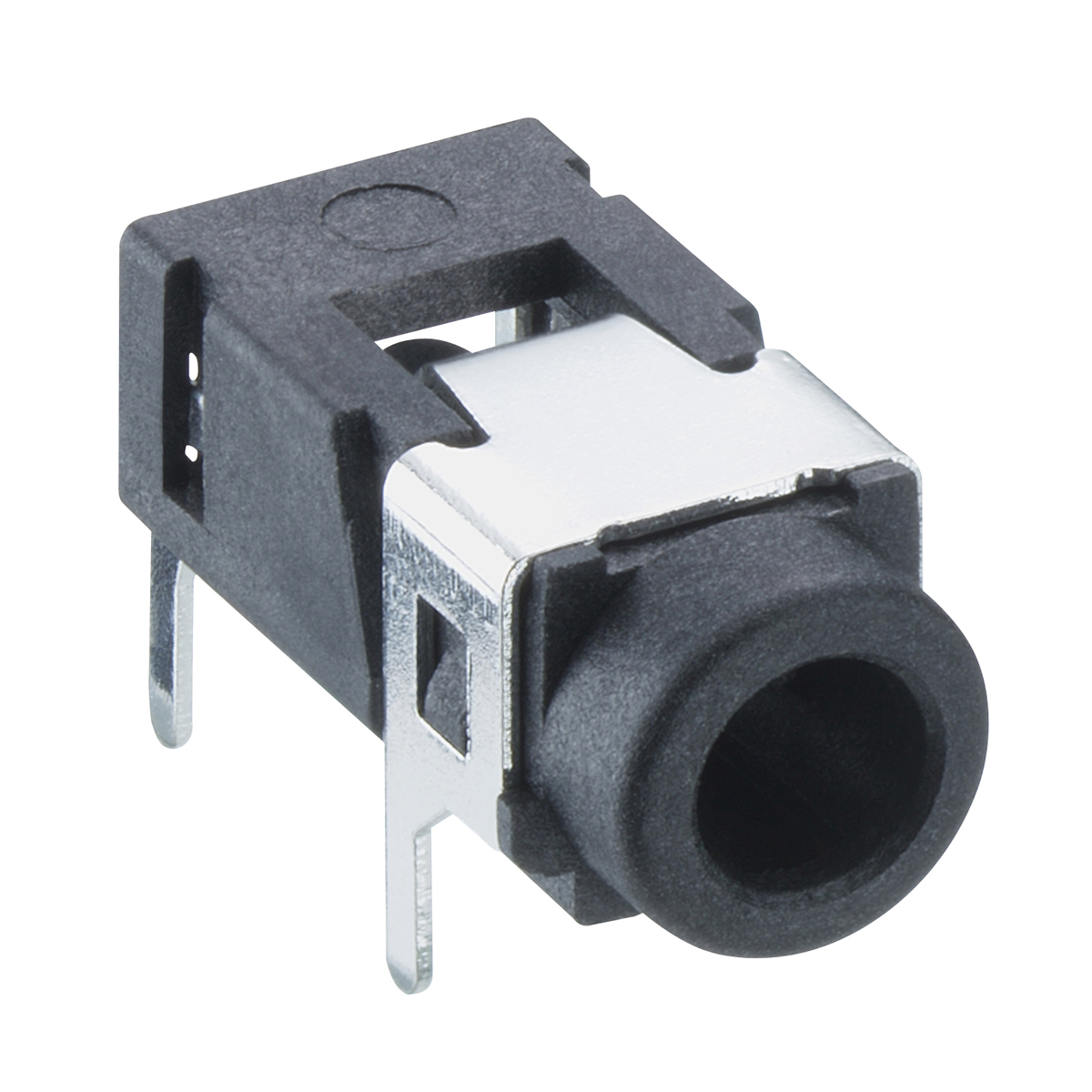

1503 27
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, angular version, for printed circuit boards
€1.96
per item
1503 17
Jack chassis socket acc. to JIS C 6560 JC35J3B
Jack chassis socket acc. to JIS C 6560 JC35J3B, 3.5 mm, 3 poles/stereo, angular version, with 2 break contacts and solder eyes, for printed circuit boards, for back side mounting
€3.61
per item

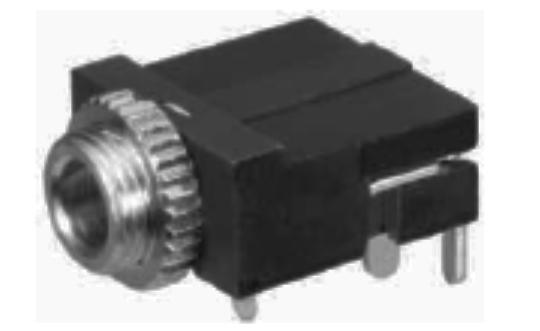

KLBR 41
Jack chassis socket, 3.5 mm acc. to JIS C 6560 JC35J3Z, 3 poles/stereo, angular version, with break contact, for printed circuit boards
This jack chassis socket complies with JIS C 6560 and is suitable for 3.5 mm audio connections. It features a 3-pole stereo configuration, providing high-quality audio transmission. The angular design makes it ideal for use on printed circuit boards (PCBs), and it includes a break contact functionality, enhancing its versatility in electronic applications. The robust construction ensures long-lasting performance, and the socket’s reliability makes it a staple component in various electronic devices.
€1.18
per item

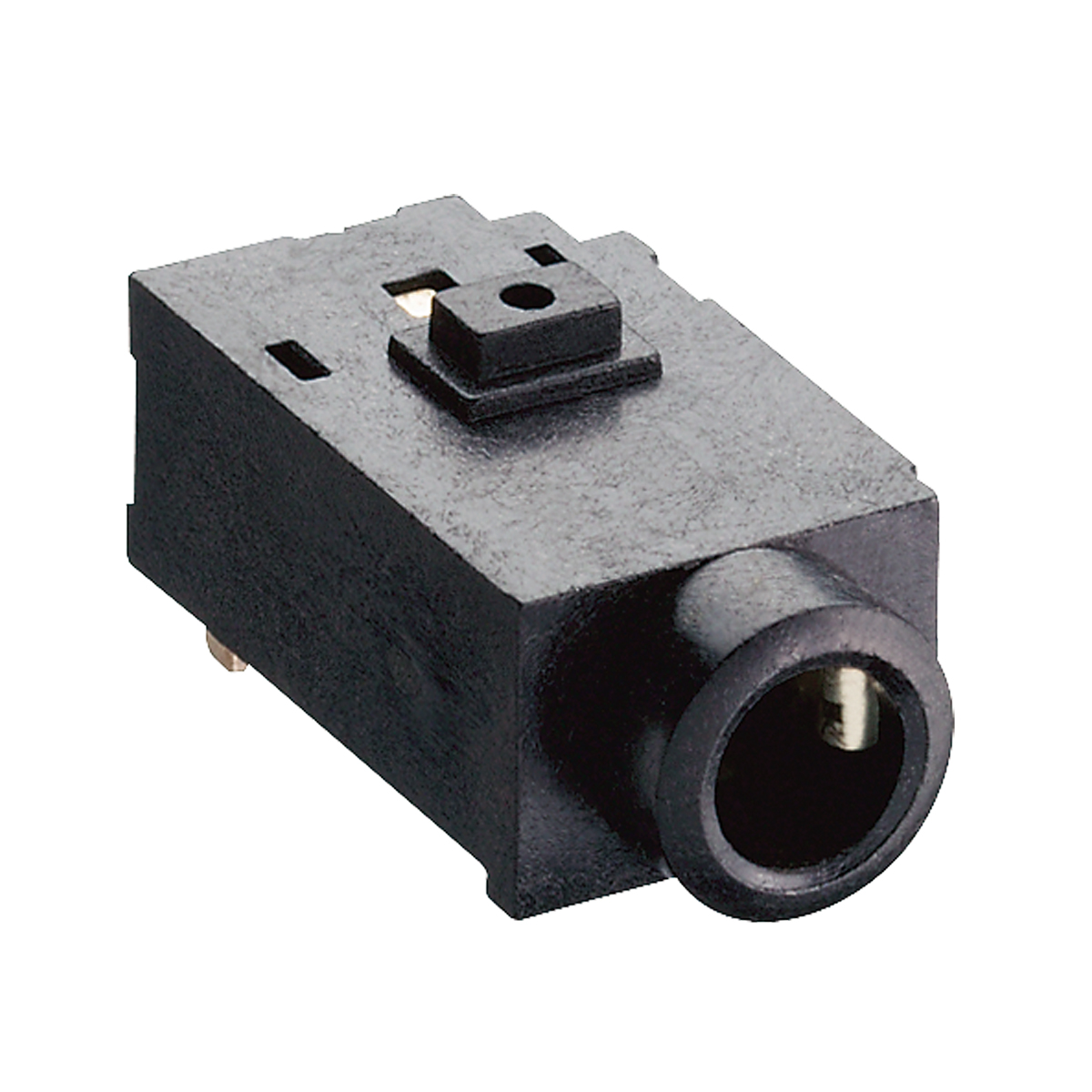

1503 10
Jack chassis socket according to JEITA RC-5325A JC35J4A
Jack chassis socket according to JEITA RC-5325A JC35J4A, 3.5 mm, 4 poles/stereo, angular version, for printed circuit boards
On Request

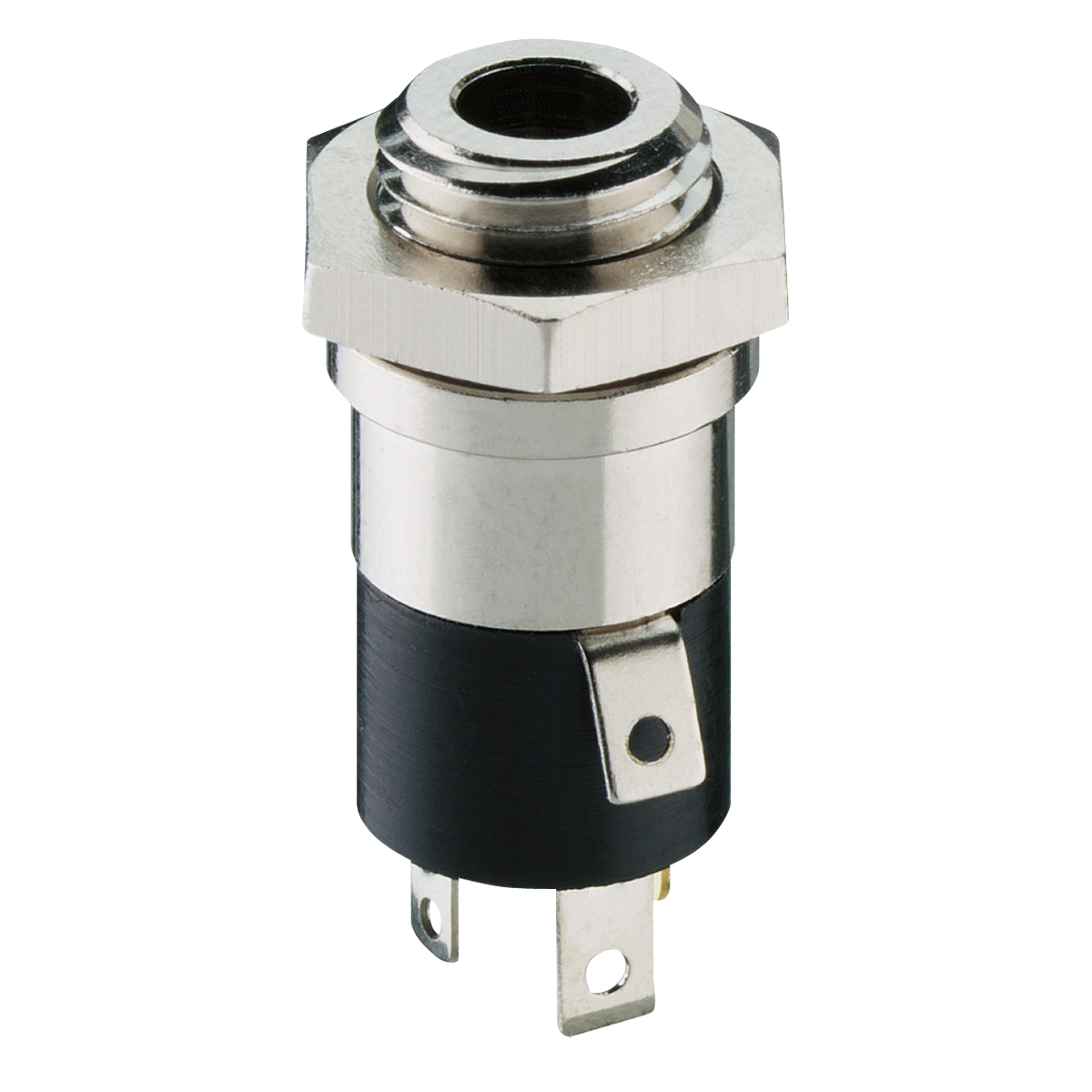

1502 02
Jack chassis socket according to JEITA RC-5325A JC35C4A
Jack chassis socket according to JEITA RC-5325A JC35C4A, 3.5 mm, 4 poles/stereo, upright version, with solder eyes, for back side mounting
€7.54
per item

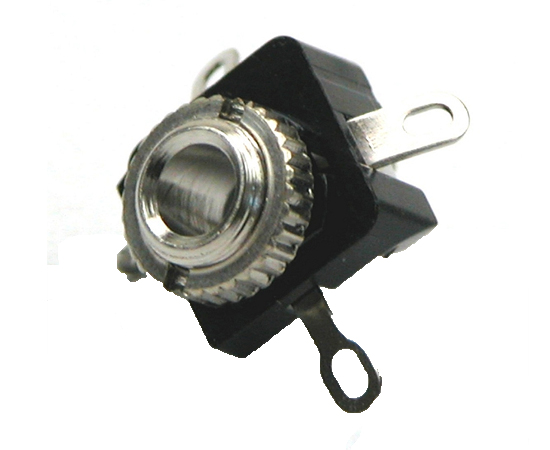

KLB 42
Jack Chassis Socket 3.5 mm, Stereo, with Solder Eyes, for Back Side Mounting
This Jack Chassis Socket 3.5 mm Stereo socket is designed for back side mounting. It provides excellent connectivity for your audio projects with its robust stereo configuration. Featuring solder eyes, this socket ensures secure and reliable soldering connections. The high-quality construction guarantees durability and stable performance, making it an essential component for audio equipment and other electronic projects that require a 3.5 mm stereo connection. The socket is specifically designed to be mounted on the back side, allowing for a clean and organized setup.
€1.40
per item

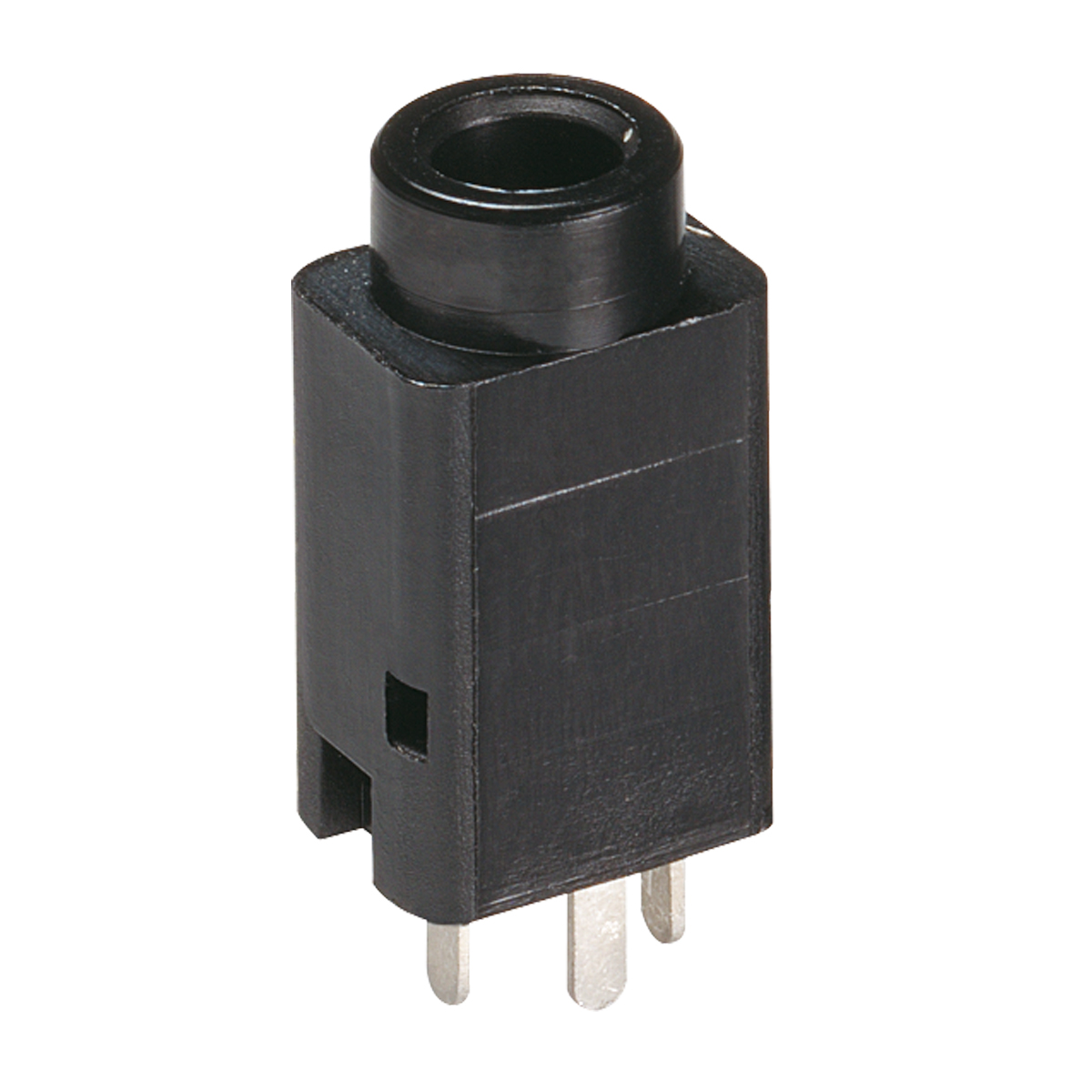

1502 01
Jack chassis socket acc. to JIS C 6560 JC35J3A
Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, upright version, for printed circuit boards
€2.12
per item

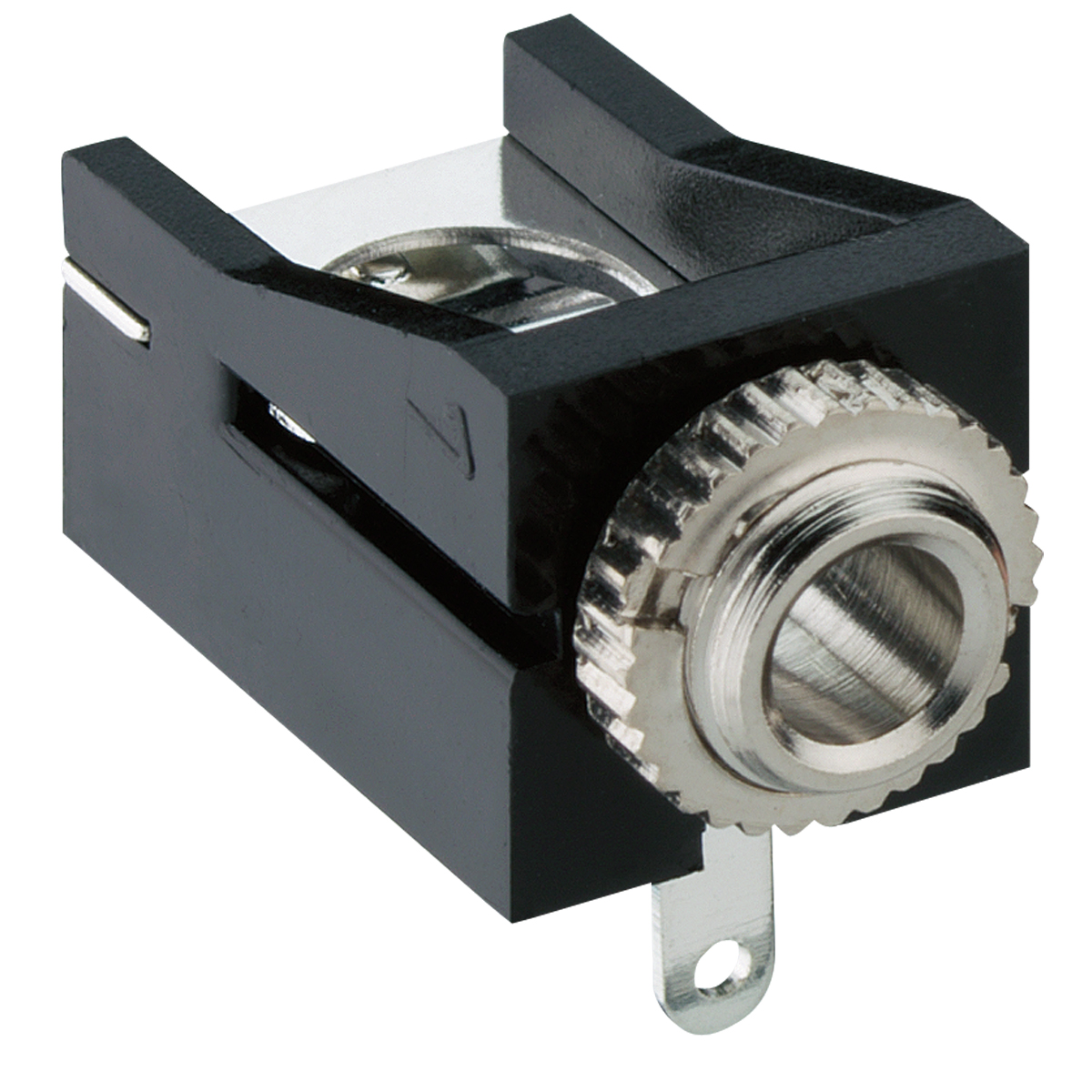

1503 12
Jack chassis socket acc. to JIS C 6560 JC35J2B
Jack chassis socket acc. to JIS C 6560 JC35J2B, 3.5 mm, 2 poles/mono, angular version, with break contact, for printed circuit boards, for back side mounting
