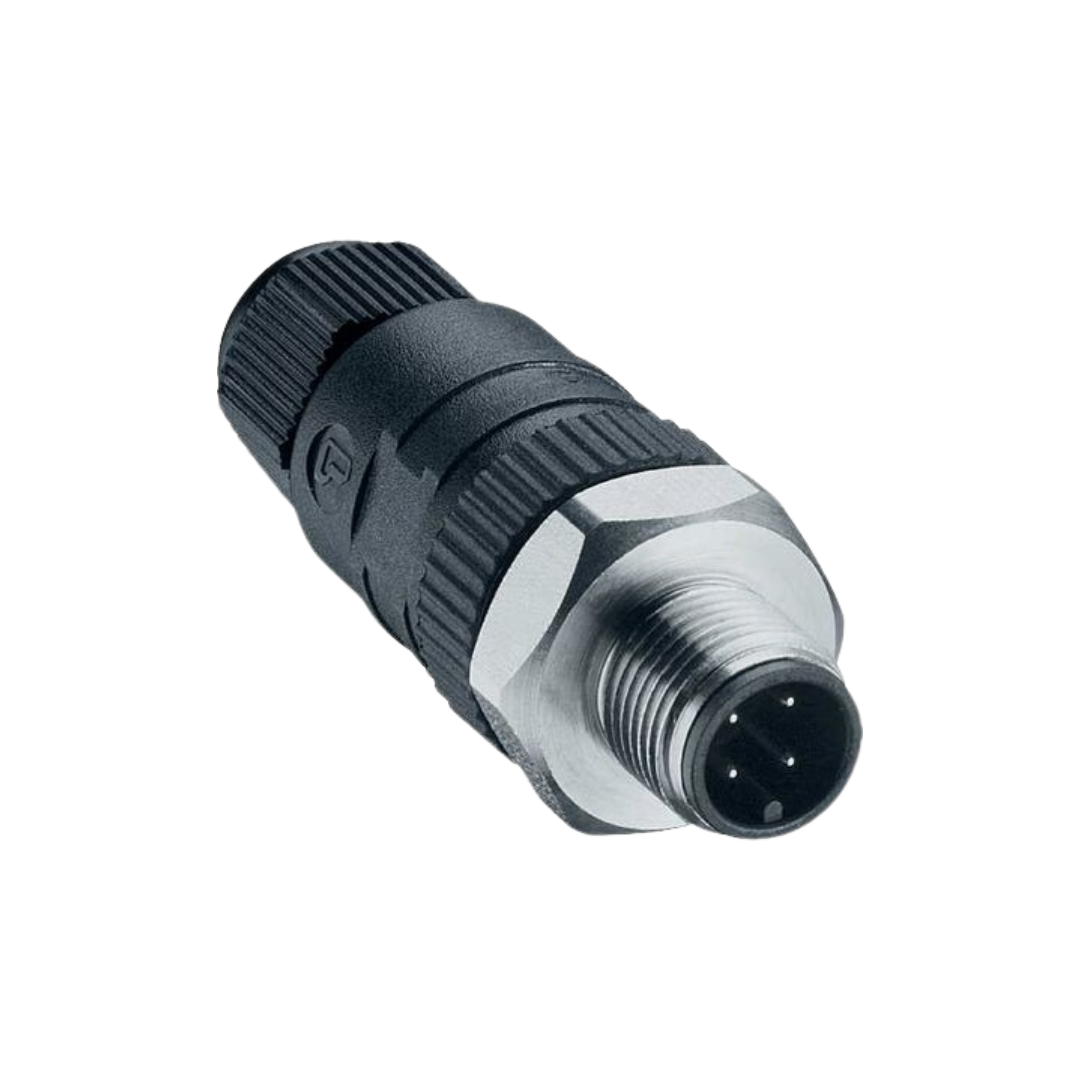

M12 Field attachable D-coded Ethernet male

The M12 Field Attachable Connector is a versatile and durable component, ideal for sensor and actuator connectivity in various industrial applications. This male connector is straight with a 4-pin configuration and A-coded to ensure precise compatibility and performance. Encased in a robust black housing made of PBT, it is designed to operate at 230 V AC/DC and can withstand rated voltages up to 250 V. The connector is unshielded and incorporates a screw-type attachment for secure connections and easy assembly. Suitable for cable diameters ranging from 4 to 6 mm, it provides reliable strain relief through its clamping cage design. One of the key benefits of this connector is its high insulation resistance of over 10^9 Ohm and low contact resistance of ≤ 10 mOhm, ensuring efficient and stable electrical connections. With an IP67 protection rating, the connector is resistant to dust and water, making it suitable for challenging environments. Additionally, it features an ambient operating temperature range from -25°C to +85°C, ensuring reliable performance under varying conditions. Applications for the M12 Field Attachable Connector include automation systems, industrial machinery, and other electrical hardware where secure and precise connection solutions are essential. It meets the standards of DIN EN 60664-1 (VDE 0110-1) for pollution degree and overvoltage category, confirming its compliance with rigorous safety and performance standards.
