Double-Ended Cordsets
STAKAP 3 N

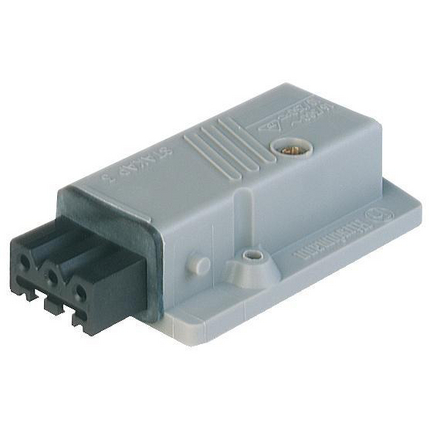

Rectangular Receptacle Power Connector (ST Series)
The Rectangular Receptacle Power Connector (ST Series) is designed for reliable and secure connections in electrical systems. It features a female connector with a panel mount design, accommodating 3 pins plus a protective earth (PE) pin. The connector is housed in a durable grey casing and supports operating voltages of 400 V AC and 230 V DC, making it ideal for various industrial applications. With a rated current capacity of 16 A for AC and 10 A for DC, it ensures efficient power transmission. The connector is equipped with a screw terminal connection, providing firm and stable installation. It operates efficiently within a temperature range of -30°C to +90°C and maintains an IP54 protection rating. This connector adheres to the DIN EN 61984 design standard and includes approvals from UL, VDE, and SEV.
€9.75
per item
RSRK 301-838/6M

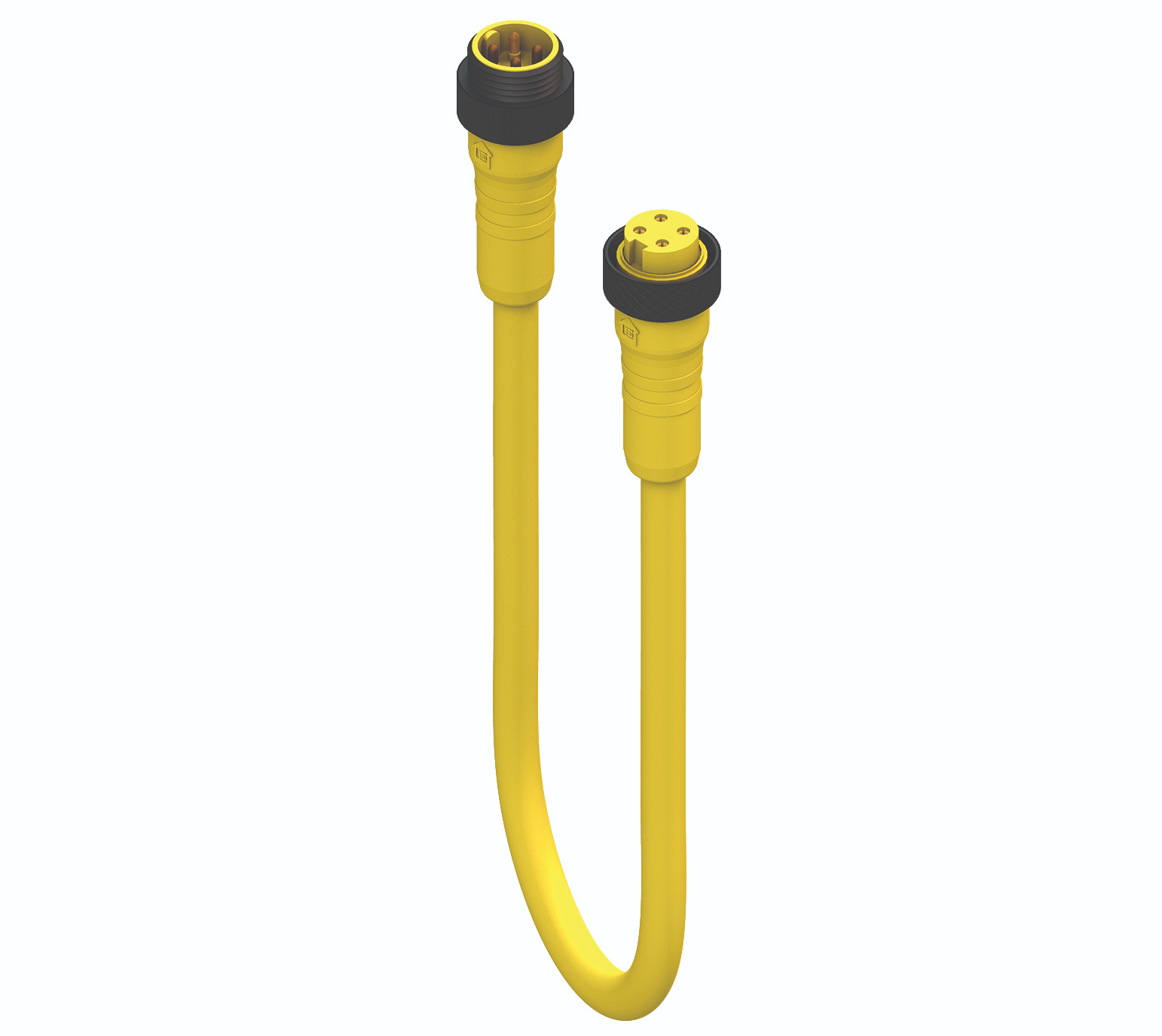

7/8" Power Double-Ended Cordset
The 7/8" Power Double-Ended Cordset features a robust design with male straight to female straight 3-pin connectors. It's built for high performance, supporting a rated voltage of 600 V and a rated current of 10 A (UL). The cordset features a TPE yellow jacket for enhanced durability, with a 16 AWG conductor size. It's unshielded and offers superior oil, coolant, vibration, UV, abrasion, and weld spark resistance. Appropriate for operating temperatures ranging from -30°C to +90°C. The IP65/IP67/NEMA 6P ratings ensure reliable performance in harsh environments. The cordset is ideal for power connector applications requiring high flexibility and resilience, suitable for various industrial settings.
On Request
RSRKW 301-838/0.3M

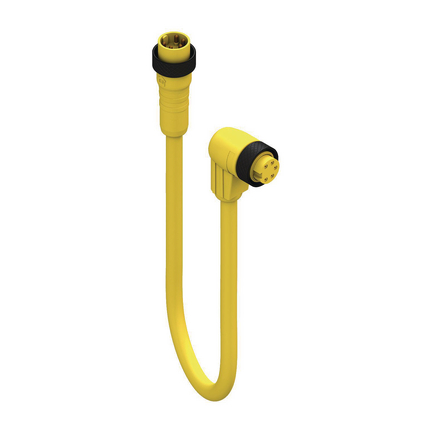

RSRKW 301-838 - 7/8" Power Double-Ended Cordset
The RSRKW 301-838 is a high-performance 7/8" Power Double-Ended Cordset designed to ensure reliable power connections in industrial environments. Featuring a male straight-to-female angled 3-pin configuration, this cordset ensures a secure fit. The yellow body enhances visibility, while the 600 V and 10 A UL-rated specifications guarantee robust performance. The TPE yellow cable, with 16 AWG stranded conductors, is designed to resist oil, coolant, UV, abrasion, and weld sparks, ensuring durability in harsh conditions. The RSRKW 301-838 offers reliable performance with a high degree of protection, marked at IP65, IP67, and NEMA 6P ratings and is fully RoHS compliant. This cordset is ideal for various power applications in industrial settings, ensuring flexible and continuous operation even in challenging conditions.
On Request
RSRKW 501-877/1M
RSRKW 501-877 - 7/8" Power Double-Ended Cordset
The RSRKW 501-877 is a 7/8" power double-ended cordset featuring a male straight to female angled design. This 5-pin cordset, boasting a robust 600 V (UL) voltage rating and an 8 A (UL) current rating, is constructed with a yellow TPE cable of 16 AWG. Ensuring durability and reliability, the connectors are made from TPU with gold-plated contacts over silver. The cordset is well-protected with an IP65, IP67, and NEMA 6P rating, making it reliable in harsh environments with temperatures ranging between -30°C and +90°C. Also, it is designed to resist oil, coolant, UV, abrasion, and weld sparks, ensuring longevity under continuous flex conditions.
On Request
RSRK 701M-822/10 M

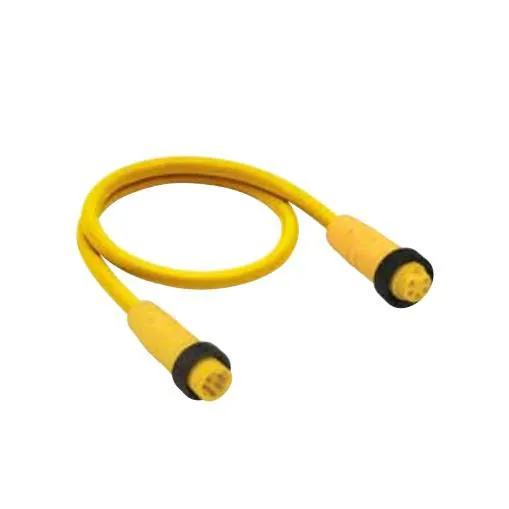

1" Power Double-Ended Cordset
1" Power Double-Ended Cordset: Male to Female, 7-pin, 600 V, 8 A; TPE yellow cable, 16 AWG
€944.07
per item
RSRK 601A-896/10M

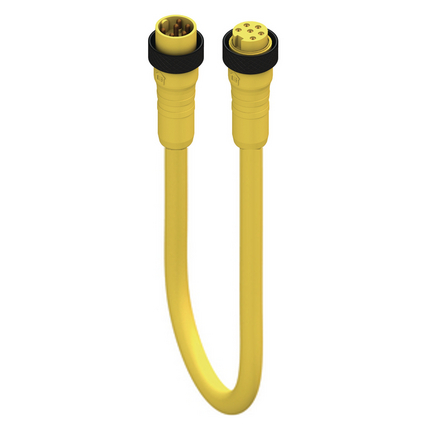

RSRK 601A-896 - 7/8" Power Double-Ended Cordset
The RSRK 601A-896 - 7/8" Power Double-Ended Cordset is designed for robust and reliable power transmission in demanding environments. It features a male straight to female straight, 6-pin connectors with a yellow body, ensuring easy identification. The cordset is rated for 600 V (UL) and 8 A (UL), making it suitable for heavy-duty electrical applications. The TPE yellow cable with a 16 AWG conductor size offers excellent resistance to oil, coolant, UV, abrasion, vibration, and weld sparks, making it ideal for use in industrial and commercial settings. Additionally, the cordset's TPU molded body and coupling nut with internal threads ensure a secure and waterproof connection rated at IP65, IP67, and NEMA 6P standards, providing reliable performance in harsh conditions. Available in various lengths (2m, 4m, 5m, 6m, and 10m), this cordset is versatile and adaptable to different operational requirements.
On Request
RSRK 40-839/35M
RSRK 40-839 - 7/8" Power Double-Ended Cordset
The RSRK 40-839 - 7/8" Power Double-Ended Cordset is an essential component for power connections, offering a male straight to female straight design, 4-pin configuration, and a distinctive yellow body. It is rated for 600 V (UL) and 10 A (UL), making it suitable for various high-power applications. The cordset is constructed with a tough TPE yellow cable and 16 AWG conductor size, ensuring durability and optimal performance. Designed by Lumberg Automation, this unshielded cordset has protective IP ratings of IP65, IP67, and NEMA 6P, providing reliable performance even in demanding environments. The cable is resistant to oil, coolant, UV, vibration, abrasion, and weld sparks, making it ideal for industrial settings. Moreover, the cordset is compliant with RoHS standards, adhering to safety and environmental regulations.
On Request
RSRK 50-04/18 M
7/8" Power Double-Ended Cordset
The 7/8" Power Double-Ended Cordset is tailored for robust power connectivity applications. This cordset comprises a male straight to female straight connector with a 5-pin (4+PE) configuration, allowing for seamless electrical transmission at operational voltages of 230 V AC/DC and a rated current of 9A. The exterior is built with an orange PVC cable, ensuring durability and visibility. The connectors are designed with a coupling nut attachment for secure and reliable connections. The connector material includes CuZn base, Cu/Au plating, and TPU molded body, offering high resistance to environmental factors and operational temperatures ranging from -40°C to +90°C. Carrying an IP68 rating assures superior ingress protection making it ideal for demanding industrial environments. The cable also meets flame-retardant and self-extinguishing standards, enhancing safety.
€78.54
per item
