ASi Interface Junction Box

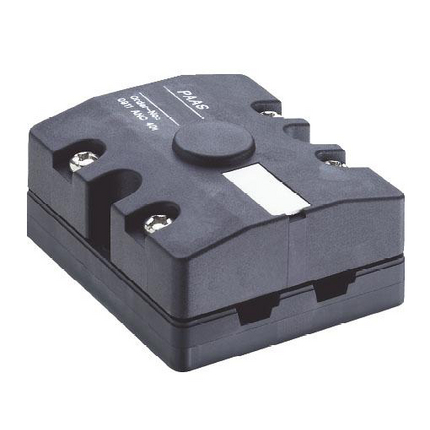

The PAAS-R is a pre-assembled passive branch, specifically designed for seamless connection to the ASi standard flat cable system. Manufactured by Belden, this device features a durable plastic (PA) housing in a sleek black color. Its compact dimensions, 55 mm x 29 mm x 64 mm, make it suitable for various installation environments. The unit operates efficiently in a wide temperature range of -25 °C to 80 °C and offers an IP65 protection rating, making it resistant to dust and low-pressure water jets. The device supports 2-, 3-, and 4-wire input wirings, suitable for diverse digital input channel applications. Though the PAAS-R is not potted, it maintains high performance and reliability standards. Safety and environmental compliance are assured as the device is CE and RoHS compliant. This ensures that it meets stringent European standards for safety and environmental protection. For operational efficiency, it runs on a nominal actuator supply voltage of 24 V DC but can handle a range from 10 V DC to 30 V DC. It is essential to note that connections should not be made or detached while under voltage to ensure user safety.

The PAAS Passive Branch offers a reliable solution for connecting two identical ASi standard flat cables. Engineered for durability, it features a high-quality plastic PA housing with a sleek black finish. This device is rated IP65 for protection against dust and water, ensuring consistent performance in various environments. It operates efficiently within a temperature range of -25 °C to 80 °C, making it suitable for diverse operational settings. The unit supports an actuator supply voltage range from 10 V DC to 30 V DC, and is compatible with 2-, 3-, and 4-wire input wiring configurations. With its CE and RoHS compliance, the PAAS Passive Branch adheres to stringent safety and environmental standards.

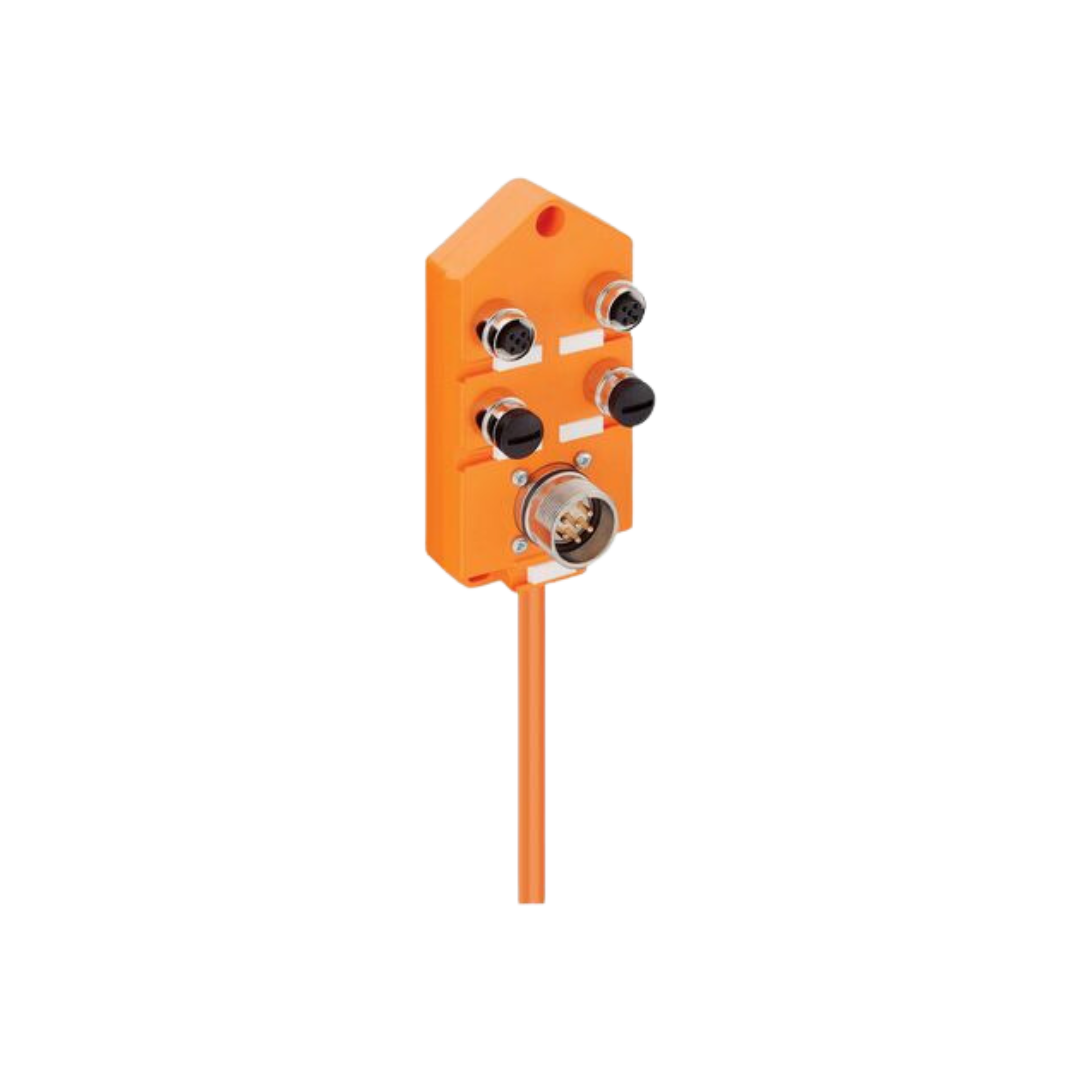

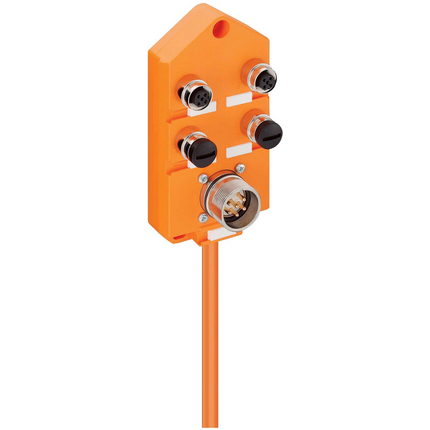

The ASi passive module is a robust device designed to facilitate efficient connectivity in AS-Interface networks. Featuring 4 ports, this module easily integrates into your system through its AS-Interface standard round cable connection. Notably, it includes M12, 5-poles, A-coded and M23, 6-poles I/O connections, providing versatile application options. Constructed with a durable plastic PUR housing, this module ensures longevity and reliability in various industrial environments. It boasts an IP67 protection rating, making it highly resistant to dust and water ingress when properly mounted and locked with a Hirschmann or Lumberg Automation connector. One of the key benefits of this module is its operational temperature range of -25 °C to 80 °C, offering reliable performance in diverse climatic conditions. The module's open-ended control cable interface further enhances flexibility and ease of installation. Additionally, its 24 V DC actuator supply voltage enables seamless integration into standard industrial systems. This module is suitable for diverse applications, from factory automation to industrial process control. Its support for 2-, 3-, and 4-wire input wiring, coupled with its galvanically isolated digital output channels, makes it an ideal choice for enhancing operational efficiency in various setups. Whether for new installations or upgrades, the ASi passive module addresses the needs of complex networking environments.

The PAAS-M12 is a specialized passive branch designed to connect one actuator or sensor on an ASi standard flat cable system. This device boasts a compact and durable plastic housing, ensuring longevity and reliability in various environmental conditions with its IP65 protection rating. The PAAS-M12 is equipped with a 5-pole M12 connector, A-coded, providing secure and efficient connections. With dimensions of 55 mm x 32.5 mm x 64 mm, it integrates seamlessly into a range of applications. The actuator supply voltage ranges from 10 V DC to 30 V DC, with a nominal 24 V DC, ensuring stable and efficient power delivery. The device supports digital input channels with 2-, 3-, 4-wire configurations and complies with CE and RoHS standards, making it a reliable component for automation systems.
