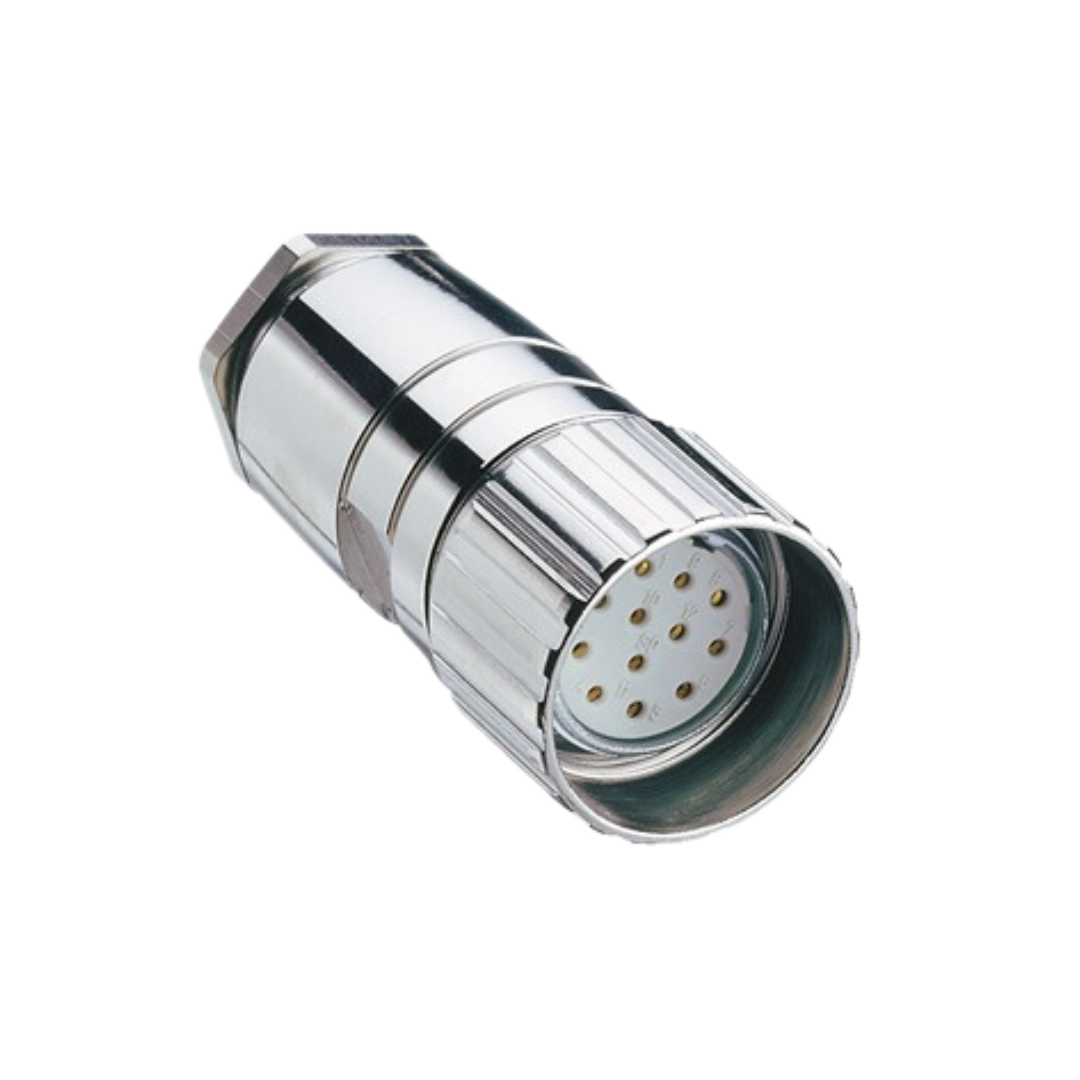

M23 Field Attachable Connector Female Solder Contacts

The M23 Power Field Attachable Connector is a robust and reliable solution designed for industrial automation systems. This female connector features an angled design and includes 12 pins, making it ideal for applications requiring multiple connections in a compact form. Encased in a silver housing, it operates at 50 V AC / 60 V DC and can handle a rated current of up to 8A. The connector supports cable diameters between 10 mm to 14 mm and employs a solder connection type. Rated IP65, it provides strong protection against dust and water ingress, ensuring durability in harsh environments. The connector is RoHS compliant and features materials such as CuZn, PBT, and nickel-plated components, enhancing its long-term performance and reliability.

The M23 Power Field Attachable Connector is a robust and reliable solution for demanding industrial environments. This field attachable connector is designed with a straight layout, featuring 12 pins and a female gender configuration. The product comes with a durable silver housing that ensures effective operation under tough conditions, supporting both 50 V AC and 60 V DC voltage ratings. The coupling nut attachment ensures a secure fit, while the solder connections guarantee stable electrical performance. Rated at 8A, this connector is both efficient and sturdy, making it ideal for different power applications. Additionally, the connector offers excellent insulation resistance of ˃ 10^9 Ohm and can withstand operating temperatures ranging from -40°C to +125°C. It has an IP65 protection rating, ensuring it is well-protected against dust and water ingress when properly mounted and locked. It is RoHS compliant, ensuring adherence to environmental and safety standards.

The M23 Power Field Attachable Connector is a high-quality, female, straight connector with 19 pins. It features a robust silver housing and is designed to operate at 50 V AC / 60 V DC. This connector is part of the Lumberg Automation brand and belongs to the M23 Power series. It's unshielded, with a coupling nut attachment type, and suitable for solder connections. The connector supports an ambient temperature range of -40°C to +125°C and is rated IP65 when properly mounted and locked. The high insulation resistance and mating cycle count (≤ 100) ensure reliable, long-term performance, making it ideal for industrial applications.

The M23 Power Field Attachable Connector is a high-quality, female, angled, 19-pin connector with a silver housing. Designed for robust power connections, it operates at 50 V AC or 60 V DC with a high-rated current capacity of 16 x 8 A (pin-Ø 1 mm) and 3 x 10 A (contact-Ø 1.5 mm). The connector ensures a reliable insulation resistance of over 10^9 Ohm and supports up to 100 mating cycles. It features a solder type connection, with a suitable cable diameter range from 10 mm to 14 mm. The product is built with durable materials, including a CuZn contact base, GD-Zn housing, and a PBT contact bearer rated UL 94 V0 for flammability, providing overall protection to IP65. The connector is RoHS compliant, making it environmentally safe. Ideal for industrial applications, it is designed to withstand demanding environments with an operating temperature range from -40°C to +90°C.
