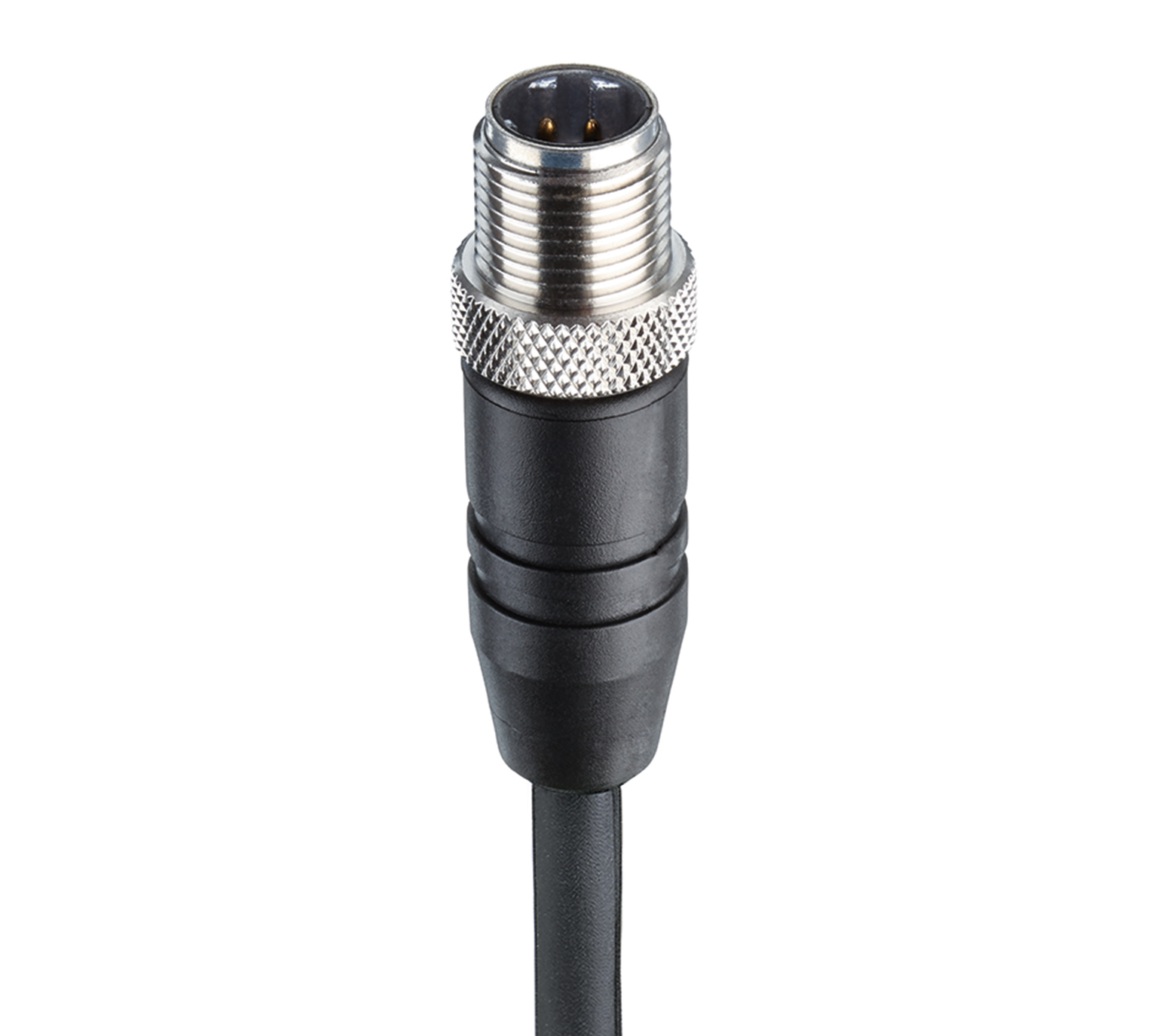

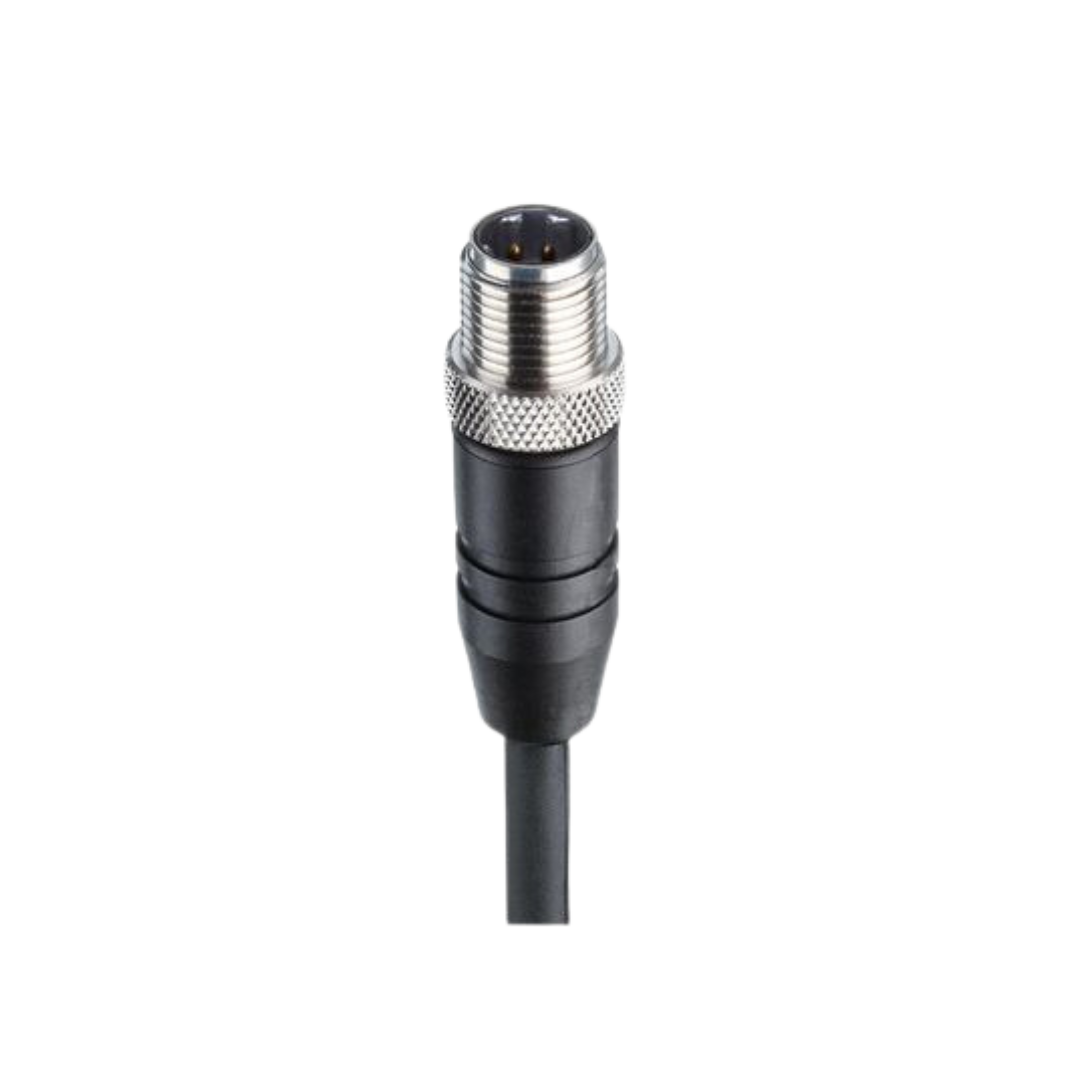

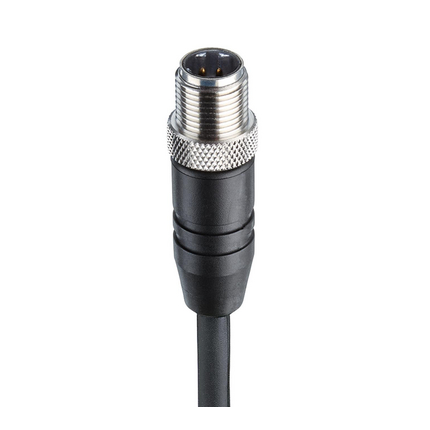

M12 4-Pole Fast Ethernet Cat 5E Single-Ended Cordset Male

The Fast Ethernet Cat5e Data Single-Ended Cordset is a high-performance cabling solution designed for railway and other demanding environments. It co mprises an M12 male connector with a straight, 4-pin D-coded configuration, ensuring secure data transmission. The connector is shielded and has a robust black body for added durability, capable of handling 50 V AC/60 V DC and 4 A. The cordset employs a high-quality X-FRNC black cable, featuring 4 conductors of 0.34 mm² each, providing optimal signal integrity and reducing interference. Additionally, this cordset complies with IP65, IP67, and IP69K standards, ensuring protection against dust and water ingress. It is designed to meet the requirements of IEC 61076-2-101 and operates efficiently within a temperature range of -40 °C to +90 °C.

The Fast Ethernet Cat5e Data Single-Ended Cordset serves as a robust solution for high-speed data transmission, ensuring reliability in industrial environments. This cordset features an M12 Railway connector with a male, straight design and is equipped with 4 pins, D-coded for efficient data handling. The shielded black body is built to handle voltage ratings of 50 V AC / 60 V DC and a current rating of 4 A. The connector is coupled with a durable X-FRNC black cable that features 4 wires with a conductor size of 0.34 mm², ensuring a secure and steady connection. The cordset supports Fast Ethernet Cat5e standards, offering data transmission rates up to 100 Mbit/s. With its high resistance to environmental factors and protection ratings of IP65, IP67, and IP69K, this product is suitable for demanding settings such as railway applications. The components including copper alloy contacts and polyamide bearer material ensure longevity and stability. The cordset supports a wide operating temperature range from -40 °C to +90 °C, making it versatile for various industrial applications.

The Fast Ethernet Cat5e Data Single-Ended Cordset is a reliable and durable solution for your data transmission needs. Designed with an M12 Railway male connector, it has a straight, 4-pin, D-coded configuration which ensures optimal connectivity and performance. The cordset is shielded, providing effective protection against electromagnetic interference. Its black body is sleek and resilient, supporting a rated voltage of up to 50 V AC or 60 V DC, and a current rating of 4 A. The X-FRNC black cable consists of 4 wires, each 0.34 mm² in size, wrapped in a robust polyolefin insulation material, and capable of operating within a temperature range of -40°C to +90°C. This cordset meets multiple stringent standards for safety and environmental compliance, including IEC 60332-1-2 and CEN/TS 45545-2, making it suitable for railway applications. It's available in various lengths, providing flexibility for different installation needs.

The Fast Ethernet Cat5e Data Single-Ended Cordset is designed for high-speed data transmission in railway applications. This cordset features a male, straight M12 connector with a D-code, ensuring robust connections. It comes with a black, shielded body for enhanced electromagnetic interference protection. Rated at 50 V AC/60 V DC and 4 A, it ensures reliable and efficient performance. The 4-wire X-FRNC black cable, sized at 0.34 mm², ensures optimal data transmission speeds of up to 100 Mbit/s. The connector and cable are suitable for use in harsh environments, with an operating temperature range of -40°C to +90°C, and high protection degrees (IP65, IP67, IP69K). It is compliant with various technical standards, including IEC 61076-2-101, ensuring safety and reliability in railway contexts. The cordset is also RoHS compliant and offers high resistance to oil and halogen-free formulation, making it suitable for a wide range of industrial applications.

The Fast Ethernet Cat5e Data Single-Ended Cordset is specifically designed for railway applications, featuring an M12 male, straight connector with 4-pins, D-coded. This cordset ensures secure and reliable data transmission with its shielded design and robust construction. The black body and X-FRNC black cable add durability, making it suitable for heavy-duty environments. Operating at 50 V AC / 60 V DC and delivering up to 4 A, it meets various industrial standards, ensuring efficient performance in challenging conditions. The connector's coupling screw attachment and high-level protection ratings (IP65, IP67, IP69K) ensure it can withstand harsh environments. The cordset is also RoHS compliant and offers excellent resistance to halogen, oils, and fire, making it a versatile choice for industrial and railway applications. Various cable lengths are available to suit different installation requirements.

The Fast Ethernet Cat5e Data Single-Ended Cordset is an essential component in high-speed data transmission for railway applications. Featuring an M12 male connector with four pins, this cordset is D-coded and shielded, providing reliable and secure data connections. With a robust black body and a 50 V AC / 60 V DC rating, it can handle currents up to 4 A, making it suitable for demanding environments. The cordset uses a black X-FRNC cable with four 0.34 mm² wires and supports a data transmission rate of up to 100 Mbit/s. Constructed from durable materials, including nickel-plated CuZn and PA, it ensures long-term performance and reliability.

The Fast Ethernet Cat5e Data Single-Ended Cordset is designed for robust and reliable data transmission in railway applications. It features an M12 Railway, male, straight, 4-pin, D-coded connector with shielding, making it suitable for harsh environments. The cordset supports 50 V AC/60 V DC and a rated current of 4 A, ensuring stable electrical performance. The black X-FRNC cable, with its 4-wires of 0.34 mm² each, provides durability and resistance to various environmental factors, including oil and halogen-free properties, ensuring compliance with IEC and EN standards. This cordset is also equipped with superior shielding and a robust coupling screw to ensure secure and stable connections, meeting IP65, IP67, and IP69K protection standards, which are critical for use in high-stress industrial and railway environments.

The Fast Ethernet Cat5e Data Single-Ended Cordset is a high-performance data connector ideal for railway applications. Featuring an M12 connector with a straight, male, 4-pin, D-coded design, it ensures reliable and high-speed data transmission of up to 100 Mbit/s for Fast Ethernet Cat5e. The connector is shielded and has a durable black body, capable of operating at 50 V AC and 60 V DC, with a current rating of 4 A. The black X-FRNC cable has 4 wires, with a conductor size of 0.34 mm², and offers excellent resistance to environmental factors. With IP65, IP67, and IP69K ratings, it ensures robust protection against dust and water. The cordset is suitable for use in harsh environments, maintaining performance in temperatures ranging from -40 °C to +90 °C, making it perfect for both fixed and flexible installations.

The Fast Ethernet Cat5e Data Single-Ended Cordset is a robust and reliable solution designed for demanding railway applications. This cordset features an M12 male, straight, 4-pin connector that is D-coded and shielded, ensuring secure and interference-free data transmission. With an operational voltage of 50 V AC / 60 V DC and a rated current of 4 A, it is suitable for high-performance environments. The body is made from durable black PA material, ensuring longevity and resilience even under harsh conditions. Benefits of this cordset include its high resistance to environmental factors such as temperature fluctuations, moisture, and mechanical stress, which are critical for railway applications. Additionally, the shielded design prevents electromagnetic interference, providing reliable Fast Ethernet Cat5e data transmission at speeds of up to 100 Mbit/s. This cordset can be utilized in various railway systems and industrial automation applications where secure, high-speed data communication is essential. The X-FRNC black cable with 4-wires and 0.34 mm² conductor size adds further robustness and reliability, making it suitable for fixed, flexible, and drag chain installations. The cable's flame-retardant properties ensure compliance with IEC 60332 and other relevant standards, making it a safe choice for sensitive environments.

The Fast Ethernet Cat5e Data Single-Ended Cordset is an expertly designed connector tailored for industrial and railway applications. Featuring an M12 Railway male connection with 4 pins and D-coding, this cable ensures robust, fast Ethernet connectivity. With shielding to mitigate interference, it comes with a black body, rated for 50 V AC / 60 V DC, and can handle up to 4 A. The X-FRNC black cable includes 4 wires (0.34 mm² each), enhancing durability and reliability under harsh conditions. The cordset supports fast Ethernet transmission at 100 Mbit/s and maintains high resistance with low contact resistance, certified to excellent IP65, IP67, and IP69K protection degrees. Suitable for operations in temperatures ranging from -40°C to +90°C, this cordset adheres to rigorous industry standards like IEC 61076-2-101 and DIN EN 60664-1.
