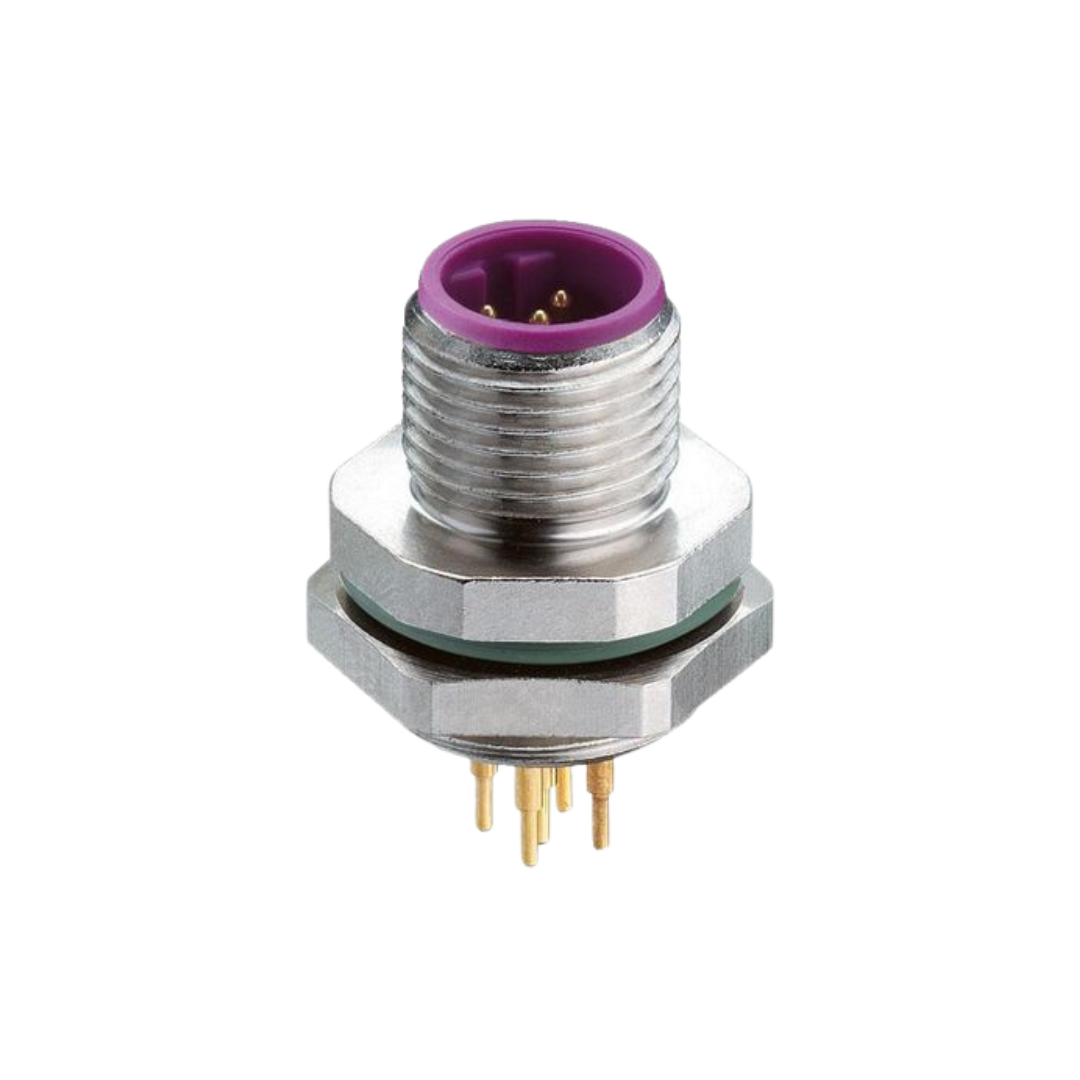

M12 Receptacle Male

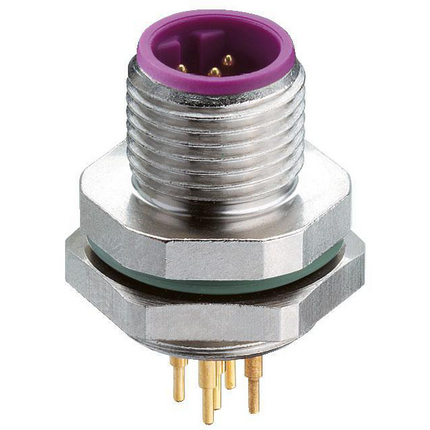

0976 PMC 152
PROFIBUS Data Receptacle Connector
The PROFIBUS Data Receptacle Connector is an essential component for high-performance data transmission systems. This male, front mount connector features an M12 mating side and print contacts on the connecting side, providing a secure and efficient connection. With 5 pins and B-coding, this unshielded connector ensures reliable data transfer. Crafted from a robust metallic grey housing, it supports operating voltages of 50 V AC and 60 V DC, and a current of up to 4 A. Ideal for a range of industrial applications, the connector is designed for durability with an IP65 and IP67 protection rating, making it suitable for harsh environments. It maintains low contact resistance and high insulation resistance, which enhances performance and ensures safety in operations.
€15.68
per item
0976 PMC 151
PROFIBUS Data Receptacle Connector
The PROFIBUS Data Receptacle Connector: Male, front mount positionable, M12 on the mating side and stranded wires on the connecting side. This 5-pin, B-coded, unshielded connector comes with a metallic grey housing. With a rated voltage of 50 V AC / 60 V DC and a current capacity of 4 A, it is ideal for demanding environments. The connector has a screw-locking attachment type, ensuring secure connections. Its nickel-plated CuZn housing and contacts provide durability and reliability. Suitable for applications that require high-performance data transmission rates in line with PROFIBUS standards.
€21.52
per item
0976 PMC 157
PROFIBUS Data Receptacle Connector
The PROFIBUS Data Receptacle Connector is an essential component for efficient and reliable data transmission in industrial settings. It features a male, front mount, M12 interface on the mating side and stranded wires on the connecting side, making it highly versatile for various installations. This unshielded, 5-pin connector is B-coded and comes housed in a durable metallic grey casing, ensuring long-lasting performance. Rated for 50 V AC / 60 V DC and 4 A, it offers robust electrical capabilities while maintaining low contact resistance (≤ 10 mOhm) and high insulation resistance (>10^9 Ohm). The connector supports up to 100 mating cycles and its ambient operating temperature ranges from -25 °C to +85 °C. Additional features include an IP65, IP67, and IP69K protection rating, making it suitable for harsh environments and ensuring reliable protection against dust and water. This connector is ideal for various applications, including PROFIBUS data transmission in industrial automation.
€24.81
per item
