4 ports M12 Actuator / Sensor Distribution Box with M23 Quick-Disconnect for control cable

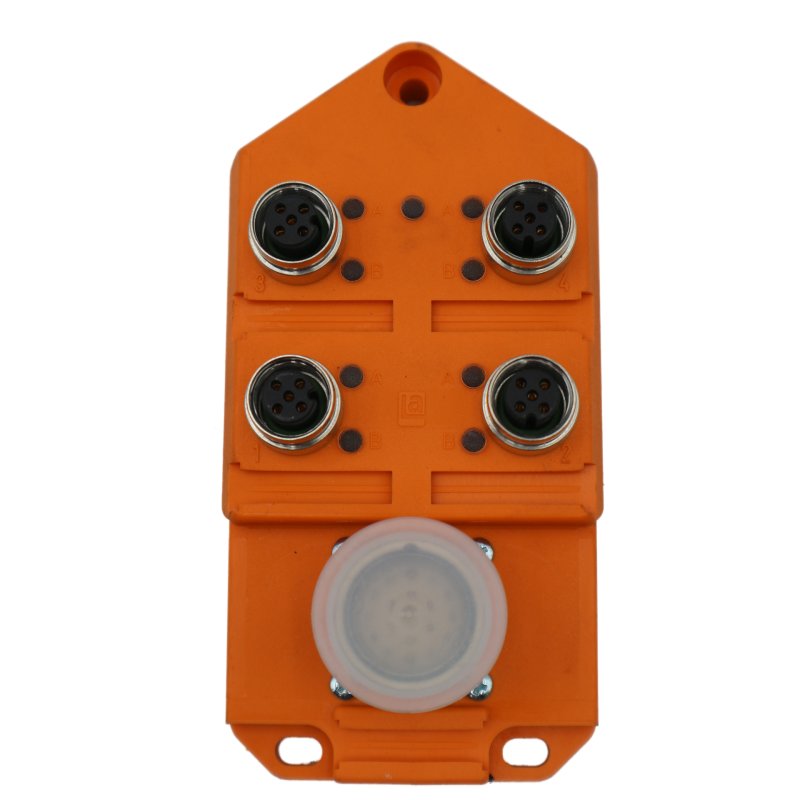

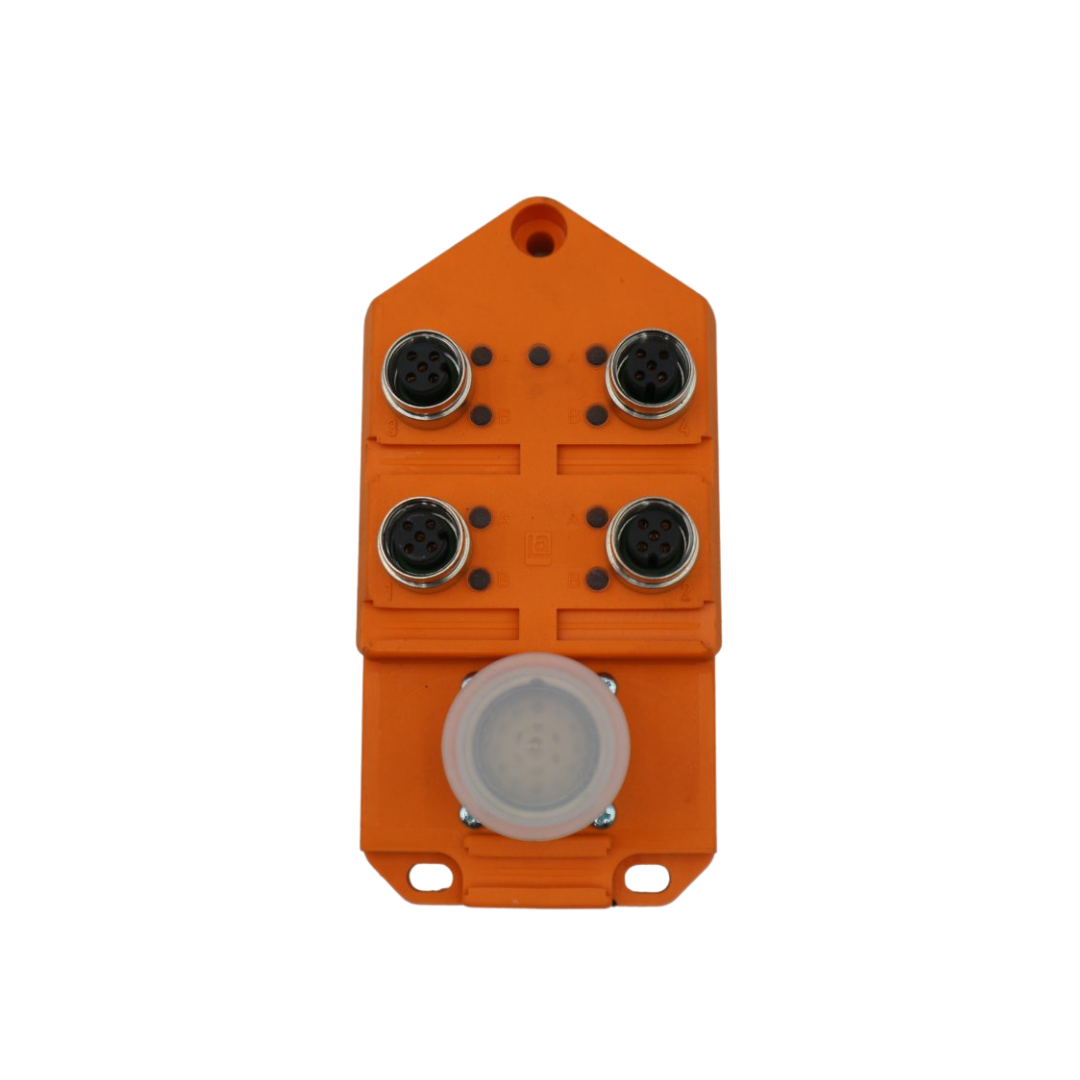

The ASB with FIXCON connector, equipped with 4 ports, utilizes an M23 connector and offers double I/O per port. It is designed to facilitate optimal connectivity and ensure efficient performance. The orange plastic housing, made from durable TPU, ensures the robustness and longevity of the product. The device features an IP67 protection degree, making it dustproof and waterproof, suited for challenging environmental conditions. The housing dimensions are 60 mm x 30.3 mm x 118 mm, and it can operate within a temperature range of -15 °C to 80 °C, catering to various industrial needs. The I/O connection involves M12 connectors with 5 poles, and a control cable interface with an M23, 19-pole configuration. Users benefit from visual status indicators via green and yellow LEDs for the system supply and ports. Furthermore, the module supports a range of actuator supply voltage from 10 V DC to 30 V DC, with a nominal value of 24 V DC. Compliant with CE, RoHS, China RoHS regulations, and carrying UL and CSA approvals, this product ensures high safety and environmental standards.

The LioN-R passive module from Belden features 4 ports with an M23 connector and double I/O per port, making it an ideal choice for industrial applications. Designed with a metal Zinc Die-cast housing plated in nickel, it boasts high durability and resistance, rated IP65 and IP67 for protection. The module supports a range of actuator supply voltages from 10 V DC to 30 V DC, with a nominal voltage of 24 V DC. It includes LED indicators for system supply and per channel status and supports 2-, 3-, and 4-wire input wiring configurations with PNP sensor types. This module ensures reliable performance with galvanized isolation for output channels, making it suitable for various automation systems while offering maximum current specifications of 1.5 A per connector and module.
