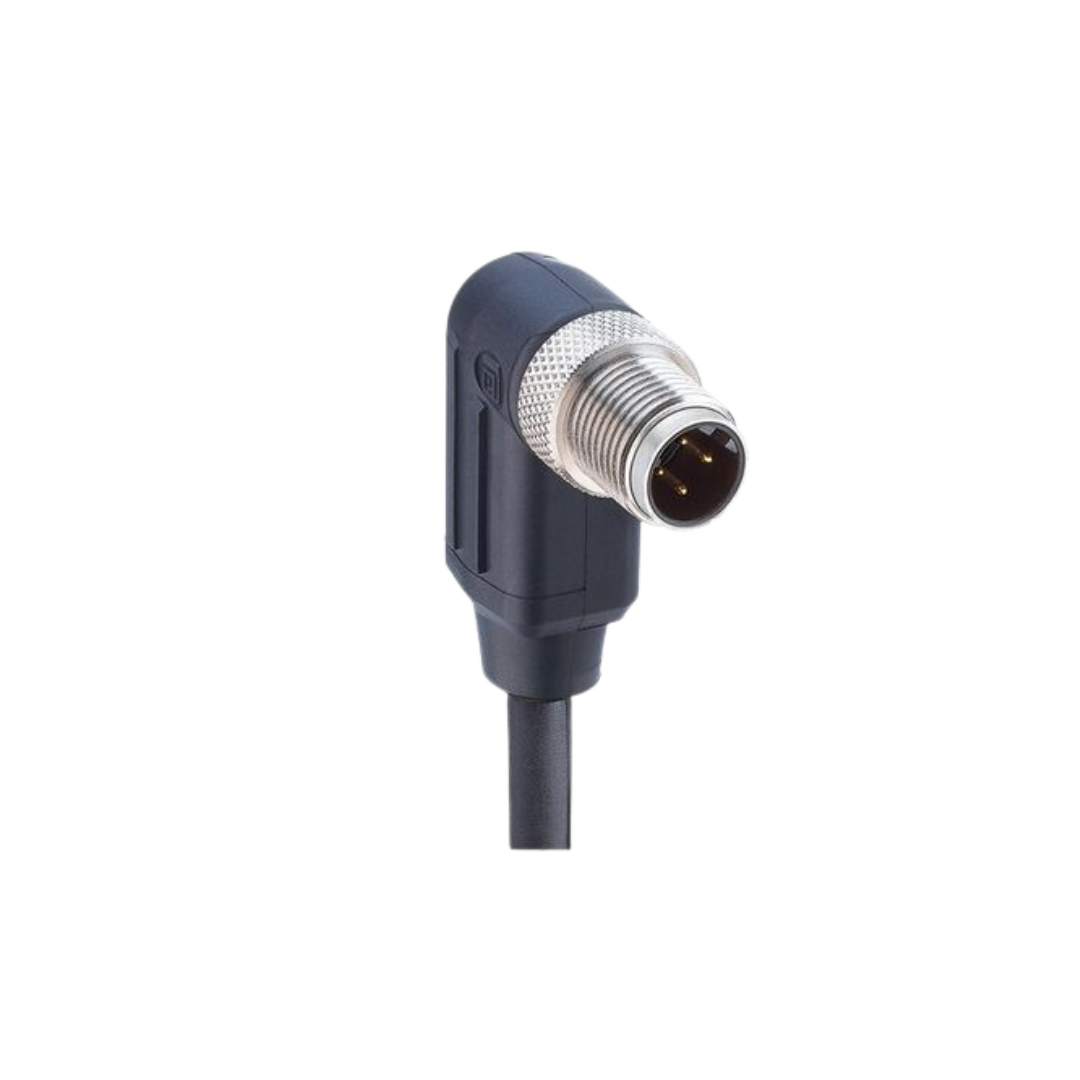

M12 - D-Coded Fast ethernet CAT5E DATA Single-ended cordset male right Angle

The Fast Ethernet Cat5e Data Single-Ended Cordset is designed for robust data and signal connections. Featuring a male, angled M12 connector with 4 pins and D-coding, this cordset ensures reliable Fast Ethernet transmission rates up to 100 Mbit/s. Shielded for enhanced protection against EMI, the black X-FRNC cable comprises 4 wires at 0.34 mm² each, alongside a variety of standards compliance such as IEC 61076-2-101. With a rated voltage of 50 V AC/60 V DC and current up to 4 A, this cordset is ideal for numerous applications including railway environments. Its durable build supports operational temperatures between -40 °C and +90 °C and IP65/IP67/IP68/IP69K protection degrees, making it suitable for demanding conditions.

The Fast Ethernet Cat5e Data Single-Ended Cordset is equipped with an M12 Railway male connector that is angled, 4-pin, and D-coded for superior performance. The connector is designed with a sturdy, shielded black body that ensures robust and efficient data transmission. This cordset is rated for 50 V AC / 60 V DC and supports a current of 4 A. Its high resistance properties include an insulation resistance greater than 10^9 Ohms and a contact resistance of ≤ 10 mOhm. The cordset also boasts a durable X-FRNC black cable with 4-wires, each 0.34 mm², and a protection degree rating of IP65, IP67, IP68, and IP69K, ensuring it performs reliably under harsh conditions. Additionally, it adheres to various flammability and safety standards, making it suitable for railway and industrial applications.
