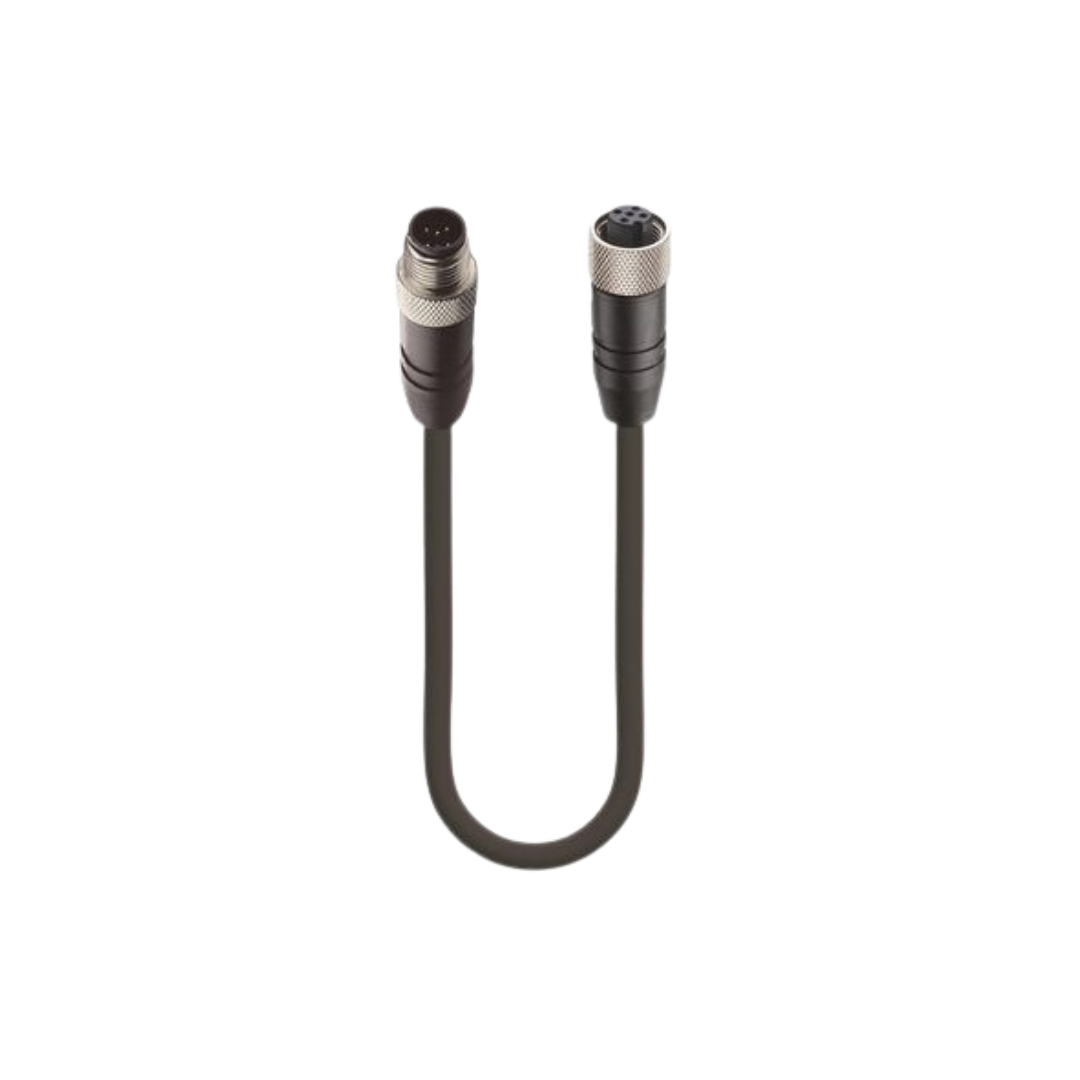

M12 Molded Double-Ended Bus

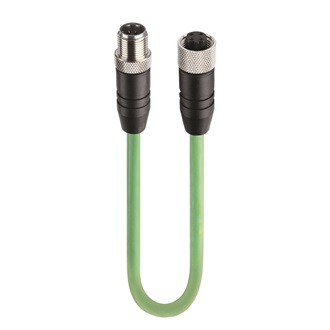

0985 S4742 116/5 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed with precision and reliability in mind. This cordset features male straight D-coded black M12 Standard connectors, coupled with a female straight D-coded black M12 Standard connector, and operates with a voltage rating of 50 V AC/60 V DC and a current rating of 4 A. It comprises a TPE green cable that is shielded and houses 4 wires each with a conductor size of 0.38 mm², ensuring optimal data transmission for Fast Ethernet connections. The cable boasts a diameter of 6.50 mm, with an insulation material of PP. The connectors are meticulously constructed with materials such as CuSn, Cu/Au plating, and TPU that provide durability and resistance to various environmental conditions.
The key benefits of this product include robust shielding for noise reduction and consistent signal integrity during data transmission. The use of high-quality materials provides excellent resistance to temperatures, oil, sunlight, and mechanical wear, making the cordset suitable for a wide range of industrial environments. With its high mating cycles of up to 100 and protection ratings of IP65, IP67, and IP69K, the cordset promises longevity and reliable performance in demanding conditions.
Applications of this cordset span across diverse industrial automation sectors where reliable and fast data transmission is crucial. Its superior resistance properties make it perfect for use in harsh environments. The connector design, compliant with IEC 61076-2-101 standards, ensures compatibility and safety, making it ideal for machine connections, transportation systems, and factory automation networks.
€68.57
per item

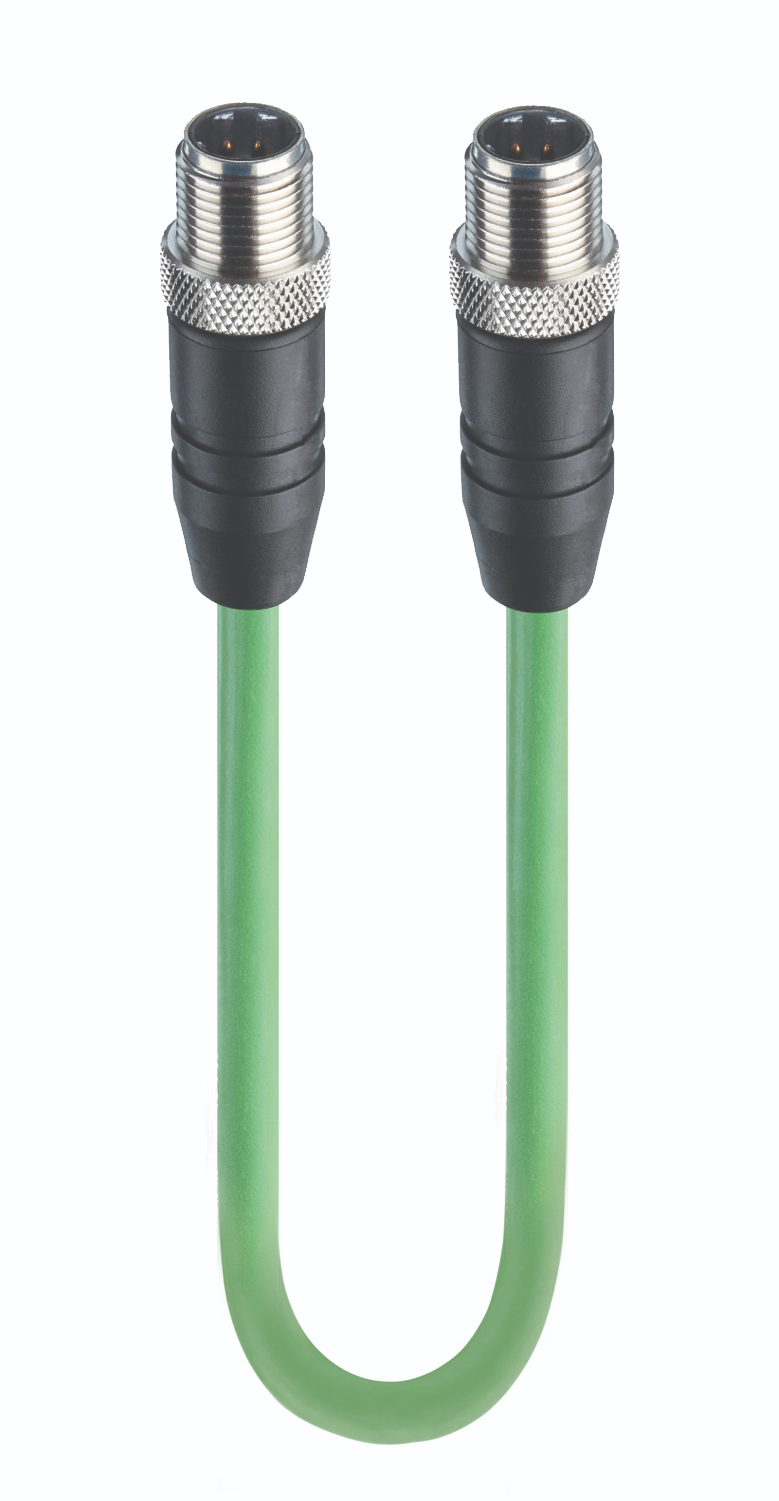

0985 508 121/20 M

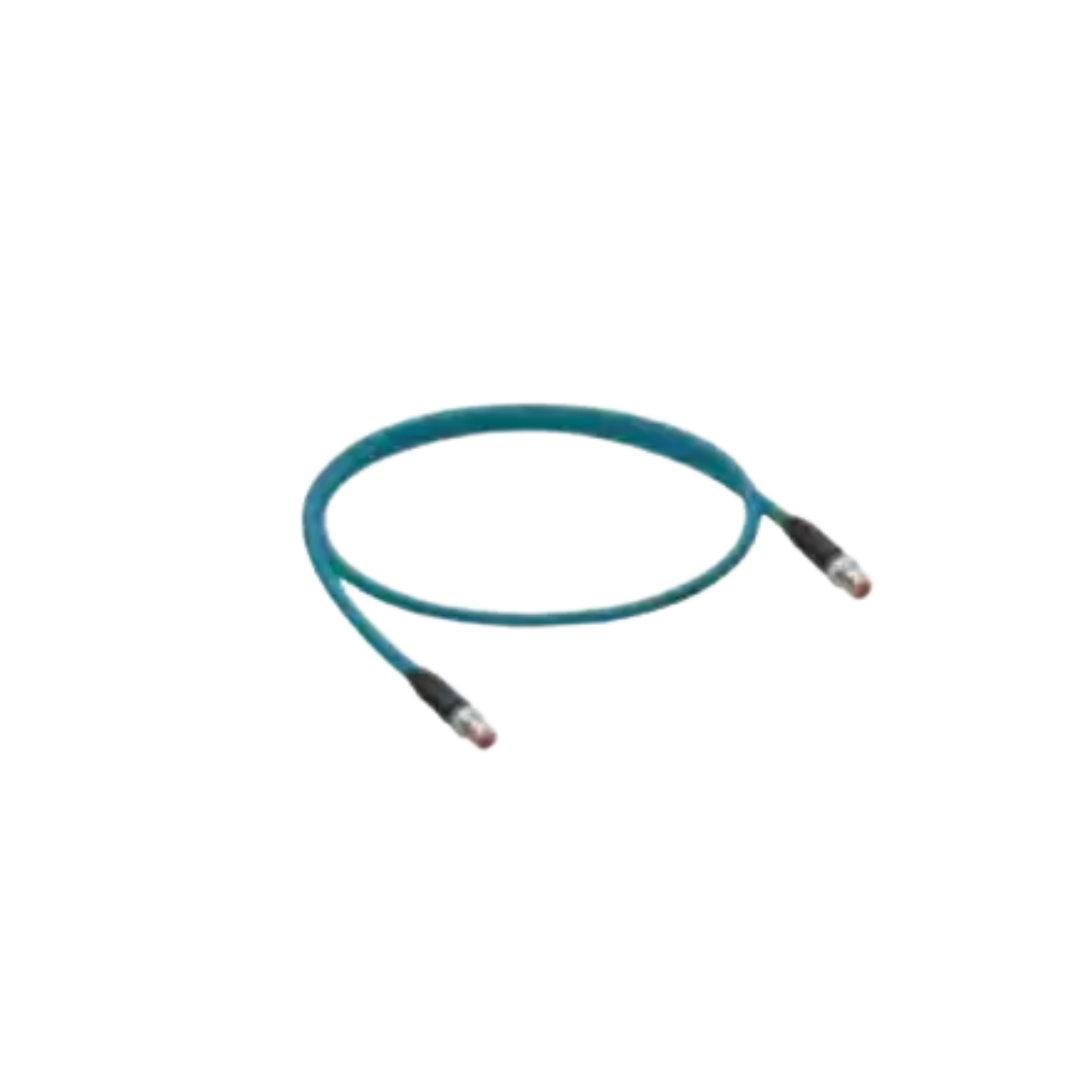

Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for demanding industrial applications, particularly in railway systems. It features male straight D-coded black M12 Railway connectors on both ends, ensuring a secure and robust connection. The cordset is shielded to protect against electromagnetic interference, supporting data transmission at Fast Ethernet Cat5e speeds of 100 Mbit/s. It is rated for voltages of 50 V AC / 60 V DC and currents up to 4 A. The X-FRNC black cable is durable, flame-retardant (UL 94 V-0), and halogen-free, with a conductor size of 0.34 mm² and four wires colored yellow, white, orange, and blue. The double-ended design and high IP ratings (IP65, IP67, IP69K) make this cordset suitable for harsh environments in industrial and transportation settings. The connectors feature coupling screws and are made from nickel-plated CuZn for enhanced durability. The insulation resistance is higher than 10^9 Ohm and the contact resistance is up to 10 mOhm, ensuring excellent electrical performance.
€222.20
per item

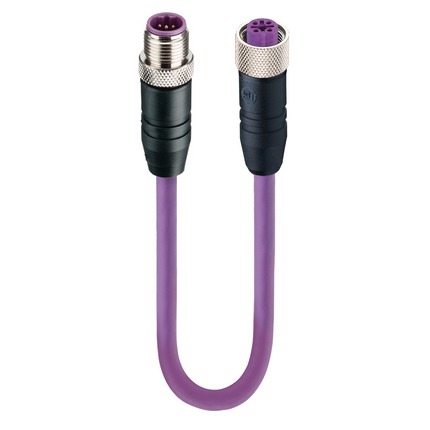

0975 254 101/2 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for reliable data transmission in industrial applications. This cordset features a male straight B-coded black M12 Standard connector on one end and a female straight B-coded black M12 Standard connector on the other. It is shielded to ensure signal integrity and supports a rated voltage of 50 V AC / 60 V DC and a current rating of 4 A. The cordset includes a durable PUR violet cable with 2 wires and a conductor size of 0.34 mm². The cable is highly resistant to environmental factors, including chemicals, oils, and microbes, ensuring long-lasting performance in harsh conditions. The connectors meet the IEC 61076-2-101 standard and offer IP65/IP67 protection, making them suitable for use in demanding industrial environments.
€62.59
per item
0935 253 103/0,6 M

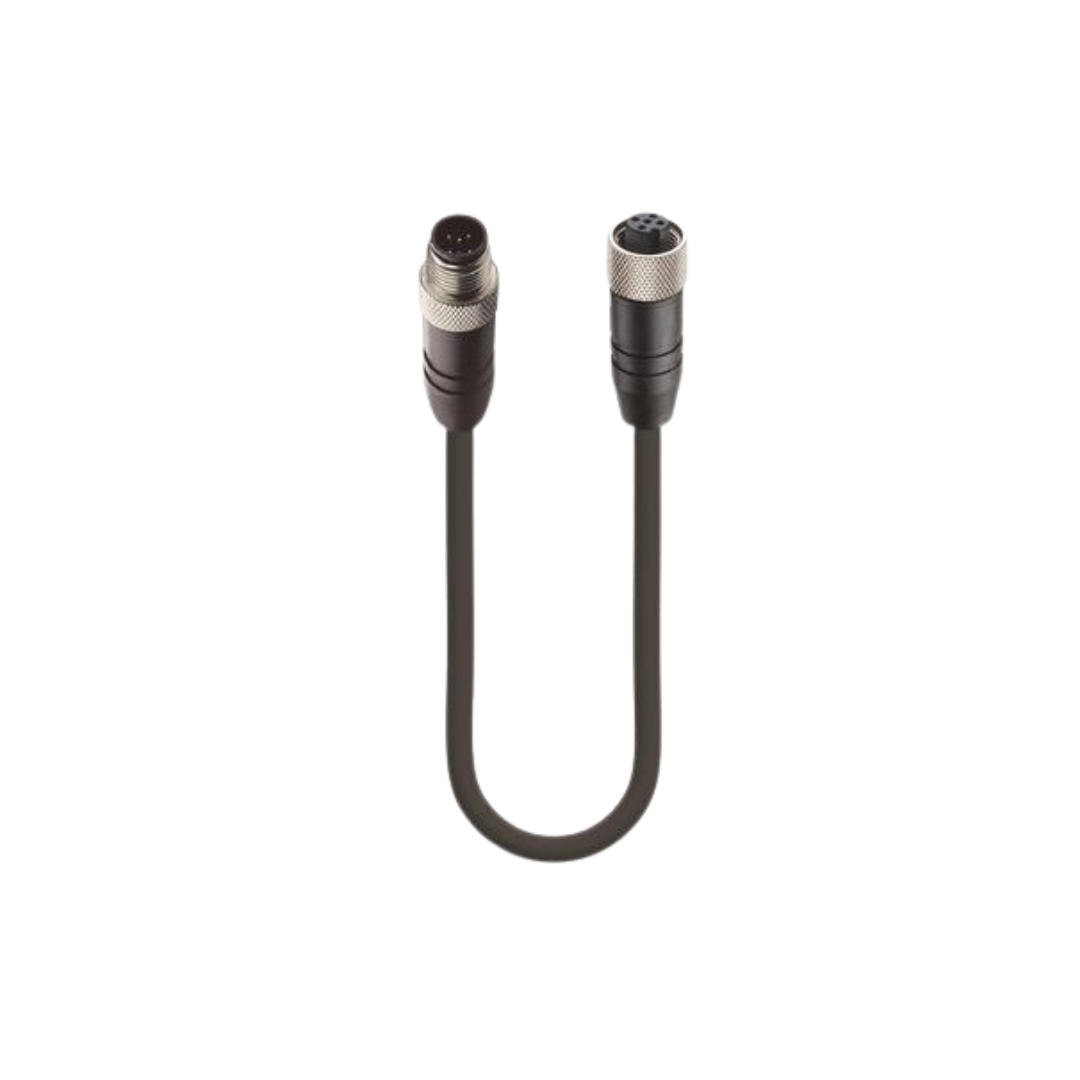

CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is designed for seamless data transmission and power supply in industrial environments. Featuring a straight male A-coded black M12 Standard connector coupled with a straight female A-coded black M12 Standard connector, this cordset supports 50 V AC/60 V DC and 4 A. The black PUR cable includes 4 wires, with data transmission handled by two 0.25 mm² wires and power by two 0.34 mm² wires, ensuring efficiency and durability. With a robust build adhering to IEC 61076-2-101 standards, and IP65, IP67, IP68, and IP69K protection ratings, it offers reliable performance in challenging conditions. Ideal for complex network setups and robust data transmission in various industrial applications.
€30.32
per item
0935 253 109/6 M

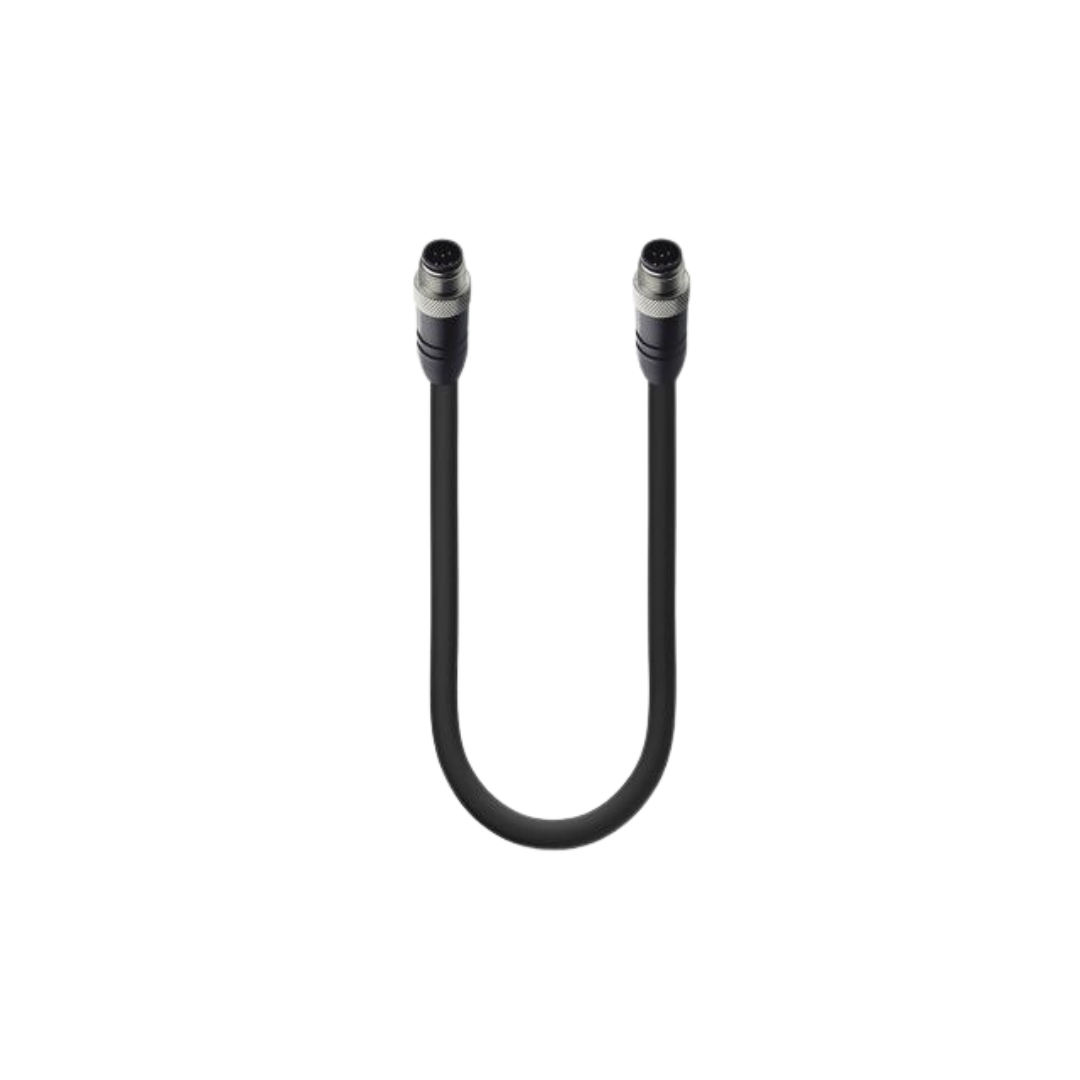

CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is engineered for reliable data transmission and connectivity in demanding environments. Featuring a male straight A-coded black M12 Standard connector on both ends, this cordset is suitable for applications requiring up to 50 V AC / 60 V DC and 4 A of current. The cable is constructed with a PUR black jacket and has four wires, with data wires sized at 2x0.25 mm² and power wires at 2x0.34 mm², ensuring both robust data transfer and power delivery. The connectors' design ensures low contact resistance (< 10 mOhm) and high insulation resistance (> 10^9 Ohm), making it ideal for industrial automation systems that utilize CANopen or DeviceNet protocols. Additionally, with an IP rating of IP65, IP67, IP68, and IP69K, and a wide operating temperature range from -40 °C to +80 °C, this cordset offers excellent protection against environmental factors, ensuring longevity and performance.
€65.39
per item
0935 253 103/1,8 M
CANopen / DeviceNet Data Double-Ended Cordset
CANopen / DeviceNet Data Double-Ended Cordset: Male straight A-coded black M12 Standard to female straight A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€40.62
per item
0935 253 103/13 M
CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is an essential component for secure and efficient data and power transmission. This cordset features male straight A-coded black M12 Standard to female straight A-coded black M12 Standard connectors, ensuring reliable connections up to 50 V AC / 60 V DC and 4 A. The black PUR cable consists of four wires, with two dedicated for data (2x0.25 mm²) and two for power (2x0.34 mm²), providing robust performance and durability.
Offering excellent chemical and oil resistance, this unshielded cordset is built to withstand harsh industrial environments. It complies with IEC 61076-2-101, VDE 0110-1, and other international standards, guaranteeing high electrical and mechanical performance. The cordset provides a secure and versatile connection for various applications, including automation systems, networking, and data communication in industrial setups.
Ideal for both fixed and flexible installations, this cordset offers a minimal bending radius of ˃ 5 x D for fixed setups and ˃ 10 x D for flexible ones, supporting over 1 million bending cycles. Its IP65, IP67, IP68, and IP69K ratings ensure optimal protection against dust, water, and other contaminants, making it suitable for demanding conditions. Additionally, the cordset is RoHS compliant, meeting all relevant safety and environmental regulations.
€127.83
per item
0975 254 101/30 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for robust and reliable connections, featuring a male straight B-coded black M12 standard to a female straight B-coded black M12 standard. This cordset is shielded and supports 50 V AC / 60 V DC with a current rating of 4 A, making it suitable for challenging environments that demand high performance. The cordset uses a durable PUR violet cable with 2 wires and a conductor size of 0.34 mm². With an IP65 and IP67 protection degree, it is highly resistant to dust and water, ensuring a secure and long-lasting connection. Furthermore, its wide operating temperature range from -25 °C to +80 °C makes it ideal for various industrial applications.
With its robust construction, this cordset ensures superior data transmission performance and reliability in harsh conditions. The B-coded M12 connectors are easy to attach using a coupling screw, providing a dependable and secure connection. Shielding and high-quality materials such as nickel-plated CuZn and TPU assure optimal protection against electromagnetic interference and physical stress.
Ideal for PROFIBUS applications, the cordset supports data communication in industrial environments. Its excellent chemical and oil resistance, combined with flexibility in low temperatures, ensures operational stability in diverse installation scenarios. The cordset meets IEC 61076-2-101 standards, ensuring compatibility and reliable usage in numerous industrial setups.
€218.23
per item
0985 508 121/32 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for efficient and reliable data transmission. This cordset features male straight D-coded black M12 Railway connectors on both ends, ensuring secure and stable connections in demanding environments. Shielded for protection against electromagnetic interference, the cordset supports 50 V AC and 60 V DC with a current rating of 4 A. The black X-FRNC cable consists of 4 wires with a conductor size of 0.34 mm², providing a durable and flame-resistant solution with protection degrees of IP65, IP67, and IP69K. Ideal for railway and industrial applications, it ensures high-speed data transmission up to 100 Mbit/s while maintaining high insulation resistance and minimal contact resistance.
€331.06
per item
0985 342 100/60 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset provides reliable and high-speed data transmission with its male straight D-coded black M12 Standard connectors. This shielded cordset, rated for 50 V AC / 60 V DC and 4 A, ensures secure and efficient connectivity. It features a durable PUR green cable with 4-wired construction (2x2x0.34 mm²) and is designed to handle harsh environments, with excellent resistance to chemicals, oils, and microbes. The cordset supports a wide temperature range and multiple mating cycles, making it ideal for industrial and automation applications. Its robust shielding and IP ratings (IP65, IP67, IP69K) ensure dependable performance even in demanding conditions.
€383.00
per item
0975 254 101/0,5 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male straight B-coded black M12 standard connector to a female straight B-coded black M12 standard connector. Ensuring robust data transmission, this shielded cordset operates at 50 V AC / 60 V DC and handles up to 4A. The cordset is shielded and constructed with a durable PUR violet cable, accommodating 2 wires with a section area of 0.34 mm² each. The nickel-plated coupling ensures strong attachment, operating reliably in temperatures ranging from -25°C to +80°C. It supports various lengths, providing flexibility in diverse applications.
€56.30
per item
0935 253 108/2 M

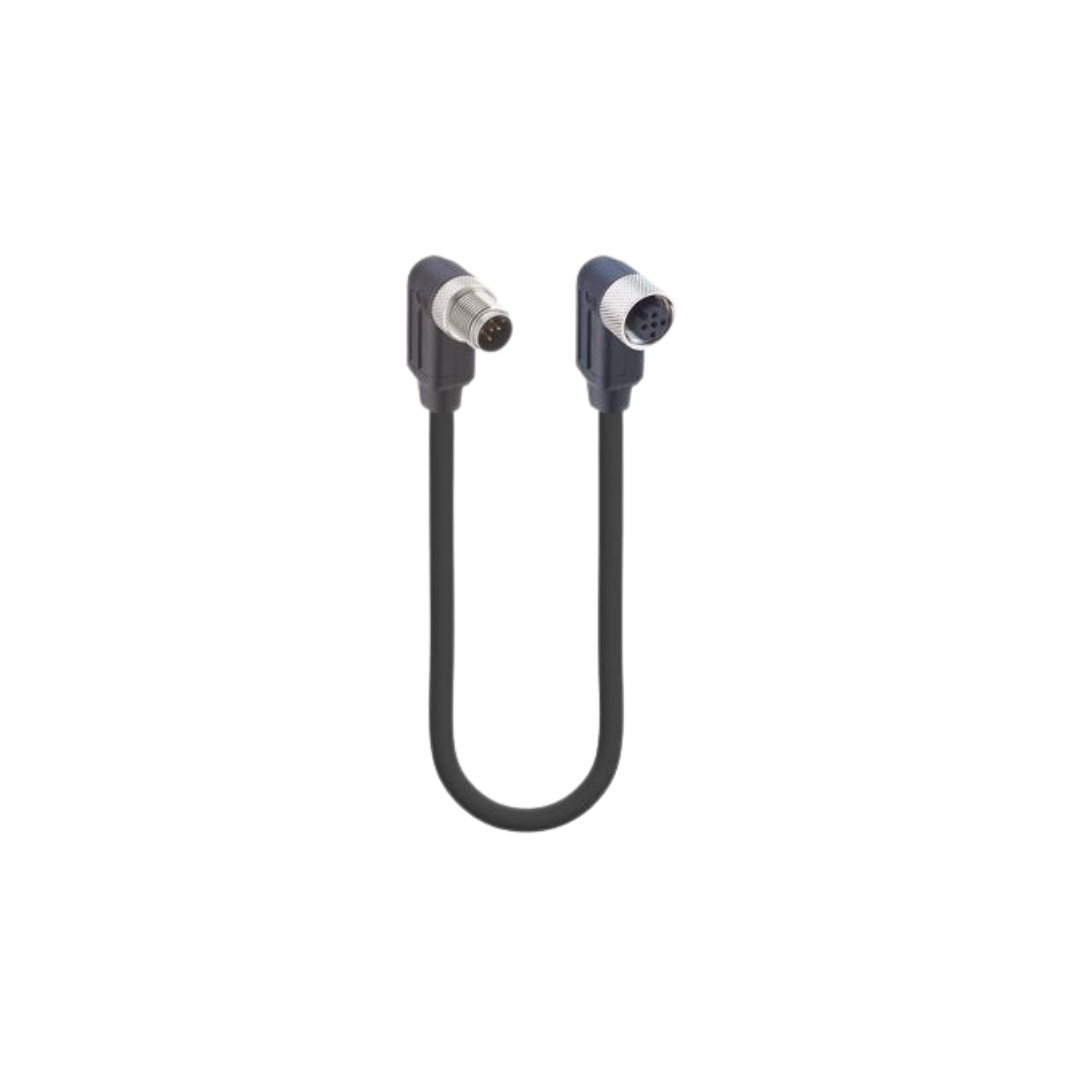

CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is a versatile, high-performance connection solution for industrial automation and data transmission applications. Featuring a male angled A-coded black M12 Standard connector to a female angled A-coded black M12 Standard connector, this cordset is designed for reliability and efficiency. It operates at 50 V AC / 60 V DC, and supports a current of up to 4 A. The cordset includes a robust PUR black cable with 4-wires: Data (2x0.25 mm²) and Power (2x0.34 mm²), ensuring stable data and power transmission.
The key benefits of this cordset include excellent chemical and oil resistance, flexibility in cold environments, and compliance with multiple flammability standards (including UL VW-1 and CSA FT-1). Its durable construction, with an IP rating of IP65, IP67, IP68 (1 m/24 h), and IP69K, ensures it can withstand harsh industrial conditions, making it a reliable choice for demanding environments.
Applications for this cordset include CANopen and DeviceNet communication systems in automation, machinery, and industrial equipment. Whether used in fixed or flexible installations, this cordset provides consistent performance and ensures long-term durability, meeting the stringent requirements of industrial protocols.
€49.50
per item
0985 508 121/2 M

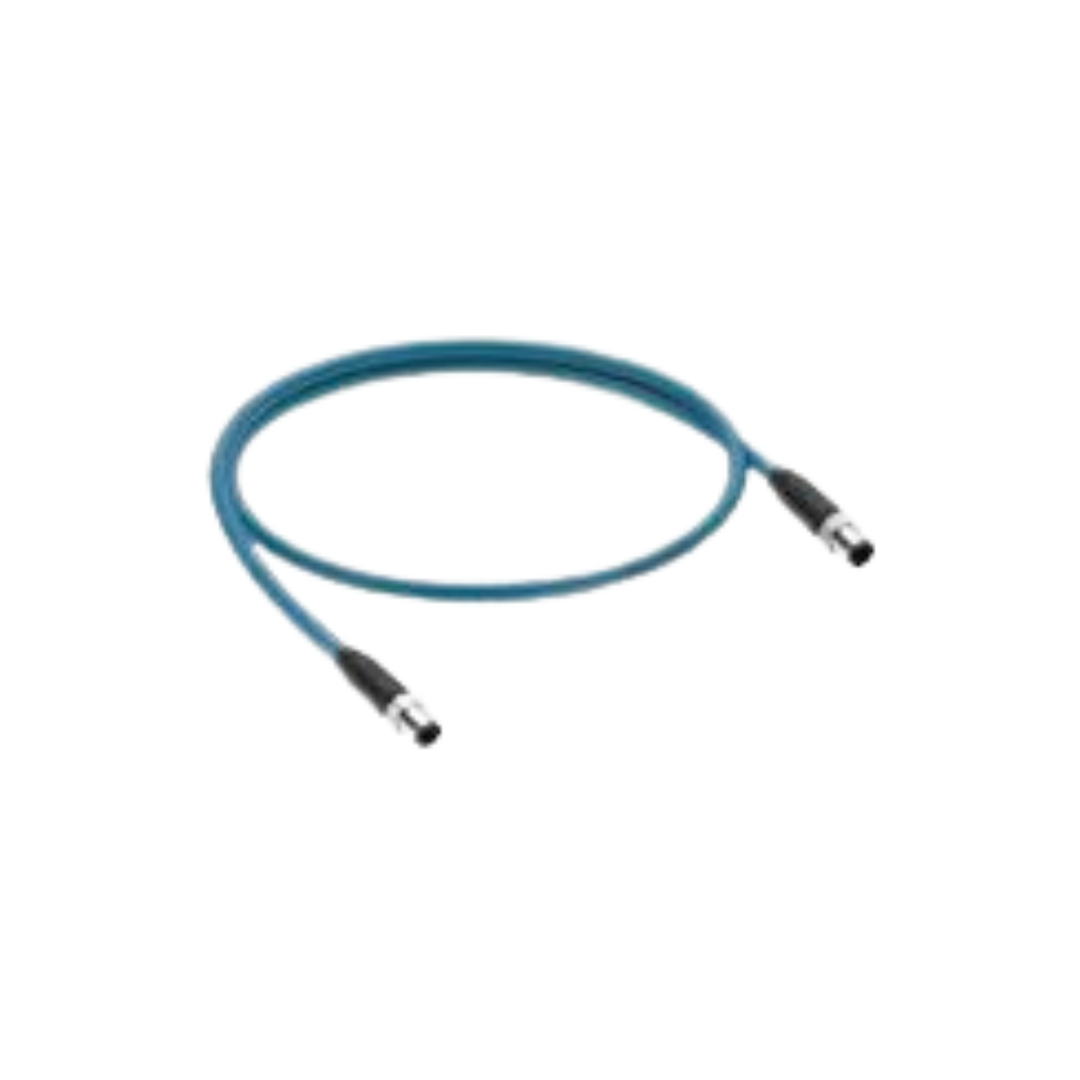

Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is a high-performance connectivity solution designed for demanding industrial environments. It features male straight D-coded black M12 Railway connectors on both ends, ensuring reliable data transmission and robust physical connections. The cordset is shielded to enhance signal integrity and resist electromagnetic interference, making it suitable for applications where data accuracy is crucial. With a voltage rating of 50 V AC / 60 V DC and current capacity of 4 A, this cordset is built to handle substantial power loads while maintaining operational stability. The X-FRNC black cable, comprising four 0.34 mm² wires, offers flexibility and durability, with a temperature operating range from -40 °C to +90 °C, and is compliant with stringent flammability standards. Applications of this cordset include railway systems, automation systems, and other industrial settings requiring reliable RJ45 Ethernet connections.
€92.48
per item
0935 253 109/20 M
CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is designed for reliable and efficient data and power transmission in industrial environments. It features robust male straight A-coded black M12 Standard connectors on each end, allowing for easy plug-and-play installation. With an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A, it ensures stable performance. The cord is constructed using a PUR black cable with four wires: two for data transmission (2x0.25 mm²) and two for power (2x0.34 mm²). The cordset's high-quality components, such as the tinned copper (CuSn) contacts and TPU-GF contact bearers, provide excellent durability and resistance to harsh environmental conditions, making the cordset suitable for various industrial automation and control systems. The cordset meets IP65, IP67, IP68, and IP69K protection standards and maintains strong performance across a wide range of temperatures, from -40°C to +80°C.
The benefits of this cordset include its high data transmission efficiency, reliable power delivery, and robust construction, ensuring long-term usage in demanding environments. The combination of PUR cable material, excellent electrical properties, and high flexibility makes it ideal for applications requiring frequent bending and installation in tight spaces. Additionally, the cord is resistant to chemicals, oil, and microbes, and it excludes harmful materials, enhancing safety and compliance with international standards.
Ideal applications for this cordset include industrial automation, machine-to-machine communication, and control systems, where maintaining uninterrupted data and power transmission is crucial. Its sturdy design and environmental resistance make it suitable for both indoor and outdoor use, ensuring versatile integration in diverse industrial settings.
€147.89
per item
0935 253 103/1,5 M
CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is equipped with a male straight A-coded black M12 Standard connector on one end and a female straight A-coded black M12 Standard connector on the other. It operates at 50 V AC/60 V DC and 4 A, ensuring robust power and data transmission. The cordset utilizes a PUR black cable with 4 wires, which includes two data wires (2x0.25 mm²) and two power wires (2x0.34 mm²). This high-quality cordset is suitable for various industrial applications, including factory automation and data communication systems. It has an IP65, IP67, IP68, and IP69K rating, providing excellent environmental protection and a long service life. The connectors are designed to withstand harsh conditions with their nickel-plated CuZn attachment materials and TPU molded bodies, ensuring durability and reliability in demanding environments.
€38.52
per item
0935 253 103/65 M
CANopen / DeviceNet Data Double-Ended Cordset
CANopen / DeviceNet Data Double-Ended Cordset: Male straight A-coded black M12 Standard to female straight A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€486.72
per item
0935 253 103/20 M
CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset features a male straight A-coded black M12 Standard connector on one end and a female straight A-coded black M12 Standard connector on the other. Designed for reliable data and power transmission, it supports 50 V AC / 60 V DC and 4 A current. The cordset includes a durable, black PUR cable with four wires: two for data (2x0.25 mm²) and two for power (2x0.34 mm²). It offers robust construction with Cu/Au-plated contacts, capable of enduring ambient temperatures ranging from -40°C to +80°C and meets IP65, IP67, IP68, and IP69K protection standards. Ideal for industrial automation and networking applications.
€188.48
per item
