M12 - D-Coded Fast ethernet CAT5E Double-ended cordset RJ45 - male right angled

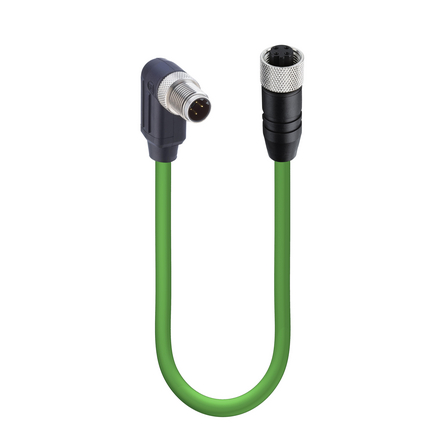

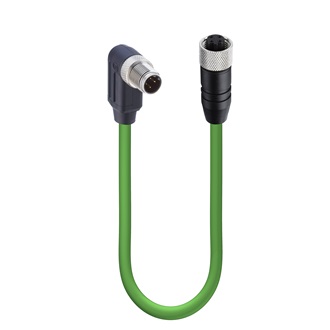

The Fast Ethernet Cat5e Data Double-Ended Cordset is a high-quality cable designed for reliable data transmission in industrial settings. The cordset features a male angled D-coded black M12 Standard connector on one end and a female straight D-coded black M12 Standard connector on the other. The cable is shielded for enhanced signal integrity and is rated for 50 V AC / 60 V DC and 4 A. It is constructed with a PUR green cable that houses 4 wires (2x2x0.34 mm²), ensuring durability and flexibility. The connectors are designed to withstand harsh environments with an IP65, IP67, IP68, and IP69K protection rating. This cordset supports Fast Ethernet Cat5e data transmission up to 100 Mbit/s, making it suitable for high-speed data communication in industrial automation and other demanding applications.

The Fast Ethernet Cat5e Data Double-Ended Cordset is a reliable solution for high-speed data transmission. This cordset features a male angled D-coded black M12 Standard connector on one end and a female straight D-coded black M12 Standard connector on the other. The connectors are shielded to ensure stable performance, rated for 50 V AC / 60 V DC, and can carry up to 4 A current. The cordset is equipped with a green PUR cable, designed with 4 wires in a 2x2x0.34 mm² configuration, promising durability and flexibility. This cordset offers numerous benefits, including high-speed data transmission at 100 Mbit/s, and is constructed from durable, high-quality materials such as CuSn plated contacts, TPU molded body, and a PUR jacket. It complies with significant standards like IEC 61076-2-101 and has a high protection degree (IP65, IP67, IP68, and IP69K), ensuring safe operation in various environments. It is equipped with features to resist oil, chemicals, and microbes, and is free from dangerous materials, PVC, and silicone. Ideal for various industrial applications, this cordset can be used in fixed installations, flexible installations, or even in drag chain environments. Its reliable performance and robust construction make it suitable for demanding applications such as factory automation, robotics, and any other areas where fast communication and data transfer are crucial.
