M12 A-Coded Male Right-Angled to Female PUR Black CANopen / DeviceNet

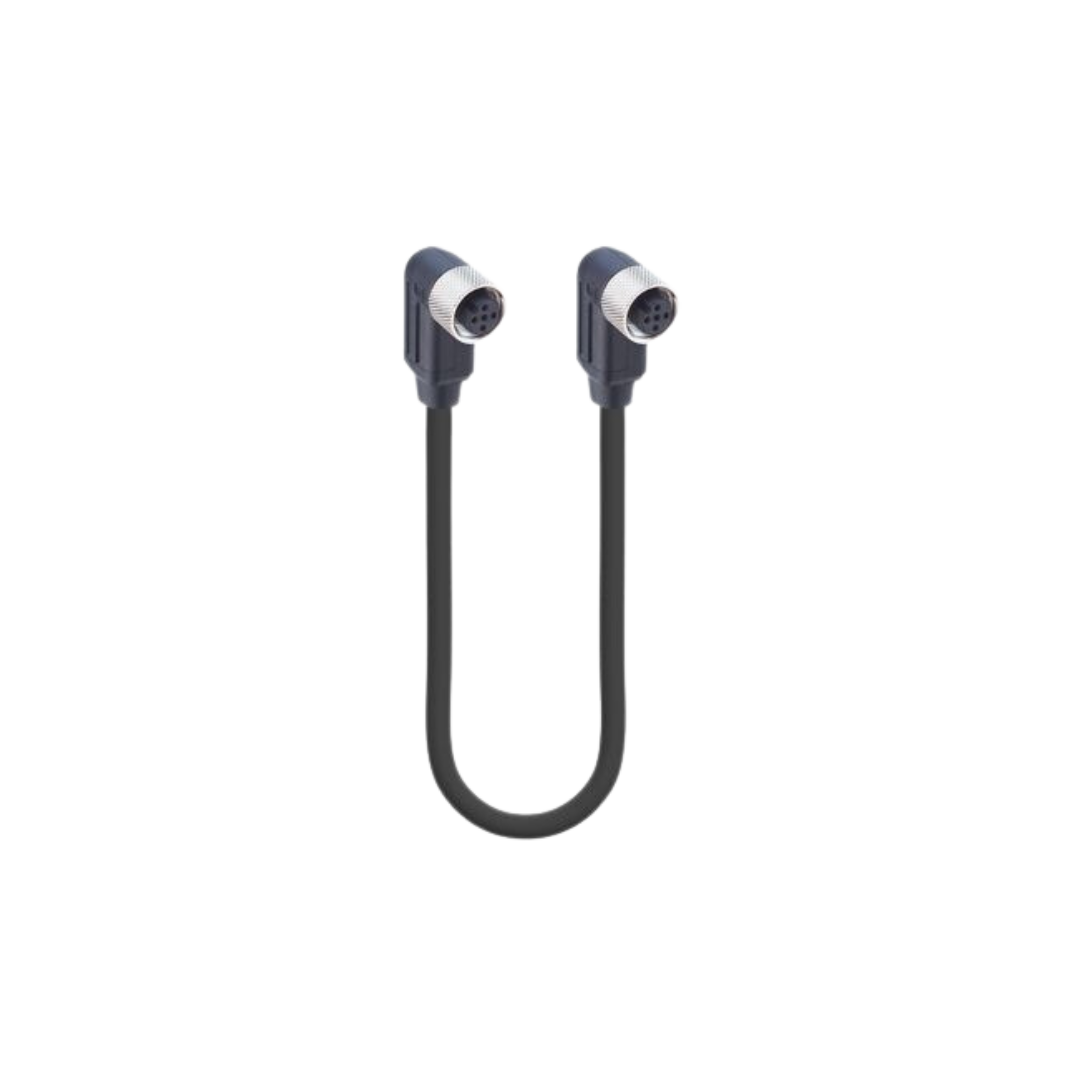

The CANopen / DeviceNet Data Double-Ended Cordset is designed for industrial automation applications requiring reliable data transmission. This cordset features a female angled A-coded black M12 Standard connector on both ends, ensuring secure connections with 50 V AC / 60 V DC operational capacity and a maximum current load of 4A. The cord features a durable black PUR jacket with a 4-wire configuration, where data cables consist of 2x0.25 mm² conductors and power cables consist of 2x0.34 mm² conductors. It complies with IEC 61076-2-101 and boasts high resistance against chemicals, oil, and physical stresses like bending and temperature fluctuations. The cordset's robust construction is suitable for environments needing IP65 to IP69K protection standards, ensuring it can withstand dust, water, and other challenging industrial conditions. Ideal for CANopen / DeviceNet installations, this cordset ensures seamless data and power transmission in demanding environments.

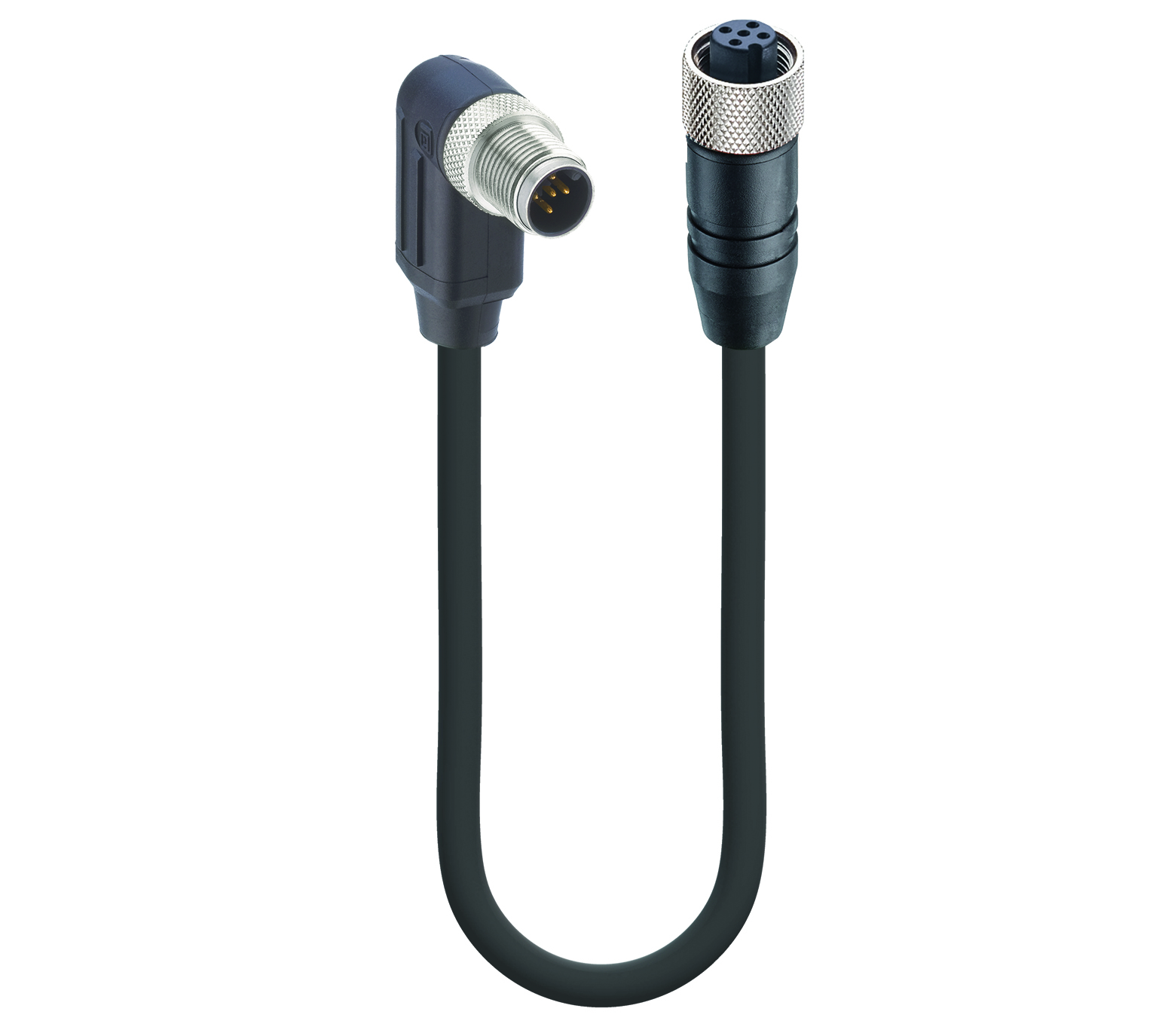

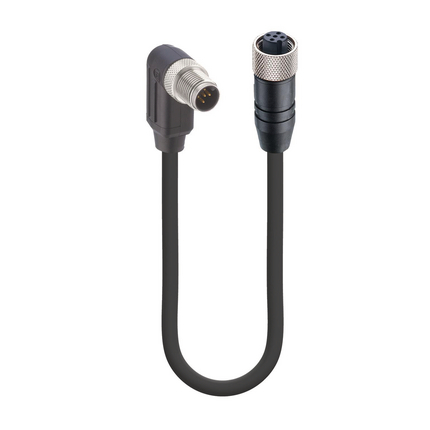

The CANopen / DeviceNet Data Double-Ended Cordset is designed with a male angled A-coded black M12 Standard connector at one end and a female straight A-coded black M12 Standard connector at the other. It is rated for 50 V AC / 60 V DC and 4 A, making it suitable for various industrial applications. The cordset features a black PUR cable with 4 wires, supporting data transmission via two 0.25 mm² wires and power transmission via two 0.34 mm² wires. This product ensures high durability and performance, even in challenging environments, due to its excellent protection ratings (IP65, IP67, IP68, IP69K) and resistance to chemicals, oils, and extreme temperatures.

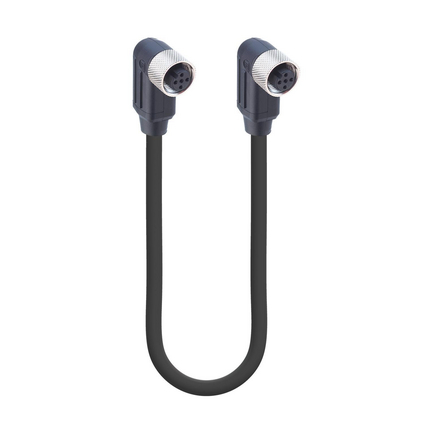

The CANopen / DeviceNet Data Double-Ended Cordset provides reliable data transmission with its robust design. Featuring female angled A-coded black M12 Standard connectors on both ends, this cordset supports 50 V AC / 60 V DC and 4 A, making it suitable for various industrial applications. The connectors are crafted with a coupling nut design for secure attachment and are rated with an IP65, IP67, IP68, and IP69K protection degree, ensuring high resistance to environmental factors. The integrated PUR black cable, composed of 4-wires (Data: 2x0.25 mm² and Power: 2x0.34 mm²), enhances electrical performance and durability, while also offering good resistance to chemicals, oil, and extreme temperatures (- 40 °C to + 80 °C in operation). With features like exclusion of dangerous materials, good microbes and hydrolysis resistance, and coldness flexibility, this cordset stands out as a high-quality choice for industrial automation. Additionally, it includes superior shielding (Cu-ETP1 tinned and Al-PT Foil) for optimal signal integrity, making it ideal for CANopen and DeviceNet networks.
