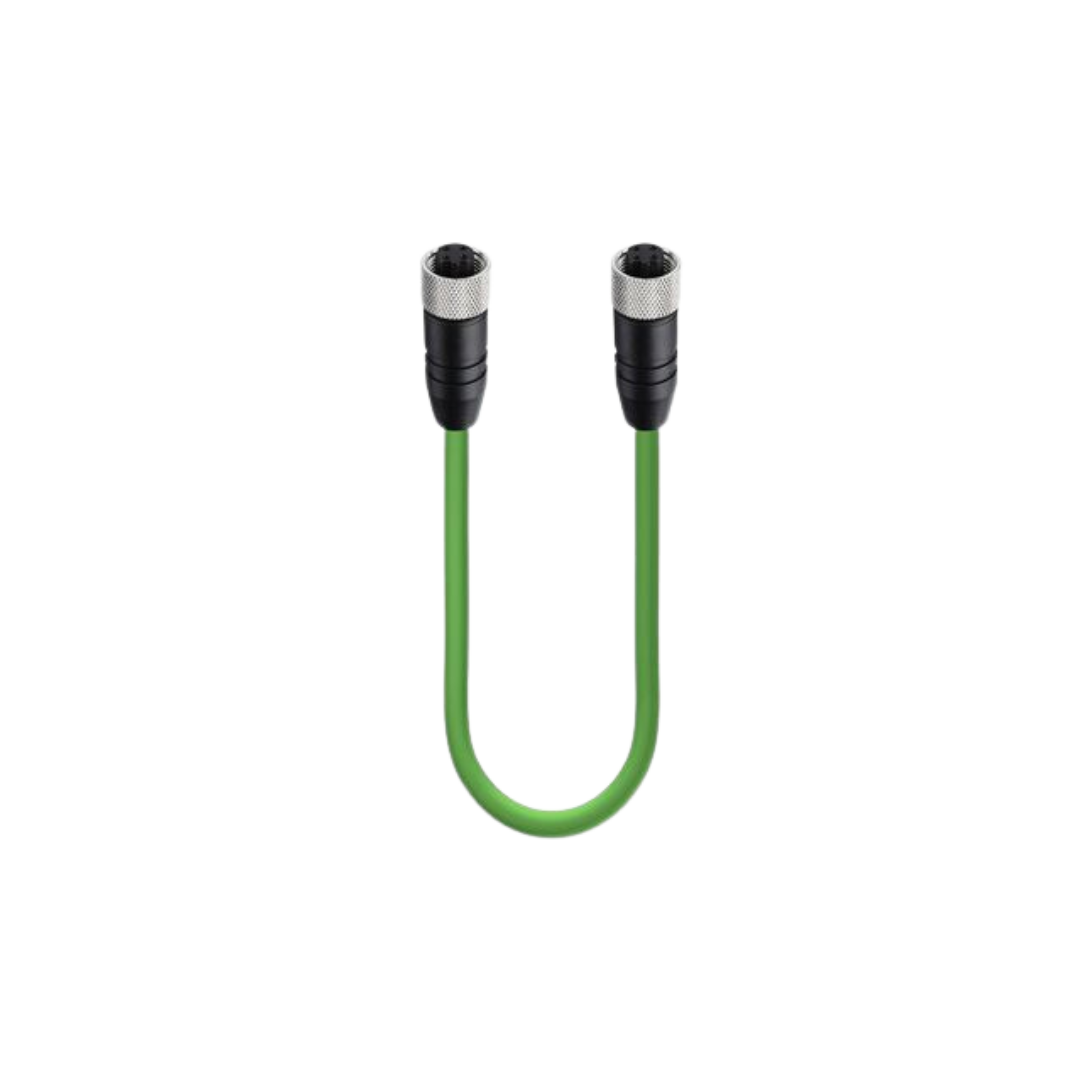

M12 - D coded Profinet Data Double-ended cord set Female - Female

The Fast Ethernet Cat5e Data Double-Ended Cordset offers secure and efficient data transmission with its female straight D-coded black M12 Standard connectors on both ends. Designed with a TPE green cable that has a 4-wire configuration and a conductor size of 0.38 mm², this cordset ensures reliable performance under various operating conditions. It is rated for 50 V AC / 60 V DC and can handle up to 4A of current, making it suitable for diverse industrial applications. The cordset is shielded for enhanced protection against interference, supporting a data transmission rate of up to 100 Mbit/s and meeting Fast Ethernet Cat5e standards. With an IP65, IP67, and IP69K protection rating, this cordset is optimized for use in harsh environments, providing robust resistance to dust and water. Additionally, the design meets IEC 61076-2-101 standards, and it is compliant with RoHS regulations. The ambient temperature range for operation spans from -40 °C to +90 °C. Its highly durable build, including Cu/Au plating on contacts and nickel-plated attachment materials, ensures long-lasting performance with minimal maintenance, making it ideal for critical data communication tasks in industrial settings.

The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for high-speed data transmission and robust performance. This cable features a female straight D-coded black M12 Standard connector on both ends, shielded for enhanced protection against electromagnetic interference. The TPE green cable includes four wires with a cross-section of 0.38 mm², ensuring reliable connectivity. Rated at 50 V AC / 60 V DC and 4 A, it supports Fast Ethernet Cat5e data transmission up to 100 Mbit/s. The M12 connectors comply with IEC 61076-2-101 standards and offer IP65, IP67, and IP69K protection degrees, making them suitable for harsh industrial environments. The cordset is resistant to oils and sunlight, ensuring longevity and durability.

The Fast Ethernet Cat5e Data Double-Ended Cordset provides a reliable and durable solution for data transmission. Designed with female straight D-coded black M12 Standard connectors on both ends, this shielded cordset ensures secure and stable connections. The green TPE cable, with a diameter of 6.50 ± 0.20 mm, houses 4 wires with a conductor size of 0.38 mm², providing robust performance even in challenging environments. Rated for 50 V AC / 60 V DC and up to 4 A, this cordset is suitable for a wide range of applications including industrial automation. Utilizing high-quality materials such as CuSn for contacts and PBT for contact bearers, the cordset ensures low contact resistance (≤ 10 mOhm) and high insulation resistance (˃ 10^9 Ohm). The connectors are designed to withstand up to 100 mating cycles, making it a reliable choice for frequent connections and disconnections. Additionally, the cordset is compliant with IP65, IP67, and IP69K protection degrees, ensuring excellent resistance to dust and water ingress. The Fast Ethernet Cat5e Data Double-Ended Cordset is ideal for use in industrial environments where robust and reliable data transmission is required. It provides secure connections for various devices and systems, maintaining signal integrity and reducing the risk of data loss. The shielded design protects against electromagnetic interference, ensuring fast and accurate data transmission at rates of up to 100 Mbit/s.
