M12 A-Coded Male to Male PUR Black CANopen / DeviceNet

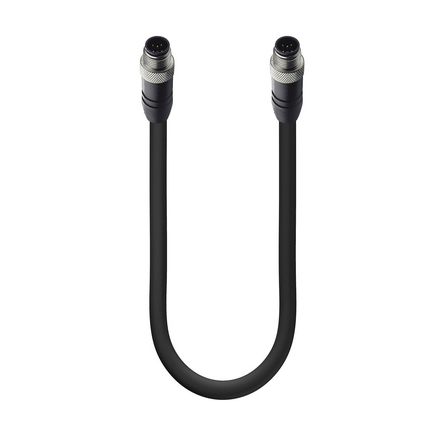

The CANopen / DeviceNet Data Double-Ended Cordset is designed for reliable and efficient data and power transmission in industrial environments. It features robust male straight A-coded black M12 Standard connectors on each end, allowing for easy plug-and-play installation. With an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A, it ensures stable performance. The cord is constructed using a PUR black cable with four wires: two for data transmission (2x0.25 mm²) and two for power (2x0.34 mm²). The cordset's high-quality components, such as the tinned copper (CuSn) contacts and TPU-GF contact bearers, provide excellent durability and resistance to harsh environmental conditions, making the cordset suitable for various industrial automation and control systems. The cordset meets IP65, IP67, IP68, and IP69K protection standards and maintains strong performance across a wide range of temperatures, from -40°C to +80°C. The benefits of this cordset include its high data transmission efficiency, reliable power delivery, and robust construction, ensuring long-term usage in demanding environments. The combination of PUR cable material, excellent electrical properties, and high flexibility makes it ideal for applications requiring frequent bending and installation in tight spaces. Additionally, the cord is resistant to chemicals, oil, and microbes, and it excludes harmful materials, enhancing safety and compliance with international standards. Ideal applications for this cordset include industrial automation, machine-to-machine communication, and control systems, where maintaining uninterrupted data and power transmission is crucial. Its sturdy design and environmental resistance make it suitable for both indoor and outdoor use, ensuring versatile integration in diverse industrial settings.

The CANopen / DeviceNet Data Double-Ended Cordset is designed for robust and reliable data transmission in industrial environments. This cordset features male straight A-coded black M12 connectors on both ends. It can operate at voltages of 50 V AC / 60 V DC and handle currents up to 4 A. The cable is made of durable PUR material, colored black, and consists of four wires: two for data (2x0.25 mm²) and two for power (2x0.34 mm²). The cordset conforms to IP65, IP67, IP68, and IP69K protection ratings, ensuring high resistance to water and dust. It adheres to the IEC 61076-2-101 design standard and can function in harsh temperatures ranging from -40 °C to +80 °C. The product is RoHS compliant and meets various flammability and environmental standards. The cordset provides high-performance data transmission for CANopen and DeviceNet applications. Its robust construction ensures minimal contact resistance, high insulation resistance, and superior mechanical stability. The TPU-GF contact bearer and CuSn contact base material with Cu/Au plating guarantee excellent conductivity and longevity. The cordset's PUR jacket offers enhanced flexibility and resistance to chemicals, oils, and various environmental stressors. Ideal for industrial automation, factory setups, and machinery requiring reliable connections for CANopen / DeviceNet protocols, this cordset ensures consistent performance and safety in demanding operational conditions. Its various cable lengths from 0.3m to 20m cater to diverse installation requirements.

The CANopen / DeviceNet Data Double-Ended Cordset is built for seamless and efficient data transmission. Featuring male straight A-coded black M12 connectors on both ends, this cordset is designed to handle 50 V AC / 60 V DC, and supports up to 4 A current. The robust PUR black cable incorporates four wires—two for data (2x0.25 mm²) and two for power (2x0.34 mm²)—ensuring reliable performance in various applications. This cordset is suitable for industrial environments, given its IP65, IP67, IP68, and IP69K protection ratings, and can withstand ambient temperatures ranging from -40 °C to +80 °C. The M12 connectors, made of high-quality CuZn and nickel-plated, exhibit excellent resistance to wear and environmental factors. Overall, this cordset provides a durable and efficient solution for connecting CANopen and DeviceNet systems.

The CANopen / DeviceNet Data Double-Ended Cordset is engineered for reliable data transmission and connectivity in demanding environments. Featuring a male straight A-coded black M12 Standard connector on both ends, this cordset is suitable for applications requiring up to 50 V AC / 60 V DC and 4 A of current. The cable is constructed with a PUR black jacket and has four wires, with data wires sized at 2x0.25 mm² and power wires at 2x0.34 mm², ensuring both robust data transfer and power delivery. The connectors' design ensures low contact resistance (< 10 mOhm) and high insulation resistance (> 10^9 Ohm), making it ideal for industrial automation systems that utilize CANopen or DeviceNet protocols. Additionally, with an IP rating of IP65, IP67, IP68, and IP69K, and a wide operating temperature range from -40 °C to +80 °C, this cordset offers excellent protection against environmental factors, ensuring longevity and performance.

The CANopen / DeviceNet Data Double-Ended Cordset is designed for data transmission in industrial automation applications. This cordset features male straight A-coded black M12 Standard connectors on both ends, providing reliable and secure connections in harsh environments. It operates at a voltage of 50 V AC / 60 V DC with a current rating of 4 A, making it suitable for a wide range of devices. The cable is made of PUR and contains four wires, with two wires designated for data transmission (2x0.25 mm²) and two wires for power (2x0.34 mm²), ensuring efficient and stable performance.

The CANopen / DeviceNet Data Double-Ended Cordset is a high-quality connector cable designed for industrial automation systems. It features male straight A-coded black M12 Standard connectors on both ends, ensuring a secure and reliable connection. The cordset operates at a rated voltage of 50 V AC/60 V DC and carries a current of up to 4 A. The cable itself is made of durable PUR material, which is both flexible and resistant to chemical and oil damage. The cordset includes four wires: two for data transmission (2x0.25 mm²) and two for power transmission (2x0.34 mm²), offering robust performance for data-sensitive and power applications. Benefits of using this cordset include its high durability, resistance to harsh environmental conditions, and reliable transmission of both data and power. The cord is coated with a black, matte PUR jacket that provides excellent protection against mechanical stress and environmental factors. It features a high insulation resistance of >10^9 Ohm and a contact resistance of ≤ 10 mOhm, making it suitable for demanding industrial applications. Applications of this double-ended cordset include connecting various devices within industrial networks that utilize CANopen or DeviceNet protocols. It’s particularly well-suited for environments requiring secure and reliable data transmission under varying temperature conditions (-40 °C to +80 °C). The flexible yet rugged design makes it ideal for use in industrial automation, machinery, and automotive applications.

The CANopen / DeviceNet Data Double-Ended Cordset is designed to provide secure and efficient data transmission for industrial applications. This cordset features male straight A-coded black M12 standard connectors on both ends, ensuring a sturdy connection. Operating at 50 V AC/60 V DC with a current rating of 4A, it is suitable for high-performance environments. The PUR black cable houses four wires, two for data (2x0.25 mm²) and two for power (2x0.34 mm²), ensuring stable and reliable power and data supply. Additional attributes include shielding, low contact resistance, a high level of insulation resistance, and a wide operating temperature range (-40 °C to 80 °C).

CANopen / DeviceNet Data Double-Ended Cordset: Male straight A-coded black M12 Standard to male straight A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
