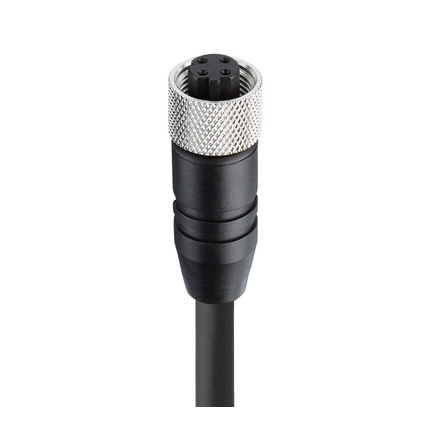

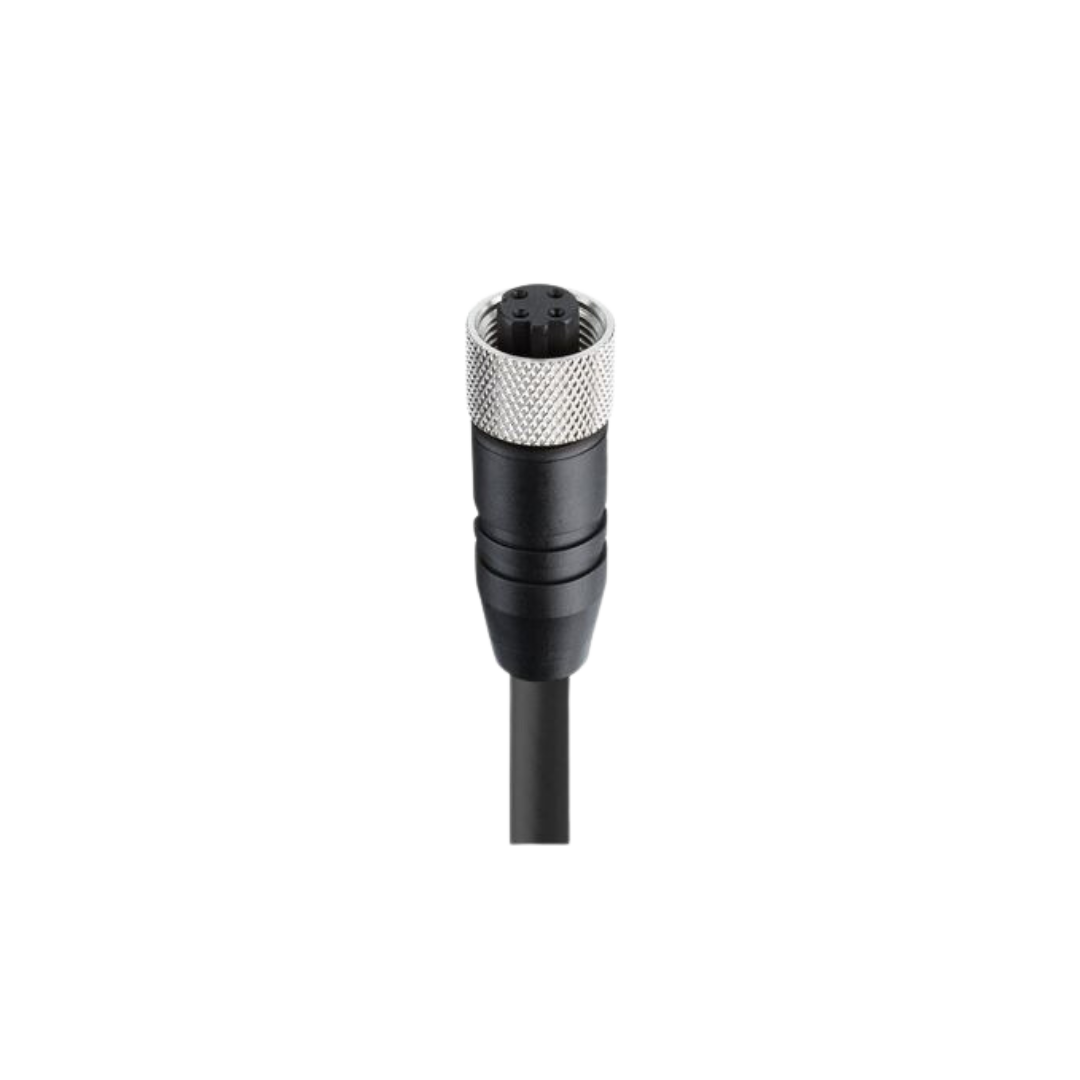

M12 - D-Coded Fast ethernet CAT5E DATA Single-ended cordset female

Fast Ethernet Cat5e Data Single-Ended Cordset is designed for high-speed data transmission in industrial environments. The M12 Railway connector is female, straight, and features 4 pins with D-coding, providing robust and shielded connections. With a rated voltage of 50 V AC / 60 V DC and current capacity up to 4 A, this cordset ensures reliable performance under various conditions. The black X-FRNC cable has a diameter of 6.70 ± 0.30 mm and houses 4 wires, each with a conductor size of 0.34 mm². The cordset is built for durability with components that meet rigorous standards including IP65, IP67, and IP69K ratings for water and dust resistance. Ideal for railway applications, it offers a high level of insulation resistance and mechanical robustness. The materials used ensure compliance with industrial safety and environmental standards, making it a dependable choice for data transmission in demanding environments.
