M12 A-coded M/F PUR violet CANopen/DeviceNet

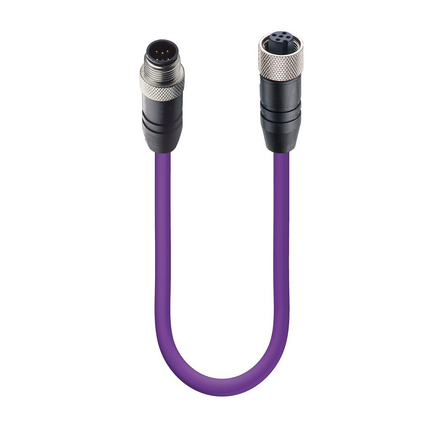

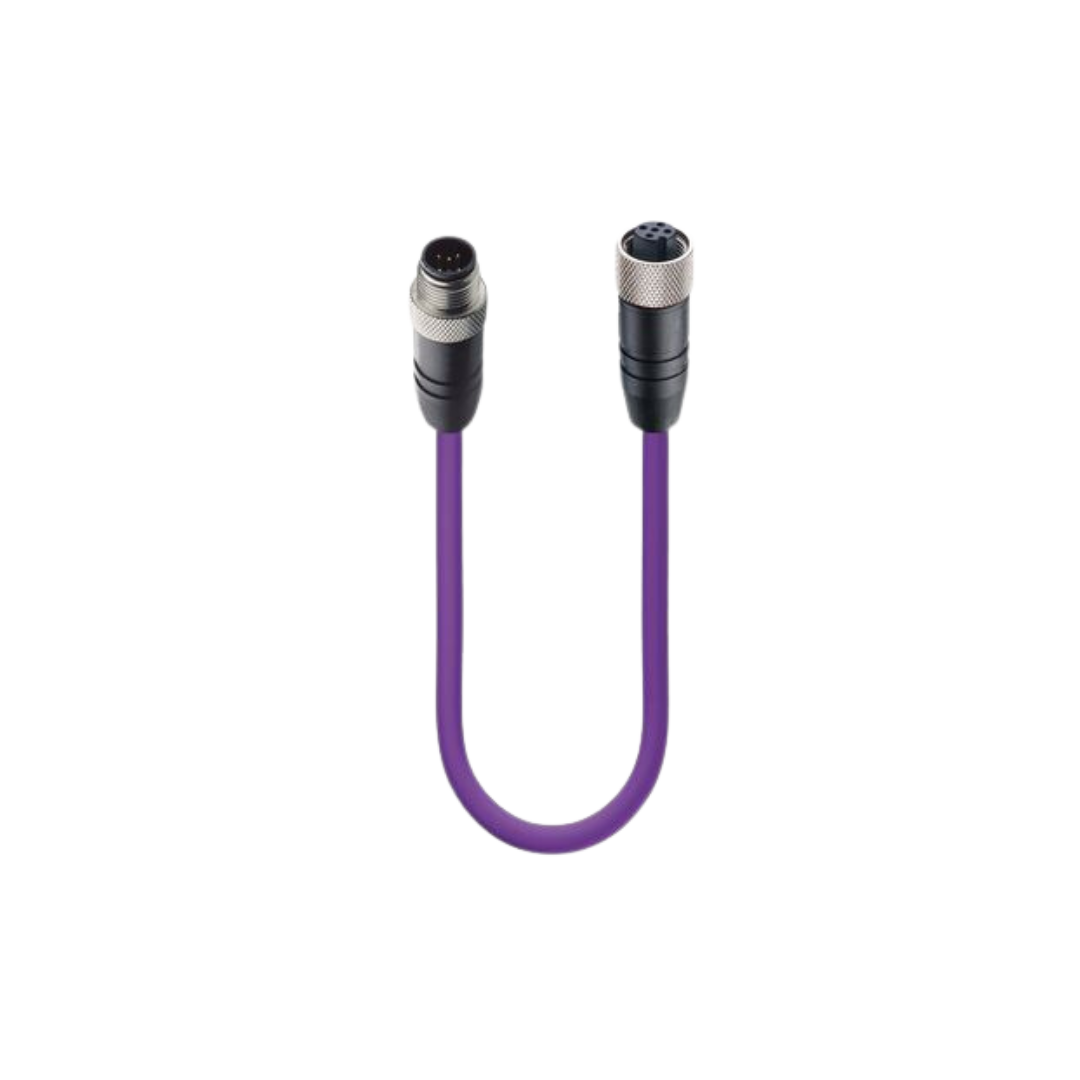

The CANopen / DeviceNet Data Double-Ended Cordset features a male straight A-coded black M12 Standard to a female straight A-coded black M12 Standard connector. It operates at 50 V AC / 60 V DC with a continuous current capacity of 4 A. The cordset is equipped with a robust PUR violet cable consisting of 4 wires, allocated for data (2x0.25 mm²) and power (2x0.34 mm²). Each connector includes 5 pins and the cable length ranges from 0.6m to 5m, offering versatility in various applications. This cordset provides exceptional durability, with an IP protection rating up to IP69K, ensuring superior resistance to water and dust ingress. The cable material is PUR, which is known for good microbial, hydrolysis, chemical, and oil resistance, making it an ideal choice for harsh industrial environments. The connectors are designed per IEC 61076-2-101 standards and are capable of enduring up to 100 mating cycles. With its robust design and compliance with CANopen and DeviceNet specifications, this cable is suitable for various industrial applications, particularly in automation and process control environments.

The CANopen / DeviceNet Data Double-Ended Cordset is designed for seamless data and power transmission in various industrial applications. This cordset features a male straight A-coded black M12 Standard to a female straight A-coded black M12 Standard, ensuring robust connections with a rated current of 4A and operating voltage of 50V AC / 60V DC. The four-wire PUR violet cable consists of data conductors (2x0.25 mm²) and power conductors (2x0.34 mm²), providing reliable connectivity. The cable boasts excellent resistance characteristics including good microbes, hydrolysis, and chemical resistance, ensuring durability and long operational life. Additionally, the cordset is RoHS compliant and exhibits high flexibility, making it suitable for a wide range of industrial environments. Its IP65, IP67, IP68, and IP69K protection ratings further underscore its resilience against harsh conditions.

The CANopen / DeviceNet Data Double-Ended Cordset is designed for robust and reliable data transmission. Featuring a male straight A-coded black M12 Standard connector on one end and a female straight A-coded black M12 Standard connector on the other, this cordset supports a maximum voltage of 50 V AC / 60 V DC and a current of 4 A. The cable is constructed with a PUR violet jacket and consists of 4 wires: 2x0.25 mm² for data and 2x0.34 mm² for power. The durable construction ensures excellent resistance to chemicals and oils, along with flexibility even at low temperatures. The overall design complies with IEC 61076-2-101 and offers an IP rating of IP65, IP67, IP68, and IP69K, making it suitable for a variety of industrial applications such as CANopen and DeviceNet systems.
