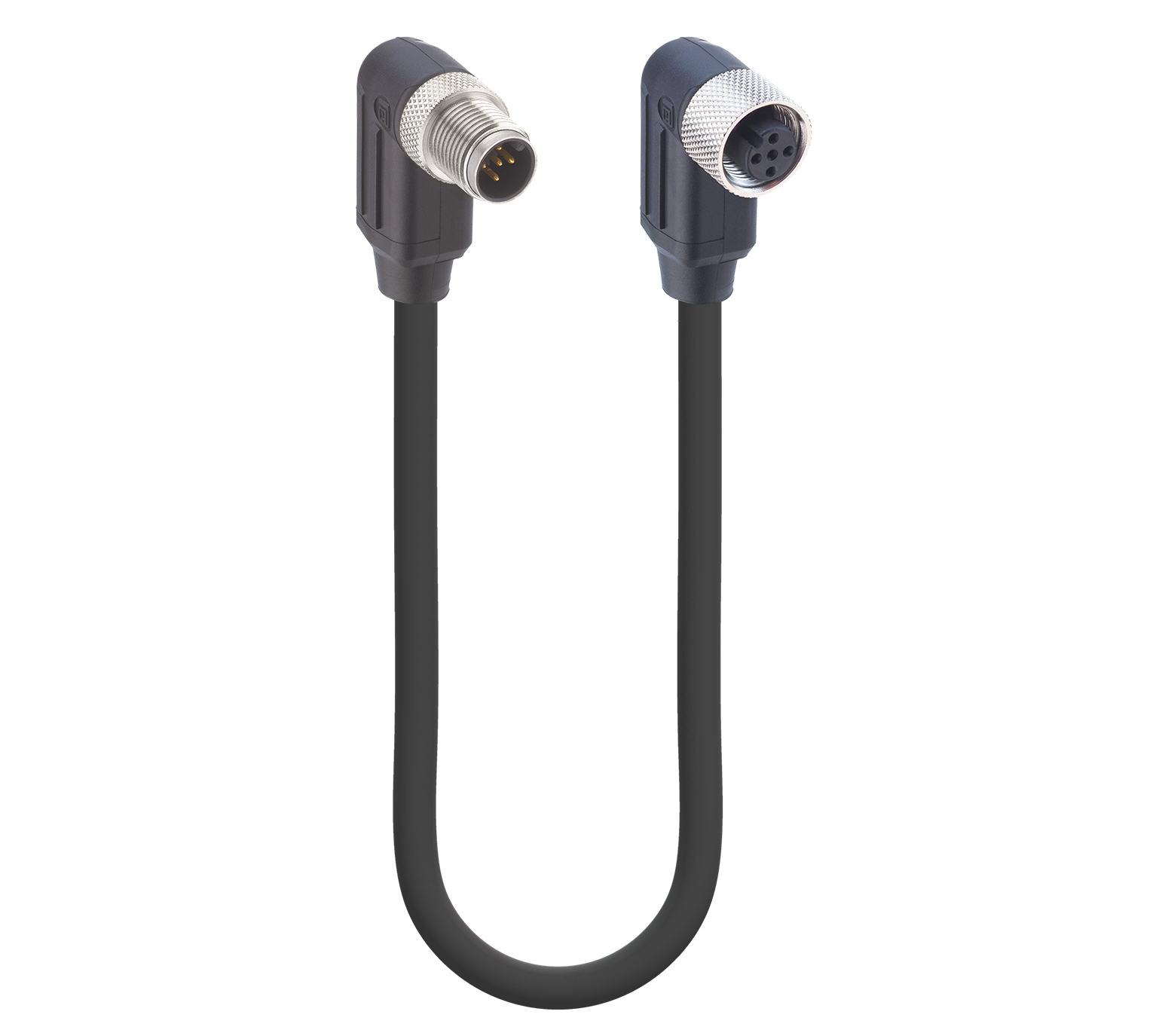

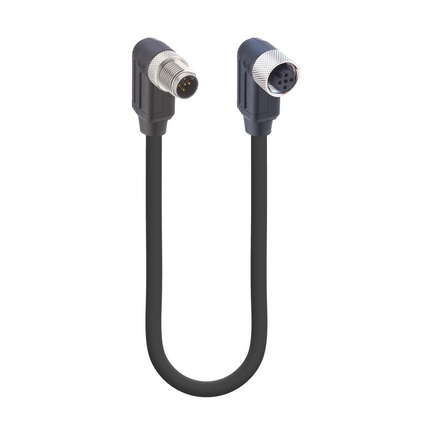

M12 A-Coded Male to Female Double Right-Angled PUR Black CANopen / DeviceNet

The CANopen / DeviceNet Data Double-Ended Cordset is designed for reliable data and power transmission. It features a male angled A-coded black M12 Standard connector on one end and a female angled A-coded black M12 Standard connector on the other. The cordset supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. The robust PUR black cable is constructed with 4 wires: two for data (2x0.25 mm²) and two for power (2x0.34 mm²), providing efficient and stable connections. The high-quality materials, including CuSn contacts with Cu/Au plating and a black TPU molded body, ensure durability and resistance to environmental factors. This cordset is an ideal solution for CANopen and DeviceNet applications, offering easy installation and mechanical stability for industrial environments.

CANopen / DeviceNet Data Double-Ended Cordset: Male angled A-coded black M12 Standard to female angled A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²

The CANopen/DeviceNet Data Double-Ended Cordset is designed for robust data connectivity and power transmission. Featuring a male angled M12 A-coded connector on one side and a female angled M12 A-coded connector on the other, it operates at a rated voltage of 50V AC/60V DC with a current rating of 4A. The black PVC cable comprises four wires: two for data (2x0.25 mm²) and two for power (2x0.34 mm²), ensuring reliable and efficient performance. The connectors are nickel-plated and shielded to resist corrosion and signal interference, while the cable jacket is made of PUR for excellent flexibility and durability. This cordset supports over 1 million bending cycles and functions within an operational temperature range of -40 °C to +80 °C. It meets IP65, IP67, IP68, and IP69K standards for protection and is UL listed, making it perfect for industrial automation applications.

The CANopen / DeviceNet Data Double-Ended Cordset features male and female angled A-coded black M12 Standard connectors. Designed to handle 50 V AC / 60 V DC and a current rating of 4 A, this cordset ensures reliable data and power transmission. The 4-wire configuration includes data lines (2x0.25 mm²) and power lines (2x0.34 mm²) encapsulated in a durable PUR black cable. Ideal for industrial applications, it offers robust resistance to chemicals, oils, and environmental conditions while maintaining flexibility even in cold environments.

This CANopen / DeviceNet Data Double-Ended Cordset is designed for seamless data transmission in automation systems. Featuring male and female angled A-coded black M12 Standard connectors, this cordset supports 50 V AC / 60 V DC with a 4 A rating. The robust, black PUR cable incorporates four wires, with two dedicated to data (2x0.25 mm²) and two for power (2x0.34 mm²). Offering excellent resistance to chemicals, oils, and harsh environmental conditions, it complies with IP65, IP67, IP68 (1m/24h), and IP69K ratings, ensuring durability and reliable performance even in demanding settings. This cordset provides a secure, coupling screw attachment type, making it ideal for CANopen and DeviceNet applications, from industrial automation to machine interfaces. The high-quality contacts plated with Cu/Au guarantee optimal connectivity, while the cable's flexibility allows for varied installations.

The CANopen / DeviceNet Data Double-Ended Cordset is an essential component for secure and efficient data transmission in industrial environments. This cordset boasts a male angled A-coded black M12 Standard connector on one end and a female angled A-coded black M12 Standard connector on the other. It is rated for 50 V AC/60 V DC and 4 A, ensuring robust performance. The black PUR cable features 4 wires, with data conductors of 2x0.25 mm² and power conductors of 2x0.34 mm², providing optimal balance between flexibility and durability. With protection ratings of IP65, IP67, IP68, and IP69K, it guarantees reliable operation in demanding conditions. Its Cu/Au-plated contacts ensure low resistance and high insulation performance, making it ideal for automotive, manufacturing, and automation applications.

The CANopen / DeviceNet Data Double-Ended Cordset ensures reliable data transmission with its male and female A-coded black M12 Standard connectors, both angled for optimal cable routing. Rated at 50 V AC / 60 V DC with a current capacity of 4 A, this cordset is robust and durable, featuring a PUR black cable with 4 wires: Data (2x0.25 mm²) and Power (2x0.34 mm²). It meets high protection standards (IP65, IP67, IP68, IP69K) and operates in temperatures ranging from -40°C to +80°C, ensuring performance under various conditions. The cordset is designed for applications in industrial automation and control systems, providing secure and effective connectivity for CANopen and DeviceNet networks. Its high mechanical and chemical resistance makes it suitable for a variety of challenging environments.

The CANopen / DeviceNet Data Double-Ended Cordset is a versatile, high-performance connection solution for industrial automation and data transmission applications. Featuring a male angled A-coded black M12 Standard connector to a female angled A-coded black M12 Standard connector, this cordset is designed for reliability and efficiency. It operates at 50 V AC / 60 V DC, and supports a current of up to 4 A. The cordset includes a robust PUR black cable with 4-wires: Data (2x0.25 mm²) and Power (2x0.34 mm²), ensuring stable data and power transmission. The key benefits of this cordset include excellent chemical and oil resistance, flexibility in cold environments, and compliance with multiple flammability standards (including UL VW-1 and CSA FT-1). Its durable construction, with an IP rating of IP65, IP67, IP68 (1 m/24 h), and IP69K, ensures it can withstand harsh industrial conditions, making it a reliable choice for demanding environments. Applications for this cordset include CANopen and DeviceNet communication systems in automation, machinery, and industrial equipment. Whether used in fixed or flexible installations, this cordset provides consistent performance and ensures long-term durability, meeting the stringent requirements of industrial protocols.

The CANopen / DeviceNet Data Double-Ended Cordset features a male, angled, A-coded, black M12 Standard connector on one end and a female, angled, A-coded, black M12 Standard connector on the other. It supports voltage ratings of 50 V AC and 60 V DC and a current rating of 4 A, making it suitable for a variety of applications. The durable PUR black cable includes 4 wires, with data pairs of 2 x 0.25 mm² and power pairs of 2 x 0.34 mm². This cordset is ideal for data transmission over CANopen and DeviceNet protocols. It offers robust protection against environmental factors with IP65, IP67, IP68 (1 m / 24 h), and IP69K ratings, and operates in temperatures ranging from -40°C to +80°C.

CANopen / DeviceNet Data Double-Ended Cordset: Male angled A-coded black M12 Standard to female angled A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
