M12 U-Coded Female PVC Orange

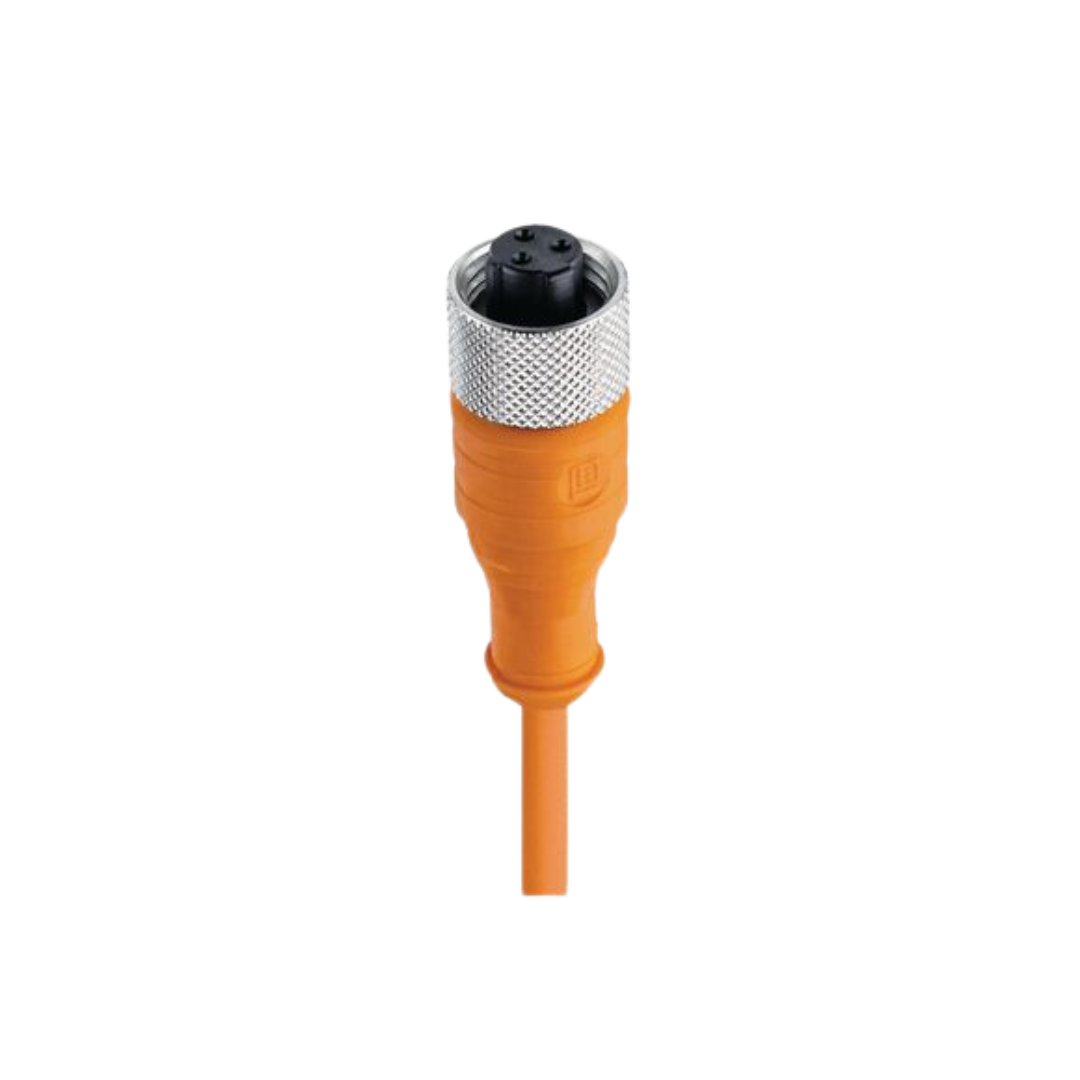

The M12 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable connector designed for industrial sensor and actuator applications. This cordset features a 3-pin U-coded female connector with a straight design and an orange body. It operates at 230 V AC/DC and supports a current capacity of 4 A. The orange PVC cable is 3-wired, with a wire size of 0.50 mm², ensuring durability and resistance to environmental factors. With IP65 and IP67 protection ratings and compliance with IEC 61076-2-101 standards, this cordset provides reliable performance in demanding conditions, including wide temperature ranges from -40°C to +90°C.

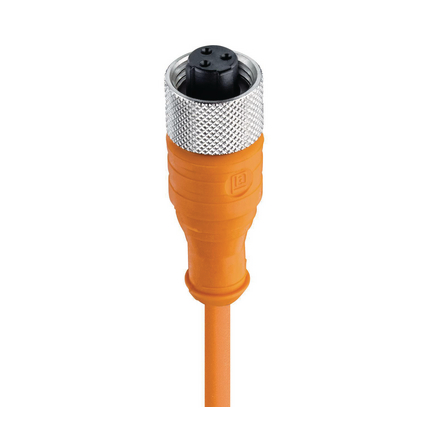

The M12 Standard Sensor/Actuator Single-Ended Cordset offers a robust and reliable connection solution for various industrial applications. This cordset features a female, straight, 3-pin connector that is U-coded, encased in an orange body. It supports a voltage rating of 230 V AC/DC and a current capacity of 4 A. The attached PVC cable is orange, comprising three wires with a conductor size of 0.50 mm², making it resilient for continued use in harsh environments. One of the primary benefits of this cordset is its durable construction with a TPU molded body, providing high resistance to chemicals and oils. It adheres to the protection degree ratings of IP65 and IP67, ensuring it is dust tight and can withstand low-pressure water jets, making it ideal for rugged industrial settings. Additionally, the cordset is compliant with RoHS and UL standards, indicating its safety and reliability in use. This M12 cordset is specifically designed for sensor and actuator applications in automation systems. It is suitable for use in environments with wide temperature ranges, from -40 °C to +90 °C for fixed installations and +5 °C to +90 °C for flexible installations. The cordset is also useful in applications requiring a high number of mating cycles, up to 100, ensuring long-term connectivity without performance degradation.

The M12 Standard Sensor/Actuator Single-Ended Cordset is equipped with a female, straight, 3-pin connector and U-coding. Built with a durable orange PVC jacket, this cordset supports an operating voltage of 230V AC/DC and a current rating of 4A. The connector has a coupling nut attachment and meets protection degrees IP65 and IP67, making it ideal for harsh industrial environments. With a conductor size of 0.50 mm² and a three-wire configuration, it provides reliable electrical connections for sensors and actuators. The cordset is designed for ambient temperatures ranging from -40°C to +90°C.
