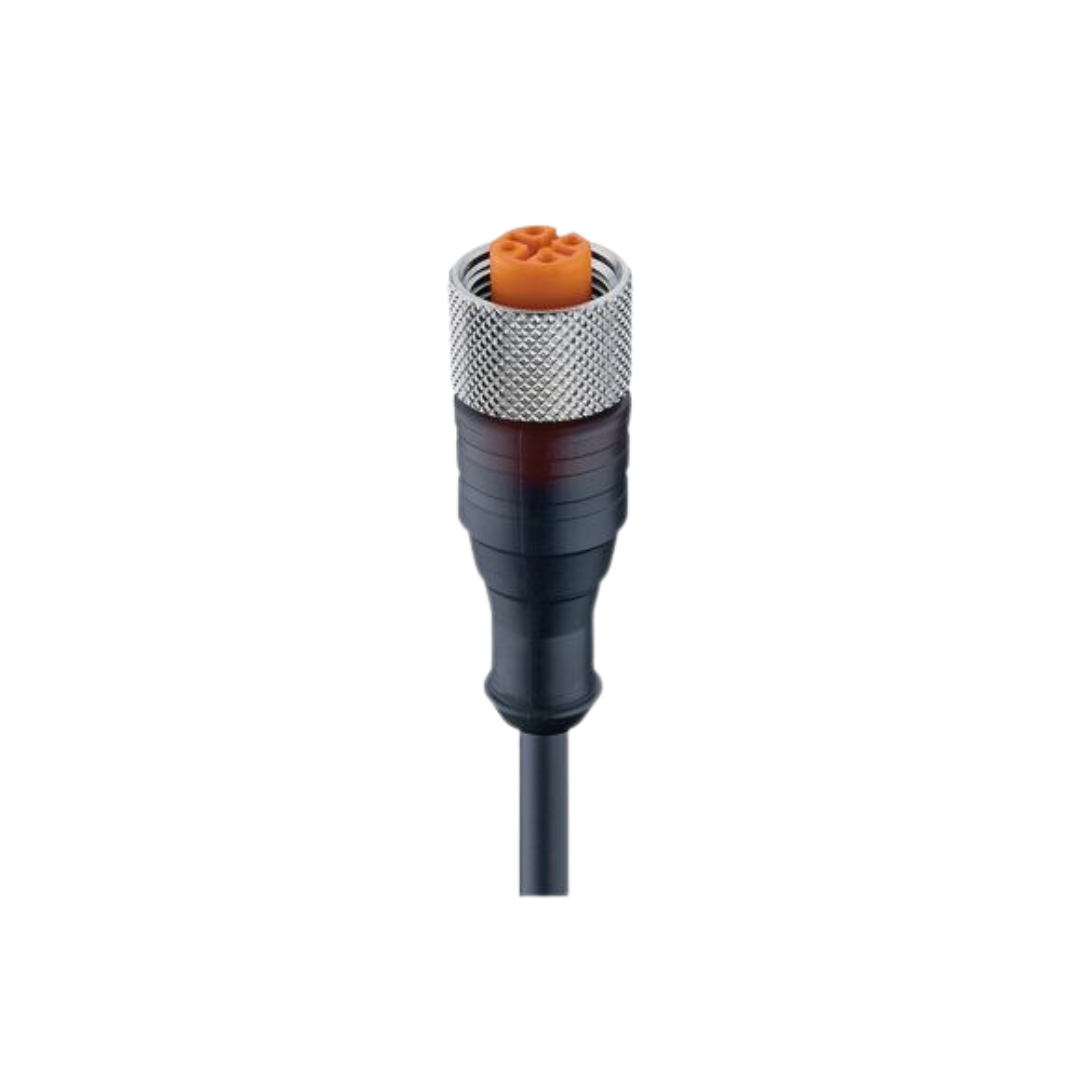

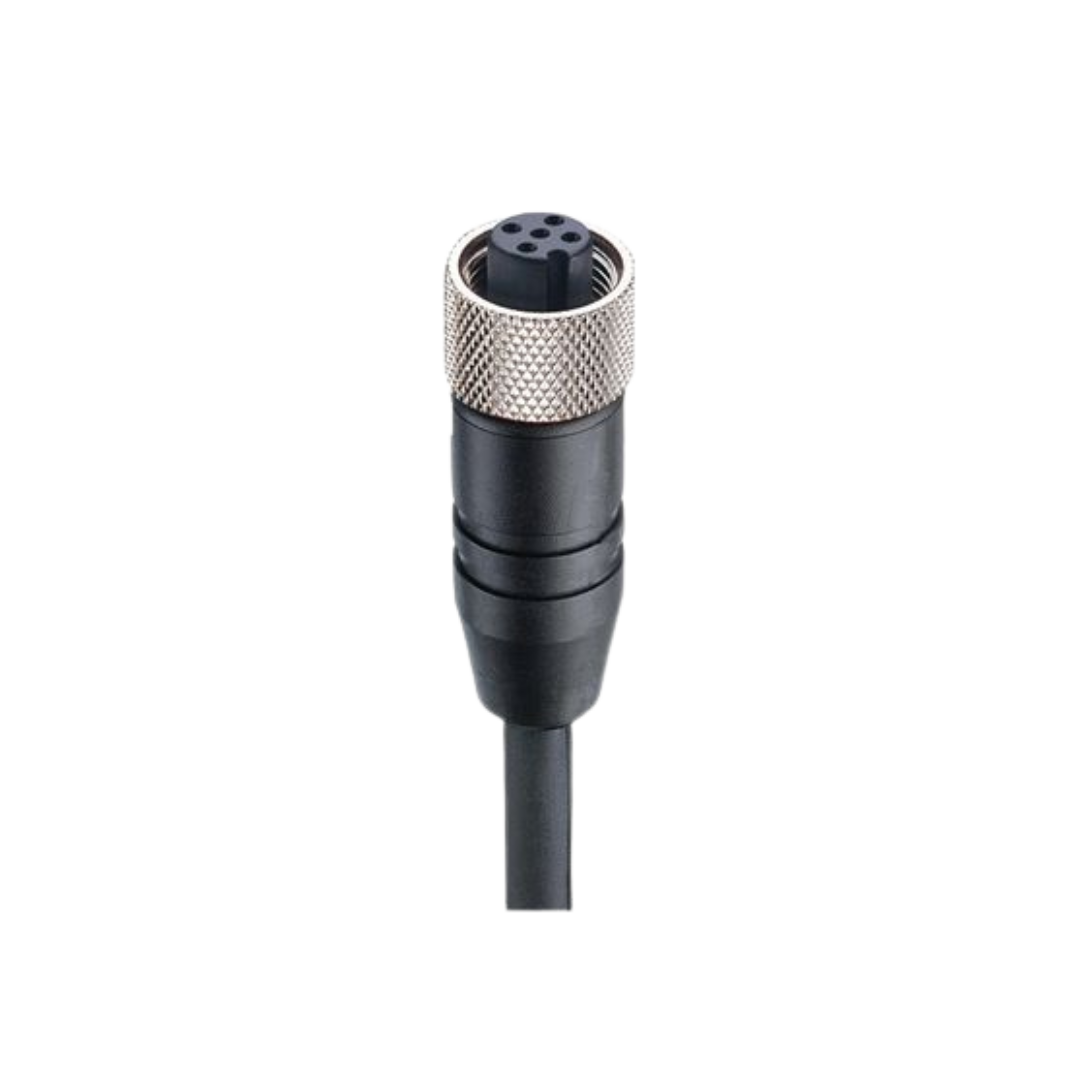

M12 Molded Cable Female

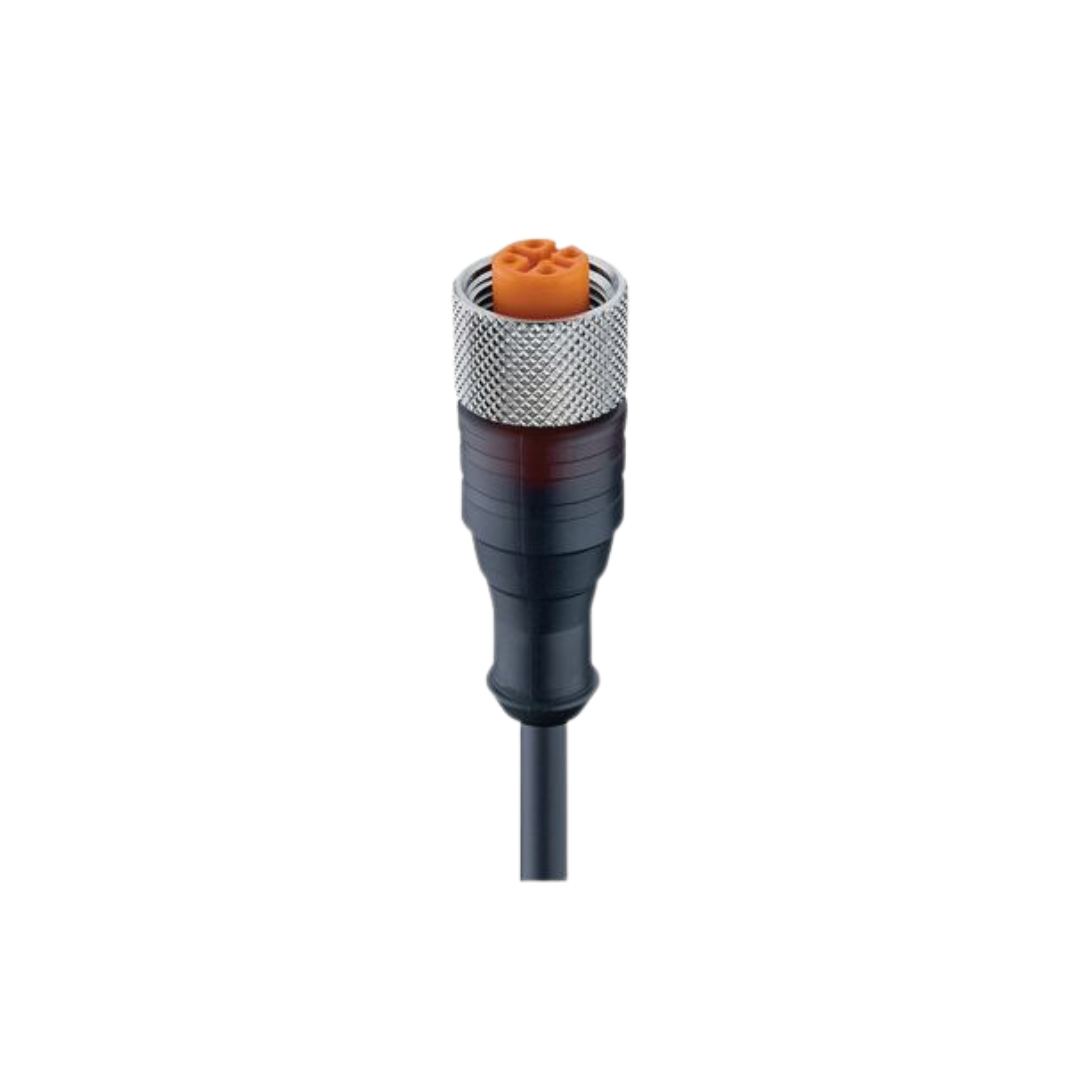

RKT 5-289/6 M

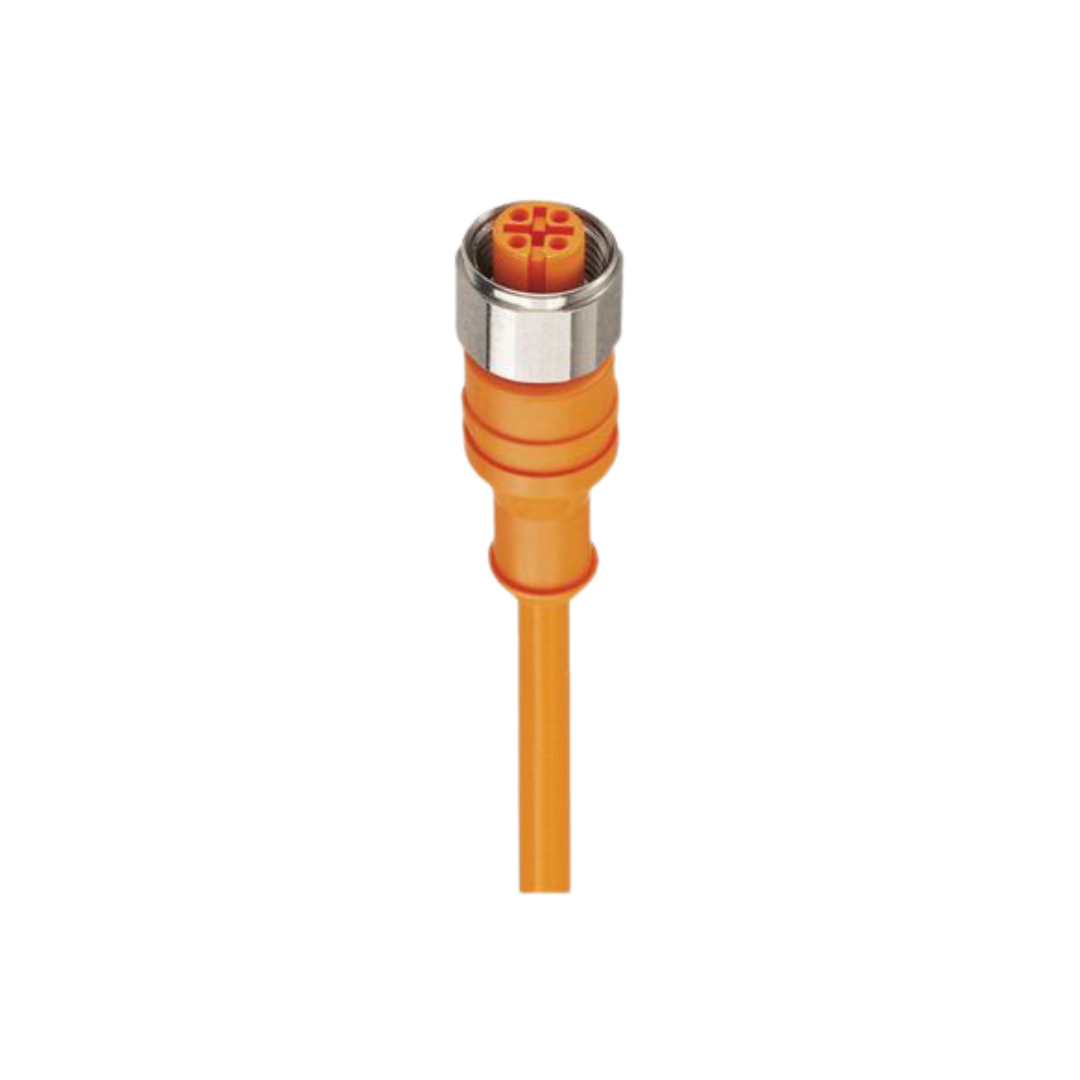

M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed to provide a durable and efficient connection solution for a variety of sensor and actuator applications. This cordset features a female, straight, 5-pin, A-coded connector with a translucent body, capable of handling 50 V AC / 60 V DC and up to 4 A of current. It comes equipped with a 5-wire PVC black cable, each with a conductor size of 0.34 mm². The connector is securely fastened with a coupling nut and is rated for IP65/IP67 protection, ensuring reliable performance in harsh environments. Its resistance to oil and good chemical resistance make it ideal for industrial applications.
€24.44
per item

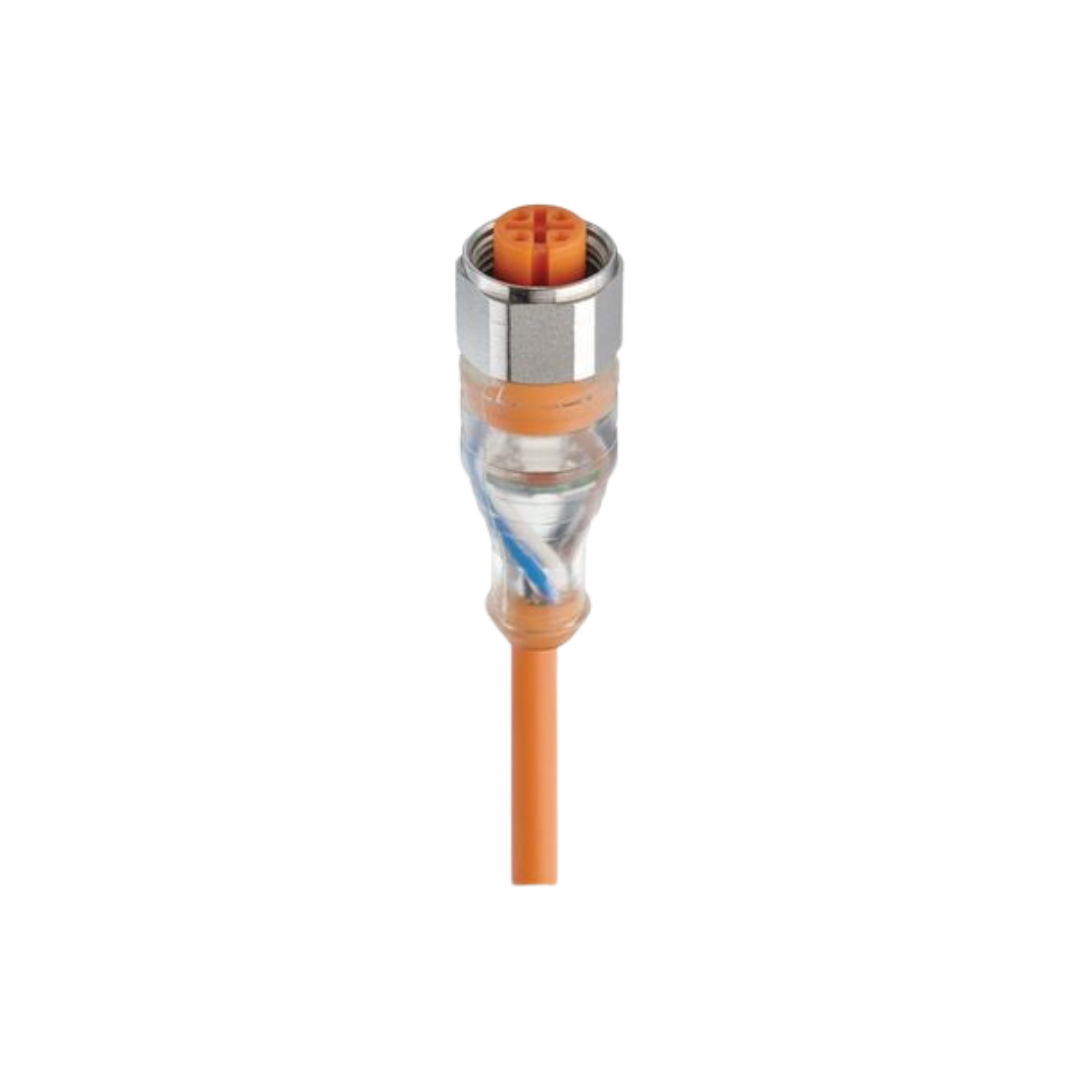

PRKWT/LED P 4-07/25 M
M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset features a female, angled, 4-pin, A-coded connector with a transparent body. It operates at 10-30 V DC with a current capacity of 4 A. Designed with 3xLEDs (PNP) for easier status indication, this cordset ensures efficient connections in sensor and actuator applications. The orange PVC cable has four wires, each with a conductor size of 0.25 mm², providing durability and reliability in various environmental conditions. It complies with IP65 and IP67 ratings, making it suitable for harsh environments. The connector is shielded with a coupling nut made from stainless steel, ensuring secure and robust connections.
€60.34
per item

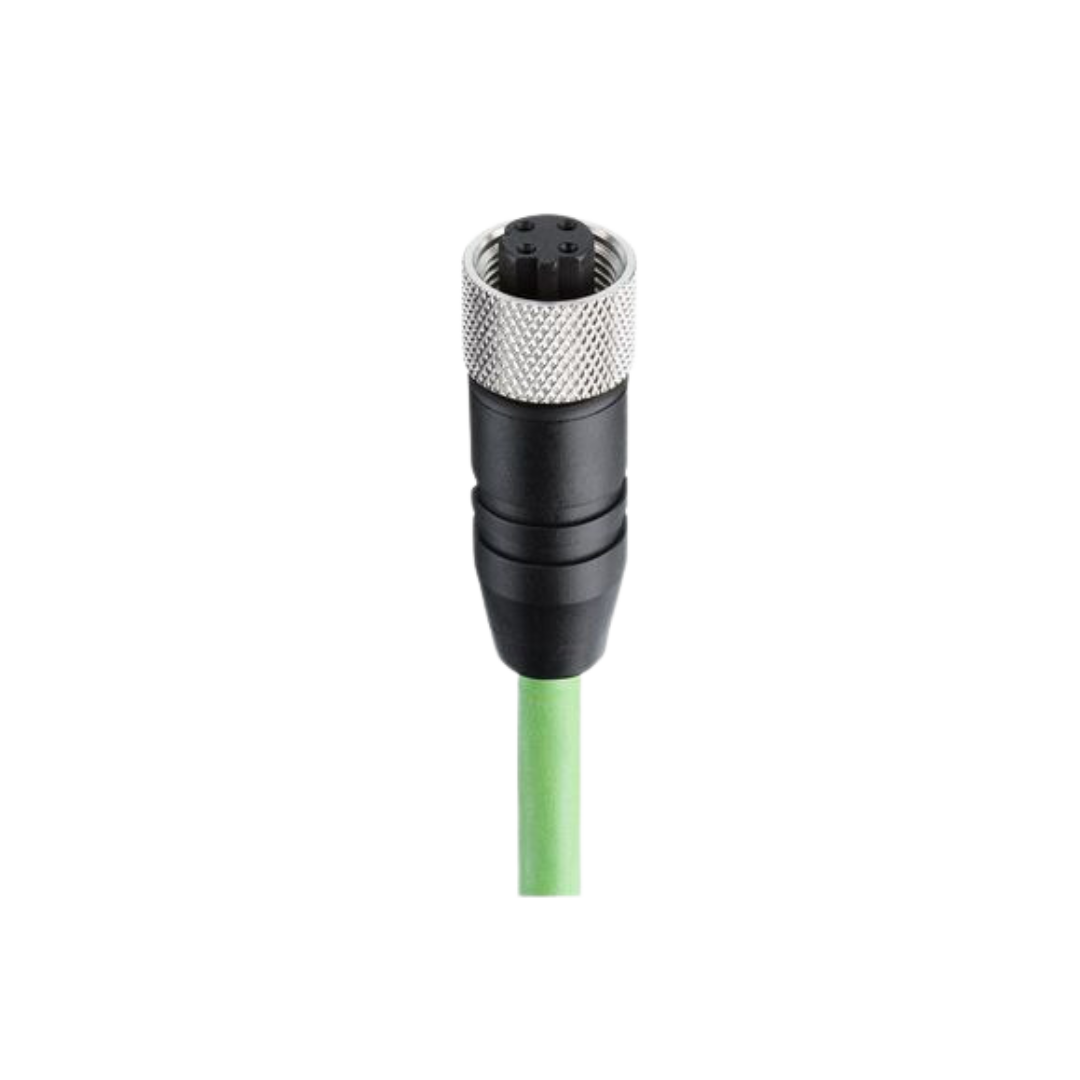

0985 342 118/1 M
Fast Ethernet Cat5e Data Single-Ended Cordset
The Fast Ethernet Cat5e Data Single-Ended Cordset is an advanced connectivity solution designed for high-speed data transmission. This cordset features an M12 Standard, female, straight connector with 4 pins, D-coded and robust shielding for enhanced performance. It is housed in a durable black body and can handle an operating voltage of 50 V AC or 60 V DC with a current rating of up to 4 A. The cordset includes a high-quality, 4-wire, 2x2x0.34 mm² green PUR cable, ensuring reliable conductivity and superior protection against external interferences. This product supports Fast Ethernet Cat5e with a data transmission rate of up to 100 Mbit/s, making it suitable for a wide range of industrial applications. With a temperature range from -40 °C to +90 °C and a protection degree of IP65, IP67, IP69K, it is built to withstand challenging environments.
€31.96
per item
0975 254 103/0,6 M

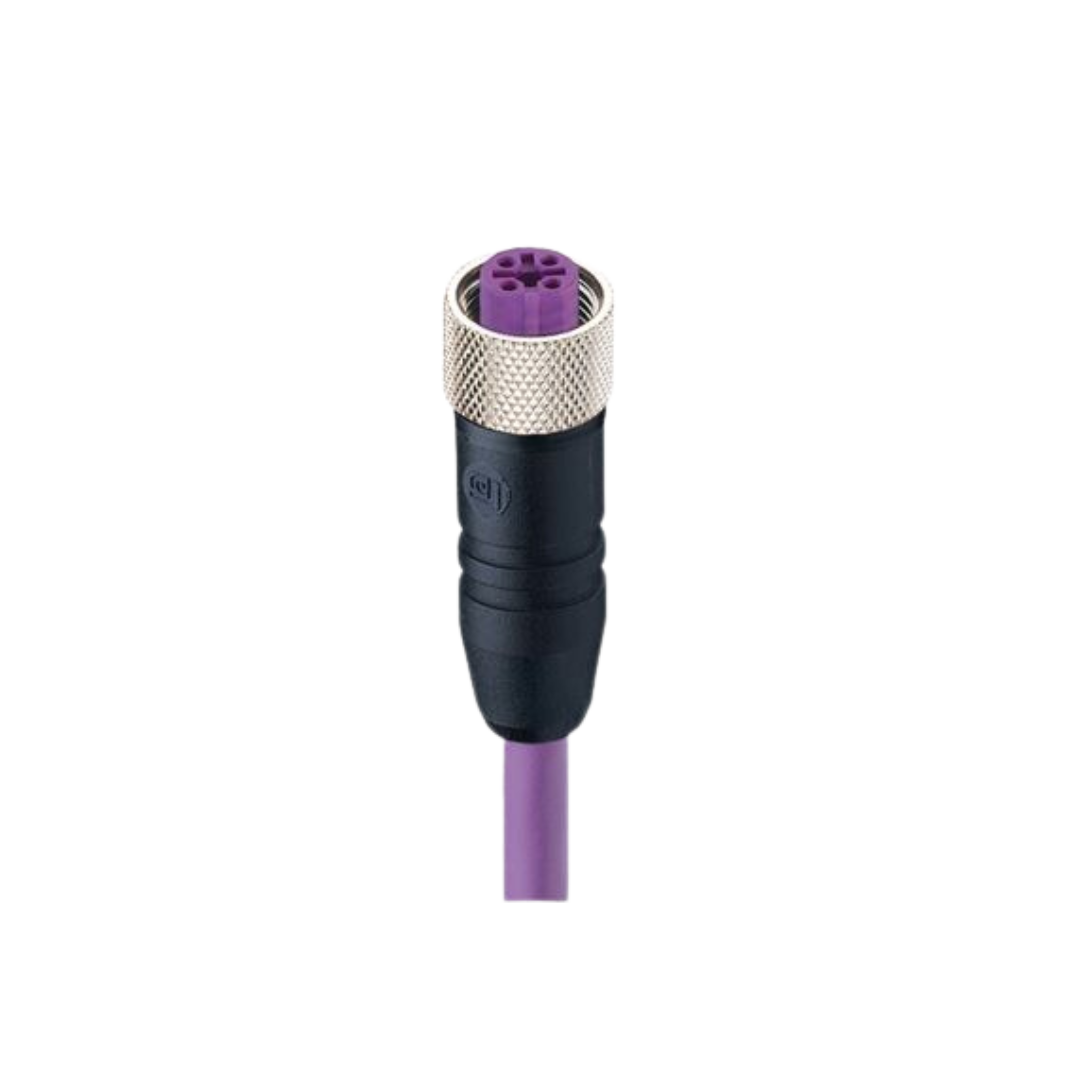

PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed for reliable communication in industrial environments. This M12 Standard, female, straight connector features a 5-pin, B-coded configuration that ensures secure and efficient data transmission. Shielded for enhanced protection, it operates at 50 V AC / 60 V DC with a current rating of 4 A. The robust PUR violet cable is 0.34 mm² in size, offering excellent resistance to chemicals, oils, and environmental stress. Suitable for use under demanding conditions, this cordset provides a flawless connection for PROFIBUS systems.
€29.78
per item
0985 342 118/30 M
Fast Ethernet Cat5e Data Single-Ended Cordset
The Fast Ethernet Cat5e Data Single-Ended Cordset is designed with an M12 standard female connector, featuring a straight, 4-pin, D-coded construction. This high-quality cordset is shielded with a black body that provides durability and protection. Rated for 50 V AC / 60 V DC and 4 A current, it ensures reliable performance in various applications. The PUR green cable includes 4 wires with a conductor size of 2x2x0.34 mm², suitable for demanding environments. The cable offers excellent chemical and oil resistance, good microbes and hydrolysis resistance, and flexibility in cold conditions. Ideal for use in industrial automation, machinery interconnections, and data communication systems, this cordset supports fast Ethernet Cat5e data transmission at rates up to 100 Mbit/s.
€161.29
per item
PRKWT/LED P 4-07/50 M
M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for industrial applications requiring reliable connectivity. This cordset features an angled female connector with 4 pins and A-coding, housed in a transparent body. It operates on a voltage range of 10-30 V DC and supports a current up to 4 A. The integrated 3xLEDs (PNP) provide status indication for efficient monitoring. The PVC orange cable consists of 4 wires of 0.25 mm², ensuring robust and flexible connections. Its durable materials, including a stainless steel coupling nut and PVC insulation, offer high resistance to oils and chemicals. With its IP65 and IP67 ratings, this cordset ensures protection against dust and water ingress, making it suitable for harsh environments.
€96.54
per item

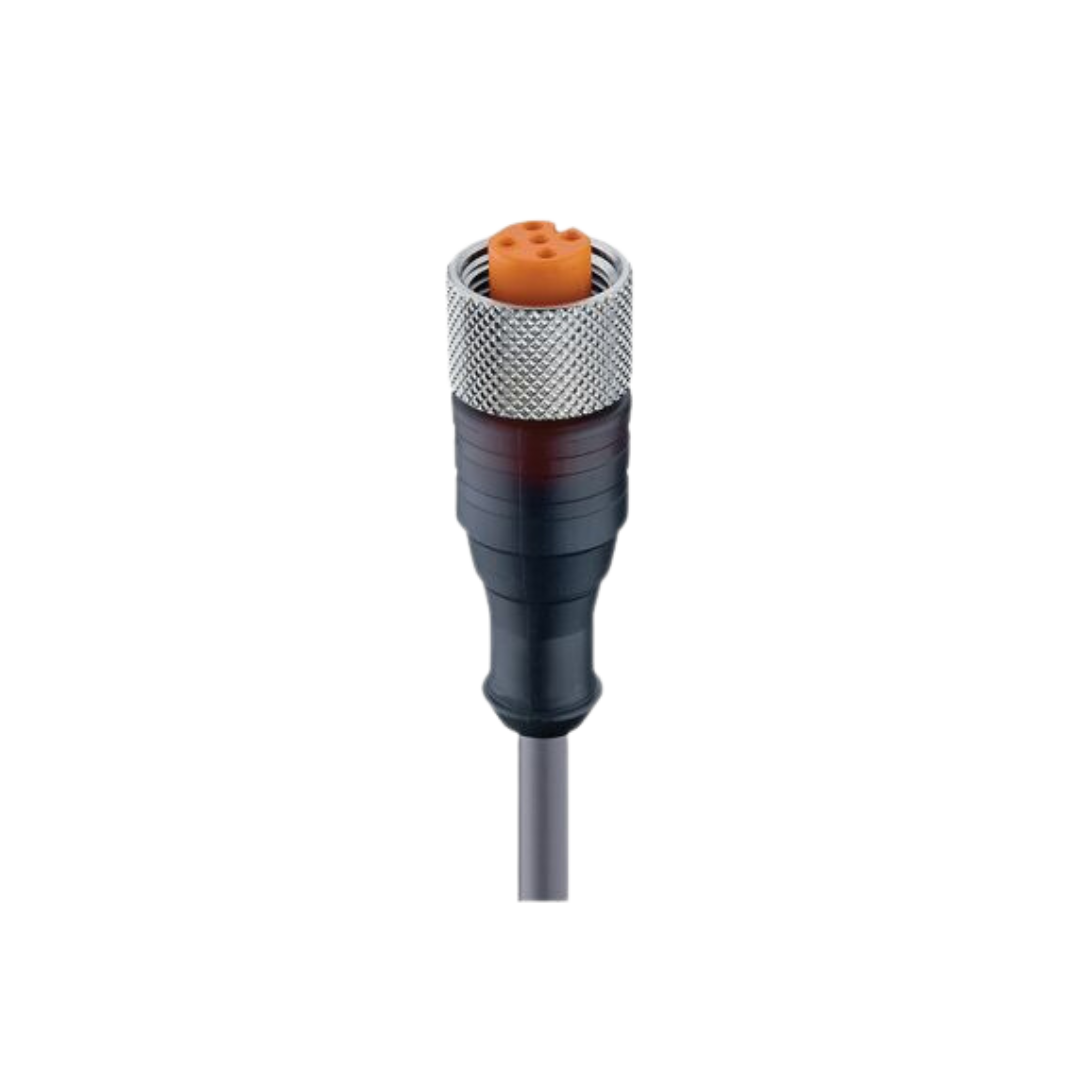

RKT 5-289/20 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is equipped with a female, straight, 5-pin connector that is A-coded with a translucent body. This cordset is designed to handle an operating voltage of 50 V AC / 60 V DC and has a rated current of 4A. The attached cable is made from black PVC, featuring 5 wires with a conductor size of 0.34 mm², ensuring optimal performance for sensor and actuator applications. Suitable for diverse installations, this connector offers a reliable connection for various industrial environments, maintaining good chemical and oil resistance. It is compliant with RoHS standards, emphasizing its safety and environmental considerations.
€51.87
per item

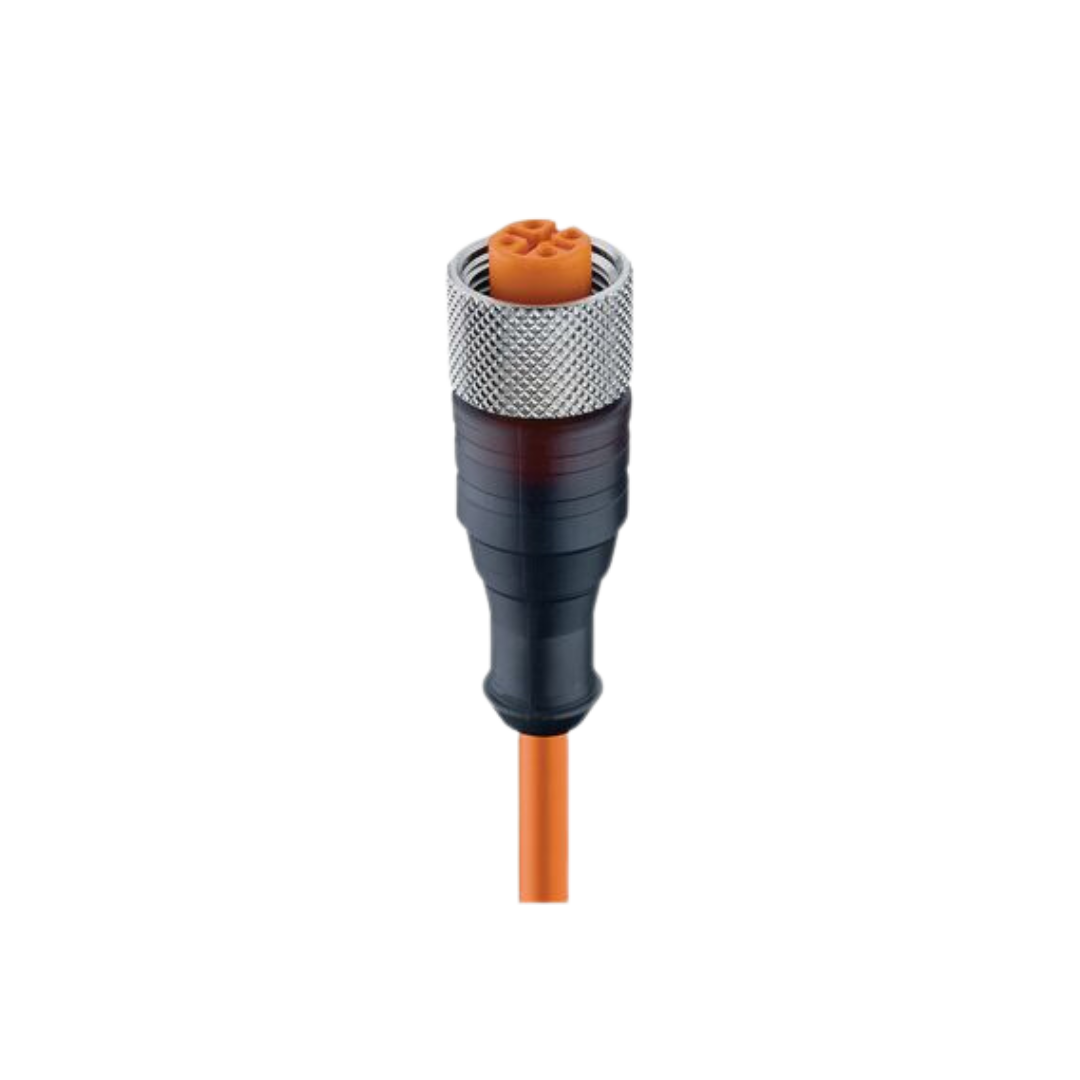

RKT 4-225/0,5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable connection solution. This female, straight, 4-pin, A-coded connector is designed to meet high-performance requirements with its translucent body and capability to operate at 230 V AC/DC and a current rating of 4 A. It is crafted from high-quality materials, including a CuSn contact base with Cu/Au plating and a durable TPU molded body. The PUR black cable with 4 wires offers flexibility and durability, making it ideal for various demanding applications.
The cordset's major benefits include excellent resistance to environmental factors, ensuring longevity and reliability in industrial settings. Its IP65, IP67, IP68, and IP69K ratings guarantee protection against dust and water, making it suitable for harsh environments. Additionally, it boasts a high number of mating cycles and is RoHS compliant, prioritizing safety and environmental responsibility.
This cordset is perfect for use in industrial machinery, automation systems, and other scenarios requiring dependable sensor and actuator connections. Its design complies with IEC standards, ensuring compatibility and performance consistency.
€12.25
per item

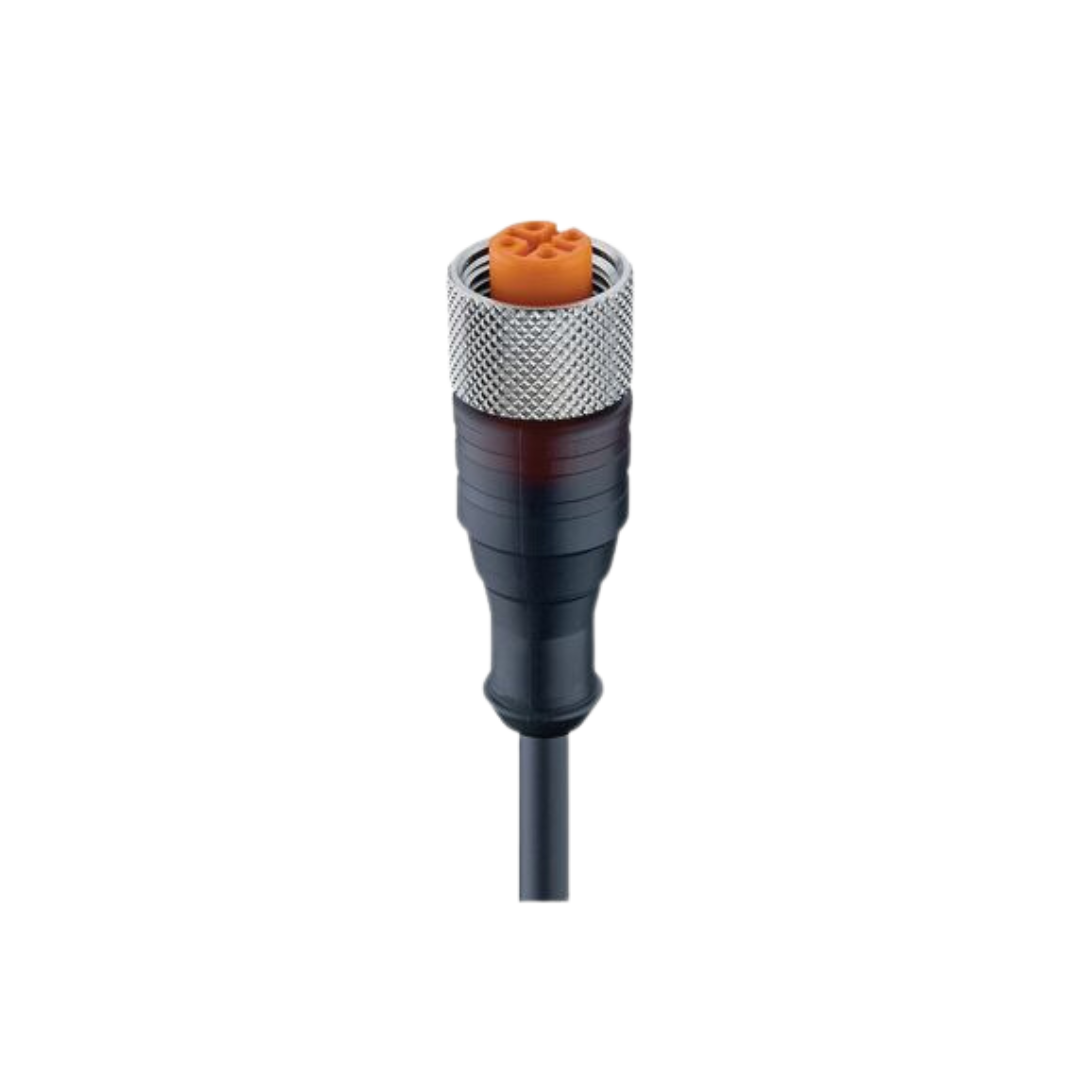

RKT 4-3-224/25 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a high-quality female, straight connector designed for reliable connection in various industrial environments. It features a 4-pin, A-coded, translucent body capable of handling 230 V AC/DC and a current rating of up to 4 A. The cordset is constructed with a durable PUR black cable, 3-wire with a conductor size of 0.34 mm², ensuring flexibility and strength in operations. The cable jacket is resistant to oil, chemicals, and microbes, offering excellent durability even in demanding conditions.
This cordset benefits from high insulation resistance (> 10^9 Ohm) and low contact resistance (≤ 10 mOhm), making it suitable for precise signal transmission. Its broad operating temperature range (-40 °C to +90 °C) and protection degree up to IP69K ensure optimal performance in extreme environments. The M12 connector meets IEC 61076-2-101 standards, providing you with a reliable and safe connectivity solution.
Applications for the M12 Standard Cordset include automation control systems, industrial machinery connections, and sensor/actuator interfacing. Its durability and compliance with various safety regulations make it an ideal choice for industrial automation systems that demand high reliability and robustness.
€44.64
per item
RKT 4-3-260/5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed with a female, straight, 4-pin, A-coded connector, encased in a translucent body. It operates at a voltage of 230 V AC/DC and can handle a current of up to 4 A. The cordset features an orange polyurethane (PUR) cable containing three wires, each with a cross-sectional area of 0.34 mm². The connector components include a coupling nut for secure attachment. It meets various safety and performance standards including IP65, IP67, IP68, and IP69K ratings for protection against dust and water ingress, making it suitable for harsh environments. The cordset has a rated impulse voltage of 2.5 kV and an insulation resistance greater than 10^9 Ohm, ensuring reliability and durability. Its operating temperature ranges from -40°C to +90°C, making it versatile for various industrial applications.
€19.09
per item
RKT 4-225/4 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset features a female, straight, 4-pin, A-coded connector with a translucent body designed to handle voltages up to 230 V AC/DC and a current rating of up to 4 A. The cordset comes with a durable, black polyurethane (PUR) cable that includes four wires with a conductor size of 0.34 mm². This product ensures a reliable connection in various industrial environments with its protection rating up to IP69K, and it fits securely with a coupling nut attachment. The cordset also offers an excellent combination of flexibility and durability, boasting an ambient temperature range from -40 °C to +90 °C and resistance to hydrocarbons and microbes. Its halogen-free and flame-resistant properties further enhance safety and operational longevity.
€17.94
per item
RKT 4-251/2 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is an essential component for connecting sensors and actuators in various industrial applications. This cordset features a female, straight, 4-pin, A-coded connector with a translucent body, rated for 230 V AC/DC and 4 A. The cordset uses a robust and flexible 4-wire PUR cable, colored orange, with a conductor size of 0.34 mm². Designed to withstand challenging conditions, the cordset offers high resistance to temperatures, oils, and welding sparks with excellent flexibility for fixed or flexible installations. The product meets multiple safety and environmental standards, complying with RoHS and offering an IP69K protection rating when combined with proper connectors. Ideal for harsh environments, this cordset ensures reliable connectivity for your automation needs.
€18.44
per item

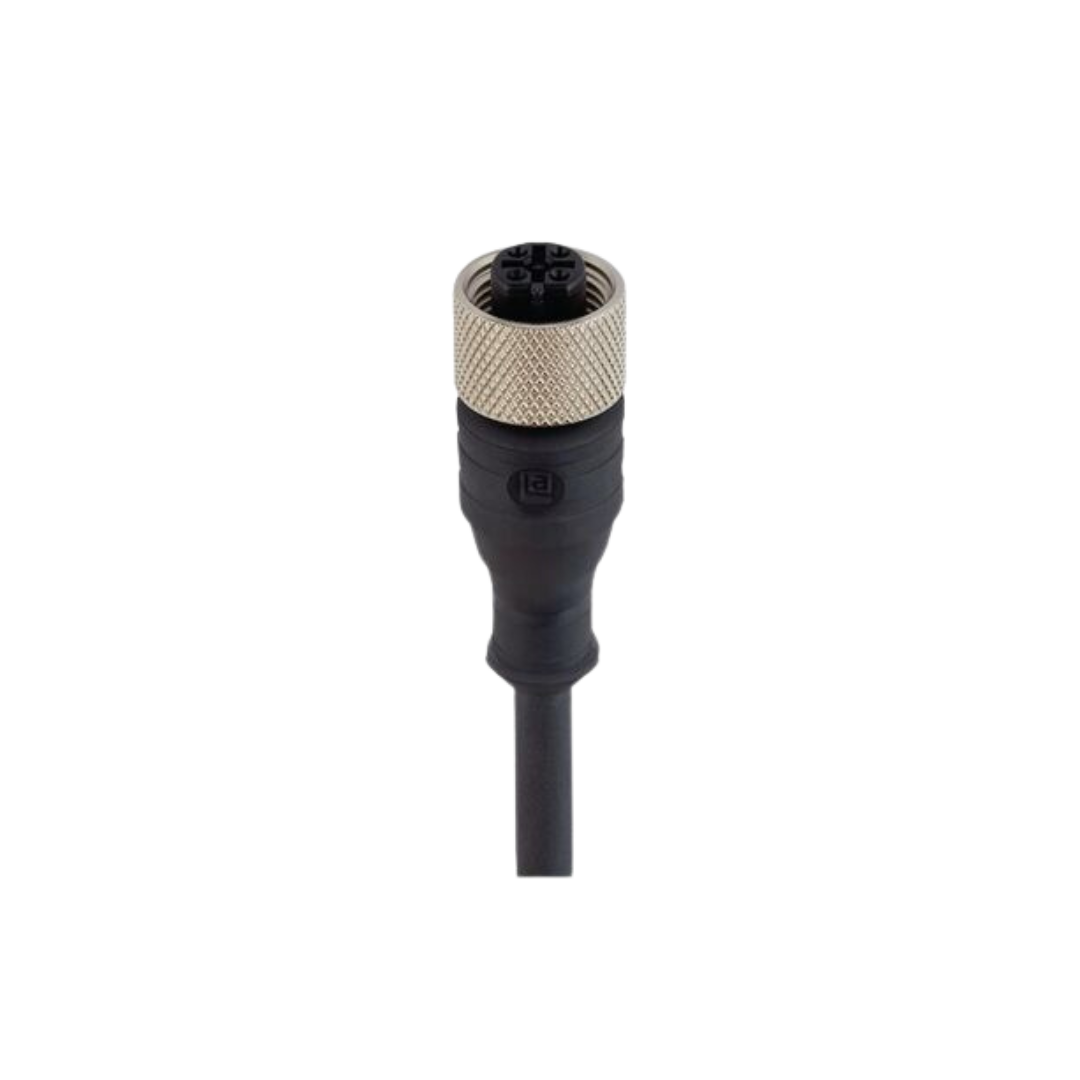

RKT 5-228/1 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for efficient sensor and actuator applications. Featuring a female, straight, 5-pin design with A-coding, this cordset is equipped with a translucent body to offer visibility of the pin configuration. It is rated for 50 V AC/60 V DC and can handle currents up to 4 A, ensuring robust performance in various industrial environments. The cordset includes a durable PUR black cable with 5 wires of 0.50 mm² each, making it suitable for demanding conditions.
Benefits include its high contact resistance (≤ 10 mOhm), high insulation resistance (˃ 10^9 Ohm), and excellent environmental protection with ratings of IP65, IP67, IP68 (1 m/24 h), and IP69K. The M12 connector is designed to withstand temperatures ranging from -40 °C to +90 °C and is compliant with multiple industry standards for safety and environmental protection.
Ideal applications for this cordset range across various industrial sectors, including automation and robotic systems where reliable and secure connections are paramount. This versatile cordset is also suitable for various other high-performance uses in harsh and demanding environments.
€17.83
per item

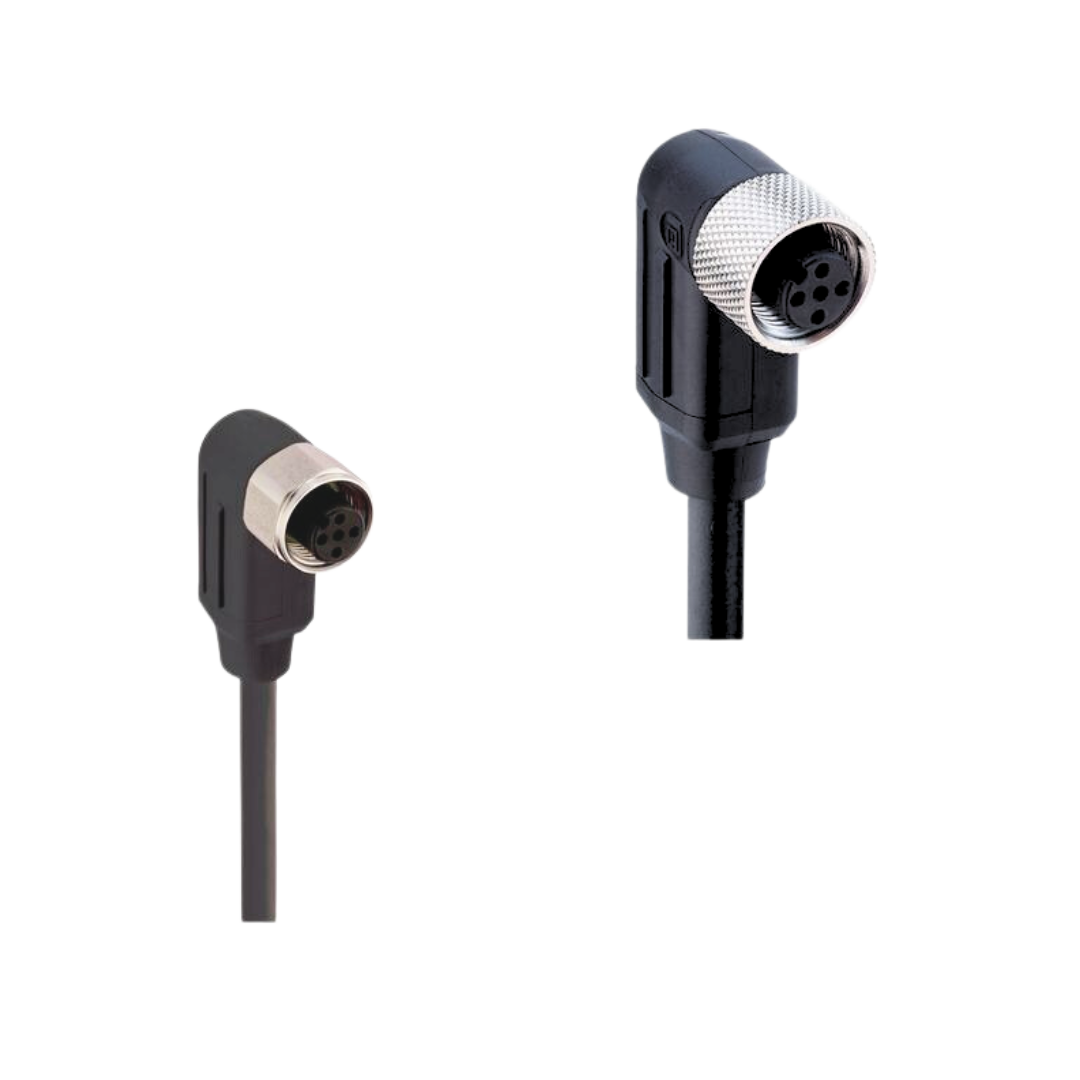

0935 253 106/10 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset, featuring an M12 Standard connector, is designed with a female, angled, 5-pin, A-coded configuration in a durable black body. Offering operational voltages of 50 V AC and 60 V DC, and a rated current of 4 A, this cordset ensures reliable performance in demanding environments. The connector attaches via a coupling nut and supports up to 100 mating cycles. Complemented with a black PUR cable, it contains 4 wires with specific conductors for data and power transmission: Data (2x0.25 mm²) and Power (2x0.34 mm²). Rated for various IP protection degrees including IP65, IP67, IP68, and IP69K, it withstands rigorous conditions, with an operating temperature range from -40 °C to +80 °C.
€73.21
per item

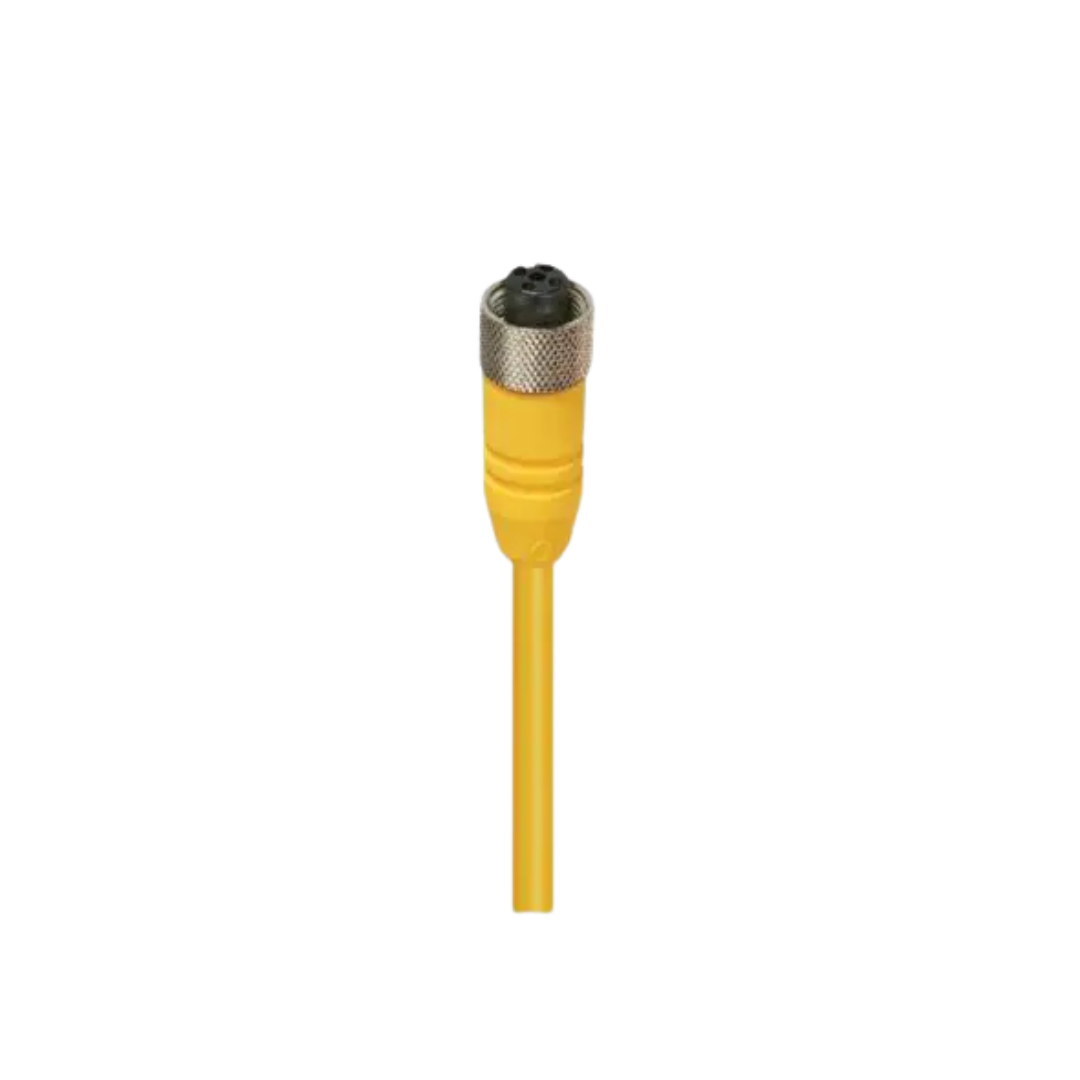

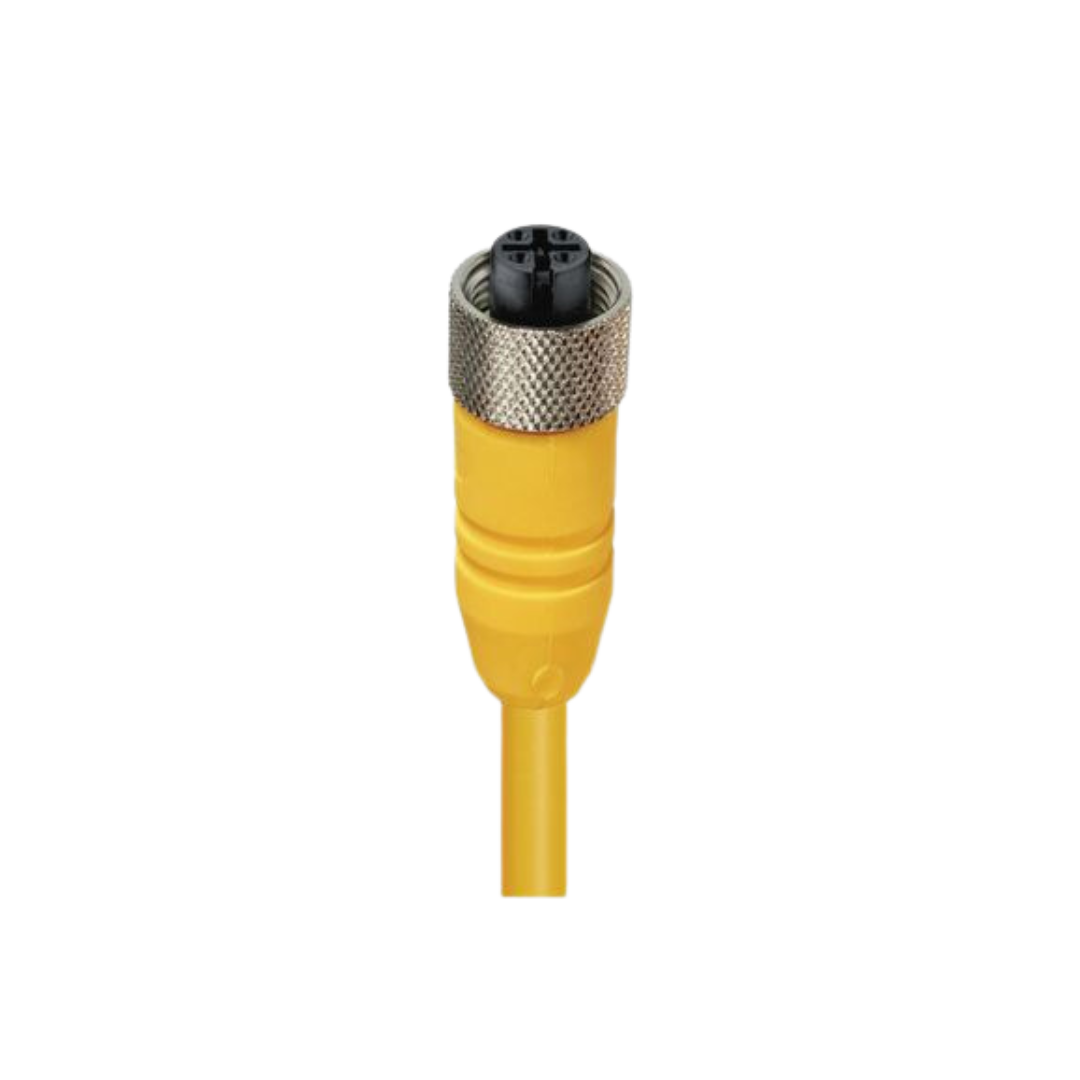

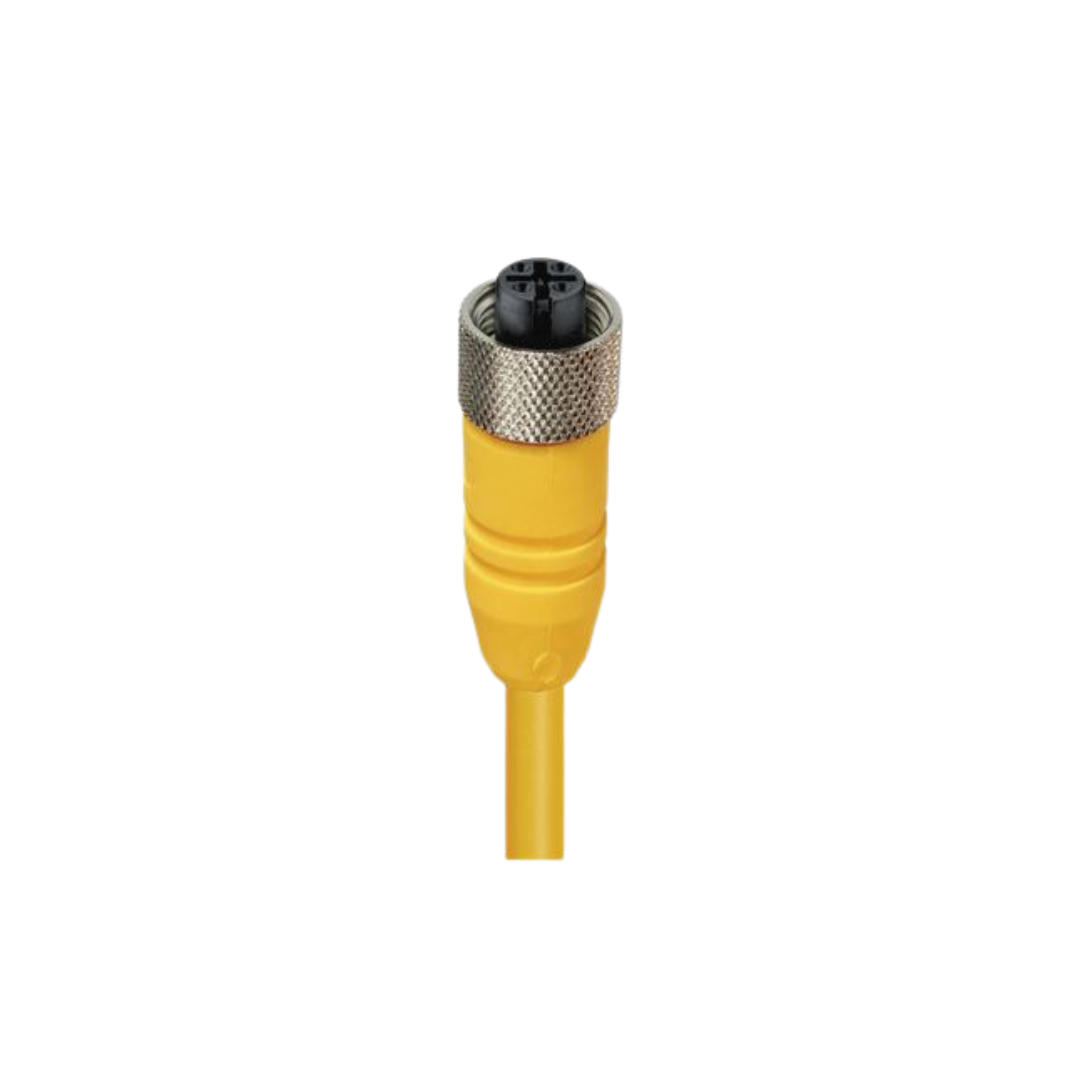

RKT 4-637/5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is expertly designed for robust sensor and actuator applications. It features a female, straight, 4-pin, A-coded connection with a yellow molded body. Rated for 230 V AC/DC and up to 4 A, this unshielded cordset ensures reliable performance. Utilized in various industrial settings, it supports IP65, IP67, IP68, and IP69K protection ratings, making it suitable for harsh environments. Its TPE yellow cable, with 4 wires of 0.824 mm² each, guarantees excellent conductivity and flexibility. Compatible with M12x1 coupling, it promises secure and stable connections for your automation needs.
€39.98
per item
0985 342 118/8 M
Fast Ethernet Cat5e Data Single-Ended Cordset
The Fast Ethernet Cat5e Data Single-Ended Cordset is a high-quality data connector ideal for robust and reliable data transmission in industrial environments. It features an M12 standard with a female, straight, 4-pin, D-coded, shielded black body. The cordset is capable of handling 50 V AC / 60 V DC and a rated current of 4 A. The green PUR cable comes with 4 wires arranged in a 2x2x0.34 mm² configuration, making it suitable for Fast Ethernet applications with a data transmission rate of 100 Mbit/s. The shielded construction ensures minimal electromagnetic interference, making it perfect for harsh conditions.
The major benefit of this cordset is its durability and reliable performance in extreme temperatures ranging from -40 °C to +90 °C, and its compatibility with an IP65, IP67, and IP69K protection rating ensures resistance against dust, water, and high-pressure cleaning processes. The cordset's materials are carefully selected to exclude dangerous substances and enhance chemical and oil resistance, which is crucial for industrial settings.
This cordset is commonly used in automation and networking industries for connecting devices in an Ethernet network, supporting fast and stable data transmissions. The M12 female connector with a coupling nut attachment makes the cordset easy to install and ensures a secure connection.
€60.48
per item

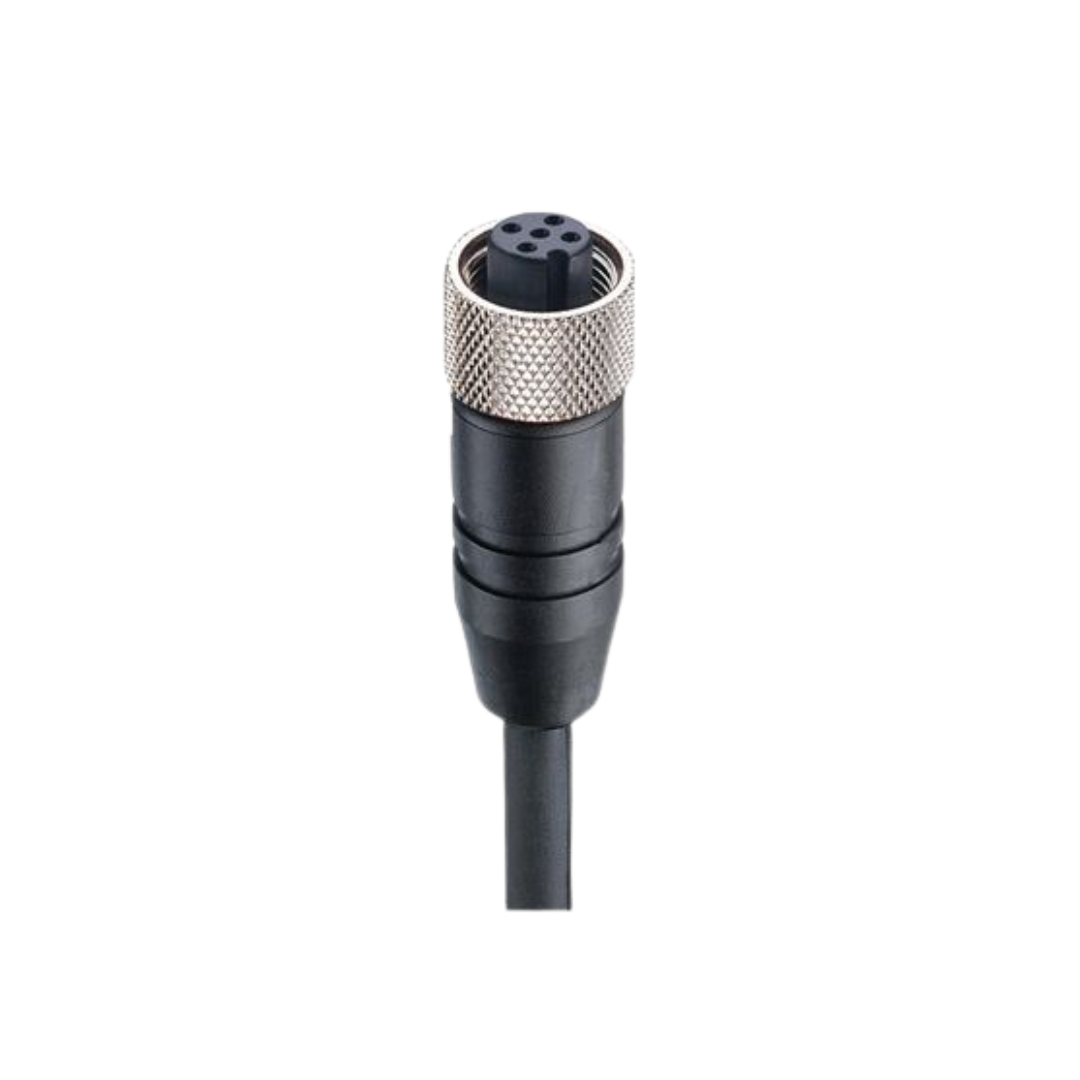

0935 253 105/25 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset offers a reliable connection in industrial environments. With its M12 standard, 5-pin, A-coded female connector, this cordset is specifically designed for optimal performance in CANopen and DeviceNet networks. The black molded body ensures durability and seamless integration into various systems. It supports a maximum operating voltage of 50 V AC / 60 V DC and a current capacity of up to 4 A. The 4-wire cable includes two data wires of 0.25 mm² and two power wires of 0.34 mm², enclosed in a robust PUR black jacket with high resistance to chemicals, oils, and microbes. The cordset meets several IP ratings, providing exceptional protection in challenging environments and even under immersion conditions.
€162.40
per item
RKT 4-225/40 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed to provide reliable connectivity in various automation applications. Featuring a female, straight 4-pin A-coded connector, this cordset is suitable for 230 V AC/DC operations with a current rating of up to 4 A. Its translucent body ensures easy visual inspection, while the black PUR cable ensures durability and flexibility, making it ideal for both fixed and flexible installations. The cordset also boasts a high protection degree, rated IP65, IP67, IP68, and IP69K, ensuring functionality in demanding environments. Its high-quality CuSn contacts plated with Cu/Au and TPU molded body add to its robust design, enhancing resistance to various environmental factors.
€82.78
per item

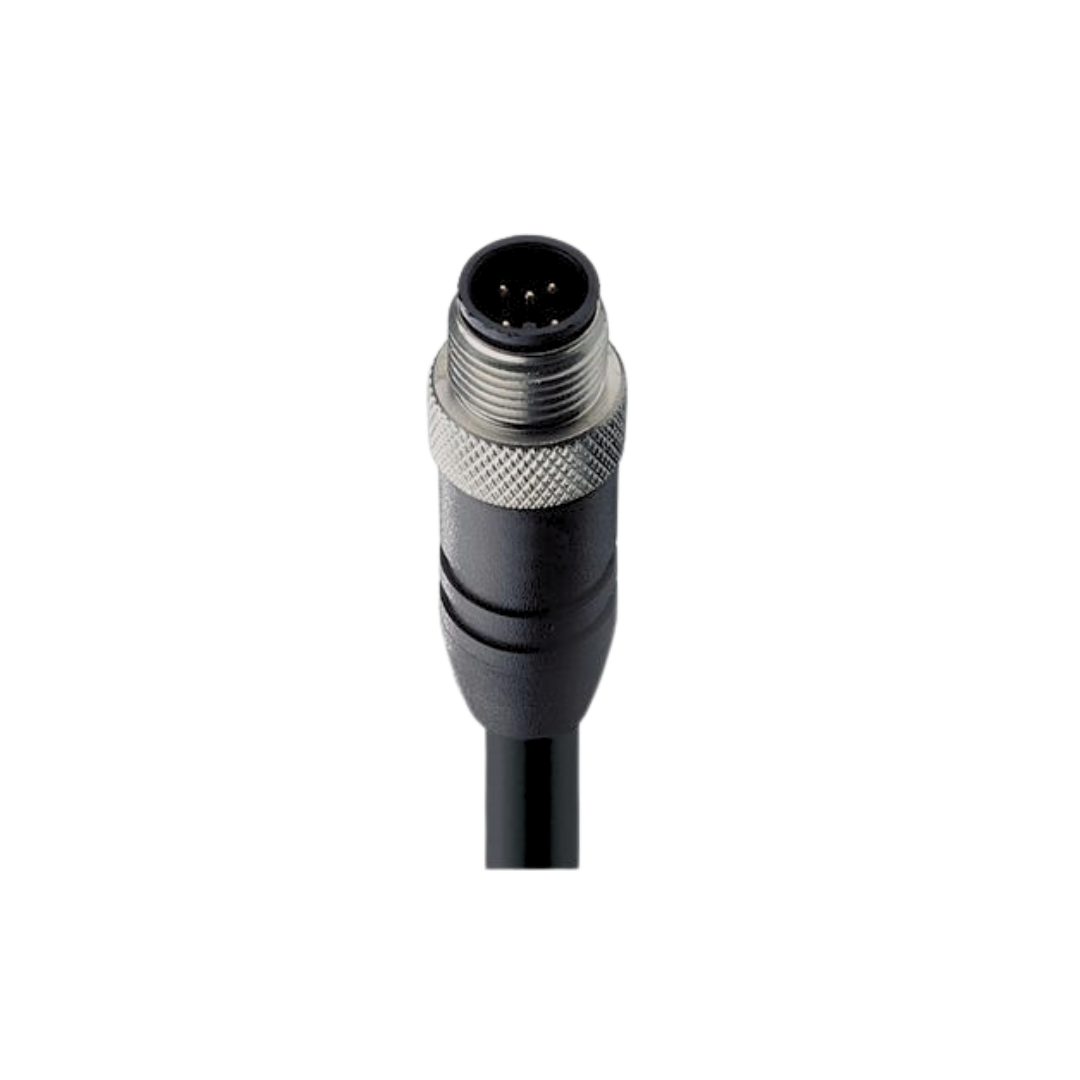

0935 253 104/25 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset with M12 standard, male, straight, 5-pin, A-coded connector is designed for high-performance data and power transmission. The robust black body and PUR black cable make it suitable for various industrial applications. Rated at 50 V AC / 60 V DC and 4 A, the cordset features a 4-wire configuration: two wires for data (2x0.25 mm²) and two for power (2x0.34 mm²). The connection is reliable and consistent, with an IP65, IP67, IP68, and IP69K protection degree, ensuring excellent performance in harsh environments. The cordset is also resistant to chemicals, oil, and extreme temperatures, providing durability and longevity.
€162.33
per item
0985 342 118/50 M
Fast Ethernet Cat5e Data Single-Ended Cordset
The Fast Ethernet Cat5e Data Single-Ended Cordset provides an efficient and secure data connection solution. It features an M12 female connector, designed to be straight with a 4-pin D-coded structure and shielded for high performance. The black body structure ensures ruggedness and durability with a rated voltage of 50 V AC / 60 V DC and a current capacity of 4 A. The cordset includes a green PUR cable with 4 wires (2x2x0.34 mm²), ensuring optimal data transmission for Fast Ethernet Cat5e at 100 Mbit/s. With a robust design standard complying with IEC 61076-2-101, it offers excellent contact resistance (< 10 mOhm) and insulation resistance (> 10^9 Ohm). The cordset is ideal for industrial environments, featuring IP65, IP67, and IP69K protection ratings, ensuring resilience against harsh conditions.
€250.26
per item
RKT 5-228/0,2 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for efficient and secure connections in sensor and actuator applications. Featuring a female, straight, 5-pin, A-coded translucent connector, it operates within the voltage range of 50 V AC to 60 V DC and supports a current rating of 4 A. The PUR black cable with a 0.50 mm² conductor size is robust and reliable, ensuring dependable performance in demanding environments. This cordset is suitable for various industrial settings, with IP65, IP67, IP68, and IP69K ratings providing high protection against dust and water, while its wide operating temperature range of -40°C to +90°C allows for versatile use. The cable is free from PVC and silicone, and it resists microbes and hydrolysis, ensuring a durable and long-lasting product that meets stringent environmental standards.
€13.55
per item

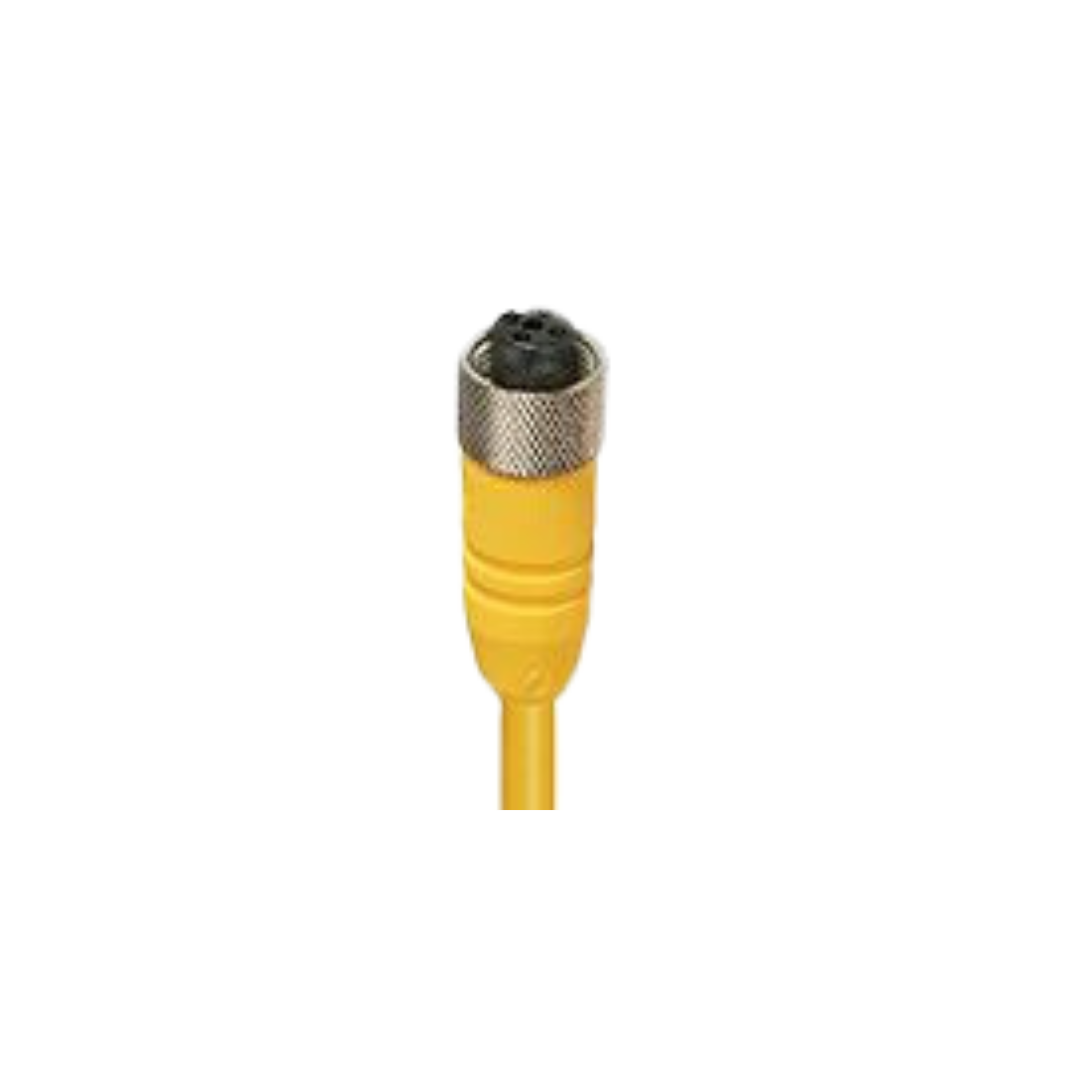

RKT 4-637/20 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed to cater to a wide range of industrial needs with its female, straight, 4-pin, A-coded configuration. It features a sturdy yellow body and is capable of operating at 230 V AC/DC with a current capacity of 4 A. The connector is equipped with a yellow TPE cable comprising 4 wires with a conductor size of 0.824 mm², providing substantial durability and reliability. The design adheres to IEC 61076-2-101 standards, ensuring high performance and longevity.
This cordset offers various operational benefits such as excellent environmental resistance with an IP65, IP67, IP68, and IP69K protection degree. It is capable of withstanding a wide range of temperatures from -40 °C to +90 °C, making it suitable for tough industrial environments. The gold-plated copper alloy contacts ensure low contact resistance and high insulation resistance, leading to efficient and reliable connections.
This cordset is perfectly suited for connecting sensors and actuators in automation systems. Its reliable 4-pin connection ensures secure signal transmission, aiding precise control and monitoring in automated processes. Additionally, the single-ended design simplifies installation, reducing downtime and maintenance efforts.
€139.15
per item
