M12 A-Coded Female Translucent Body PUR Orange 3-Wire

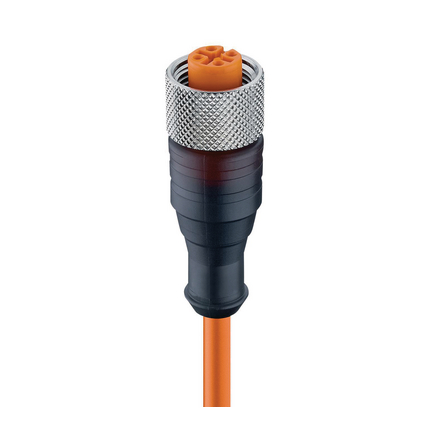

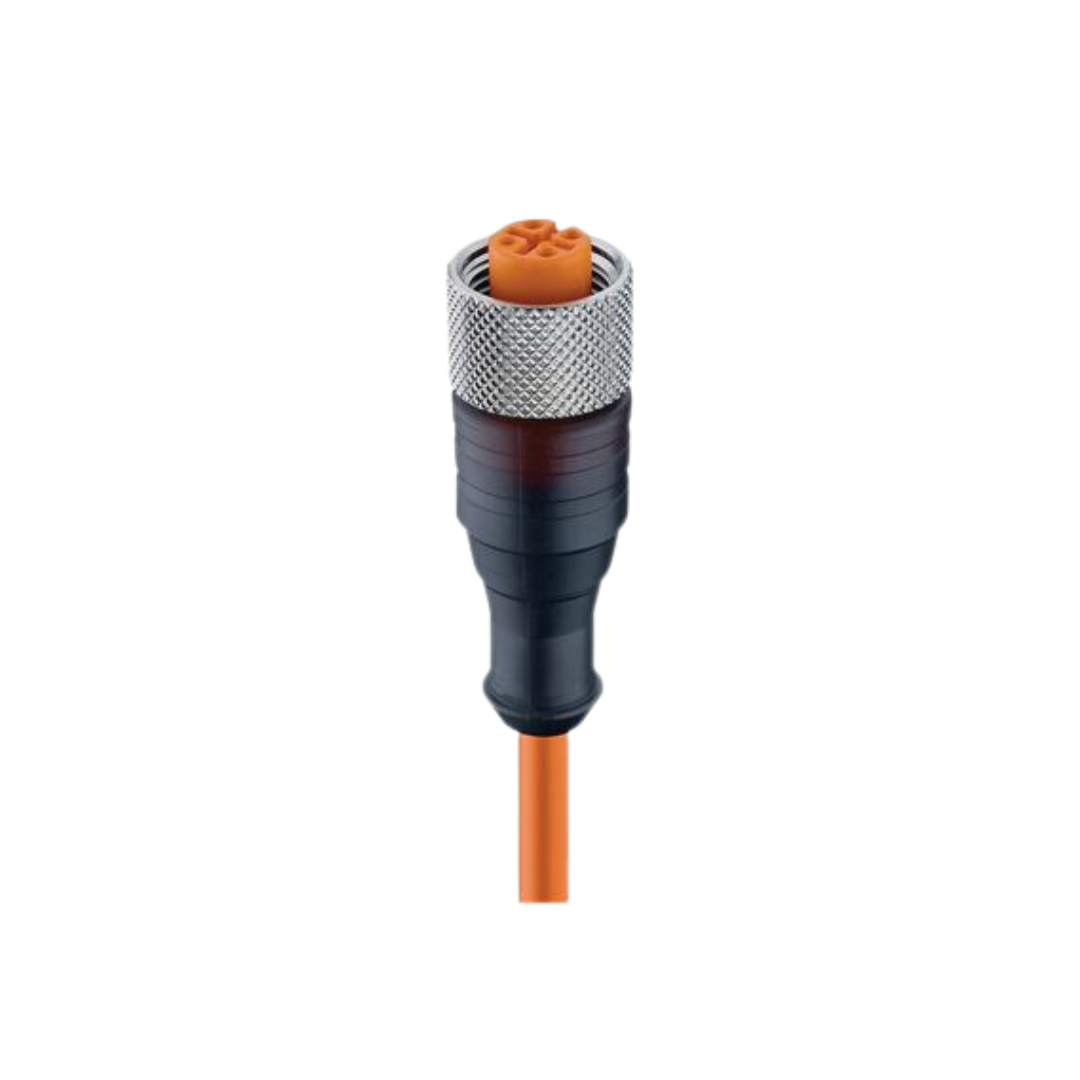

The M12 Standard Sensor/Actuator Single-Ended Cordset features a female, straight, 4-pin, A-coded connector with a translucent body designed to withstand up to 230 V AC/DC and carry a current of 4 A. The cordset includes a 3-wire PUR orange cable with a conductor size of 0.34 mm². Built to meet the highest standards, it offers several IP ratings including IP65, IP67, IP68, and IP69K, ensuring durability and reliability even in the harshest environments. The high-quality materials such as CuSn and TPU, coupled with excellent resistance to oils, microbes, and hydrolysis, make this cordset ideal for various industrial applications.

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed with a female, straight, 4-pin, A-coded connector, encased in a translucent body. It operates at a voltage of 230 V AC/DC and can handle a current of up to 4 A. The cordset features an orange polyurethane (PUR) cable containing three wires, each with a cross-sectional area of 0.34 mm². The connector components include a coupling nut for secure attachment. It meets various safety and performance standards including IP65, IP67, IP68, and IP69K ratings for protection against dust and water ingress, making it suitable for harsh environments. The cordset has a rated impulse voltage of 2.5 kV and an insulation resistance greater than 10^9 Ohm, ensuring reliability and durability. Its operating temperature ranges from -40°C to +90°C, making it versatile for various industrial applications.

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed to provide reliable connections in industrial environments. It features a female, straight, 4-pin connector with A-coding, suitable for 230 V AC/DC and supporting up to 4 A. The cordset includes an orange cable made from durable PUR material, with three wires, each of 0.34 mm² cross-sectional area. The connector is equipped with a coupling nut for secure attachment and meets IP65, IP67, IP68, and IP69K protection requirements, ensuring high resistance to dust and water. The assembly is constructed from high-quality materials, including CuSn contacts with Cu/Au plating and a TPU molded body. Ideal for use with sensors and actuators, the cordset operates effectively in temperatures ranging from -40 °C to +90 °C and boasts a long lifespan with up to 100 mating cycles.
