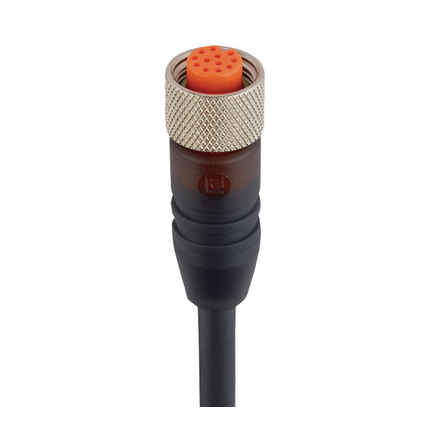

M12 A-Coded Female PUR Black
RKT 12-346/10 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable, consistent connections in various automation and control applications. This female, straight 12-pin connector is A-coded and features a robust translucent body. It supports an operating voltage of 30 V AC/DC and a current rating of 1.5 A. The cordset is equipped with a durable PUR black cable that includes 12 wires, each with a conductor size of 0.25 mm². The IP65 and IP67 ratings ensure high resistance against dust and water, making it suitable for demanding environments. The cordset's ambient temperature operation ranges from -25 °C to +90 °C, with a mating cycle lifespan of up to 100 cycles. Ideal for automation systems, this product delivers reliable performance in numerous industrial settings.
€82.51
per item
RKT 12-10-345/0,5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a versatile connection solution designed for various sensing and actuating applications. It features a female straight connector with 12 pins and is A-coded for reliable data transmission. The translucent body, paired with a PUR black cable, enhances its durability and performance. Rated for 30 V AC/DC and 1.5 A, this cordset ensures robust power and signal integrity. The 10-wire configuration with a conductor size of 0.25 mm² adds to its exceptional flexibility and strength, ideal for industrial environments requiring IP65 and IP67 protection.
€45.67
per item
RKT 12-346/15 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable connection solution for various industrial applications. This cordset features a female, straight connector with 12 pins, A-coded, designed to handle a voltage rating of 30 V AC/DC and a current rating of 1.5 A. The connector's translucent body and the black PUR cable, which houses 12 wires of 0.25 mm² each, provide both durability and flexibility. The entire assembly meets the IEC 61076-2-101 standard, offers IP65 and IP67 protection ratings, and can operate in temperatures ranging from -25°C to +90°C, ensuring reliable performance in harsh conditions. The design includes a coupling nut for secure attachment, and the materials used are corrosion-resistant with excellent electrical characteristics including low contact resistance and high insulation resistance.
€102.56
per item
RKT 12-346/6 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable connections in industrial automation. This cordset features a 12-pin, A-coded female connector with a straight orientation and a translucent body. The connector operates efficiently at 30 V AC/DC with a maximum current of 1.5 A. Its robust design includes a PUR black cable, containing 12 wires with a conductor size of 0.25 mm², ensuring durability and flexibility. The cordset complies with IP65 and IP67 ratings, making it suitable for harsh environmental conditions. Various cable lengths are available, meeting diversified installation needs.
€67.12
per item
RKT 12-346/20 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for various industrial applications. This model features a straight 12-pin female connector with an A-coded design. It supports an operational voltage of 30 V AC/DC and a current rating of 1.5 A. The connector has a translucent body and is made with durable materials, including a CuZn contact base and nickel-plated attachment. The 12-wire PUR black cable, measuring 0.25 mm² per wire, ensures reliable connectivity and durability. With IP65/IP67 protection, this cordset can withstand harsh environments, and its flammability ratings (UL 94 HB) and temperature range (-25 °C to +90 °C) further enhance its safety and reliability.
€120.97
per item
RKT 12-346/2 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for robust and reliable connections in industrial environments. This cordset features a female, straight, 12-pin, A-coded connector with a translucent body. It can handle up to 30 V AC/DC and 1.5 A, ensuring a stable and efficient connection for your sensors and actuators. The cable is constructed from durable PUR material, with 12 individual wires, each with a diameter of 0.25 mm². The assembly is built to withstand harsh conditions, with an IP65/IP67 rating, making it resistant to dust and water ingress.
The key benefits of this cordset include its robust construction and high reliability, ensuring long-term performance in challenging environments. The connector is designed to maintain a secure connection, with a rated current of 1.5 A and an insulation resistance of over 10⁹ Ohm. The cable itself is resistant to oils, chemicals, and other potentially damaging substances, while also being flexible in a variety of installations.
This M12 cordset is ideal for use in factory automation and process control applications, where reliable and stable connections are essential. Whether you need to connect sensors for data acquisition or actuators for control systems, this cordset provides a robust solution that can withstand demanding industrial conditions.
€51.72
per item
RKT 12-10-345/5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed with a female, straight, 12-pin, A-coded connector in a translucent body. It supports 30 V AC/DC and operates at a current rating of 1.5 A. The connector is unshielded with high insulation resistance and low contact resistance, ensuring secure connections. The PUR black cable, consisting of 10 wires at 0.25 mm², is robust with a minimal bending radius ideal for both flexible and fixed installations. This cordset is highly resistant to chemicals, oil, microbes, and hydrolysis, and operates efficiently in ambient temperatures ranging from -50°C to +80°C. Compliant with IP65 and IP67 protection ratings, it ensures durability in harsh environments, making it perfect for industrial automation applications.
€60.13
per item
RKT 12-346/4 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is an essential component designed for robust and reliable connectivity in industrial environments. Featuring a female, straight design with 12 pins and A-coded configuration, this cordset supports 30 V AC/DC operating voltage and a rated current of 1.5 A. It is equipped with a translucent body and a sturdy PUR black cable with 12 wires of 0.25 mm² each, ensuring durability and flexibility in various applications. The cordset meets IP65 and IP67 protection standards, making it suitable for harsh conditions with exposure to dust and water.
This product offers several benefits, including its high contact resistance of ≤ 10 mOhm and insulation resistance of ˃ 10^9 Ohm, ensuring secure and efficient connections. Additionally, it supports up to 100 mating cycles and operates within a wide temperature range of -25 °C to +90 °C.
Ideal for connecting sensors and actuators in automation systems, machinery, and industrial settings, this cordset ensures reliable signal transmission and power delivery. It is applicable in fixed and flexible installations, demonstrating good chemical and oil resistance, flammability compliance, and robustness in challenging environmental conditions.
€59.42
per item
RKT 12-346/5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a reliable and versatile connector designed for various industrial applications. This cordset features a female, straight design with 12 pins and A-coding, making it suitable for a wide range of sensors and actuators. The body is translucent, and it supports a voltage of 30 V AC/DC and a current of 1.5 A. The connector comes with a PUR black cable that has 12 wires of 0.25 mm² each, ensuring durability and flexibility. The cordset is unshielded and employs a coupling nut for attachment. It is suitable for environments with temperatures ranging from -25 °C to +90 °C and offers protection levels of IP65 and IP67. The contact base material is CuZn with a Cu/Au plating, adding to its robustness. The cable is halogen-free and offers good resistance to chemicals, oils, and microbes, ensuring reliable performance in harsh conditions.
€63.27
per item
RKT 12-346/3 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable choice for industrial applications. This cordset features a female, straight, 12-pin, A-coded connector with a translucent body, ensuring secure and clear connections. It is designed to handle up to 30 V AC/DC and 1.5 A, making it suitable for various sensor and actuator connectivity applications. The cordset includes a durable PUR black cable with 12 wires of 0.25 mm², guaranteeing flexibility and resilience in challenging environments. Benefits include high insulation resistance (˃ 10^9 Ohm), a wide operating temperature range (-25 °C to +90 °C), and compliance with IP65 and IP67 protection standards, ensuring optimal performance and longevity even in demanding conditions. This cordset is ideal for use in automation systems, machinery, and any application requiring reliable sensor/actuator connections.
€55.56
per item
RKT 12-10-345/10 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a versatile and reliable connector solution designed for various industrial applications. This cordset features a female, straight, 12-pin design with A-coding, housed within a durable translucent body. It operates at a voltage of 30 V AC/DC and supports a current of up to 1.5 A. The cordset is equipped with a robust PUR black cable that includes 10 wires, each with a cross-sectional area of 0.25 mm², providing excellent durability and flexibility.
This cordset is designed to offer high performance and reliability. Its IP65 and IP67 rating ensures excellent protection against dust and water, making it suitable for challenging environments. The connector features a coupling nut attachment and is rated for up to 100 mating cycles, making it ideal for frequent use. The materials used, such as CuZn for contacts, PBT for the contact bearer, and TPU for the molded body, ensure long-lasting performance and resistance to environmental factors.
The M12 Standard Sensor/Actuator Single-Ended Cordset is perfect for connecting sensors and actuators in automation systems. It is suitable for use in various industrial settings, including manufacturing, transportation, and utilities. Its high resistance to chemicals and oil, along with excellent flexibility in cold temperatures, ensures reliable performance in diverse conditions.
€76.21
per item
RKT 12-346/30 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a high-quality connectivity solution for industrial environments. This cordset comprises a 12-pin female, straight connector that is A-coded, ensuring secure and precise connections. With a translucent body and an operational voltage rating of 30 V AC/DC, it is designed to handle up to 1.5 A current, making it suitable for demanding applications. The product boasts a durable PUR black cable with 12 individual wires (each 0.25 mm²), providing excellent flexibility and durability in tough conditions. Its construction is compliant with IEC 61076-2-101 standards and features an IP65/IP67 protection degree, making it adept at withstanding environmental factors such as moisture and dust. This cordset is engineered using robust materials such as CuZn for contacts and TPU for the molded body, ensuring longevity and reliable performance. The M12 Standard Sensor/Actuator Single-Ended Cordset is ideal for use in various automation tasks, delivering reliable performance in both fixed and flexible installations. Suitable for industrial automation, sensor and actuator connections, and similar applications, it provides a robust and versatile solution for complex electrical installations while ensuring optimal signal transmission and environmental resistance.
€171.60
per item
