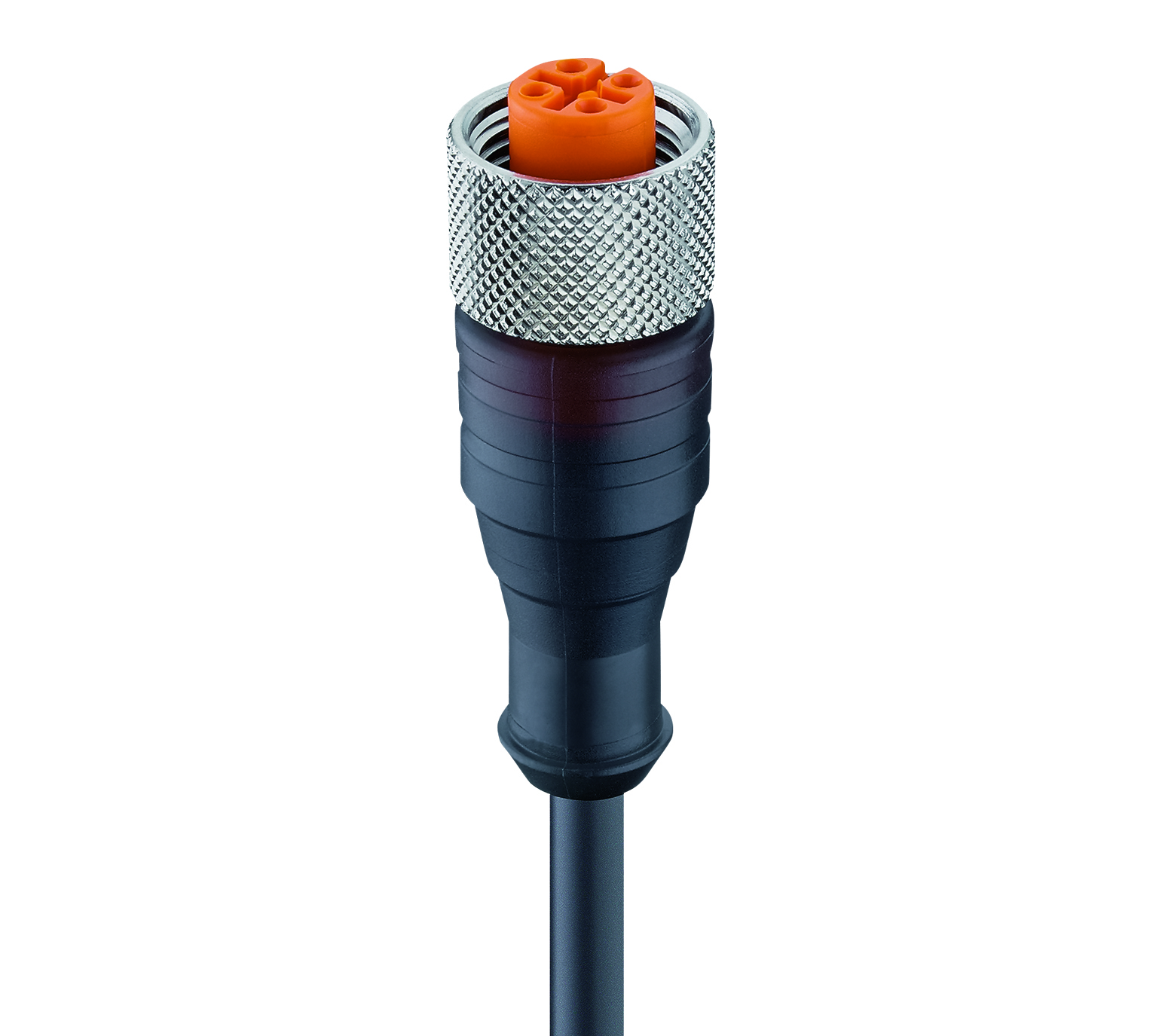

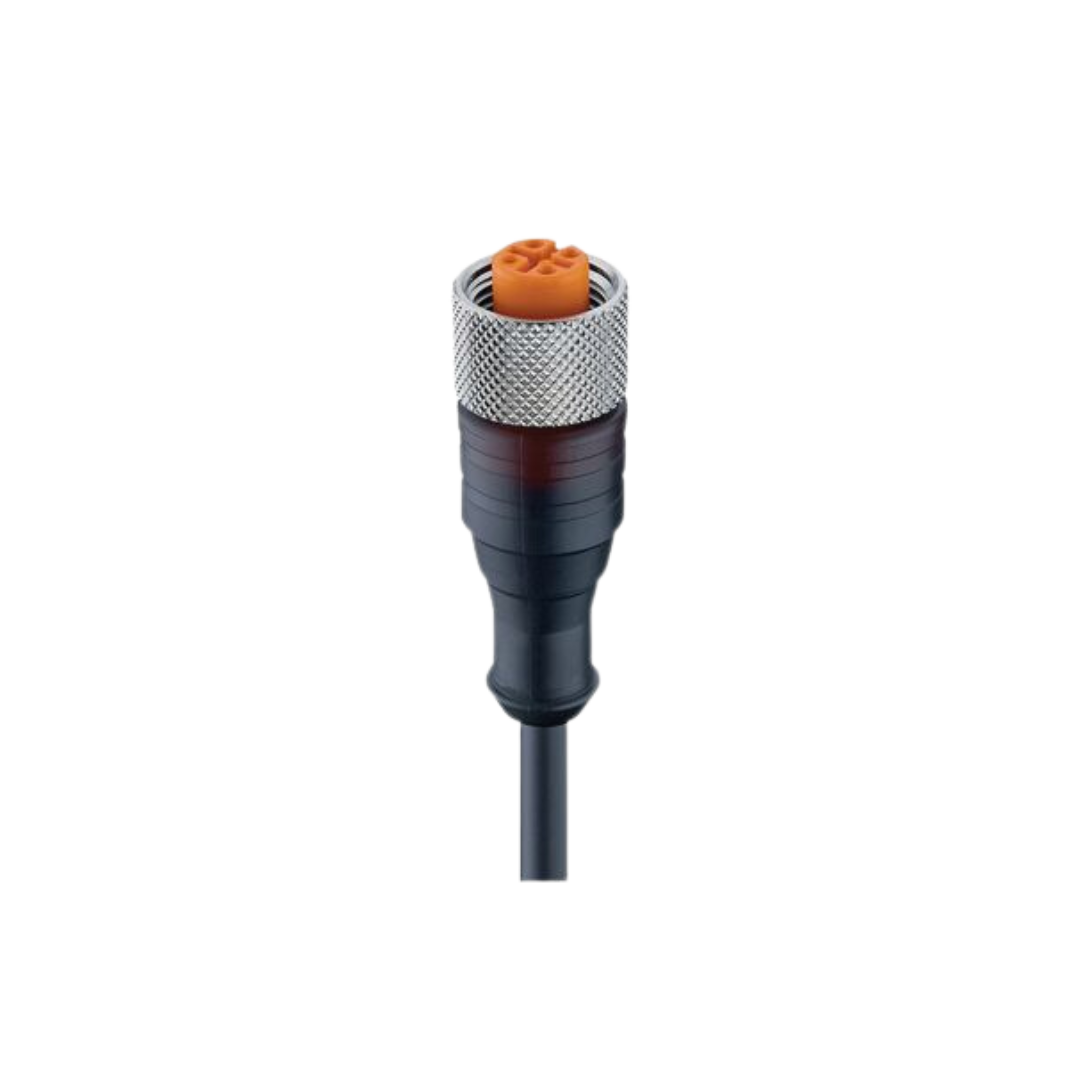

M12 A-Coded Female Translucent Body PVC Black 3-Wire

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for robust and reliable sensor and actuator connectivity. Featuring a female, straight, 4-pin, A-coded connector, this cordset boasts a translucent body and is suitable for applications requiring 230 V AC/DC and up to 4 A current. The black PVC cable is constructed with 3 wires, each 0.34 mm², providing flexibility and durability in various installation environments. This cordset offers significant benefits, including high insulation resistance (>10^9 Ohm) and a rated impulse voltage of 2.5 kV, ensuring safety and resilience in demanding conditions. It also meets the IP65 and IP67 protection degrees, making it dust-tight and protected against water immersion up to 1 meter. The cordset is UL rated and complies with RoHS standards, reflecting its adherence to stringent safety and environmental guidelines. Ideal for sensor and actuator applications in industrial automation, this cordset is perfect for settings requiring reliable connectivity and robust performance under varying conditions. Its minimal bending radius allows for flexible installations, and its resistance to oils and chemicals further enhances its suitability for industrial environments. The cordset also supports up to 100 mating cycles, ensuring longevity and consistent performance.

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed with a female, straight, 4-pin configuration and is A-coded for reliable communication. It operates at 230 V AC/DC with a current capacity of 4 A, suitable for diverse applications. The cordset features a durable PVC black cable with 3 wires, each having a conductor size of 0.34 mm². The translucent body and nickel-plated coupling nut provide enhanced durability and protection, meeting IP65 and IP67 ratings. This cordset is ideal for connecting sensors and actuators in industrial environments, providing robust performance and excellent chemical and oil resistance.

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable connections in industrial applications. This model features a female, straight, 4-pin, A-coded connector with a translucent body and supports an operating voltage of 230 V AC/DC and a current rating of 4 A. The cordset is equipped with a black PVC cable consisting of 3 wires with a conductor size of 0.34 mm², ensuring excellent electrical performance and durability. The IP65 and IP67 ratings make it suitable for use in harsh environmental conditions, providing efficient protection against dust and water.
