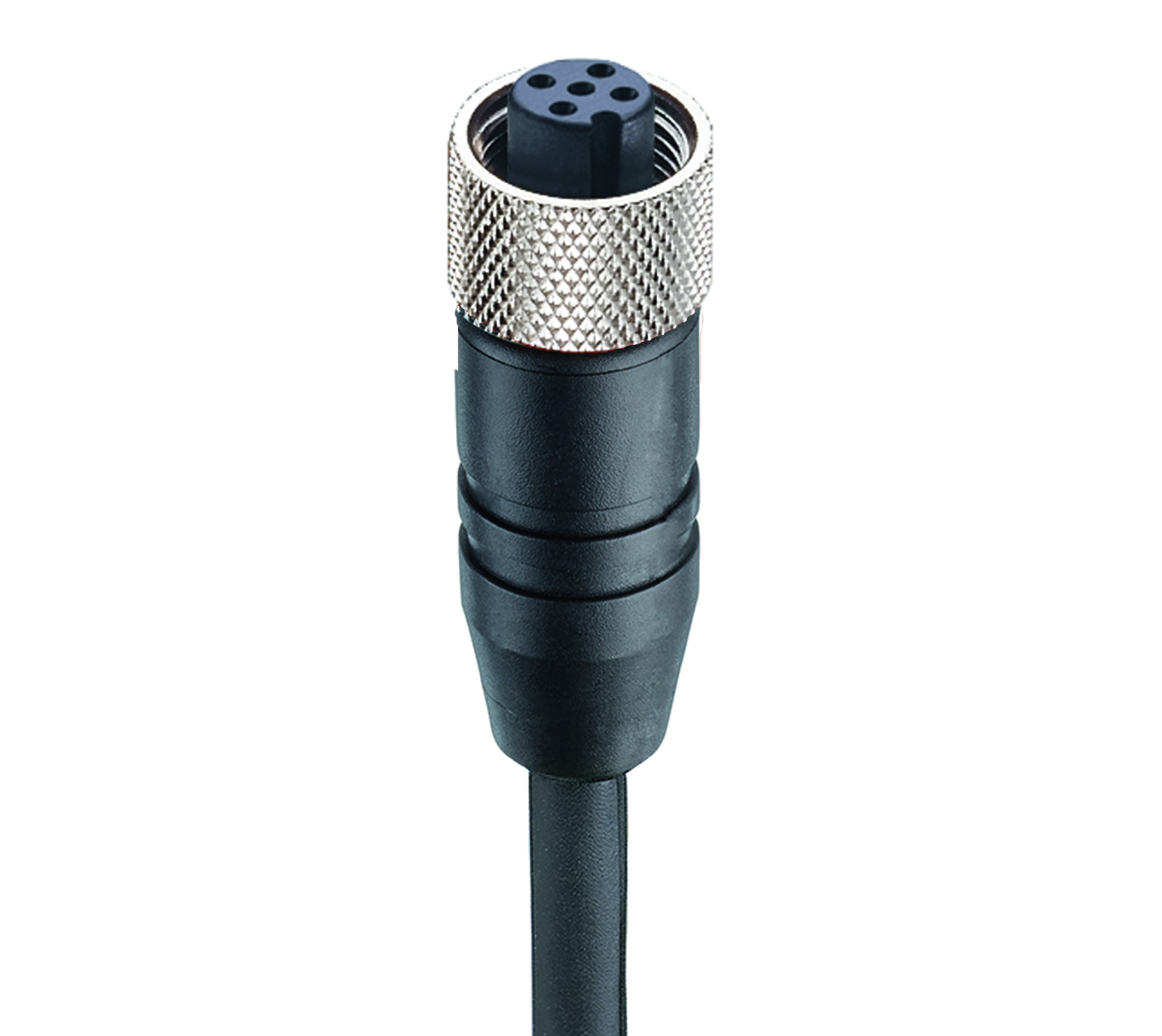

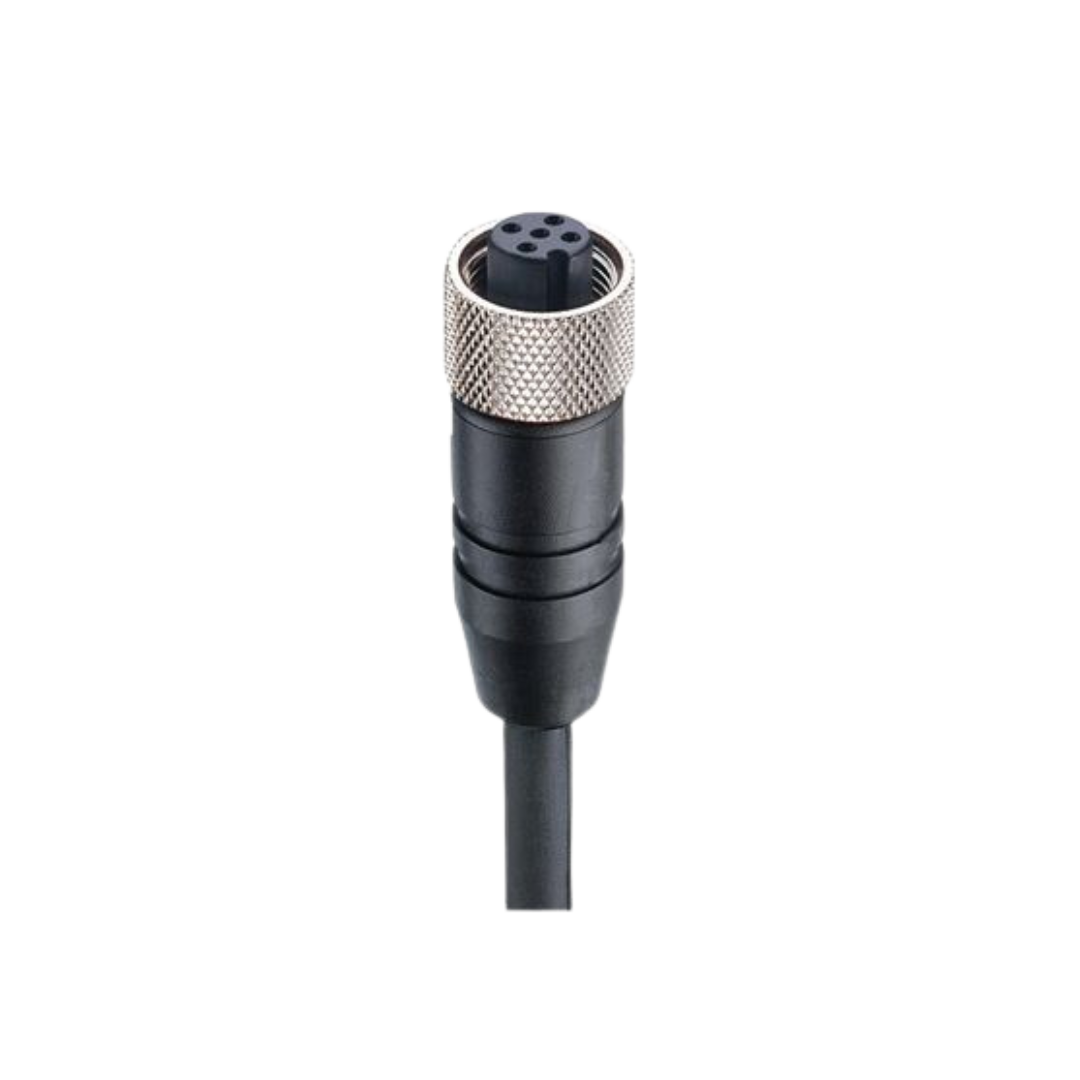

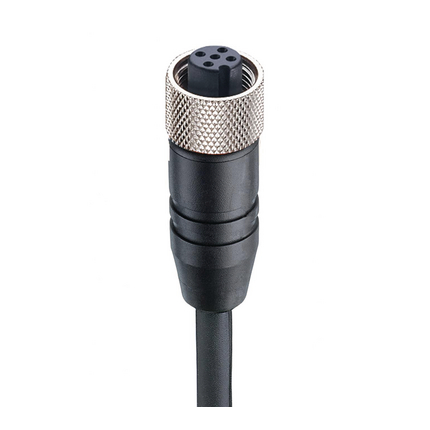

M12 A-Coded Female PUR Black CANopen/DeviceNet
0935 253 105/16 M
CANopen / DeviceNet Data Single-Ended Cordset
CANopen / DeviceNet Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, A-coded, black body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€109.28
per item
0935 253 105/13 M
CANopen / DeviceNet Data Single-Ended Cordset
CANopen / DeviceNet Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, A-coded, black body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€94.37
per item
0935 253 105/22 M
CANopen / DeviceNet Data Single-Ended Cordset
CANopen / DeviceNet Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, A-coded, black body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€144.84
per item
0935 253 105/11 M
CANopen / DeviceNet Data Single-Ended Cordset
CANopen / DeviceNet Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, A-coded, black body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€79.88
per item
0935 253 105/25 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset offers a reliable connection in industrial environments. With its M12 standard, 5-pin, A-coded female connector, this cordset is specifically designed for optimal performance in CANopen and DeviceNet networks. The black molded body ensures durability and seamless integration into various systems. It supports a maximum operating voltage of 50 V AC / 60 V DC and a current capacity of up to 4 A. The 4-wire cable includes two data wires of 0.25 mm² and two power wires of 0.34 mm², enclosed in a robust PUR black jacket with high resistance to chemicals, oils, and microbes. The cordset meets several IP ratings, providing exceptional protection in challenging environments and even under immersion conditions.
€162.40
per item
0935 253 105/0,6 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is an essential component for data communication applications utilizing an M12 standard connection. This female connector, with a straight design and 5-pin A-coded format, ensures reliable performance in harsh environments. The robust PUR black cable contains 4 wires: 2 for data (0.25 mm² each) and 2 for power (0.34 mm² each), equipped to handle a voltage of 50 V AC or 60 V DC and a current of up to 4 A. The product's construction features high-quality materials such as CuSn for contact base and a nickel-plated CuZn coupling nut, offering exceptional durability and resistance to environmental factors. It boasts an impressive protection degree of IP65, IP67, IP68, and IP69K, ensuring protection against dust and water ingress, even under demanding conditions, making it ideal for both indoor and outdoor industrial applications. Additionally, the cordset adheres to industry standards IEC 61076-2-101, ensuring compatibility and reliable performance.
€18.55
per item
0935 253 105/70 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is a high-quality connectivity solution featuring an M12 Standard connector. This female, straight connection is 5-pin and A-coded, supporting 50 V AC/60 V DC and 4 A. It has a robust black body with a matching PUR cable that includes 4 wires: 2 for data (0.25 mm² each) and 2 for power (0.34 mm² each). The cable and connectors are designed for industrial-grade reliability with protection degrees of IP65, IP67, IP68, and IP69K, making it suitable for harsh environments including temperature ranges from -40°C to +80°C for operations. Ideal for CANopen and DeviceNet applications, this cordset ensures secure and efficient data transmission with excellent contact resistance and durability.
€520.86
per item
0935 253 105/7 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is a reliable connectivity solution designed with an M12 Standard, female, straight, 5-pin, A-coded connector in a sleek black body. It offers compatibility with 50 V AC / 60 V DC power and a current rating of 4A, ensuring dependable operation. The cable is constructed from durable PUR material, with a 4-wire configuration including data (2x0.25 mm²) and power (2x0.34 mm²) lines, providing robust transmission and power delivery. This product is particularly suitable for CANopen and DeviceNet applications, ensuring seamless data transmission with minimal resistance and high insulation properties.
€56.29
per item
0935 253 105/0,5 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for reliable data transmission in a variety of industrial applications. Featuring an M12 standard, straight, female, 5-pin, A-coded connector with a robust black body, this cordset ensures secure connections under tough conditions. The connector is rated for operation at 50 V AC / 60 V DC and can handle up to 4 A of current. The PUR black cable is designed with four wires, consisting of two data lines (2x0.25 mm²) and two power lines (2x0.34 mm²), ensuring efficient data and power transfer. This cordset offers excellent performance with an IP65, IP67, IP68 (1 m / 24 h), and IP69K protection rating, making it suitable for harsh environments. It is part of the Lumberg Automation product family, known for high quality and reliability.
€17.98
per item
0935 253 105/6 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen/DeviceNet Data Single-Ended Cordset is a high-quality connector set designed for data transmission in industrial automation systems. Featuring an M12 standard, female, straight design with 5 pins and A-coding, it is ideal for reliable connections. It operates with voltages up to 50V AC/60V DC and supports 4A current. The cordset includes a durable PUR black cable with 4 wires: two for data (0.25 mm² each) and two for power (0.34 mm² each), offering robust performance in diverse industrial environments.
€51.88
per item
0935 253 105/30 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for robust data transmission in industrial environments. Featuring an M12 standard, this female connector is straight with 5-pins and A-coding, ensuring secure connections. The black body and PUR (Polyurethane) black cable provide durable and flexible characteristics under various conditions, withstanding temperatures from -40 °C to +80 °C. Rated at 50 V AC / 60 V DC and 4 A, this cordset employs a four-wire setup with data lines (2x0.25 mm²) and power lines (2x0.34 mm²). Designed per IEC 61076-2-101 standards, it offers excellent contact resistance and insulation resistance, making it reliable for regular industrial use.
€208.90
per item
0935 253 105/15 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset features a robust M12 Standard connector with a straight, female, 5-pin, A-coded design. The body is black and constructed from durable materials, making it ideal for demanding environments. It supports a voltage of 50 V AC/60 V DC with a current rating of 4 A. The cordset comes with a PUR black cable featuring 4 wires, specifically arranged for data and power transmissions: Data: 2x0.25 mm² and Power: 2x0.34 mm². The connector is unshielded and features a coupling nut attachment type, ensuring secure connections and easy integration into various automated systems. The cordset's compatibility with standard CANopen and DeviceNet protocols makes it versatile for industrial applications.
€106.49
per item
0935 253 105/20 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for reliable data transmission in industrial environments. Featuring a 5-pin M12 female connector, this cordset is straightforwardly designed with A-coding, allowing consistent and secure connectivity. The cordset supports an operating voltage of 50 V AC / 60 V DC and has a rated current of 4 A. The black PUR cable comprises four wires; data transmission is facilitated by two 0.25 mm² wires, while power is delivered through two 0.34 mm² wires. The cordset ensures robustness and reliability, capable of withstanding temperatures from -40°C to 80°C. With IP65, IP67, IP68 (1 m / 24 h), and IP69K protection ratings, it is ideal for use in demanding environments where moisture, dust, and chemicals are present.
€136.85
per item
0935 253 105/2 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for optimal data and power transmission. Featuring an M12 Standard, female, straight, 5-pin, A-coded connector, this cordset comes with a durable black TPU body and black PUR cable. Rated for an operating voltage of 50 V AC / 60 V DC and a current of 4 A, it ensures robust performance. The cord includes four wires, with data wires sized at 2x0.25 mm² and power wires at 2x0.34 mm². It operates across a wide temperature range (-40 °C to +80 °C) and is rated for IP65, IP67, IP68, and IP69K, making it suitable for harsh environments. The cordset is ideal for use in automation systems, ensuring stable connections and data transfer in CANopen and DeviceNet networks.
€27.32
per item
0935 253 105/10 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for reliable data and power transmission. Featuring an M12 Standard female connector, this straight, 5-pin, A-coded connector ensures secure connections with a voltage rating of 50 V AC / 60 V DC and a current rating of 4 A. The black body and coupling nut are constructed from durable nickel-plated CuZn and TPU materials. The black PUR cable incorporates 4 wires (Data: 2x0.25 mm² + Power: 2x0.34 mm²) for efficient data and power transmission.
€76.13
per item
0935 253 105/5 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for high-performance data transmission and power applications. Featuring a M12 Standard, female, straight, 5-pin A-coded connector, this cordset is built to handle 50 V AC / 60 V DC and a current of 4 A. The sturdy black body is complemented by a PUR black cable, which includes 4 wires: data (2x0.25 mm²) and power (2x0.34 mm²). The cordset is rated IP65, IP67, IP68, and IP69K, ensuring it withstands harsh environments. It is RoHS compliant and offers excellent resistance to chemicals, oils, and environmental factors. Ideal for industrial automation and control applications, this cordset supports CANopen and DeviceNet protocols, making it versatile and reliable for various uses.
€45.82
per item
0935 253 105/3 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is an essential connector for data transmission applications with its M12 Standard, female configuration. This straight, 5-pin, A-coded cordset features a durable black body and can handle voltage levels of 50 V AC and 60 V DC, with a current rating of 4 A. The black PUR cable supports four wires: two for data transmission at 0.25 mm² each and two for power at 0.34 mm² each, ensuring reliable performance for various industrial needs. This cordset conforms to IEC 61076-2-101 standards and offers robust resistance to chemicals, oils, and temperature variations. Its high insulation resistance and robust construction make it suitable for a wide range of environmental conditions.
€33.68
per item
0935 253 105/1 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is a robust connection solution designed for industrial communication networks. Featuring an M12 standard, female straight, 5-pin A-coded connector, this cordset ensures reliable data transmission and power supply. Its rugged black body and 50 V AC / 60 V DC operation make it suitable for challenging environments. The cordset comprises a PUR black cable with four wires - two for data (2x0.25 mm²) and two for power (2x0.34 mm²), supporting up to 4 A current. Designed to withstand a wide range of temperatures and offering protection levels up to IP69K, it guarantees durability and performance in harsh conditions.
€20.91
per item
0935 253 105/0,3 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is a high-performance, reliable connectivity solution for data and power transmission. Featuring an M12 standard design with 5 pins in a straight, female configuration, this cordset ensures robust connections in industrial and commercial applications. The cordset is A-coded, enhancing its compatibility with various devices that utilize CANopen or DeviceNet protocols. With a rated voltage of 50 V AC / 60 V DC and a current capacity of 4 A, it is ideal for high-demand environments.
Key benefits of the cordset include its durable black body and PUR cable, which offer excellent resistance against chemicals, oils, and mechanical wear. The cable is composed of 4 wires, with data transmissions utilizing 2x0.25 mm² conductors and power transmission through 2x0.34 mm² conductors. The unshielded design, combined with the robust TPU molded body, ensures longevity and reliability.
This cordset is versatile and can be employed in various settings, from factory automation to outdoor equipment. The IP65, IP67, IP68, and IP69K ratings mean it is highly protected against dust and water, making it suitable for harsh environments. Overall, this cordset provides a reliable and efficient solution for complex data and power transmission needs.
€16.79
per item
0935 253 105/8 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed for high-performance industrial data transmission. This cordset features an M12 Standard connector with a straight, female, 5-pin, A-coded design in a robust black body. It ensures reliable connectivity under demanding conditions, with an operating voltage of 50 V AC / 60 V DC and a current capacity of 4 A. The black PUR cable is constructed with 4 wires (Data: 2x0.25 mm² + Power: 2x0.34 mm²) for efficient transmission. The cordset is known for its excellent resistance to chemicals, oil, microbes, and hydrolysis, and it is free from PVC and silicone. It operates within a wide temperature range of -40°C to +80°C, making it suitable for diverse environments. This product complies with stringent standards, including IEC 61076-2-101 and DIN EN 60664-1, ensuring high insulation resistance and low contact resistance, providing stable connections over extended periods.
€62.05
per item
0935 253 105/4 M
CANopen / DeviceNet Data Single-Ended Cordset
The CANopen / DeviceNet Data Single-Ended Cordset is designed with M12 Standard specifications. It features a female, straight 5-pin connector that is A-coded and housed in a robust black body. This cordset supports 50 V AC and 60 V DC with a rated current of 4 A. The black PUR cable consists of 4 wires, divided into two data and two power conductors, ensuring reliable data transmission and power delivery.
The cordset offers several benefits, including its shielding from external interference, and high insulation resistance of >10^9 Ohm. It supports up to 100 mating cycles and operates within a temperature range of -40°C to +80°C. The cordset also meets IP65, IP67, IP68, and IP69K standards, providing robust protection against dust and water ingress.
This product is suitable for use in industrial automation, control systems, and environments requiring data transmission and power delivery. Its compliance with CANopen and DeviceNet standards makes it ideal for industrial networking applications.
€43.87
per item
