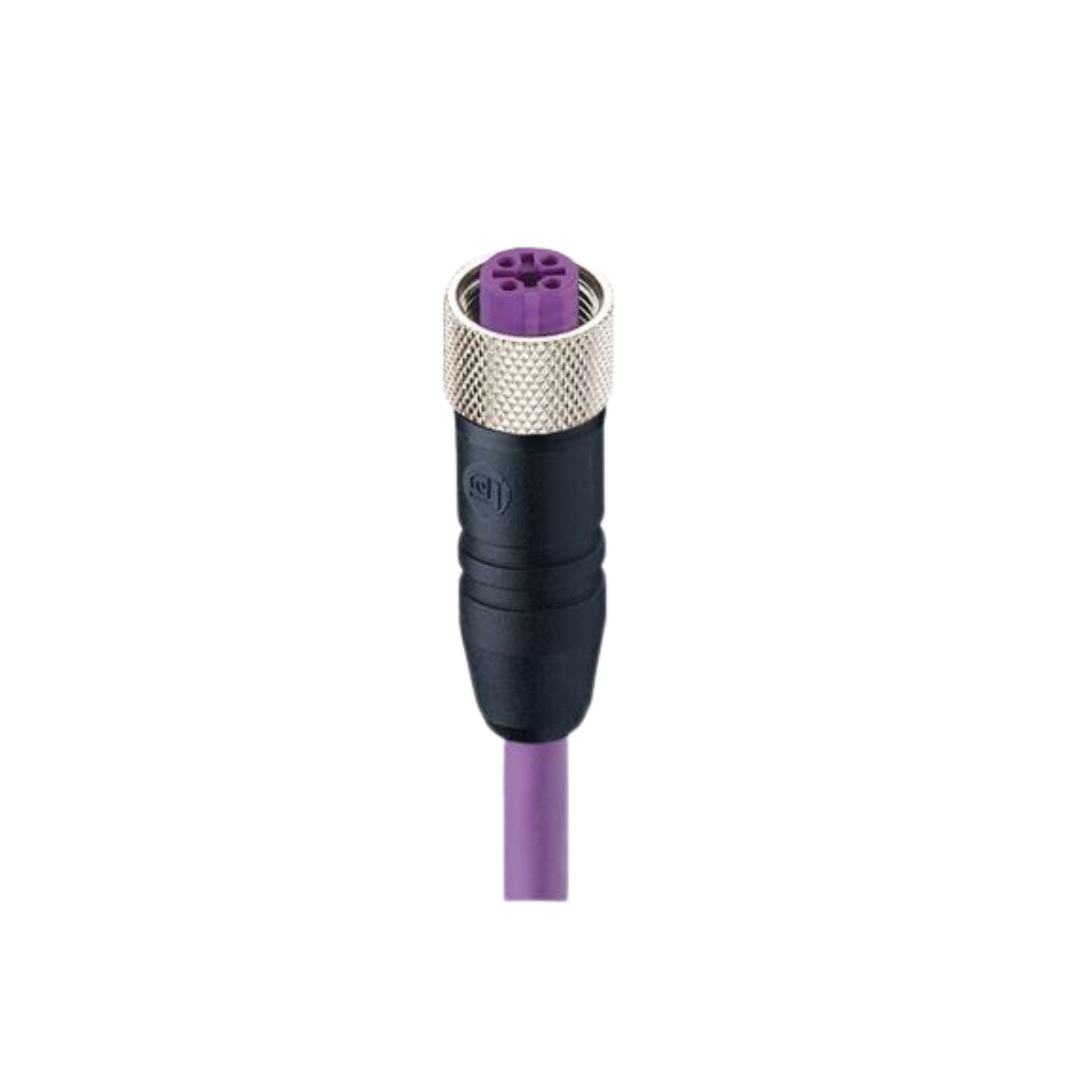

M12 B-Coded Female PUR Violet PROFIBUS

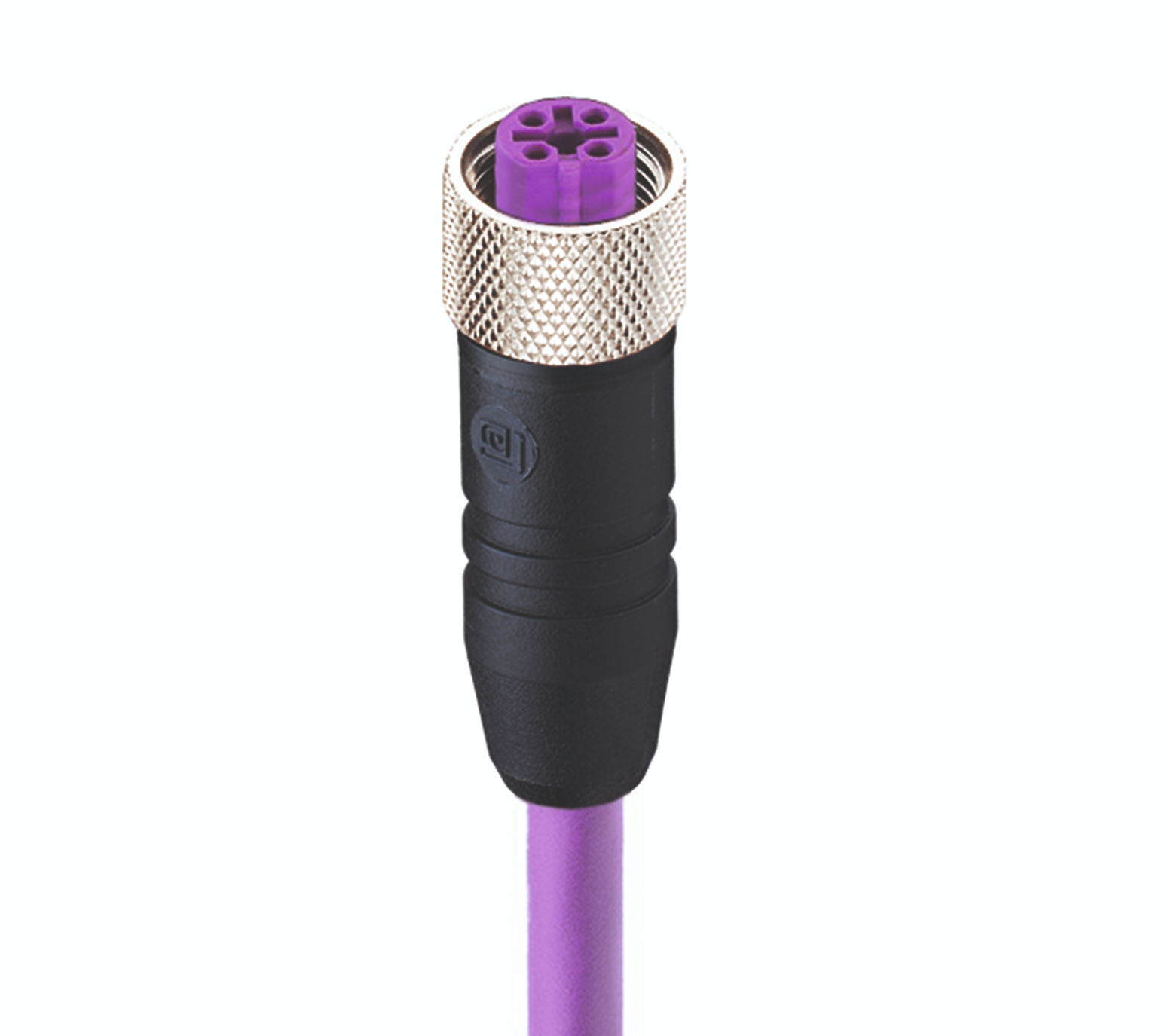

0975 254 103/35 M

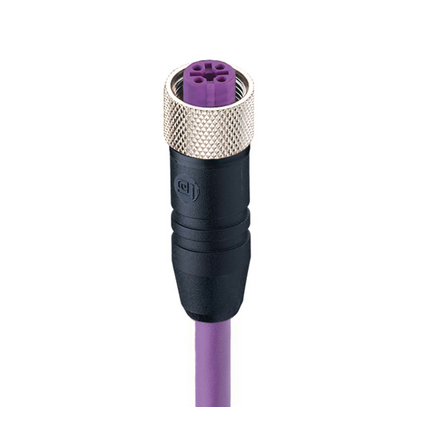

PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is an advanced, reliable connector that features an M12 standard design. This cordset is female and straight, incorporating five pins with B-coding. It is thoroughly shielded to prevent signal interference and embodies a robust, black body constructed to operate at 50 V AC / 60 V DC with a current of up to 4 A. The cable is PUR violet, featuring two wires each with a conductor size of 0.34 mm², ensuring excellent durability and electrical conductivity. This cordset comes equipped with a coupling nut attachment, a nickel-plated shield, and durable TPU molded components. It supports 100 mating cycles, operates within temperatures ranging from -25 °C to +80 °C, and enables efficient data transmission via PROFIBUS.
€231.98
per item
0975 254 103/0,6 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed for reliable communication in industrial environments. This M12 Standard, female, straight connector features a 5-pin, B-coded configuration that ensures secure and efficient data transmission. Shielded for enhanced protection, it operates at 50 V AC / 60 V DC with a current rating of 4 A. The robust PUR violet cable is 0.34 mm² in size, offering excellent resistance to chemicals, oils, and environmental stress. Suitable for use under demanding conditions, this cordset provides a flawless connection for PROFIBUS systems.
€29.78
per item
0975 254 103/12 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a robust solution for industrial data transmission needs. This cordset features an M12 standard, female, straight design with a 5-pin, B-coded configuration, ensuring secure and efficient connections. The cordset's black body is shielded for enhanced protection, and it supports a rated voltage of 50 V AC / 60 V DC and a rated current of 4 A. The violet PUR cable consists of 2 wires with a conductor size of 0.34 mm², offering excellent flexibility and durability.
€83.89
per item
0975 254 103/30 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a robust and reliable connection solution for your automation systems. It features an M12 standard, female, straight connector with B-coding and shielded design, ensuring secure and stable data transmission. The connector accommodates 5 pins and supports up to 50 V AC and 60 V DC with a current rating of 4 A. Its rugged construction includes a black body and a durable PUR violet cable with 2 wires and a conductor size of 0.34 mm². The cable is designed for flexible use, offering excellent resistance to chemicals, oils, and extreme temperatures ranging from -25 °C to +80 °C. The cordset meets IP65 and IP67 protection standards, making it suitable for harsh industrial environments.
The primary benefits of this cordset include its high reliability in data transmission, excellent resistance to environmental stressors, and adherence to PROFIBUS specifications. The shielded design minimizes electromagnetic interference, ensuring clear and stable communication within your network.
Applications for the PROFIBUS Data Single-Ended Cordset include industrial automation, machinery, and equipment that require secure and efficient data communication. It's particularly suited for environments where physical durability and data integrity are crucial. The various cable lengths available make it versatile for different installation requirements.
€151.61
per item
0975 254 103/8 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a reliable and efficient solution for data transmission applications. This cordset boasts an M12 standard female connector designed to be straight and B-coded, providing robust connectivity with 5 pins. The connector body is shielded and features a durable black finish. It supports an operating voltage of 50 V AC and 60 V DC, with a current carrying capacity of 4 A, making it suitable for various industrial environments. The PUR cable is violet in color and consists of 2 wires with a diameter of 0.34 mm², ensuring excellent conductivity and signal integrity. The overall design complies with the IEC 61076-2-101 standard and is rated for IP65 and IP67 protection, providing high resistance to dust and water. Additionally, the cordset is halogen-free, and the materials used include CuZn for contacts and nickel-plated CuZn for shielding, which enhances durability and longevity. It is rated to function in a temperature range from -25°C to +80°C, making it suitable for harsh operating conditions.
€57.79
per item
0975 254 103/25 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed to provide a reliable and efficient connection for industrial automation applications. This cordset features an M12 standard connector, equipped with a female, straight, 5-pin, B-coded design. The shielded construction ensures robust protection against electromagnetic interference, while the black body offers a sleek and professional appearance. This cordset supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A.
One of the main benefits of this cordset is its PUR violet cable, which has excellent resistance to chemicals and oils, and can withstand extreme temperatures ranging from -25°C to +80°C in flexible installations. Additionally, the exclusion of PVC and silicone materials ensures a higher degree of safety and environmental compliance.
This cordset is particularly suitable for PROFIBUS data transmission in various industrial settings. It is ideal for applications requiring high data transfer rates and secure connections, such as automated manufacturing systems, robotics, and sensor networks. The cordset is available in various lengths to suit different installation requirements, making it a versatile solution for connecting devices in demanding environments.
€172.80
per item
0975 254 103/0,3 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a high-quality M12 standard connector designed for efficient data transmission in industrial automation settings. This cordset features a female, straight, 5-pin, B-coded design with shielding for enhanced signal integrity. The black body connector operates at 50 V AC/60 V DC and supports applications up to 4 A, making it suitable for various power and data transmission needs. Its 2-wire 0.34 mm² PUR violet cable is known for its robustness and flexibility, ensuring reliable performance in diverse environmental conditions. Designed to meet IEC 61076-2-101 standards, this cordset offers excellent resistance to chemicals and oil, ensuring longevity and durability. It is also halogen-free and flame-retardant, providing additional safety in demanding industrial environments. The connector's copper-based materials with nickel and gold plating ensure optimal electrical conductivity and contact resistance. This cordset is an ideal solution for applications requiring PROFIBUS data transmission, offering a reliable and durable connection with a high protection degree of IP65 and IP67 when properly installed.
€28.62
per item
0975 254 103/20 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a high-quality connection component designed to meet the rigorous demands of industrial automation systems. Featuring an M12 standard, 5-pin, B-coded, shielded female connector, this cordset ensures secure and reliable connections. The black body of the connector enhances durability, while its design supports voltages up to 50 V AC/60 V DC and a current of 4 A. The cordset includes a robust PUR violet cable with 2-wires, each having a conductor size of 0.34 mm², ensuring excellent flexibility and resistance to environmental factors such as oils, chemicals, and extreme temperatures. This cordset is particularly suitable for PROFIBUS data transmission, contributing to efficient and effective communication in industrial settings. The IP65 and IP67 ratings indicate its high protection against dust and water penetration. The attachment material is nickel-plated CuZn, ensuring a secure coupling with mating connectors.
€143.23
per item
0975 254 103/6 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is engineered to ensure robust data transmission for industrial automation applications. Featuring M12 standard, 5-pin, B-coded female connectors, this cordset is shielded to protect against electromagnetic interference, ensuring reliable signal integrity. The connector body is designed for straight attachment with a black molded TPU body and nickel-plated attachable components. Rated for 50 V AC / 60 V DC and 4 A, it is built to handle demanding environments with an operational temperature range from -25°C to +80°C. The PUR jacketed violet cable meets rigorous safety and environmental standards, making it suitable for use in various industrial settings. The cordset offers high resistance to chemicals, oils, and microbial degradation, and is designed for flexibility with a minimal bending radius of more than 5xD (fixed) and more than 10xD (flexible). Available in multiple lengths, this single-ended cordset is an optimal solution for PROFIBUS data transmission requirements.
€50.18
per item
0975 254 103/10 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is an M12 Standard connector designed for robust industrial applications. Featuring a female, straight, 5-pin connection with B-coding and a black, shielded body, it ensures reliable data transmission with a rated voltage of 50 V AC / 60 V DC and a current rating of 4 A. It is equipped with a robust, violet PUR cable of 0.34 mm², ensuring durability and resistance to environmental factors.
The benefits of this cordset include superior shielding to protect against electromagnetic interference, high insulation resistance exceeding 10^9 Ohm, and reliable mating cycles up to 100. The design meets IEC 61076-2-101 standards, ensuring high performance and reliability in demanding environments.
Ideal for PROFIBUS communication, the cable features RS485 (Type A) transmission values, making it essential for automation and control systems. It is resistant to chemicals, oil, and microbial damage, ensuring longevity and dependable operation in both static and dynamic installations. With an IP65/IP67 protection rating, it is suitable for harsh conditions and industrial use.
€80.13
per item
0975 254 103/15 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is an essential component for reliable data transmission in industrial automation systems. It features an M12 standard, female, straight connector with 5-pin B-coding, ensuring secure connections and preventing misalignment. The cordset is shielded for protection against electromagnetic interference, providing stable data transmission. Constructed with a durable PUR violet cable, the cordset supports operating voltages of 50 V AC / 60 V DC and a current rating of 4 A. It is well-suited for Profibus data applications, ensuring precise communication and control in automation systems. The robust TPU molded body and IP65/IP67 rating provide high resistance to harsh environments, extending the life of the cordset. This series offers a variety of cable lengths, ensuring versatility in installation and connectivity.
€108.38
per item
0975 254 103/4 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a high-performance connection solution designed for demanding industrial environments. Featuring an M12 standard, female, straight, 5-pin, B-coded design, this cordset ensures robust and reliable data transmission. Its black body provides a professional look, and it is rated for 50 V AC / 60 V DC and a current of up to 4 A, making it suitable for various applications. The cordset is shielded to minimize electromagnetic interference, ensuring data integrity in high-noise environments.
This cordset includes a violet PUR cable, which is resistant to chemicals, oils, and microbes, and exhibits excellent flexibility even in extreme temperatures ranging from -25 °C to +80 °C. With a diameter of 7.60 mm and 2-wires of 0.34 mm², the cordset supports stable PROFIBUS data transmission. The product’s robust design, featuring a TPU molded body and nickel-plated CuZn contacts, contributes to a long-lasting and reliable connection.
Ideal for automation and control systems, the PROFIBUS Data Single-Ended Cordset is suitable for applications that demand high data transmission standards. Its compatibility with the Hirschmann/Lumberg Automation connectors and compliance with international protection degrees (IP65 and IP67) make it highly versatile and reliable for various industrial settings.
€43.86
per item
0975 254 103/0,5 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is an essential component in industrial automation, featuring an M12 Standard female connector with a straight design and 5-pin configuration. This connector is B-coded and shielded, ensuring reliable data transmission even in challenging environments. The black body provides durability, while the cordset is rated for operating voltages of 50 V AC and 60 V DC, supporting up to 4 A. Constructed with a PUR violet cable, the cordset contains two wires with a conductor size of 0.34 mm². The cable offers excellent flexibility and durability, withstanding temperatures from -25°C to +80°C, and it is both halogen-free and flame retardant according to multiple international standards. Ideal for PROFIBUS data transmission, it is RoHS compliant and designed with robust CuZn and TPU materials. The overall shielding and high insulation resistance protect against electromagnetic interference, making it suitable for a range of industrial scenarios.
€29.36
per item
0975 254 103/1,5 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed for robust and reliable fieldbus connections. Featuring an M12 Standard connector that is female, straight, and 5-pin with B-coding, this cordset is shielded for improved signal integrity. The black body and nickel-plated coupling nut ensure durability in industrial environments. Rated for 50 V AC / 60 V DC and 4 A, the cordset includes a PUR violet cable with 2-wires of 0.34 mm² each, offering notable flexibility and resilience. Key specifications include an operating temperature range from -25 °C to +80 °C, contact resistance ≤ 10 mOhm, insulation resistance ˃ 10^9 Ohm, and IP65/IP67 protection degree when connected properly. It meets the IEC 61076-2-101 design standard and is RoHS compliant.
€33.19
per item
0975 254 103/2 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed with an M12 Standard, female connector, featuring a straight design and five pins with B-coding. The shielded connection ensures secure data transmission, suitable for 50 V AC or 60 V DC with a rated current of 4 A. This cordset is encased in a robust PUR violet cable, providing excellent durability and flexibility. Thanks to its quality construction, it offers insulation resistance of over 10^9 Ohm and operates reliably in temperatures between -25 °C to +80 °C. The product adheres to IP65 and IP67 protection standards, making it suitable for various industrial environments.
€35.07
per item
0975 254 103/5 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a top-quality connector that integrates advanced industrial connectivity features. It adheres to the M12 standard with a straight female connector comprising 5 pins, B-coded, and shielding for enhanced signal integrity. This connector supports a voltage capacity of 50 V AC or 60 V DC and can handle a current of up to 4 A. The robust construction features a black body and a coupling nut for secure attachment, ensuring durability and reliable connections even under challenging conditions. Furthermore, its operating temperature range from -25 °C to +80 °C makes it suitable for a wide array of environments. The cordset boasts a high level of resistance, with an IP65/IP67 rating providing excellent protection against dust and water ingress. Additionally, the PUR violet cable with two 0.34 mm² wires ensures minimal signal loss and high flexibility. Key applications include industrial automation, data transmission within PROFIBUS systems, and other environments requiring secure, high-performance connectivity solutions.
€46.44
per item
0975 254 103/3 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed for reliable and efficient data transmission in industrial environments. Featuring an M12 standard interface, this cordset has a 5-pin, B-coded, shielded, female connector with a straight design. The robust connector withstands up to 50 V AC or 60 V DC and supports a current of up to 4A. It is coupled with a durable PUR violet cable, consisting of 2-wires with a cross-sectional area of 0.34 mm², ensuring optimal conductivity and transmission efficiency.
This cordset offers several benefits including enhanced shielding for noise immunity, high resistance to environmental factors, and durability across a wide temperature range (-25°C to +80°C). The black body and nickel-plated coupling nut provide mechanical strength and corrosion resistance, granting the cordset a long service life.
Applications of the PROFIBUS Data Single-Ended Cordset span various industrial automation systems where reliable data communication is essential. It is ideal for settings where data integrity and resistance to harsh conditions are critical, such as manufacturing plants, assembly lines, and automated processing units.
€40.01
per item
0975 254 103/1 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is a high-quality connector designed for robust data transmission. This cordset features a M12 standard, female, straight, 5-pin connector that is B-coded and shielded. The black body of the connector is rated for 50 V AC / 60 V DC, with a current rating of 4A. The cordset is equipped with a durable PUR violet cable that contains 2 wires of 0.34 mm² each. With its protective shielding, this cordset ensures reliable data transmission with minimal interference. The connector is capable of withstanding ambient temperatures ranging from -25 °C to +80 °C and offers a high degree of protection with IP65 and IP67 ratings, making it ideal for use in demanding industrial environments. The PROFIBUS data transmission functionality ensures compatibility with industry-standard communication protocols, making it a versatile choice for various applications in automation and control systems.
€31.27
per item
0975 254 103/50 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset is designed to provide reliable data connections in industrial environments. It features an M12 standard female connector, straight design with 5 pins and B-coding, and a shielded black body. Operating at 50 V AC / 60 V DC with a rated current of 4 A, it ensures high-performance data transmission. The PUR violet cable has two wires with a cross-section of 0.34 mm², offering excellent resistance to chemicals, oil, and microbes, as well as flexibility in cold conditions. The cordset is suitable for use in demanding applications where reliable data communication is critical.
€234.37
per item
0975 254 103/40 M
PROFIBUS Data Single-Ended Cordset
The PROFIBUS Data Single-Ended Cordset with M12 Standard features a female, straight, 5-pin, B-coded connector. Designed for optimal performance, it is shielded to reduce electromagnetic interference and is rated at 50 V AC / 60 V DC with a current capacity of 4 A. The robust black body and nickel-plated attachment ensure durability. Its PUR violet cable, equipped with 2 wires of 0.34 mm² each, provides excellent flexibility and resistance to chemicals, oils, and environmental elements. Suitable for industrial environments, it supports reliable data transmission for PROFIBUS applications and complies with high safety and environmental standards.
€193.00
per item
